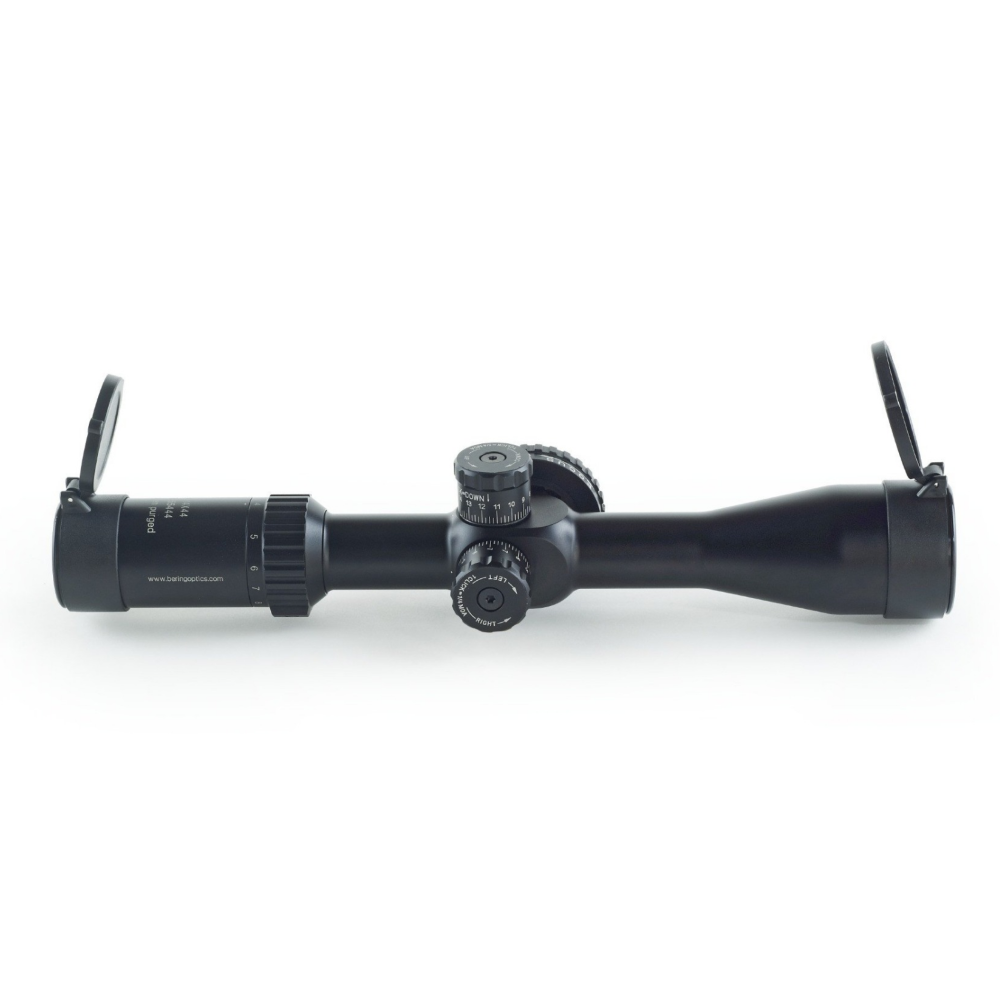

ACE Telescopic Sight 4-14×44 with side focus parallax correction wheel and sun shade
The Ace models are built with high quality optics that provide sharp and high resolution viewing in various conditions. The fully multi-coated optics with green tint was designed to improve the light transmission coefficient in order to achieve a brighter, clearer image in sunset or sunrise environment. The robust d30mm mono-tube scope body is milled from one solid piece of aircraft aluminum and finished in matte black to prevent undesirable reflections.
The sights feature illuminated switchable reticle, red or green, with five brightness settings. The sights may be used without a battery. The reticle is black in off position. The Ace sights have a side focus parallax adjustment mechanism that allows parallax correction from 10 yards (meters). The parallax correction wheel is included with the sight to make the adjustment precise and convenient. The parallax correction wheel has specially designed grooves to avoid off-set positions when it is set up and in use.
All adjustment mechanisms such as focus, windage and elevation have been perfected to have smooth and pleasant action to make the sights use satisfactory. Optional accessory includes a 3″ (77mm) sunshade BE55901 to prevent glare in sun bright conditions.
– Nitrogen purged
– Solid one piece d30mm mono-tube construction
– Fast-Focus ocular adjustment
– Fully multicoated optics
– Zero reset turrets
-Locking tactical style turrets
Specifications
| Product Modification |
4-14×44 |
10×42 |
| Model |
BE55444 |
BE55142 |
| Magnification, x |
4-14x |
10x |
| Objective lens diameter, mm |
44 |
42 |
| FOV at a distance 100 yards / 100m, yard/m |
8.5-2.7 / 8.6-3 |
4 / 4.4 |
| Eye relief distance, mm |
95 – 78 |
78 |
| Diopter adjustment, D |
+ 3 |
|
| Exit pupil, mm |
11 – 3 |
4.2 |
| Focus range, approx., yard/m |
10 / 9 to infinity |
|
| Light transmission coefficient, % |
81% |
82% |
| Reticle type |
MIL-Dot illuminated |
SIR illuminated |
| Reticle color |
Red / Green / Black |
|
| Reticle windage / elevation adjustment range |
+ 30MOA |
|
| Reticle windage / elevation adjustment at a distance 100 yards / 90m |
¼ MOA per click |
|
| Scope tube diameter, in/mm |
1.18” / 30 |
|
| Overall dimensions w/out a blend, in/mm |
13.2”x2.4”x3.5” / 335x61x89 |
13.43”x2.4”x3.5” / 341x61x89 |
| Scope weight, oz/g |
24 / 680 |
22.4 / 635 |
| Side focus parallax correction wheel, in/mm |
2.28” / 58 |
|
| Length with the lens sunshade, in/mm |
16.22” / 412 |
16.46” / 418 |
| Mounting length, in/mm |
5.67” / 144 |
6.3” / 160 |
| Power supply |
CR2032 or DL2032 or ECR2032 3V battery (one) |
|
| Estimated battery life, hour |
300 |
|
| Operating temperature, °F/°С |
-22 to +122 / -30 to +50 |
|
| Water intrusion |
Meets IPX4 rating |
|
| Humidity, % |
to 93% |
|
