Hawke VANTAGE 30 WA FFP 4-16×50 Half Mil Dot IR Reticle Riflescope

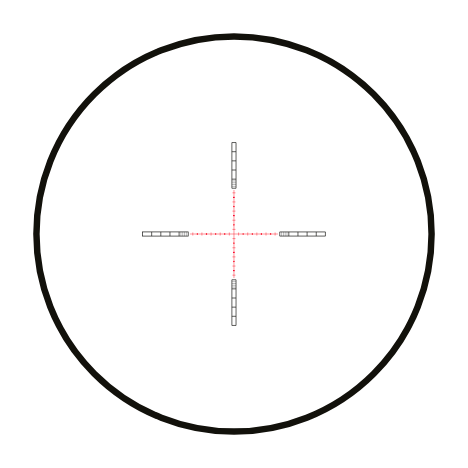

FFP Half Mil Dot Reticle
The FFP Half Mil Dot reticle was developed specifically for first focal plane optical systems and based around the common principles of mil spaced reticles. With half mil spaced markings out beyond 5 mil in all directions, the FFP Half Mil Dot is a versatile reticle that provides aim points no matter how extreme the conditions.
Hollow posts are segmented into mil spacing and 0.2 mil spacings, so can be used for bracketing and rangefinding.
The mil spaced reticle and 1/10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 mil spacing on the reticle, also known as 1 MRAD. Because of FFP this is true on all magnifications.
FEATURES:
- Exposed Locking Turrets
- First Focal Plane (FFP)
- 30mm Mono-Tube Chassis
- Wide Angle
- Side Focus
- Illumination
- 11 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell

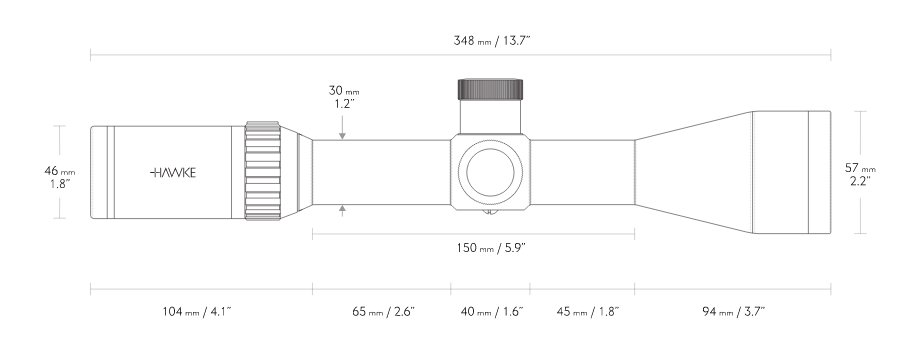

| Length |
348mm |
13.7″ |
| Weight |
745g |
26.3oz |
| Eye relief: |
90mm |
3.5″ |
| Focus/Parallax – Side Focus |
9m – ∞ |
10yds – ∞ |
| Field of View: |
14.6 – 3.6m @100m |
32.5 – 8.1ft @100yds |
| Exit Pupil: |
12.5-3.1mm |
0.49-0.12″ |
| Chassis |
30mm Mono-tube |
|
| Optical System |
4-16× |
|
| Objective |
50mm |
|
| Illumination |
Red / Green |
|
| Reticle |
FFP Half Mil Dot |
|
| Elevation Increment |
1⁄10 MRAD |
|
| Elevation Adjustment Range: |
26 MRAD |
|
| Windage Increment |
1⁄10 MRAD |
|
| Windage Adjustment Range |
26 MRAD |
|
| Material |
Aluminium |
|
| Ocular Type |
Fast Focus |
|
| Lens Coating |
Fully Multi-Coated – 11 Layers |
|
| Power Selector Style |
Knurled Posi-Grip |
|
| Focal Plane |
First Focal Plane (FFP) |
|
| Turret Caps |
No |
|
| Turret Type |
Exposed, Locking |
|
