OPTICAL FEATURES

APO System
Apochromatic objective lens system uses index-matched lenses to correct color across the entire visual spectrum.

Optically Indexed Lenses
Optimize image sharpness and brightness from edge to edge.

HD Lens Elements
Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images.

XR Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

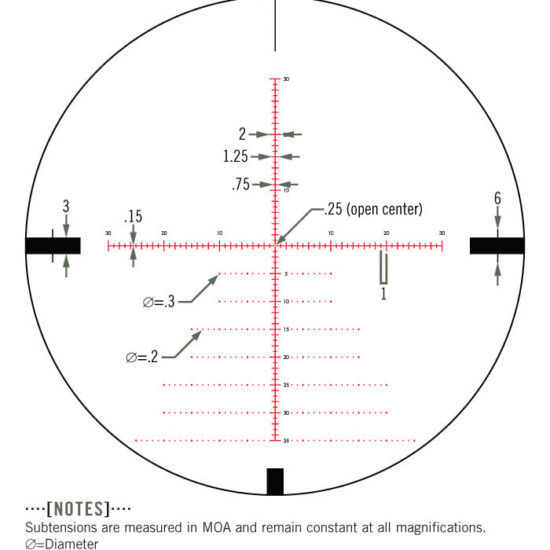

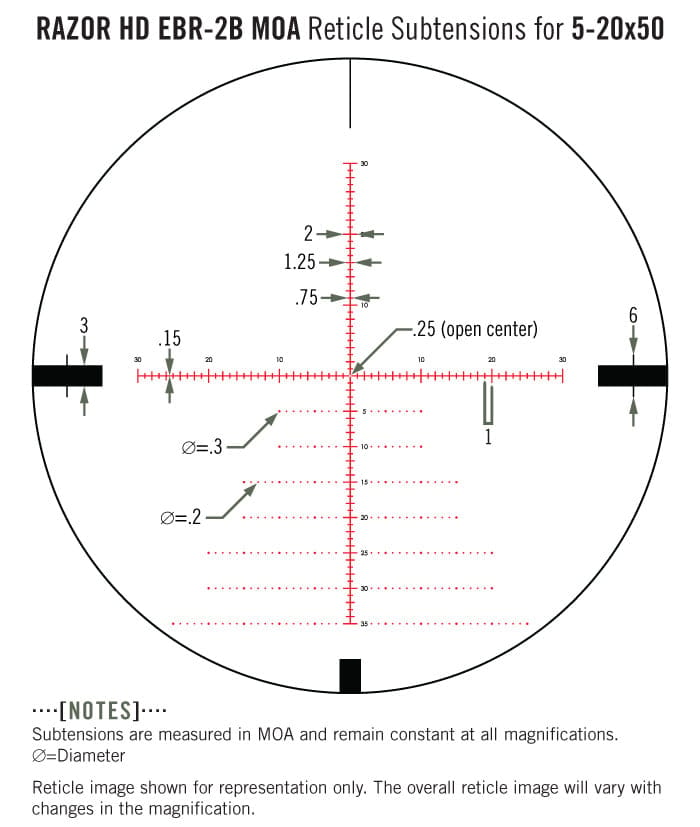

First Focal Plane Reticle
Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.

Glass-etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.

Illuminated Reticle
Provides precise aiming under low-light conditions.

CONSTRUCTION FEATURES

Tube Size
35 mm diameter provides maximized internal adjustment and strength.

Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.

Waterproof
O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.

Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.

Shockproof
Rugged construction withstands recoil and impact.

Hard Anodized Stealth Shadow Finish
Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter’s position.

ArmorTek
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

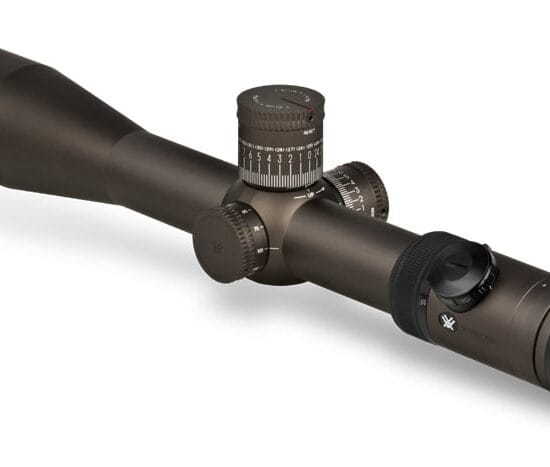

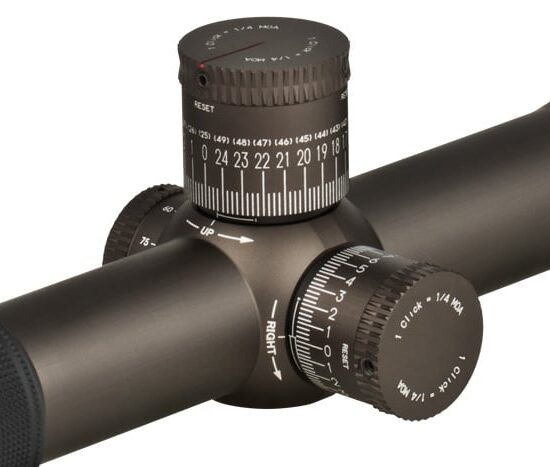

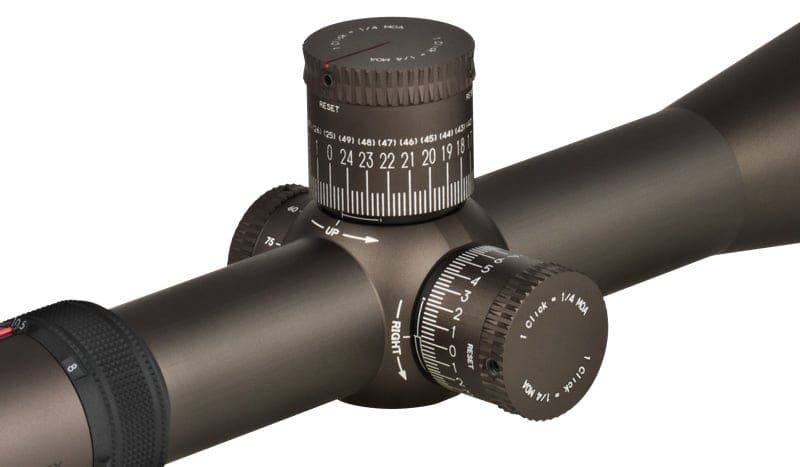

Exposed Tactical-Style Turrets
Provide fast, accurate and easily read elevation and windage adjustments.

Side Focus
Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.

INTERNAL MECHANISM DESIGN FEATURES

RZR Zero Stop
Rapid Zero Return (RZR) feature stops the turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials—even when setting the zero-stop position. US Patent 8,166,696 B2

Friction Reduction System
Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability. US Patent 7,958,665

Turret Screws
Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments.

Erector Tube System
Precision-machined from premium brass alloy with anti-galling properties for strength and durability. The chromium vanadium erector spring withstands compression, has high fatigue resistance and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments.

CONVENIENCE FEATURES

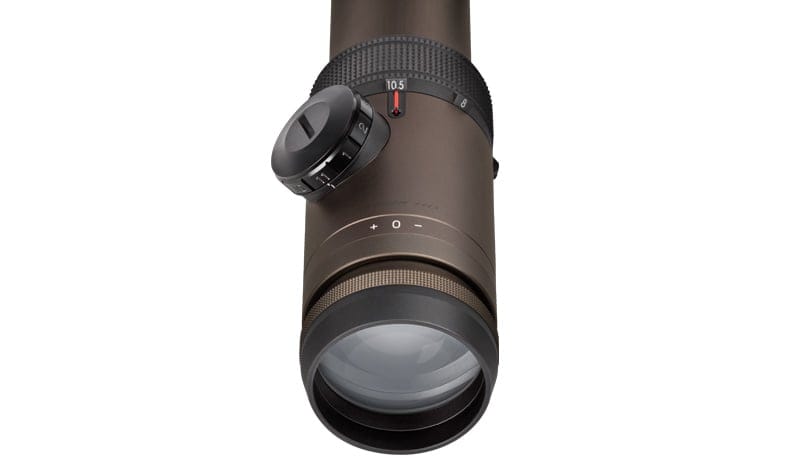

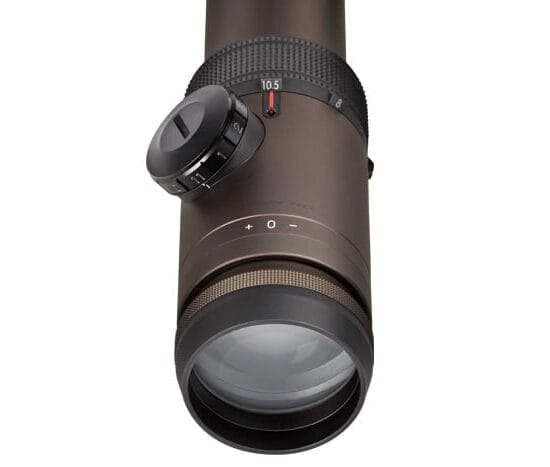

MAG-View Fiber Optic
Provides a highly visible reference point for the magnification setting.

Radius Bar
Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations. US Patent 7,937,879

Fast Focus Eyepiece
Allows quick and easy reticle focusing.
