| Brand New In Stock , ready to ship 1 Unit Available |
|---|

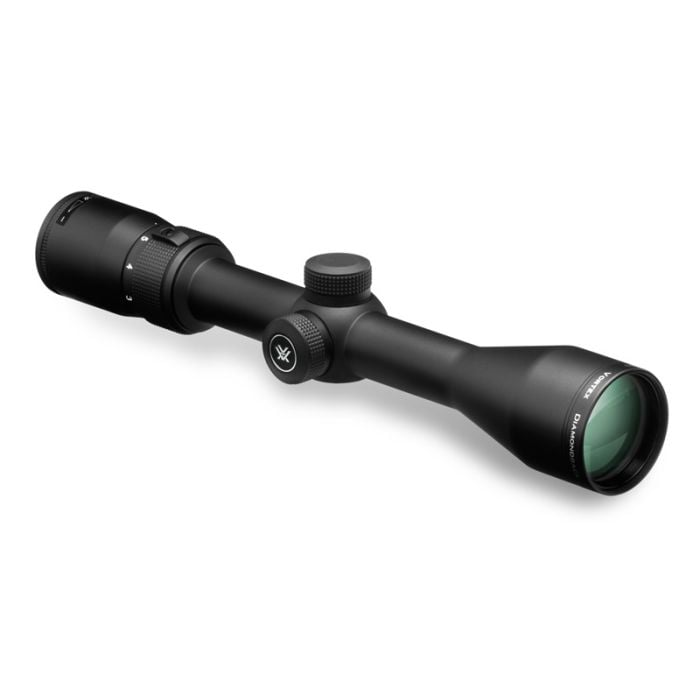

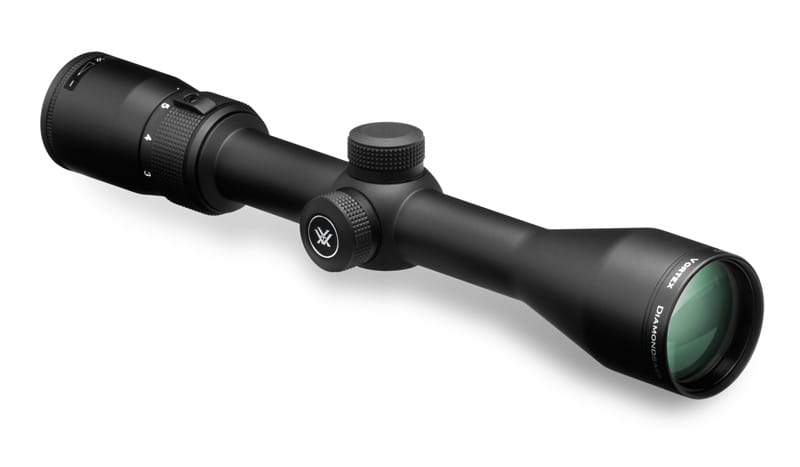

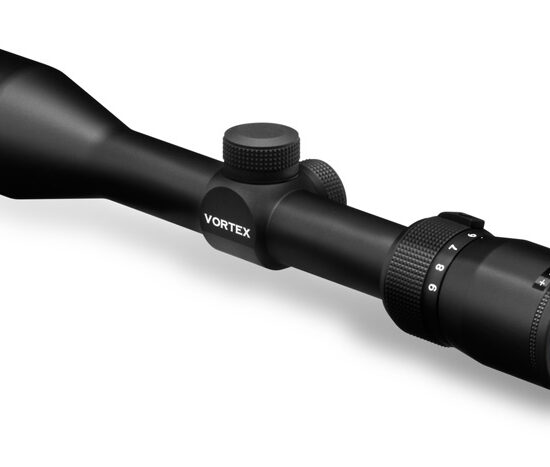

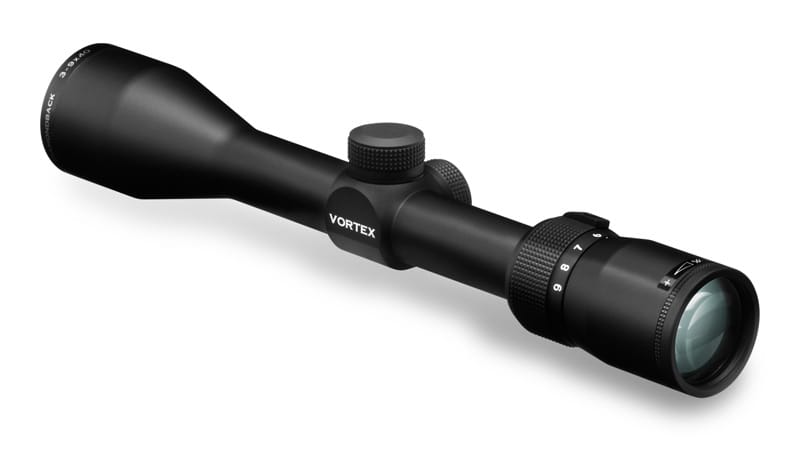

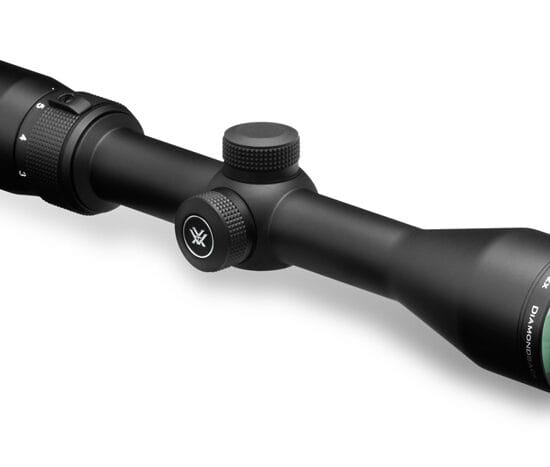

Vortex Diamondback riflescopes are considered to be one of the most popular hunting scopes. One-piece construction makes the Diamondback tough, recoil-resistant and improves alignment accuracy. Fog proofing and waterproofing allow this scope to be used under various weather conditions. Adjustable objective (AO) allows maximum precision on small targets. 3–9×40 riflescope is ideal for big game, predator/varmint, muzzleloader, slug shotgun, long range, and target applications.
A popular all-purpose hunting reticle intended for a wide variety of hunting applications.
-5%
Did you know?
Financing options are available at checkout!
Fully Multi-Coated
Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle
The reticle maintains the same ideally sized appearance throughout the magnification range.
OPTICAL FEATURES

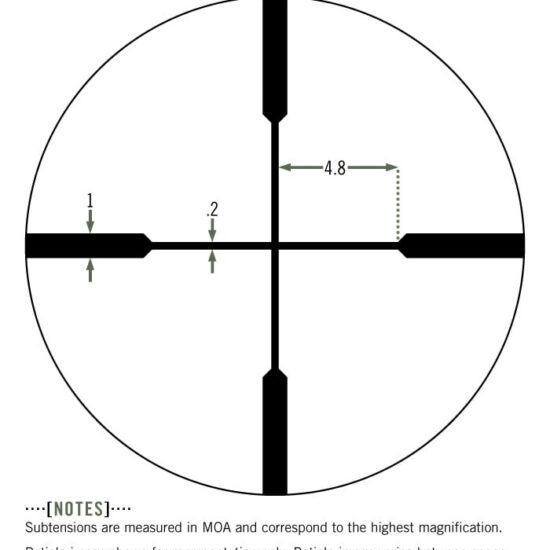

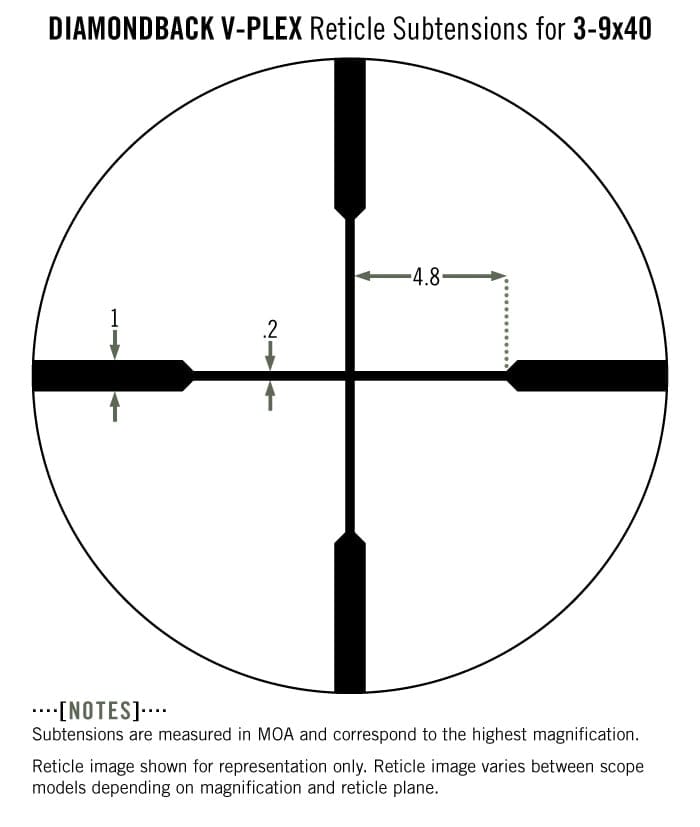

Reticle Subtensions
Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Tube Size
1-inch diameter.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Hard Anodized Finish
Highly durable, low-glare matte finish helps camouflage the shooter’s position.
Precision-Glide Erector System
Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

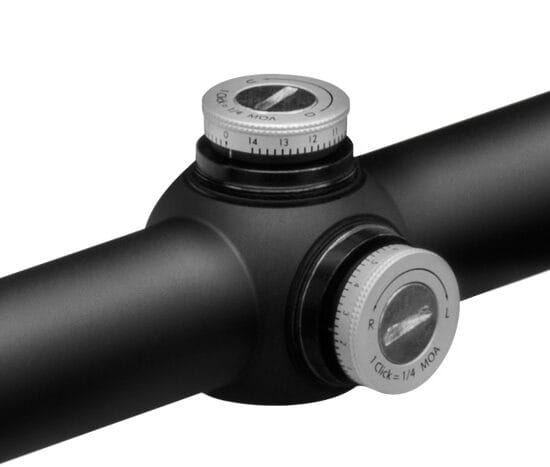

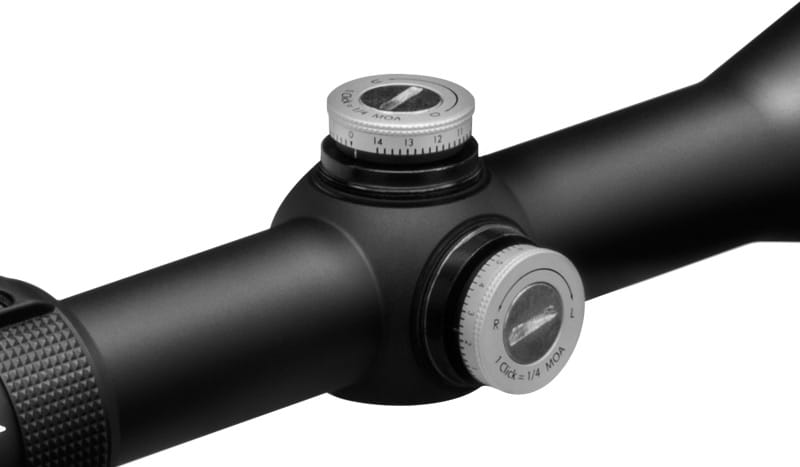

Capped Reset Turrets
Allow re-indexing of the turret to zero after sighting in the riflescope.

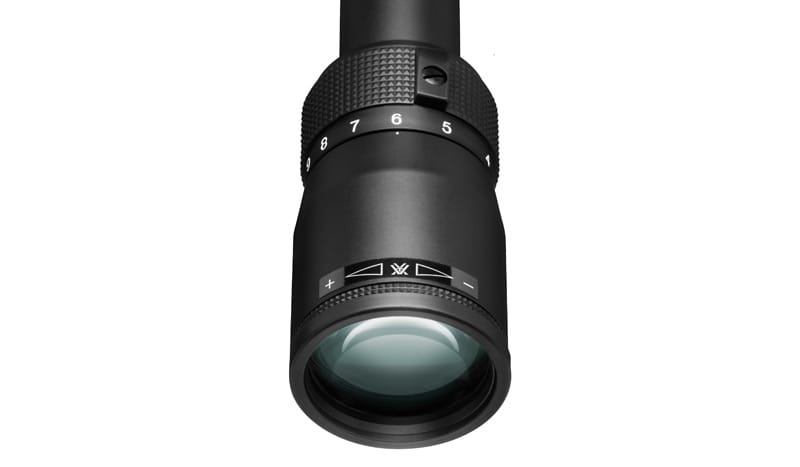

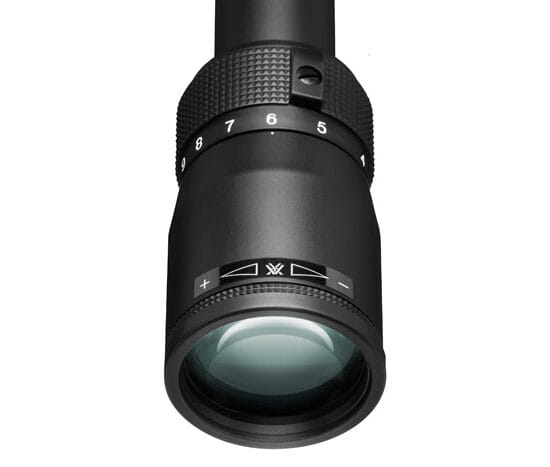

Adjustable Objective
Adjustment for the riflescope’s objective lens provides image focus and parallax removal.
CONSTRUCTION FEATURES
Single-Piece Tube
Maximizes alignment for improved accuracy and optimal visual performance while ensuring strength and waterproofness. Caps provide external protection for the turrets.
Precision-Glide Erector System
Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
INTERNAL MECHANISM DESIGN FEATURES
Fast Focus EyepieceAllows quick and easy reticle focusing.
CONVENIENCE FEATURES
| Magnification | 3-9 x |
|---|---|
| Objective Lens Diameter | 40 mm |
| Eye Relief | 3.3 inches |
| Field of View | 44.6-14.8 feet/100 yards |
| Tube Size | 1 inch |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel per Rotation | 15 MOA |
| Max Elevation Adjustment | 70 MOA |
| Max Windage Adjustment | 70 MOA |
| Parallax Setting | 100 yards |
| Length | 11.7 inches |
| Weight | 14.4 ounces |
| Attributes | Value |
|---|---|
| Weight | 5 lbs |
| Generation | |
| Is Accessory |
No |
| Refresh Rate | |
| Sensor Resolution | |
| Warranty | |
| Condition |
New |
