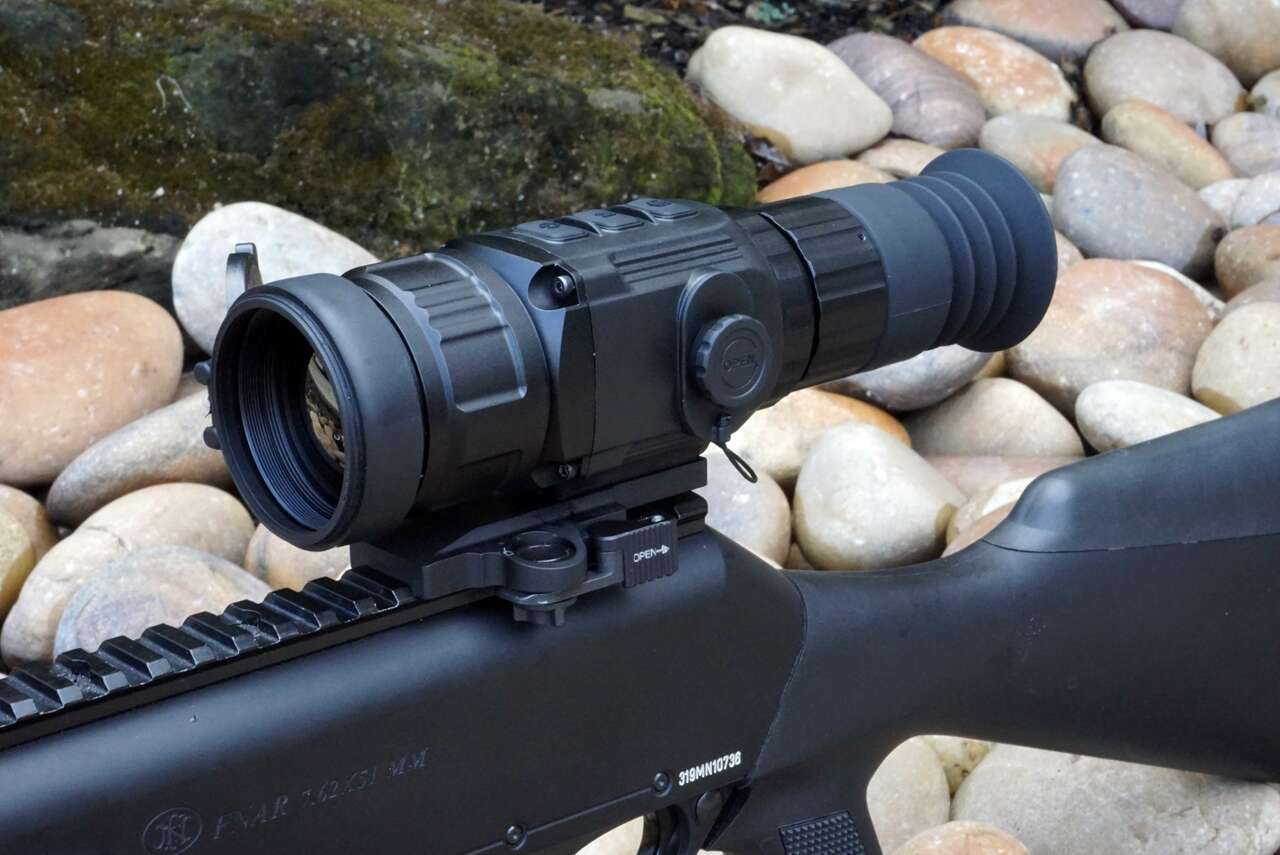

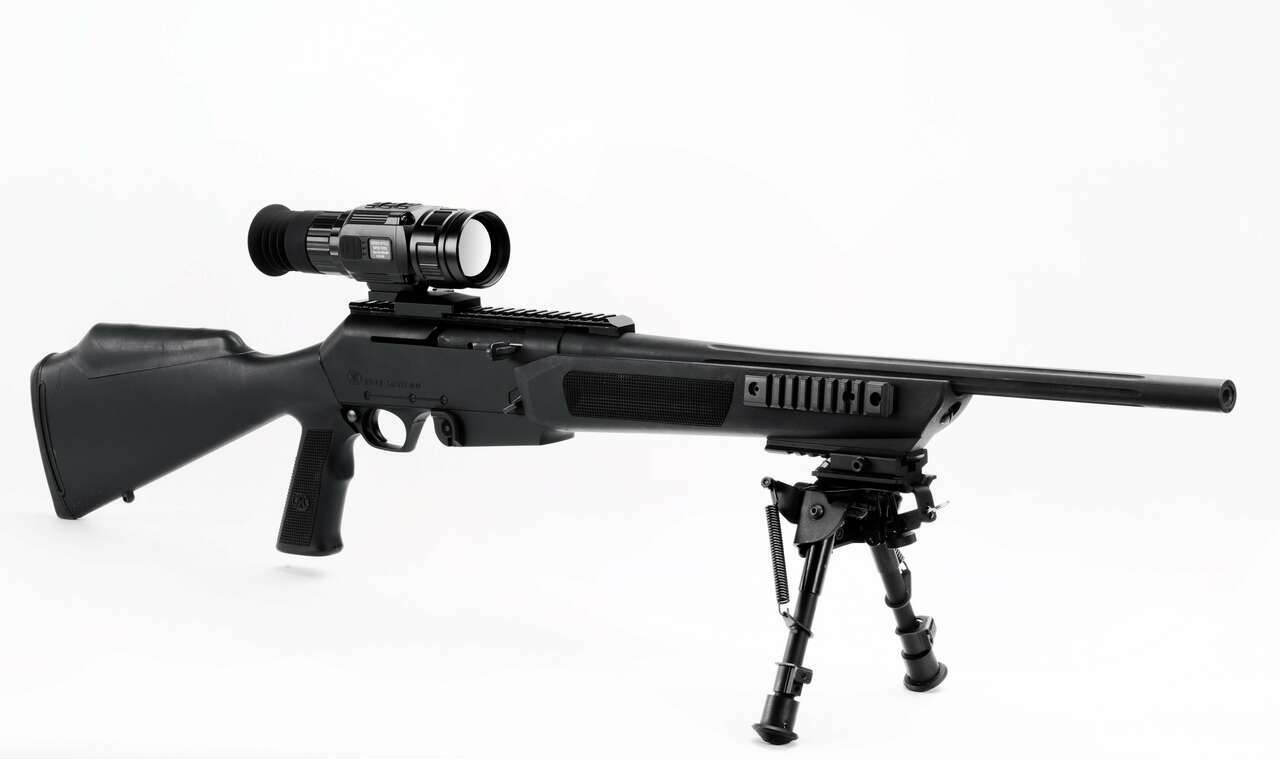

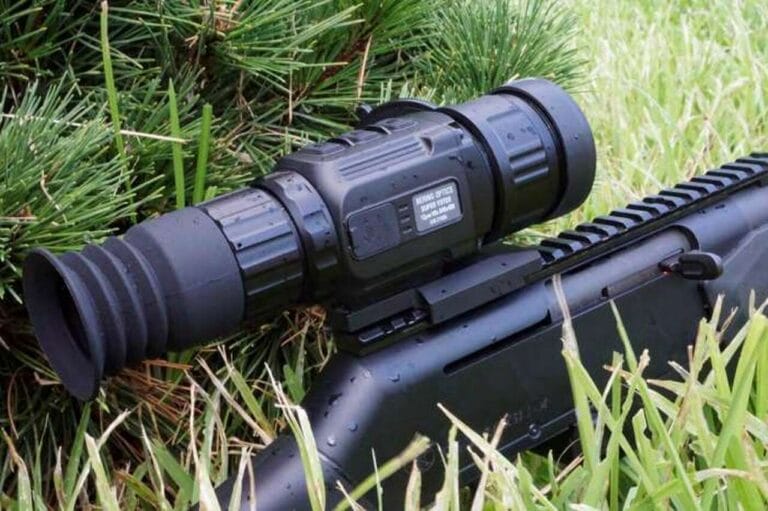

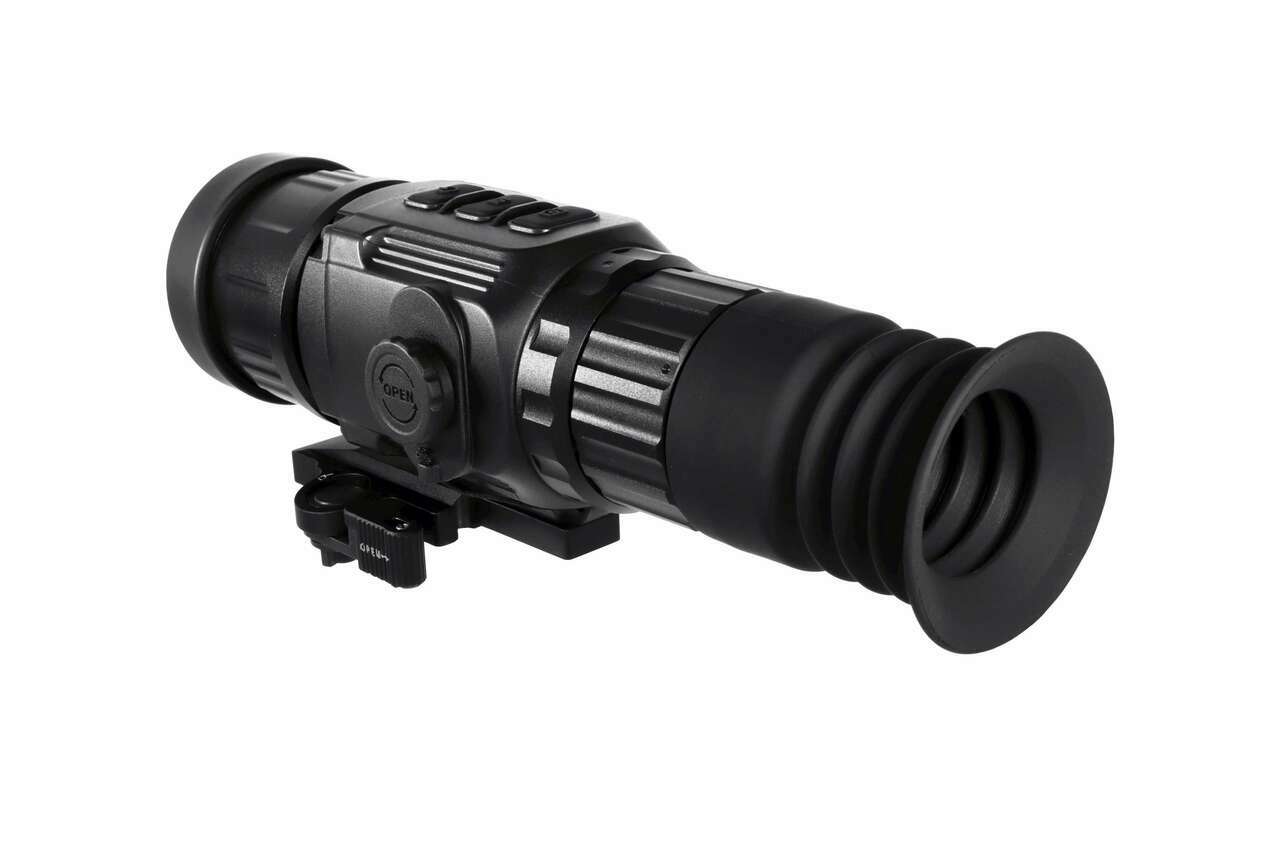

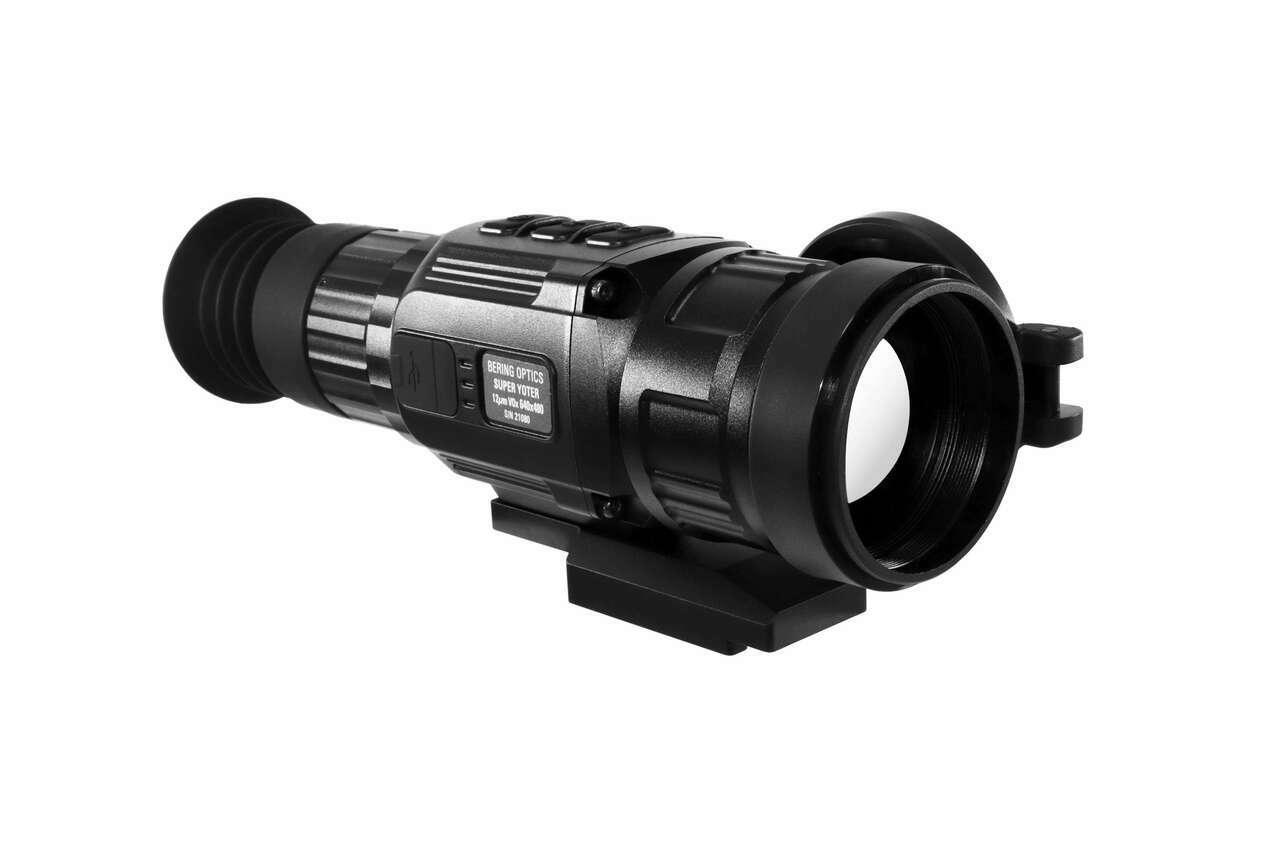

The Bering Optics SUPER YOTER R™ Thermal Weapon Sight features the advanced 12μm Vanadium Oxide (VOx) 640x480 core resolution with 50Hz refresh rate that makes the scope ideal for predator control at medium- and long-range distances. This Thermal Scope has 3 modifications with native magnification of 3.0x (BE46050L), 2.0x (BE46035/BE46035L) and 1.5x (BE46025/BE46025L) with digital zoom of 2X, 4X. The wide range of controls and capabilities allow the user to adapt the scope to various conditions and personal preferences. There are 8 reticle patterns including 3 BDC reticles, along with four color options for each reticle pattern. The sight operation is controlled with three buttons allowing easy selection of the options.
A unique adjustable Stradiametric Rangefinder can be set to the height of the animals, thus increasing the overall usefulness of this feature. Other useful features of the SUPER YOTER R™ is a wide selection of the image adjustment options as well as the image background adjustment and calibration. The SUPER YOTER R™ is nitrogen-purged, is water-, dust- and shock-proof and shock-rated for .338 Win Mag., 30-06 Spring Mag. The SUPER YOTER R™ is action ready in any environment or light conditions, including conditions when the environmental obscurants such as smoke, dust, haze, are present
Features
- Superior for predator control at medium- and long-range distances
- Excellent performer in high humidity conditions
- Picture-in-Picture function- 2X multiplied image on a top of the display
- Automatic shatter based thermal VOx core with Auto- or Manual calibration
- Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot
- 8 reticle patterns including 3 BDC reticles
- 4 color options for each reticle pattern
- Precise W/E adjustment increments is 0.54” at 1X (native magnification) and just 0.14” at 4X multiplied image for BE46050L model
- Manual control of the image sharpness and screen brightness
- Manual control of the contrast
- Manual control of the image background balance of white (Cool or Warm)
- Ability to save 4 profiles of zeroing calibration data
- Stradiametric Rangefinder function to estimate the distance to the targets of manually adjustable target’s height
- A precise lens focusing mechanism
- 5V DC external power supply option via a Type-C USB port
- Blind Pixel repair tool
- Standby mode
- Digital Compass
- Inclinometer
- Battery status indicator
- Nitrogen purged
- Video out
- 32Gb internal memory
- Built-in internal recording function in .mp4 (video) and .jpeg (image) formats
- Wi-Fi capable- allows media recording to the mobile device (iOS or Android App is required)
- Quick-Detach (QD) Picatinny mount (BE46025/BE46035)

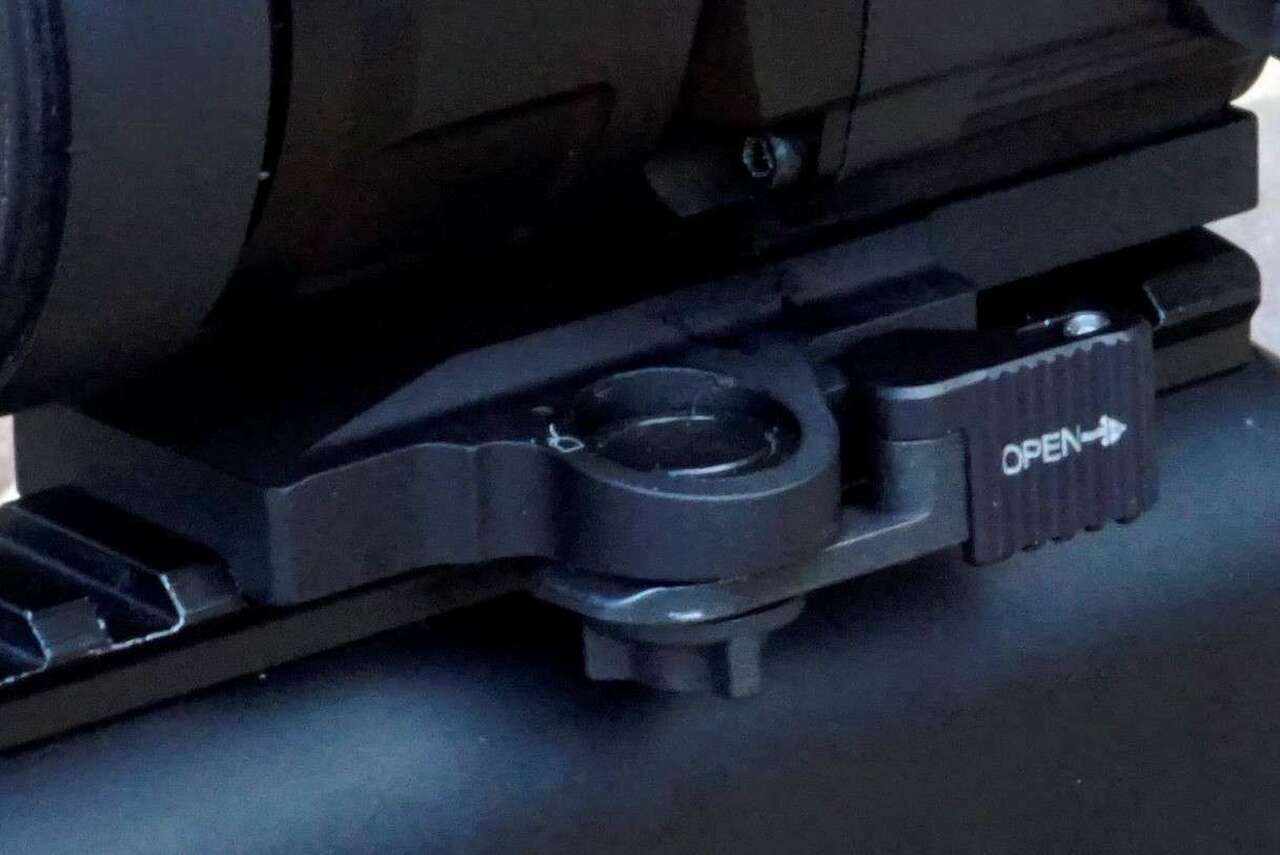

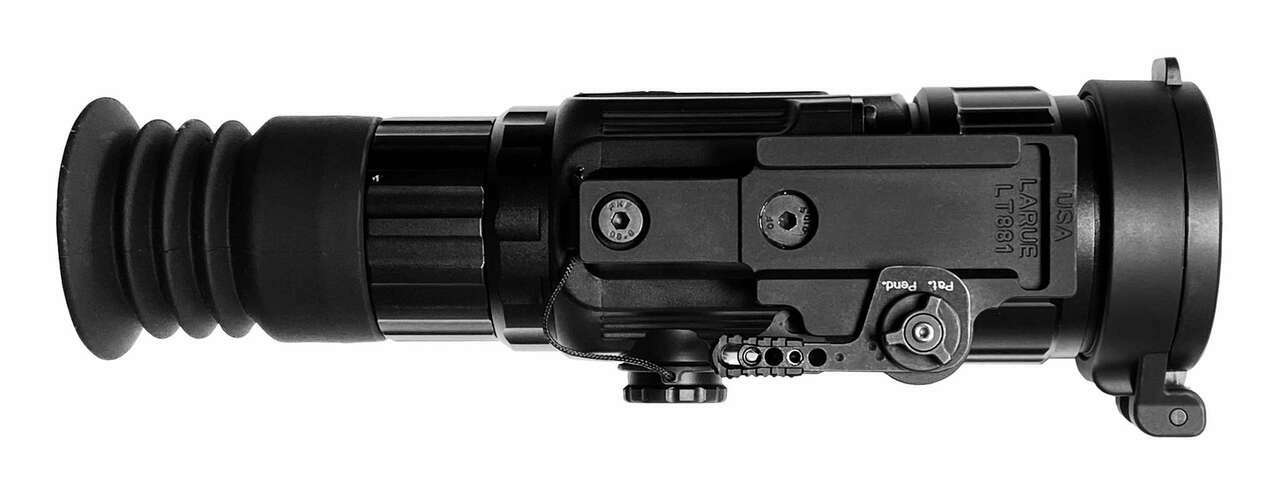

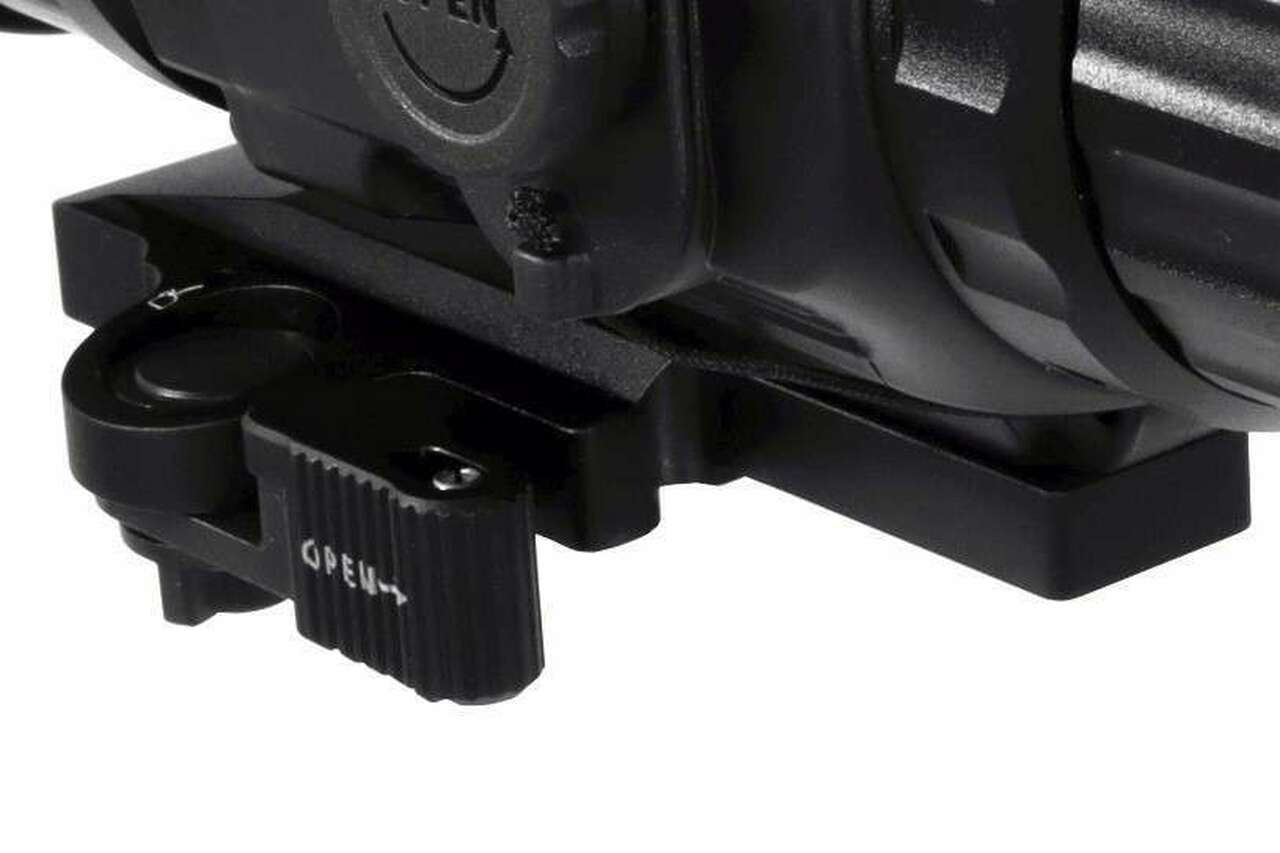

- LaRue Tactical® Quick-Detach (QD) lockable mount (BE46025L/BE46035L/BE46050L)
- 4 years warranty on parts and labor
Optical Magnification, x | 2x |
Digital Multiplication | 2X, 4X |
Objective Lens system | 35mmF/1.0 |
Angular FOV at Optical Magnification | H 11° x V 8° |
(Horizontal x Vertical), degrees | |
Linear FOV at Optical Magnification at 100yards | H x V |
(Horizontal x Vertical), approx., yd/m | |
Eye relief, mm | 46 |
Focus range, yard1 | to infinity |
Diopter Adjustment, D | -5; +5 |
Reticle W/E adjustment increments per pxl | 0.54” at 1X (3.0x magnification) |
0.14” at 4X multiplication | |
Core resolution, pxl | 640 x 480 |
Pixel pitch, µm | 12um |
Start-up time, min., sec. | 20 |
Image refresh rate, Hz | 50Hz |
Thermal Sensitivity (NETD), mK | <40 |
Display type and resolution, pxl | OLED 1024x768 |
Detection Range, (6 ft tall target), approx., yd/m | |
Dimensions, in/mm | 7.8 x 2. 83 x 2. 36 / 200x72x60 |
Weight w/out batteries, but with QD mount, eye cup & lens cover, oz/g | 18 / 510 |
Power supply | 3V CR123 (two) or |
3.7V rechargeable (two) | |
or 5V DC (USB C-type) | |
Estimated battery life, hours | 3.5 from two 3V CR123 |
Operating temperature, typical, °F | -14°F to +122°F |
Water intrusion | IP66 |
Humidity, % | up to 96% |
Warranty | 4 Years |

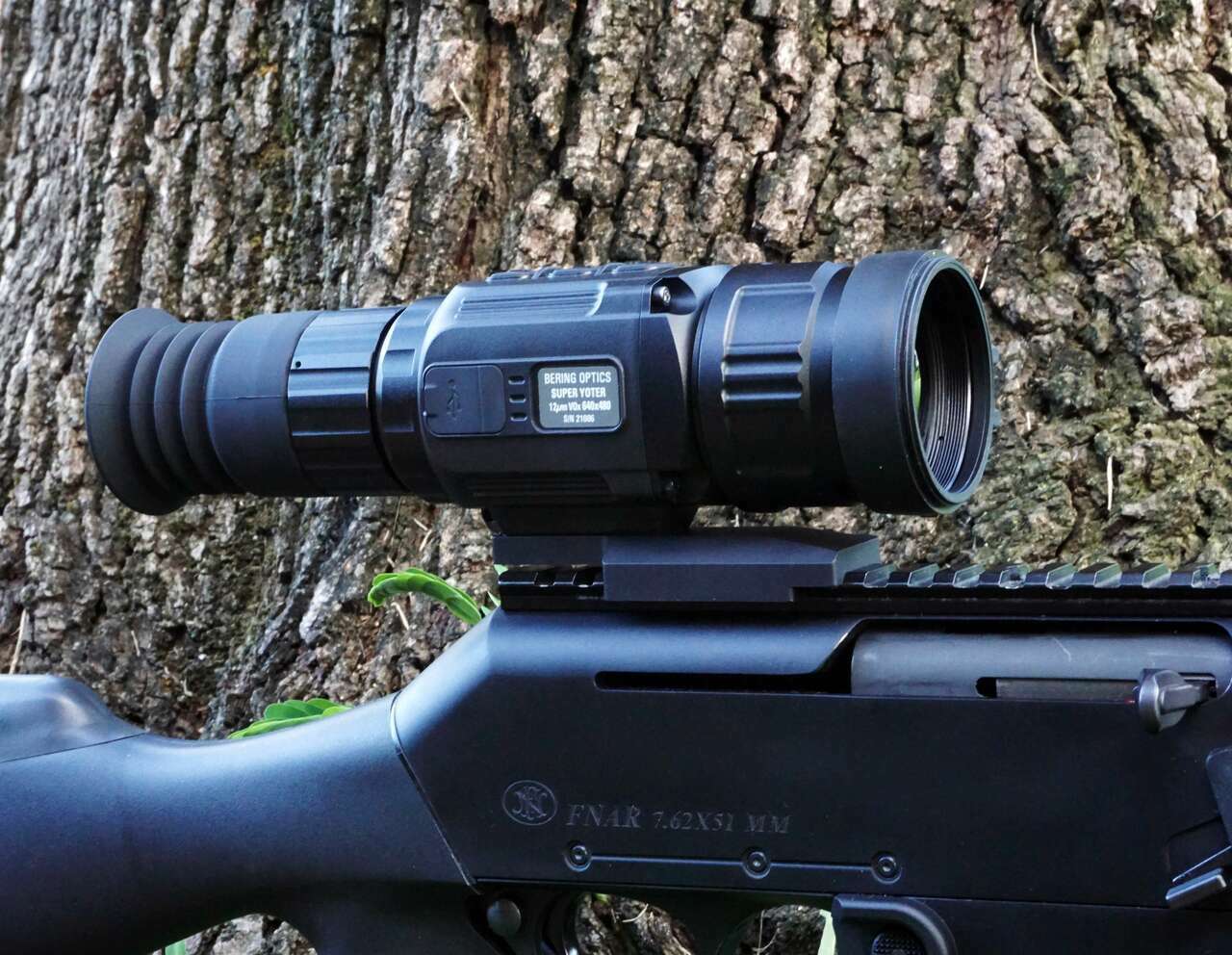

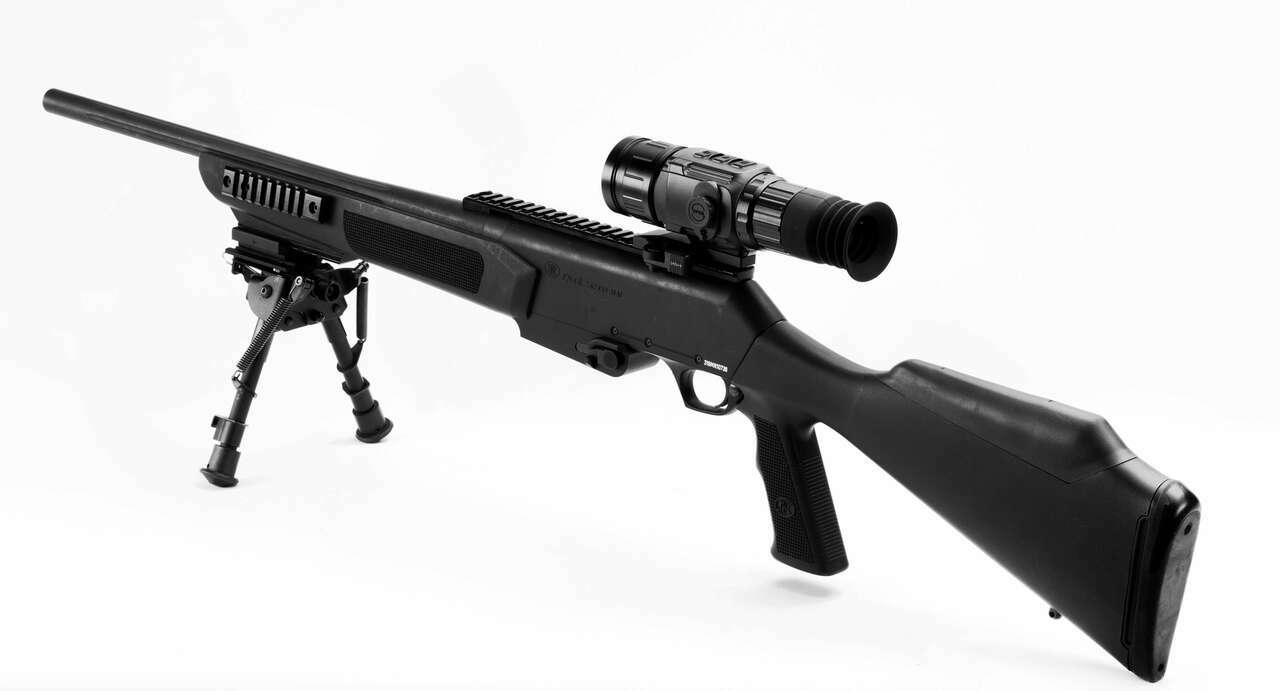

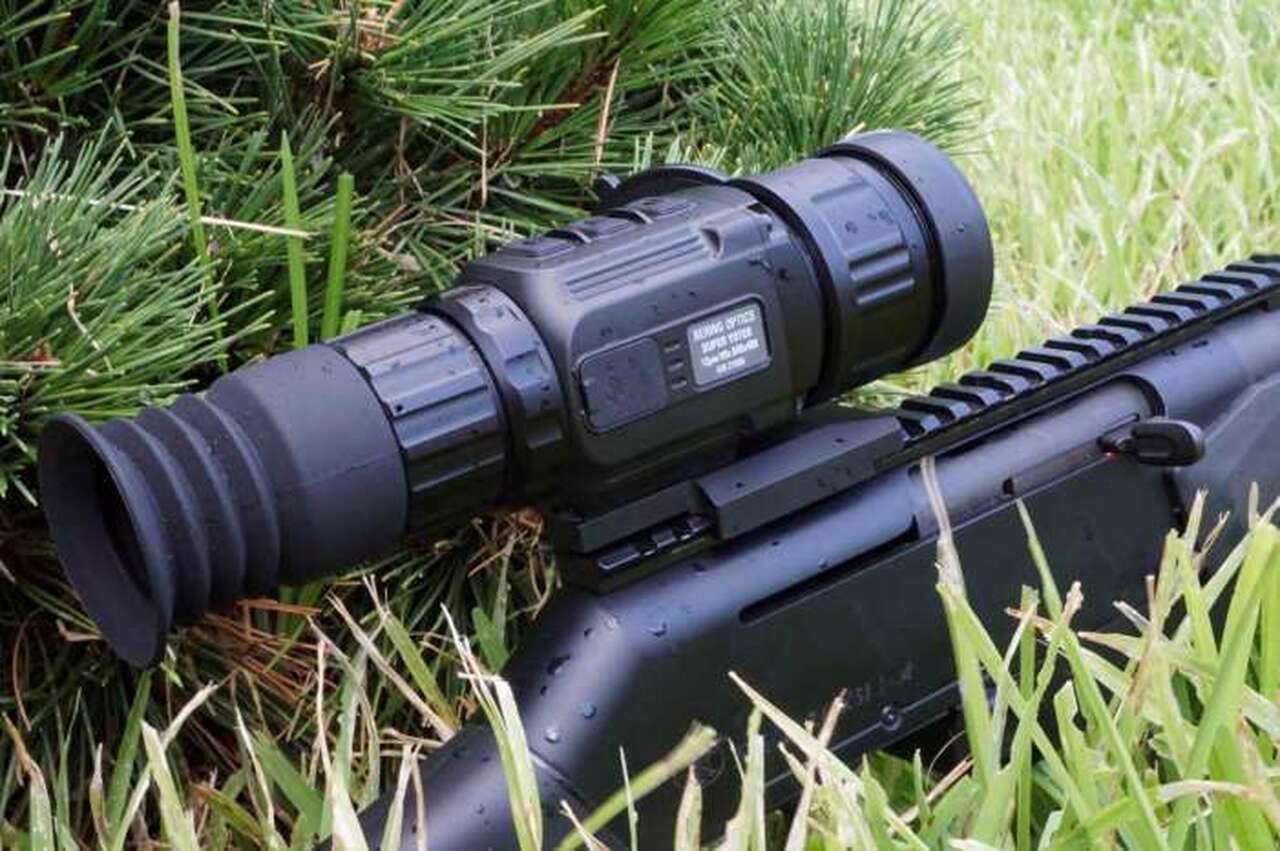

SUPER YOTER R 2.0-8.0x35mm Ultra-Compact Thermal Weapon Sight, VOx 640X480 core resolution, 50Hz refresh rate with a QD mount
The Bering Optics SUPER YOTER R™ Thermal Weapon Sight features the advanced 12μm Vanadium Oxide (VOx) 640x480 core resolution with 50Hz refresh rate that makes the scope ideal for predator control at medium- and long-range distances. This Thermal Scope has 3 modifications with native magnification of 3.0x (BE46050L), 2.0x (BE46035/BE46035L) and 1.5x (BE46025/BE46025L) with digital zoom of 2X, 4X. The wide range of controls and capabilities allow the user to adapt the scope to various conditions and personal preferences. There are 8 reticle patterns including 3 BDC reticles, along with four color options for each reticle pattern. The sight operation is controlled with three buttons allowing easy selection of the options.
A unique adjustable Stradiametric Rangefinder can be set to the height of the animals, thus increasing the overall usefulness of this feature. Other useful features of the SUPER YOTER R™ is a wide selection of the image adjustment options as well as the image background adjustment and calibration. The SUPER YOTER R™ is nitrogen-purged, is water-, dust- and shock-proof and shock-rated for .338 Win Mag., 30-06 Spring Mag. The SUPER YOTER R™ is action ready in any environment or light conditions, including conditions when the environmental obscurants such as smoke, dust, haze, are present
Features
- Superior for predator control at medium- and long-range distances
- Excellent performer in high humidity conditions
- Picture-in-Picture function- 2X multiplied image on a top of the display
- Automatic shatter based thermal VOx core with Auto- or Manual calibration
- Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot
- 8 reticle patterns including 3 BDC reticles
- 4 color options for each reticle pattern
- Precise W/E adjustment increments is 0.54” at 1X (native magnification) and just 0.14” at 4X multiplied image for BE46050L model
- Manual control of the image sharpness and screen brightness
- Manual control of the contrast
- Manual control of the image background balance of white (Cool or Warm)
- Ability to save 4 profiles of zeroing calibration data
- Stradiametric Rangefinder function to estimate the distance to the targets of manually adjustable target’s height
- A precise lens focusing mechanism
- 5V DC external power supply option via a Type-C USB port
- Blind Pixel repair tool
- Standby mode
- Digital Compass
- Inclinometer
- Battery status indicator
- Nitrogen purged
- Video out
- 32Gb internal memory
- Built-in internal recording function in .mp4 (video) and .jpeg (image) formats
- Wi-Fi capable- allows media recording to the mobile device (iOS or Android App is required)
- Quick-Detach (QD) Picatinny mount (BE46025/BE46035)
- LaRue Tactical® Quick-Detach (QD) lockable mount (BE46025L/BE46035L/BE46050L)
- 4 years warranty on parts and labor
