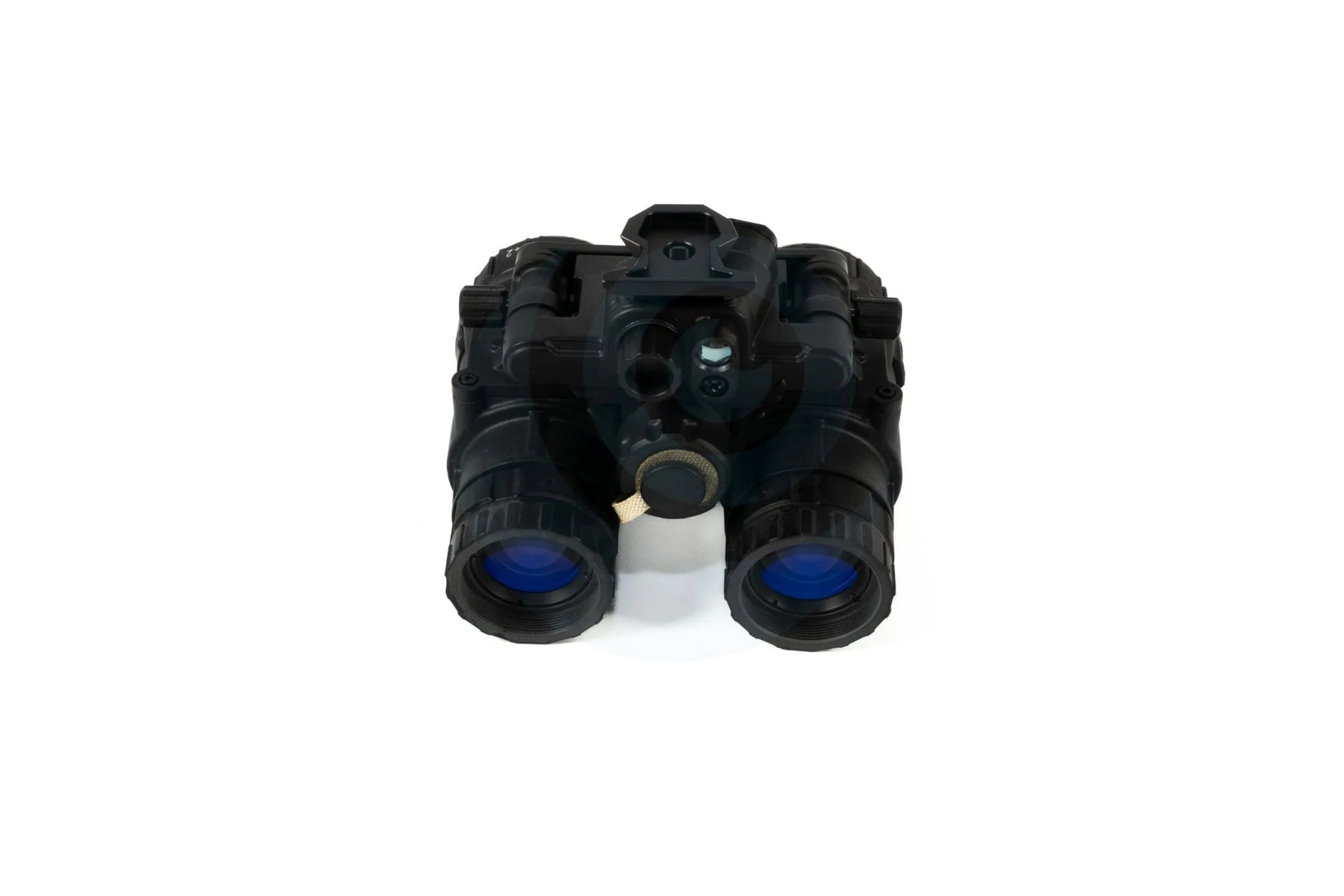

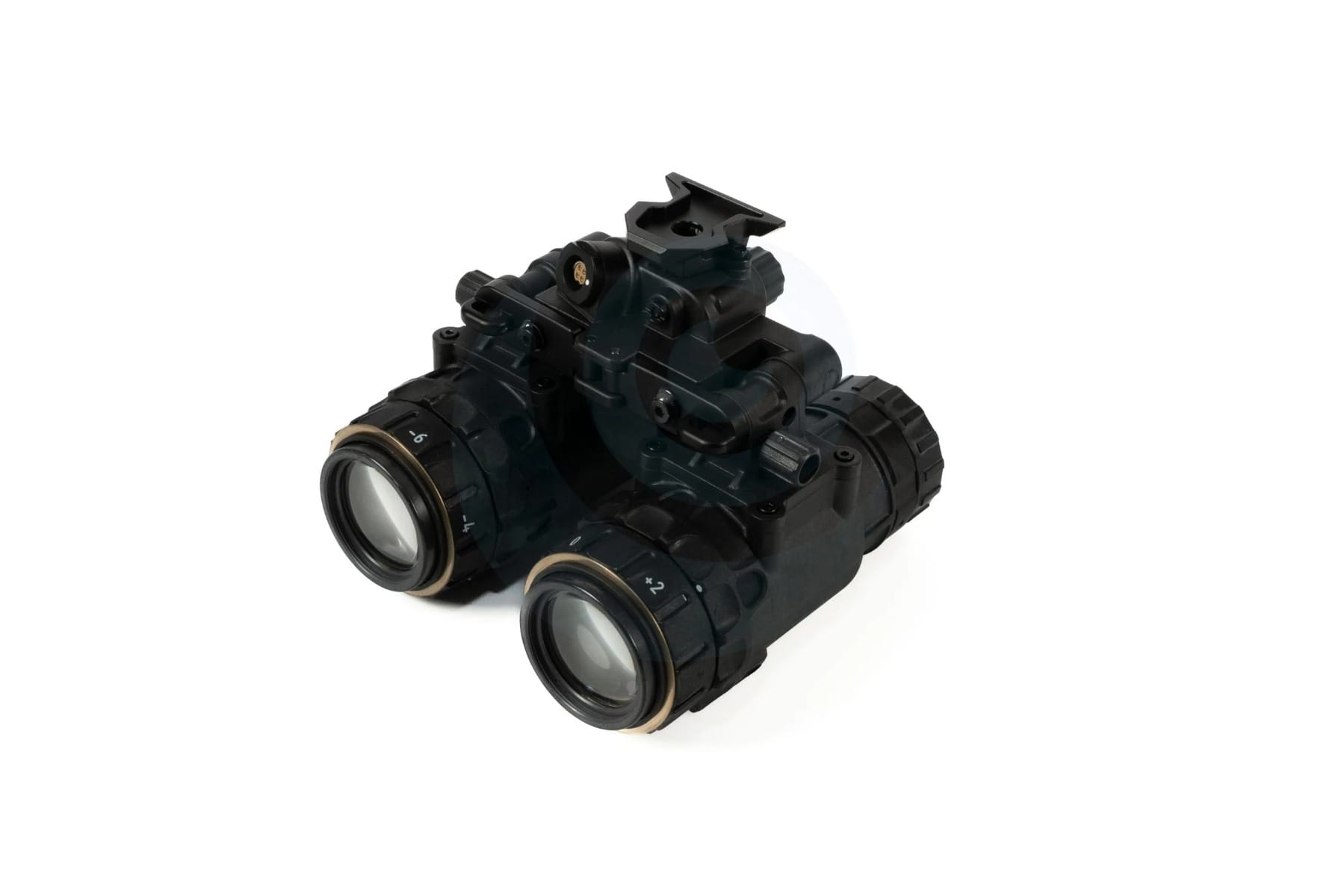

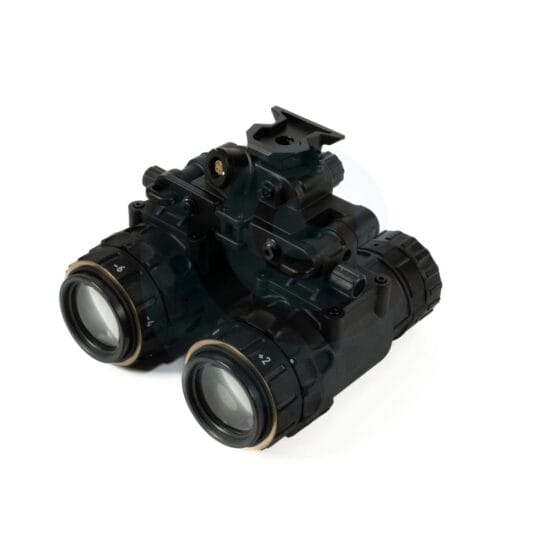

Aeon ANVB -L3 Tubes 24UM/24UA Supergain 2500+ FOM Grade B

SKU
AEON2500B
$10,550.00
Add to Compare
0% APR for 6/12 months or interest bearing for 36 months*

The skeletonized design features a single rotary switch for power that also serves as manual gain adjustment.  The Dual Focus IR illuminator is activated by pressing the power switch twice.  The user can select between Flood and Spot when using the IR illuminator.  Indicators in the viewing area alert the user if the IR illuminator is on, or if the unit senses a low battery condition.

The unit is powered by either an onboard 123 battery or auxiliary power from a battery pack using a Fischer style connector. The ANVB has an automatic system power cutoff whenever the ANVB is flipped up into the helmet mounted stow position, and then powers back on when it is flipped back down. This feature can be turned on or off depending on user preference.

Unlike the 1431 MK2, the pods automatically turn off when articulated up.  This feature prevents illumination on your helmet when one side is articulated up and ensures that the image intensifiers are ‘off’ in the stowed position with the optical pods folded back against the helmet.

ANVB Housing Specifications:

  • POWER SOURCE: (1) CR123 size battery
  • FOCUS RANGE: 9.8” to infinity
  • OPERATION TIME:  Approximately 25 hours with onboard CR123
  • MAGNIFICATION: (1X) ONE POWER
  • FIELD OF VIEW: 40 Degrees with std Mil-spec optics
  • INTERPUPILLARY ADJUSTMENT: Adjustable IPD
  • DIOPTER ADJUSTMENT: -6 TO +2
  • GAIN: Manually adjustable
  • WEIGHT: 189g housing, 579g (20.4oz) with standard Mil-spec optics
  • IR ILLUMINATOR: Built in dual focus IR – flood or spot
  • WATER RESISTANCE:IPX7
  • IR LED & LOW BATTERY INDICATORS: Yes
  • INTENSIFIER TUBES: Compatible with MX-11769 (manual gain) and MX-10160  style (no manual gain)
  • OPTICS: Compatible with PVS-14 style eyepiece and objective
  • WARRANTY: 5 year housing warranty including accidental damage by user
  • Instructions / Manual

    • Hold Knob Down 3 Seconds: Power On/Off
    • 1 Tap: LED indicator testing
    • 2 Taps: IR illumination on/off
    • 3 Taps: IR Signaling Standby Mode: Left pod indicator constantly on, IR will be initiated when rotating the knob. The right pod indicator will light up when the IR is on. The gain control will be disabled during the IR Standby Mode.  This mode allows the use of sending codes/signaling with IR.
    • 5 Taps: Turn on/off auto-stow feature that toggles power when entire goggle is flipped up or down using mount and auto-shutoff static feature that automatically turns off goggle after a long period of no movement.
    • 7 Taps: Lock the current gain as the maximum gain.  Goggle memory will keep the new gain setting as maximum until it is reset to factory.
      10 Taps: Reset goggle to factory mode.
