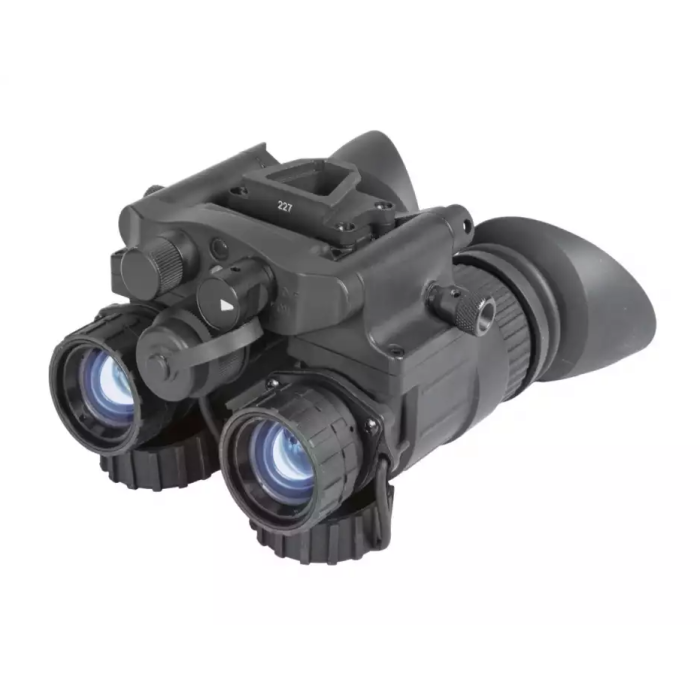

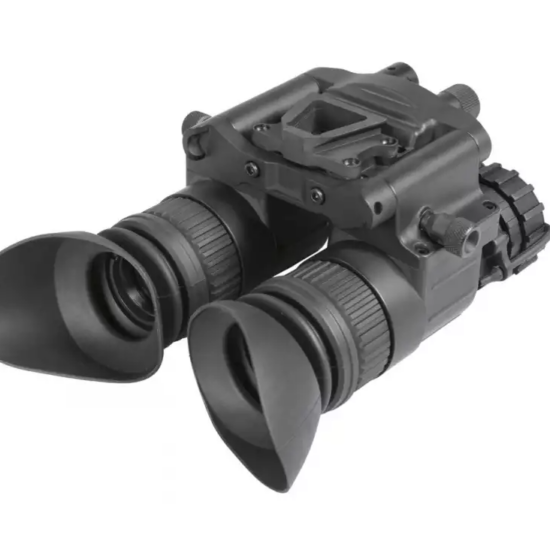

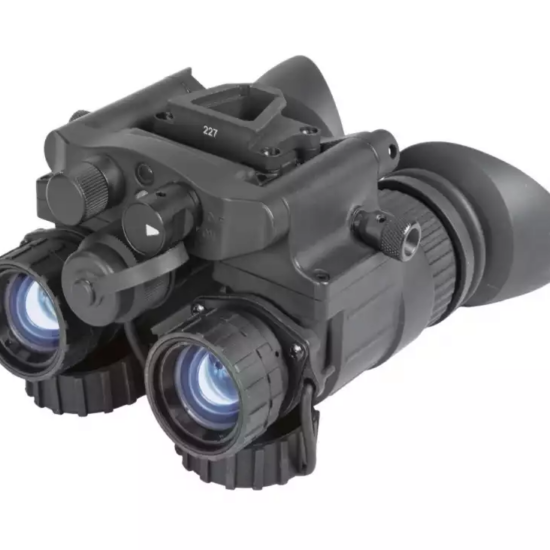

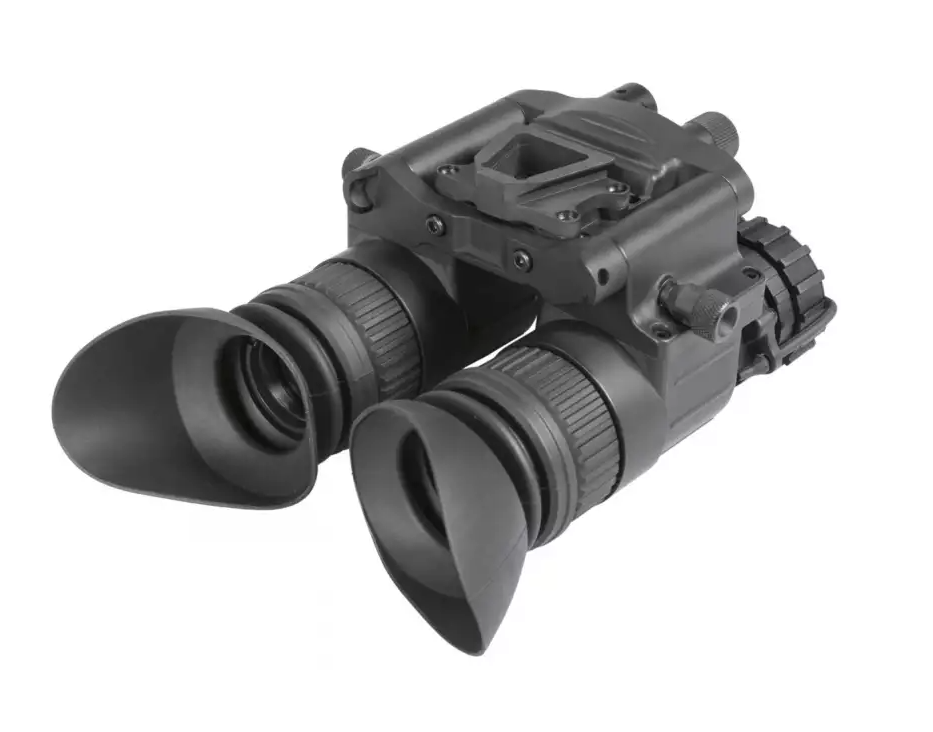

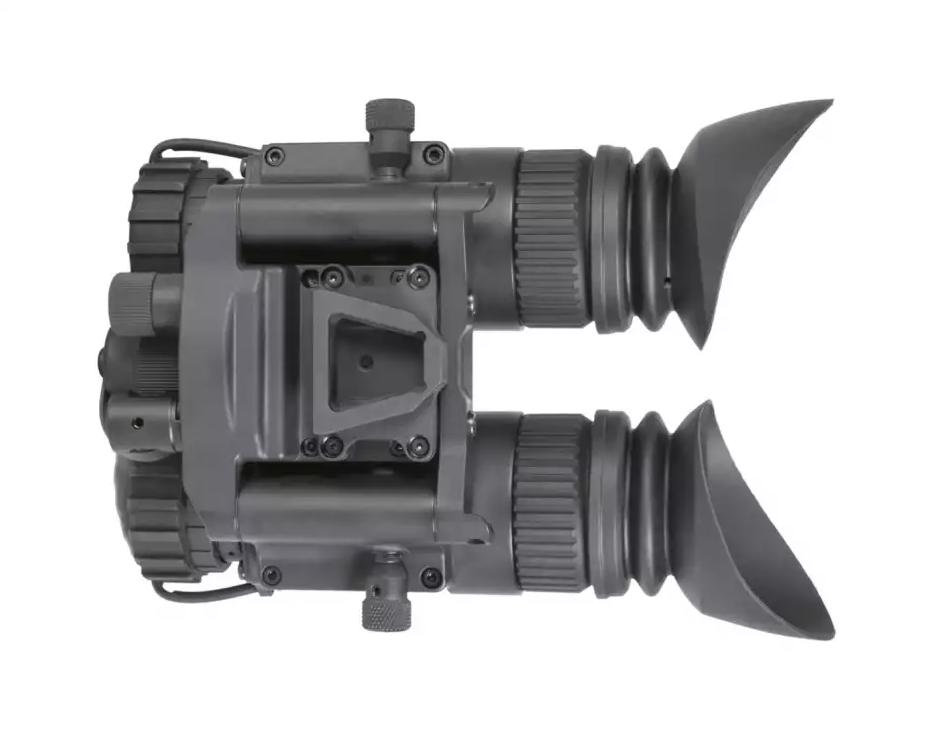

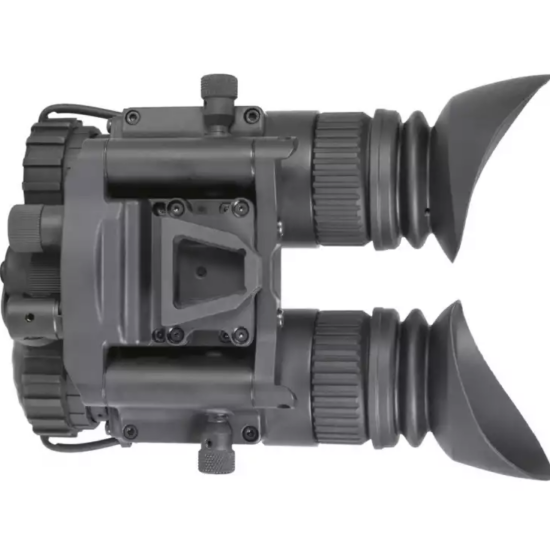

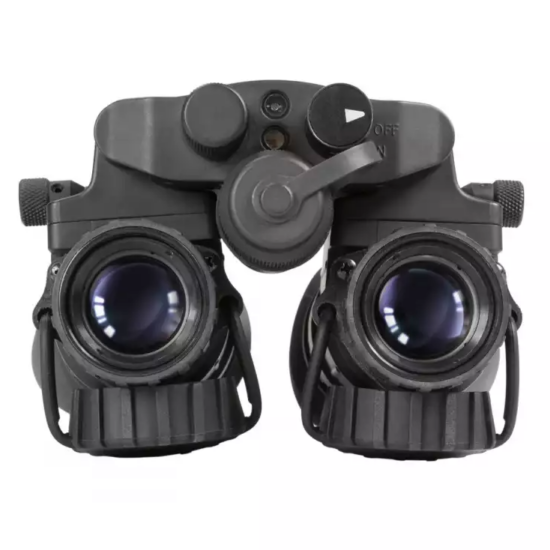

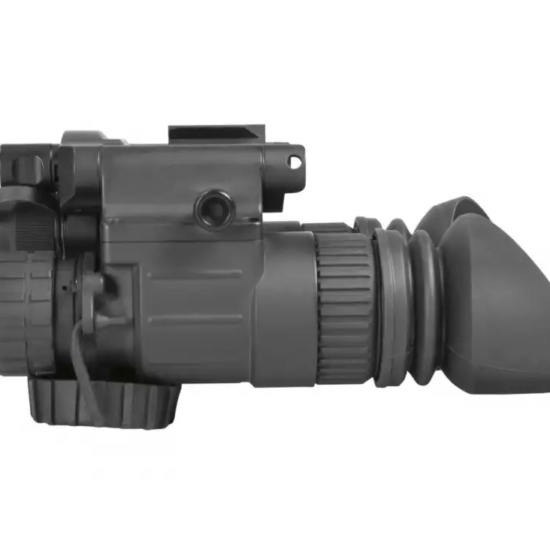

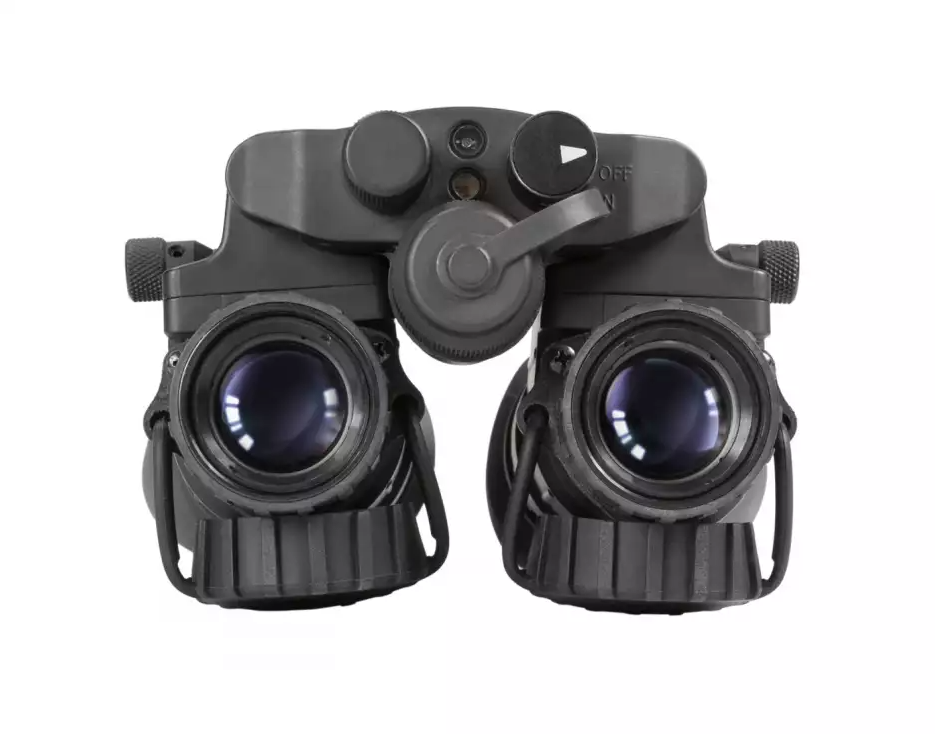

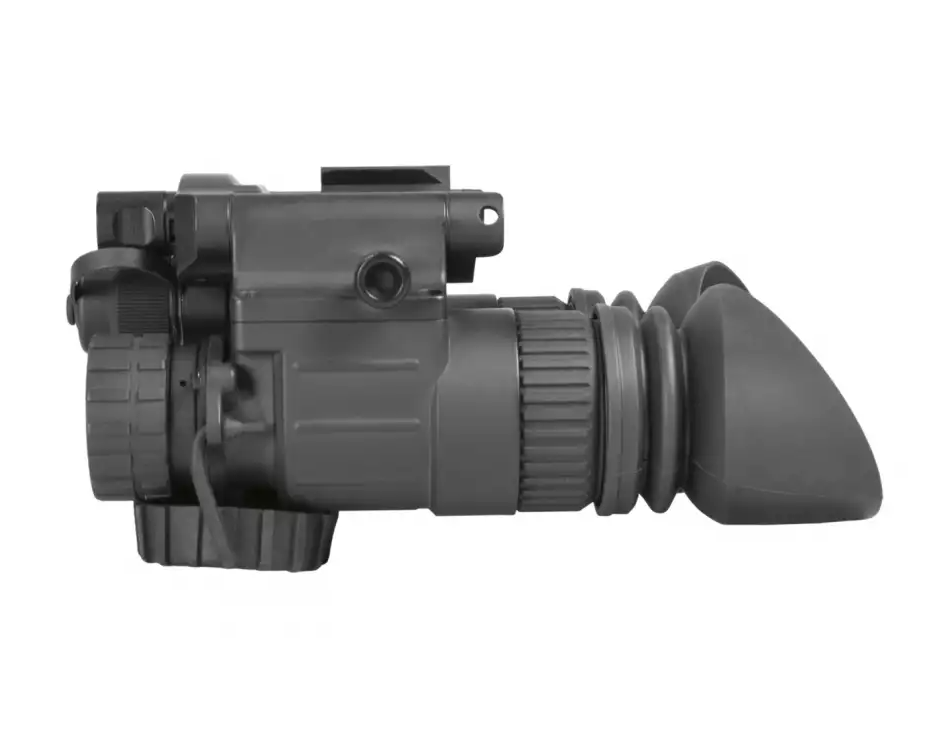

AGM NVG-40 NL1 Dual Tube Night Vision Goggle/Binocular with Photonis FOM 1400-1800 Gen 2+ “Level 1” P43-Green Phosphor IIT.
The AGM NVG-40 is a dual-channel night vision system. With a 40° field of view, it provides a large visual field without needing to move the binoculars. The NVG-40 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

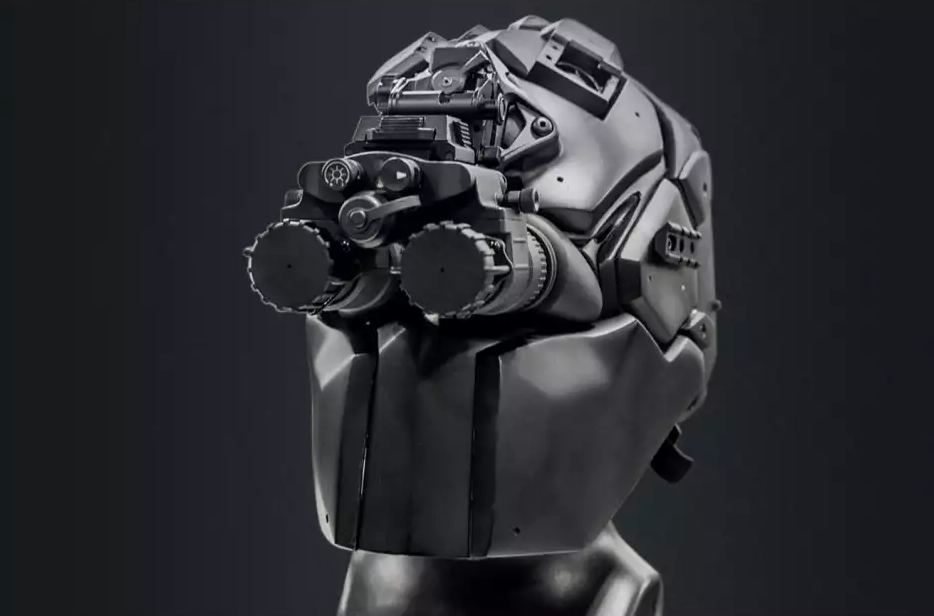

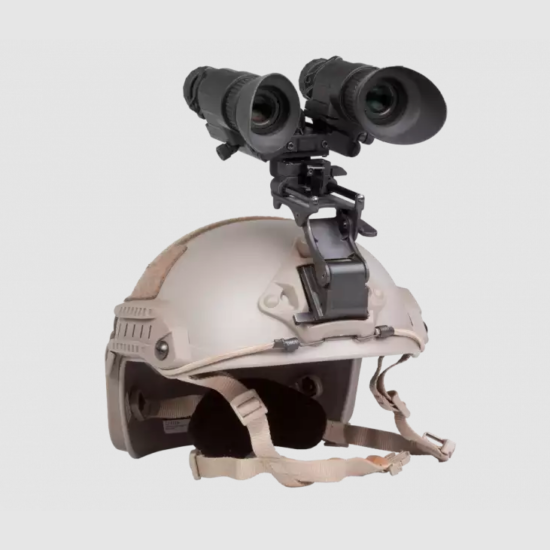

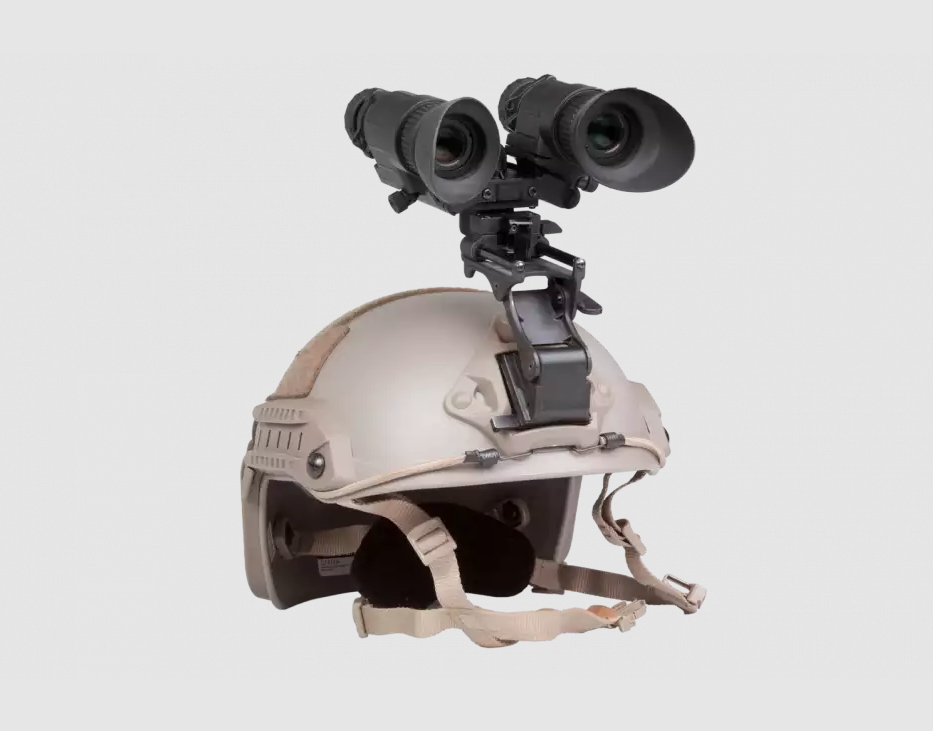

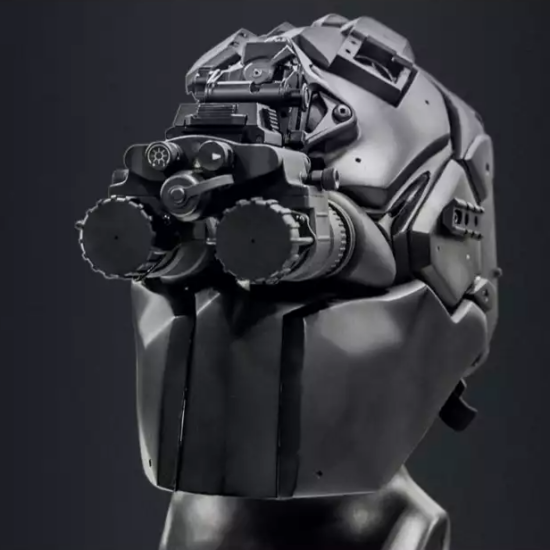

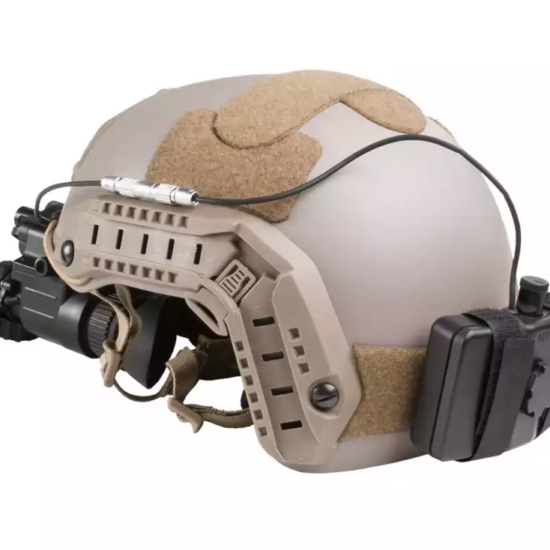

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

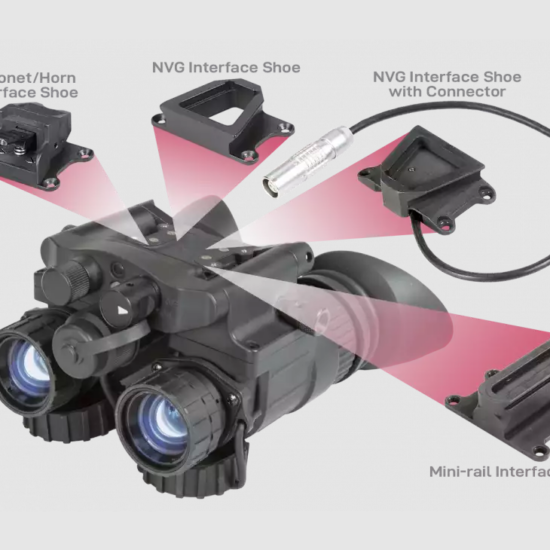

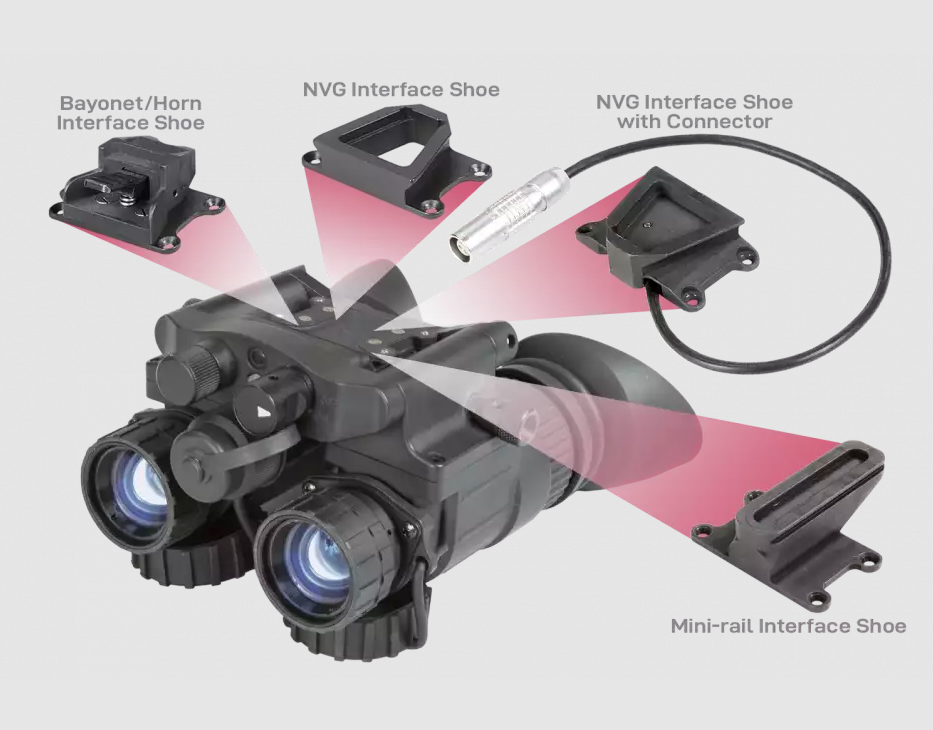

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

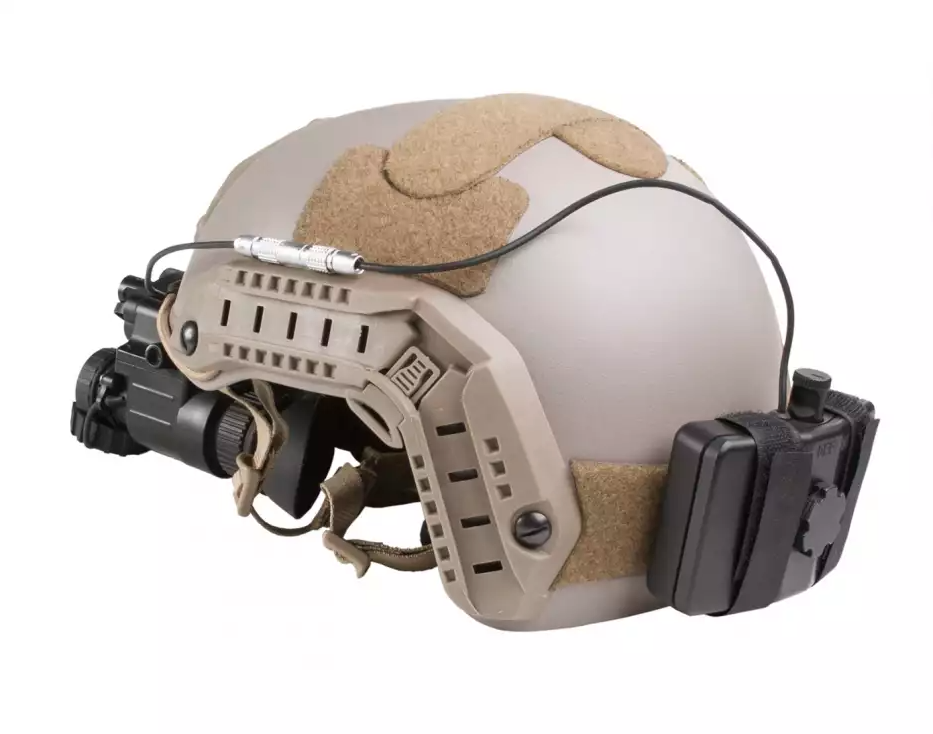

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
Features:
PACKAGE INCLUDES
Did you know?
Financing options are available at checkout!
AGM NVG-40 NL1 Dual Tube Night Vision Goggle/Binocular with Photonis FOM 1400-1800 Gen 2+ “Level 1” P43-Green Phosphor IIT.
The AGM NVG-40 is a dual-channel night vision system. With a 40° field of view, it provides a large visual field without needing to move the binoculars. The NVG-40 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.
NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
Features:
PACKAGE INCLUDES
| Image Intensifier Tube | Gen 2+ “Level 1” |
|---|---|
| Resolution | 51-64 lp/mm |
| Field of view cleanness by zone | Gen 2 IIT NL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1. |
| Magnification | 1x |
| Lens System | 27 mm, F/1.3 |
| FOV | 40deg |
| Focus Range | 0.25 m to Infinity |
| Diopter Adjustment | -6 to +2 diopters |
| Led Indicators | Low Battery IR On Excessive Light Conditions |
| Automatic Brightness Control | Yes |
| Infrared Illuminator | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Battery Type | One CR123A (3V) or AA (1.5 V) |
| Battery Life (Operating) | Up to 20 hours at 20degC (up to 80 hrs with optional battery pack) |
| Operating Temperature Range | -40degC to +50degC (-40degF to +122degF) |
| Storage Temperature Range | -50degC to +70degC (-58degF to +158degF) |
| Weight | 645 g (1.42 lbs) |
| Overall Dimensions | 115 x 118 x 74 mm (4.5 x 4.6 x 2.9 in) |
