AGM PVS-7 NW1 – Gen 2+ "Level 1" P45-White IIT

SKU
12PV7122284011
Save 9%
$3,295.00
$2,995.00
Add to Compare
0% APR for 6/12 months or interest bearing for 36 months*

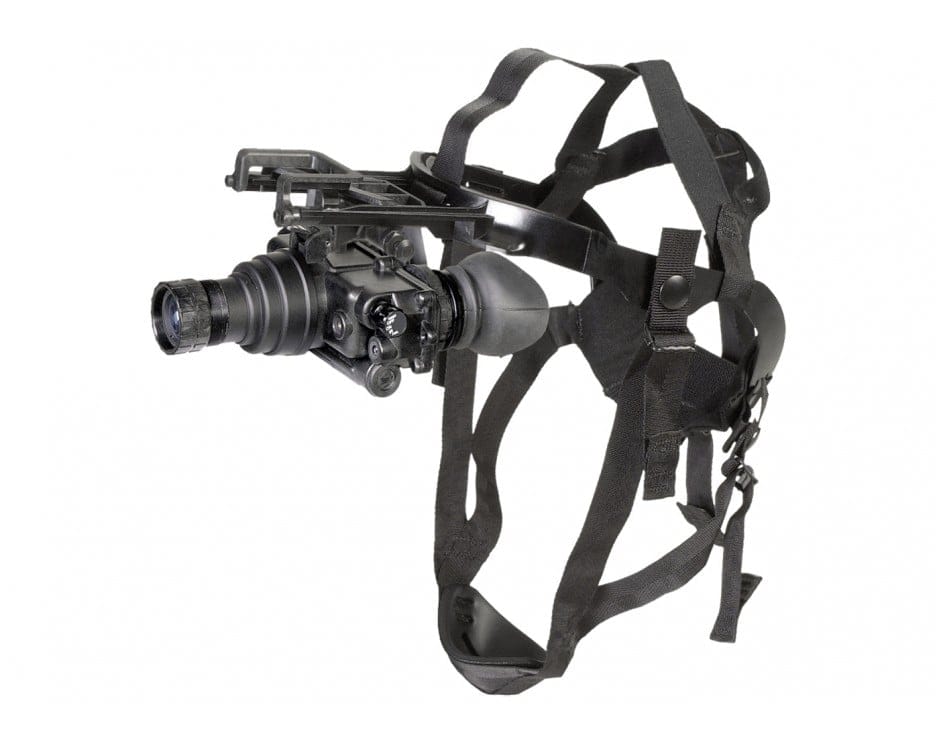

The PVS-7 is widely recognized for its unsurpassed dependability and ergonomic design. This U.S. Military-grade night vision goggle system has repeatedly proven its worth in combat, and is the highest-quality AN/PVS-7 B/D system on the market. The PVS-7 can be outfitted with high-performance Gen 2+ and Gen 3 image intensifier tubes (available in Green phosphor or P45 white phosphor). The PVS-7 is equipped with Automatic Brightness Control (ABC) to adjust image brightness in changing light conditions to maintain image definition and clarity. The builtin infrared illuminator provides a light source beyond the visible spectrum to enable the user to operate in complete darkness without being detected. Additionally, the PVS-7 has a bright light cut-off feature to protect the image tube from sources of intense light, and a flip-up shut-off feature that can be used with the optional helmet mount system. The PVS-7 has two LED indicators in the eyepiece for the IR illuminator on and low battery indicator. Lightweight, tough, and versatile, the PVS-7 can be handheld, or mounted to the user’s head/helmet. It is compatible with afocal magnifier lenses for superior long-range viewing.

  • Compact, rugged design/ Waterproof

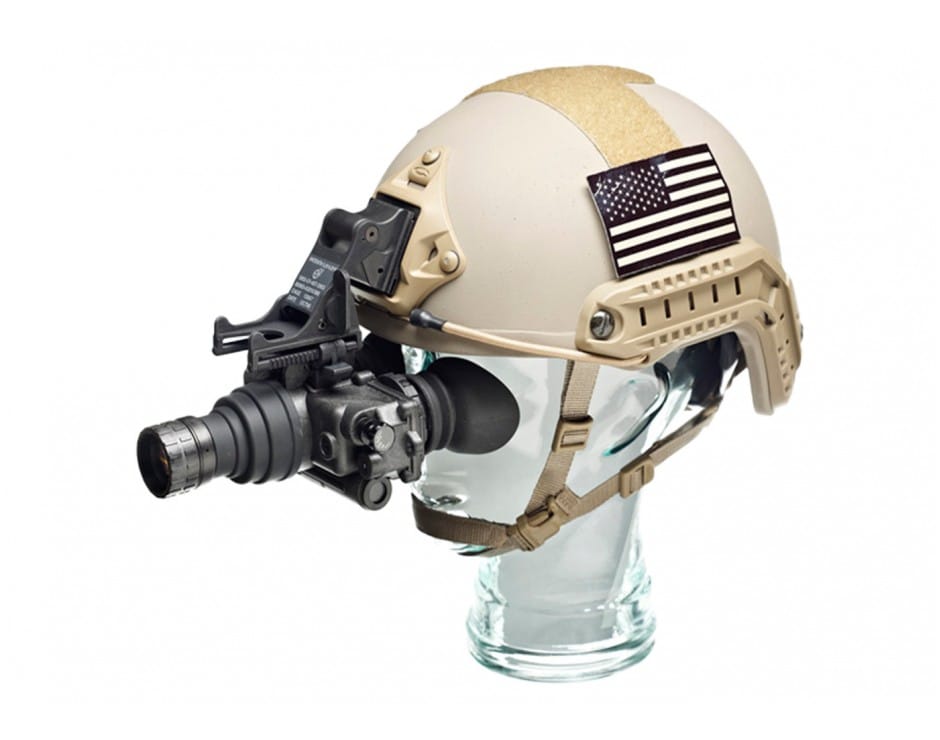

  • Head or helmet-mountable for hands-free operation
  • Ergonomic, simple, easy-to-operate controls
  • Built-in Infrared illuminator and flood lens
  • 3-Year Warranty

Image Intensifier Tube
Gen 2+ "White Phosphor" Level 1

Resolution: 51–64 lp/mm
Field of View Cleanness by Zone:
Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.

Magnification: 1x
Lens System: 27 mm; F/1.2
Field of View (FOV): 40°
Focus Range: 0.2 m to infinity
Diopter Adjustment: -6 to +2 dpt

LED Indicators: Low battery; IR On; Excessive light conditions
Automatic Brightness Control: Yes
Infrared Illuminator: Yes
Bright Light Cut-Off: Yes
Automatic Shut-Off System: Yes

Battery Type: 2 AA Alkaline or 1 Lithium (BA-5567/U)
Battery Life (Operating): Up to 60 hours at 20°C

Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range: -50°C to +70°C (-58°F to +158°F)

Weight (w/o batteries): 0.48 kg (1.1 lb)
Overall Dimensions: 162 × 152 × 76 mm (6.4 × 6.0 × 3.0 in)

Package Includes:

  • Head Mount Assembly

  • Medium & Thick Brow Pads

  • Eye Cups

  • Soft Carrying Case

  • Daylight Filter

  • Shoulder Strap

  • Lens Paper

  • Sacrificial Window

  • Demist Shields

  • Operator’s Manual

  • Characteristics

    Image Intensifier Tube: Gen 2+ "White Phosphor" Level 1

    Magnification: 1x

    Lens System: 27 mm; F/ 1.2

    FOV: 40°

    Package Includes
    • Packing Box
    • Demist Shields
    • Sacrificial Window
    • Operators Manual
    • 2 AA Alkaline
    • Lens Tissue
    • Neck Lanyard
    • Head Mount Assembly
    • Soft Carrying Case

The PVS-7 is widely recognized for its unsurpassed dependability and ergonomic design. This U.S. Military-grade night vision goggle system has repeatedly proven its worth in combat, and is the highest-quality AN/PVS-7 B/D system on the market. The PVS-7 can be outfitted with high-performance Gen 2+ and Gen 3 image intensifier tubes (available in Green phosphor or P45 white phosphor). The PVS-7 is equipped with Automatic Brightness Control (ABC) to adjust image brightness in changing light conditions to maintain image definition and clarity. The builtin infrared illuminator provides a light source beyond the visible spectrum to enable the user to operate in complete darkness without being detected. Additionally, the PVS-7 has a bright light cut-off feature to protect the image tube from sources of intense light, and a flip-up shut-off feature that can be used with the optional helmet mount system. The PVS-7 has two LED indicators in the eyepiece for the IR illuminator on and low battery indicator. Lightweight, tough, and versatile, the PVS-7 can be handheld, or mounted to the user’s head/helmet. It is compatible with afocal magnifier lenses for superior long-range viewing.





Gen 2 Night Vision

Please note that most high end night vision devices are built per order.  It may take 3-5 days or more for your order to ship.  If timely shipping is important to you, please, contact us to verify availability prior to ordering.

2nd generation is primarily used by law enforcement or for professional applications. This is because the cost of a 2nd Gen. unit is approximately $500.00 to $1000.00 more then a 1st Gen. The main difference between a 1st and a 2nd generation unit is the addition of a micro-channel plate, commonly referred to as a MCP. The MCP works as an electron amplifier and is placed directly behind the photocathode. The MCP consists of millions of short parallel glass tubes. When the electrons pass through these short tubes, thousands more electrons are released. This extra process allows 2nd generation units to amplify the light many more times then 1st generation giving you a brighter and sharper image. 2nd Gen. IIT standard 2nd generation tubes are high quality with exceptional brightness and resolution. Each tube has a micro channel plate, multi-alkaline photocathode with built-in power supply.

2nd Gen. IIT Features:

• Photo Cathode type: Multi-Alkali
• Resolution from 40 to 45 lp/mm
• Signal-to-Noise Ratio from 12 to 20
• 5,000+ hour tube life

Delivery Time and Manufacturing Process for AGM PVS-7 NW1 – Gen 2+ "Level 1" P45-White IIT:

Most of our manufacturers do not keep products like AGM PVS-7 NW1 – Gen 2+ "Level 1" P45-White IIT assembled on the shelf. Night Vision tubes are kept separate from the body of the unit. When the order is placed, the manufacturer starts the order processing and assembly process which includes the following:

  • Order processing - we collect all the necessary information including address and phone numbers. We also make sure that our customer ordered the correct product for their needs and that the product can be exported by US law to the country of destination. In some cases a signed export compliance form is required.
  • QC - in this step the manufacturer will inspect all individual parts which will be used to assemble the night vision device for any defects.
  • Production & Assembly - during production, all the parts are put together. Night Vision tubes in inserted into the body of the unit and all the complex electronics for the device are connected. This process takes place in a special lab called the "clean room" as even a small speckle of dust can cause undesired optical effect.
  • QA - one the night vision device is assembled, it goes through a rigorous testing process to make sure it meets all the expected specifications and all parts function as expected. For this most manufacturers have a special "dark room" designed to allow testing of the units without causing incidental damage to the night vision tube by exposure to bright light.
  • Packaging - this is a key process as well. In most case your night vision device will be shipped to you directly from the manufacturer but sometimes needs to be sent to us first. In either case items need to be packaged securely to avoid any kind of damage during transportation.
  • Shipping - as described above items will most of the time ship from the manufacturer. For most domestic orders (unless shipping to POB or AFB) a premium shipper like FedEx or UPS will be used.

Only by following the above steps can we along with our manufacturers bring you - our customer - night vision products of highest quality, However as you can understand the above process can take several days to complete. For example if your device fails QA, the entire process restarts. Also at QC stage a manufacturer may realize that the tube they have in stock has a defect and a replacement tube needs to be ordered. Due to the complexity of this process, it is prudent to expect 3-4 business days for production and handling of the purchased device. Keep in mind that this process is designed to guarantee your satisfaction with the night vision device of your choice.  It occasionally possible to expedite the process for urgent orders but addional fees or other restrictions may apply.
