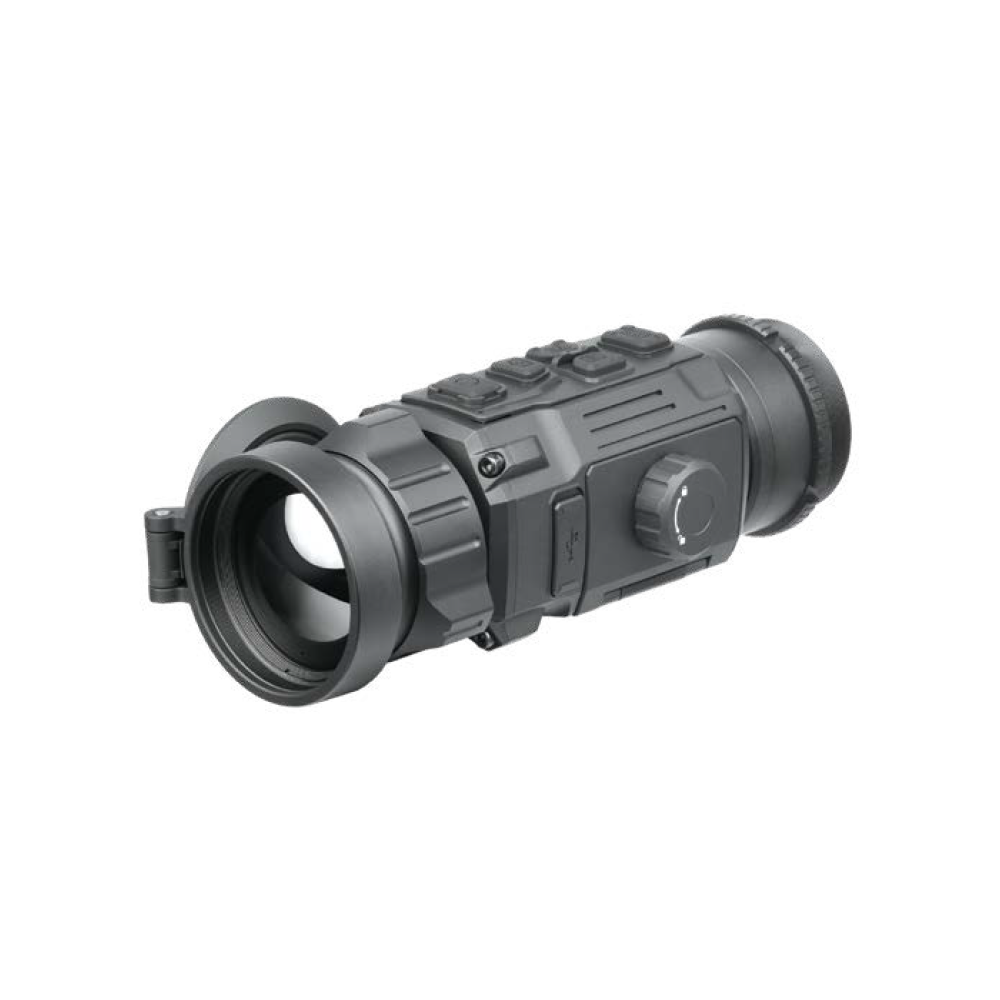

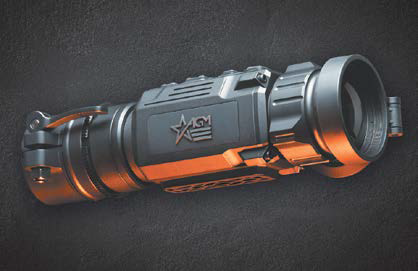

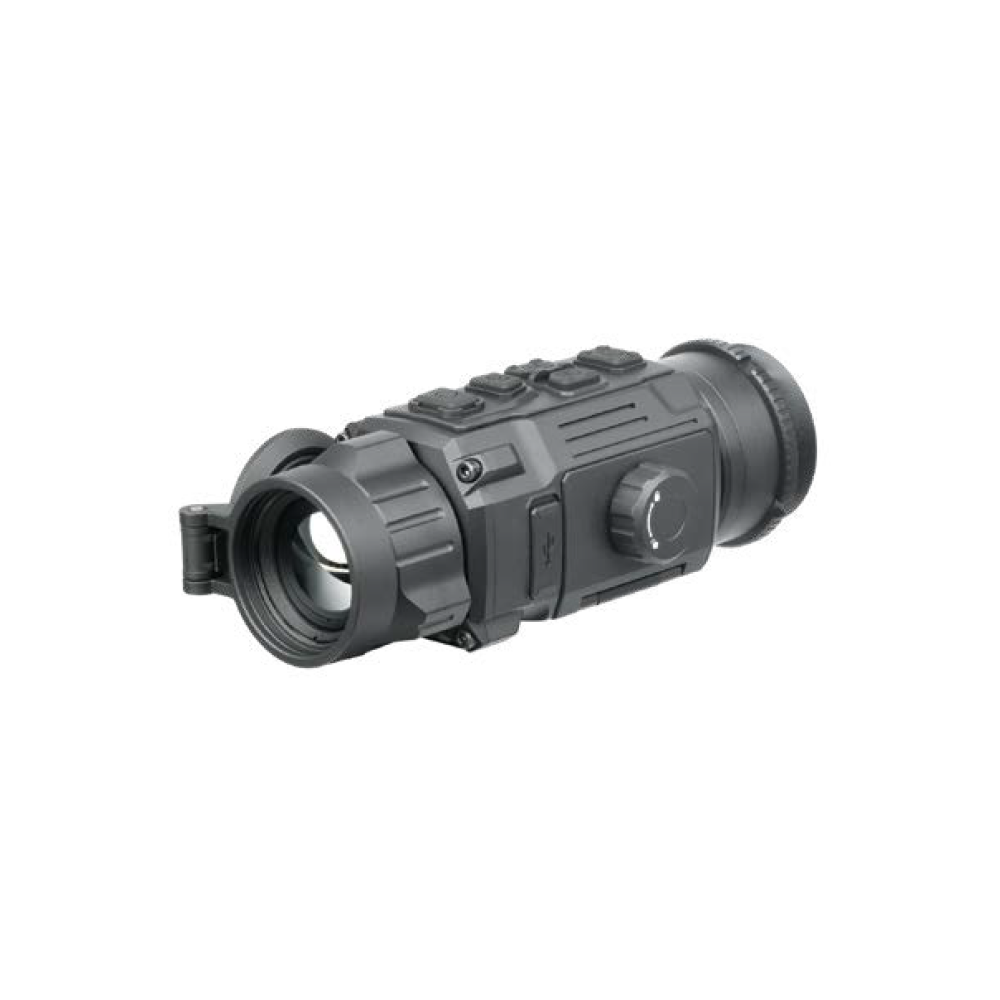

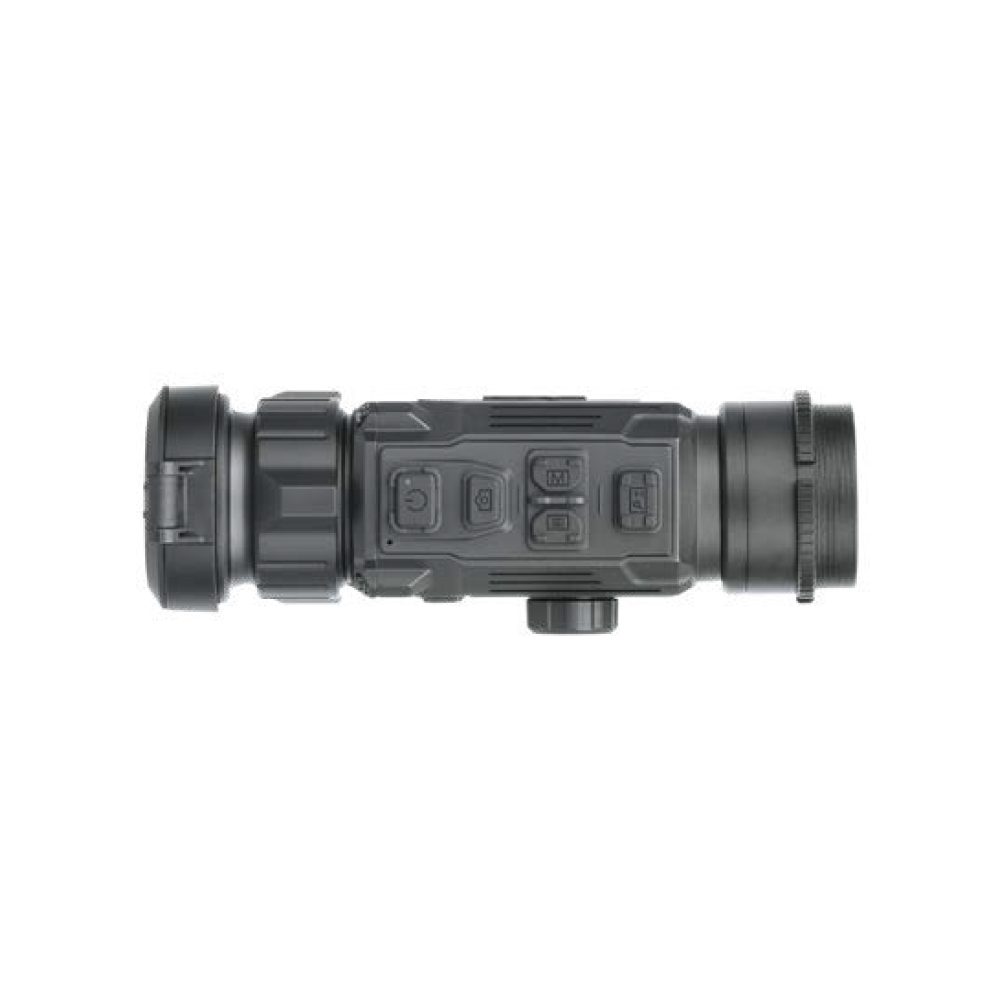

AGM Rattler-C V2 50-640 Thermal Imaging Clip-On 20mK, 12 Micron, 640×512 (50 Hz), 50mm lens

Optional Front Q-R adapter >>

Optional Eyepiece >>

Quick conversion of daytime optics into thermal imaging scope
■ 12μm high-sensitivity thermal detector
■ NETD < 20mK (384 and 640 models)
■ Fast 50Hz imaging
■ High resolution OLED display
■ Adjustable color palettes
■ On-board video/audio recording and image capture
■ Built-in EMMC storage (16 GB)
■ Shot Activated Recording (SAR)
■ Wi-Fi data transmission
■ Stadiametric rangefinder
■ Standby mode
■ 9 – 11.5 hours battery life (depending on model)
■ External power supply compatibility
■ Waterproof & shockproof
■ 3-year (256 model) or 5-year (384 and 640 models) warranty

$3,495
SKU: 314205560206R561

Did you know?

Financing options are available at checkout!

  • Description
  • Manufacturer Specifications
  • Technical Specs

The AGM Rattler-C V² is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. The AGM Rattler-C V² thermal clip-on has a high-sensitivity twelve micron detector and 1024×768 OLED monitor, which provides a clear image under harsh environmental conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The product is mainly applied to scenarios such as patrolling, hunting, overwatch, etc. The Rattler-C V² can easily be attached in front of rifle scopes with magnification up to 8x for medium range use. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-С V2 thermal clip-on provides up to 11.5 hours of continuous operation. The device is equipped with 16 GB storage for on-board video recording and image capture. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.

Resolution 640 x 512
Detector 12mm VOx Uncooled Focal Plane Array
NETD Less than 20 mK (25degC, F# = 1.0)
Refresh Rate 50 Hz
Lens System 50 mm; F/1.0
Optical Magnification 1x
Field of View 8.8deg x 7.0deg
Focus Range 10 m to infinity
Exit Pupil 22 mm
Eye Relief 10 mm
Detection Range (6′ object) 2600 m/yd
Display 0.39-inch, OLED, 1024×768
Palettes Black hot, White hot, Red hot, Fusion
Flat Field Correction Auto, Manual, External Correction Auto, Manual, External Correction
Scene Mode Cold, Warm Cold, Warm
Video/Audio Recording Yes
Image Capture Yes
Standby Mode Yes
Storage Built-in EMMC (16 GB)
Defective Pixel Correction Yes
WiFi Hotspot Yes
Hot Track Yes
Distance Measurement Yes (Stadiametric)
Shot Activated Recording (SAR) Yes
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Life (Operating, 20degC) 9 h (25degC, with hotspot off)
External Power Supply 5 VDC, 2 A, USB Type-C
Operating Temperature Range -30degC to +55degC (-22degF to 131degF)
Protection Level IP67
Max. Recoil 1000 g/0.4 ms
Weight (w/o mount and battery) 0.55 kg (1.2 lb)
Dimensions (w/o mount) 196 x 73 x 68 mm (7.7 x 2.9 x 2.7 in

Attributes Value
Weight 1.2 lbs
Is Accessory

Condition

Max Magnification

Objective Lens Diameter

Refresh Rate

Sensor Resolution

Warranty
