EXPORT POLICY AND EXPORT RESTRICTIONS INFORMATION
The U.S. Department of State’s Directorate of Defense Trade Controls, the U.S. Department ofCommerce’s Bureau ofIndustry and Security, and the U.S. Department of the Treasury’s Office of Foreign Assets Control administer export control regulations that affect some aspects of our business. We request that you (the “Customer”) read and familiarize yourself with the following regarding certain applicable export regulations.
The sale, transfer, transportation, or shipment outside of the U.S. of any product prohibited or restricted for export without complying with U.S. export control laws and regulations, including proper export licensing, documentation or authorization, is strictly prohibited and may result in civil penalties and/or constitute a federal crime. Night Vision Guys LLC will not engage in any transaction that requires the illegal export of any products and will not assist directly or indirectly with the illegal export or re-export of any products. If you should have any questions or require additional information regarding export regulations please contact our knowledgeable and experienced staff or contact the:
U.S. Department of Commerce
U.S. Bureau of Industry and Security
Office of Exporter Services
Website: http://www.bis.doc.gov
Department of State
Directorate of Defense Trade Controls
Response Team
Website: http://www.pmddtc.state.gov
We thank you for your cooperation in helping us safeguard against illegal exportation of Night Vision Guys LLC products.
EXPORT REGULATIONS
Export of night vision equipment and optical sighting equipment (including user manuals) is controlled either by the U.S. Department of State, Directorate of Defense Trade Controls, in accordance with the International Traffic in Arms Regulations (ITAR), Title 22, and Code of Federal Regulations Part 120-130 or the U.S. Department of Commerce, Bureau of Industry and Security, in accordance with the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations Part 730-774.
Some of this equipment may require a license for export or re-export from the United States. Any export of equipment by Night Vision Guys LLC to a purchaser outside of the United States will be made in strict compliance with U.S. export control laws.
It is the purchaser’s responsibility to request and obtain any required export licenses for the subsequent export or re-export of the subject items, and to ensure that the requirements of all applicable laws, regulations and administrative policies are met. In addition, subsequent transfers of any products sold by Night Vision Guys LLC to individuals or entities on the List of Debarred Parties, Denied Persons List, Specially Designated Nationals List, Entity List, or Nonproliferation Sanctions List (collectively “Restricted Parties Lists”), as well as sales or transfers to Embargoed Countries, are strictly prohibited. It is the purchaser’s responsibility to verify whether any subsequent transferee is on any such Restricted Parties Lists, websites for which are set forth below.
LISTS OF PROHIBITED INDIVIDUALS, ENTITIES AND COUNTRIES
ITAR items and items marked for domestic sale only should only be used by party identified on the Night Vision Guys Sales Order/Invoice for use or resale in the U.S. only. Such items should not be exported, provided to foreign persons in the U.S. (including Foreign Embassies in the U.S.A.), or sold domestically for export by a third party (including U.S. Government agencies). If/when such items are resold, the original purchasing party must advise customers/end users of their duty to comply with U.S. export control regulations or face the possibility of severe criminal and civil fines including imprisonment if convicted. Furthermore if above mentioned items are resold or transferred in any way, the original purchaser must inform customers/end user(s) that if these items are lost, stolen or destroyed, they must report this fact to Night Vision Guys LLC and provide the date of the incident as well as the associated serial number of the item.
“U.S. Person” for this purposes is a U.S. citizen, lawful permanent resident as defined by 8 U.S.C.1101 (a) (20), protected individual as defined by 8 U.S.C. 1324b(a)(3)) and “US Company” as the company entity organized under the laws of the United States.
Diversion contrary to U.S. law is strictly prohibited.
Other Restrictions: Restrictions on the use of night vision with a weapon vary from state to state. You are strongly advised to learn these laws and adhere to them. Night Vision Guys LLC will not be held responsible for unlawful usage.

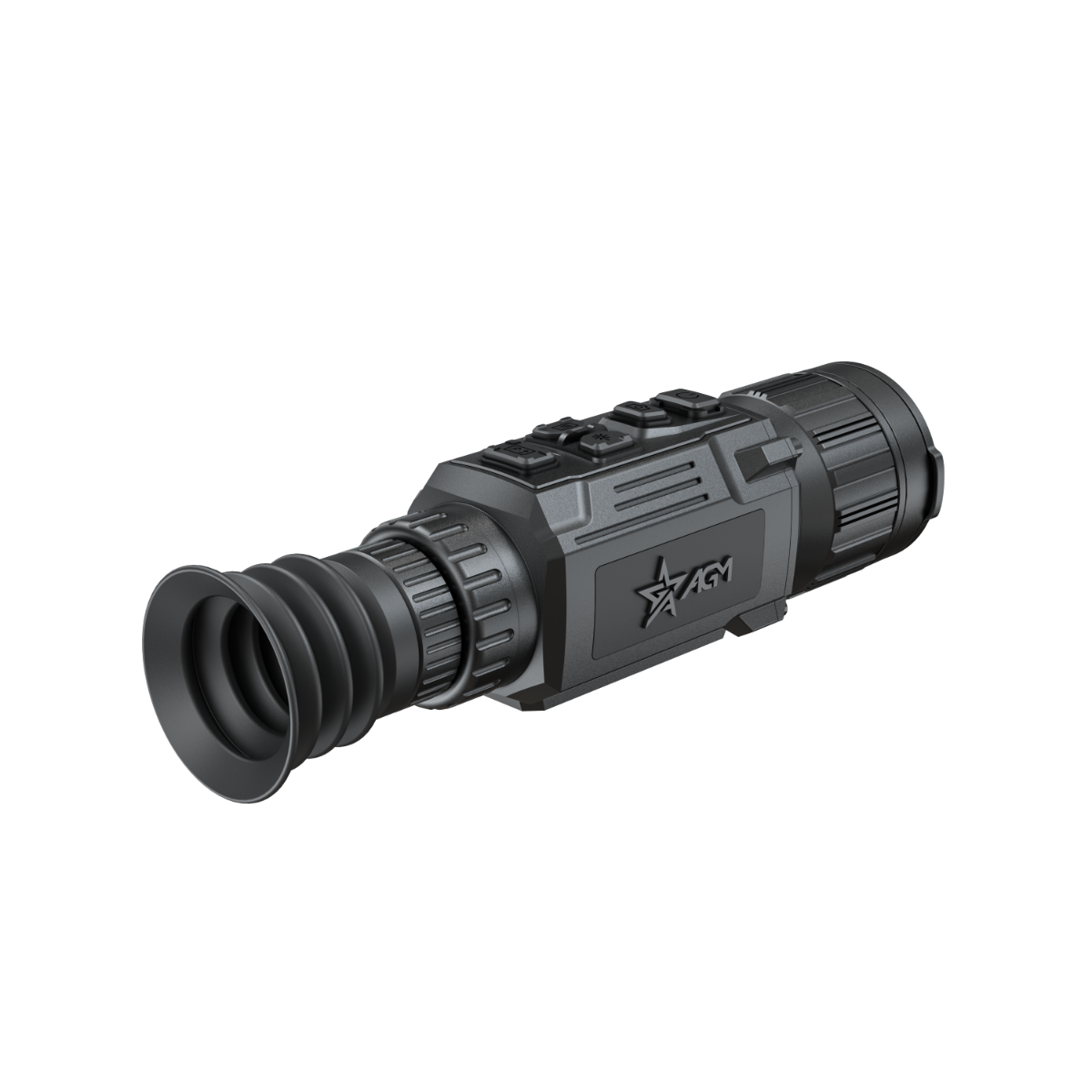

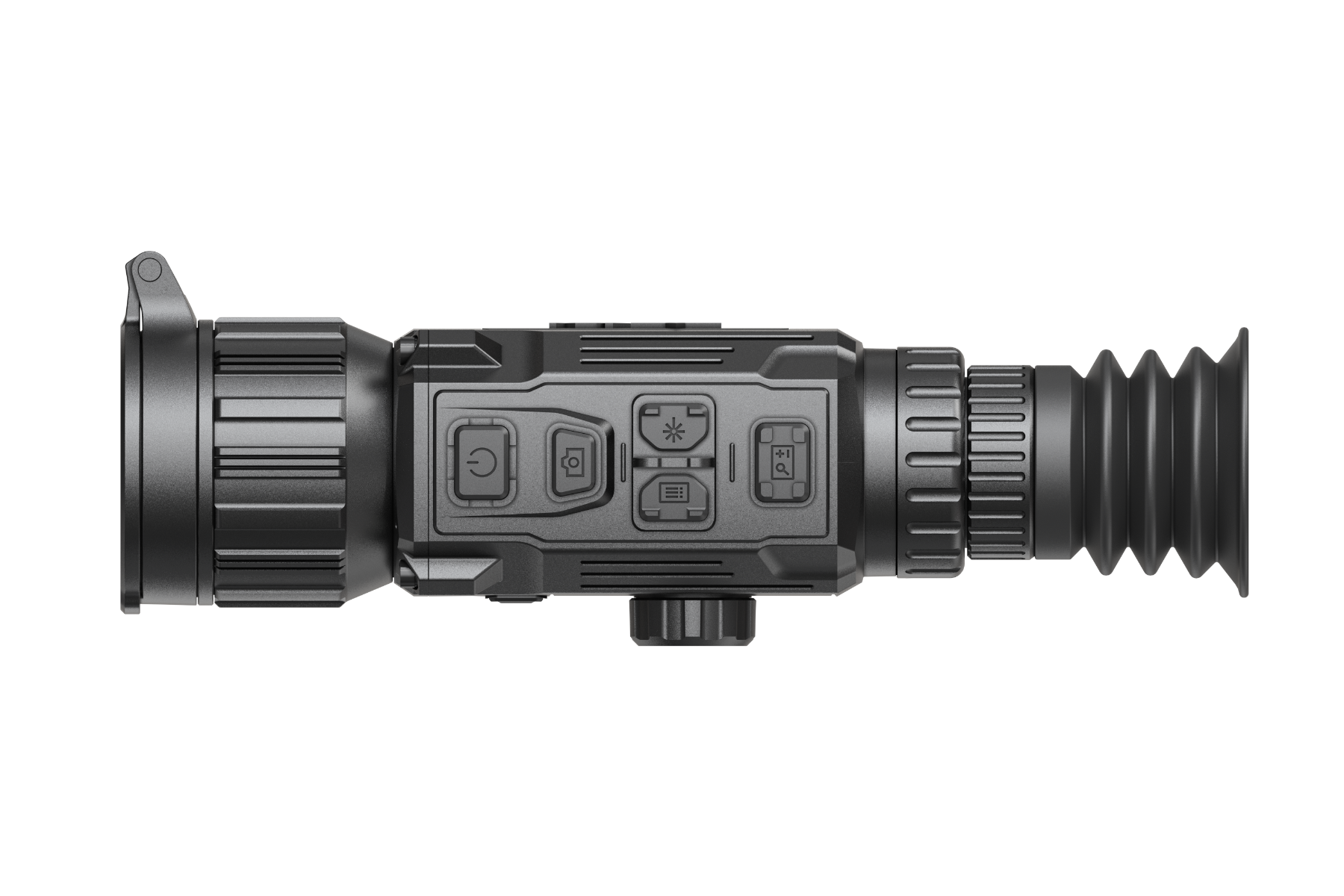

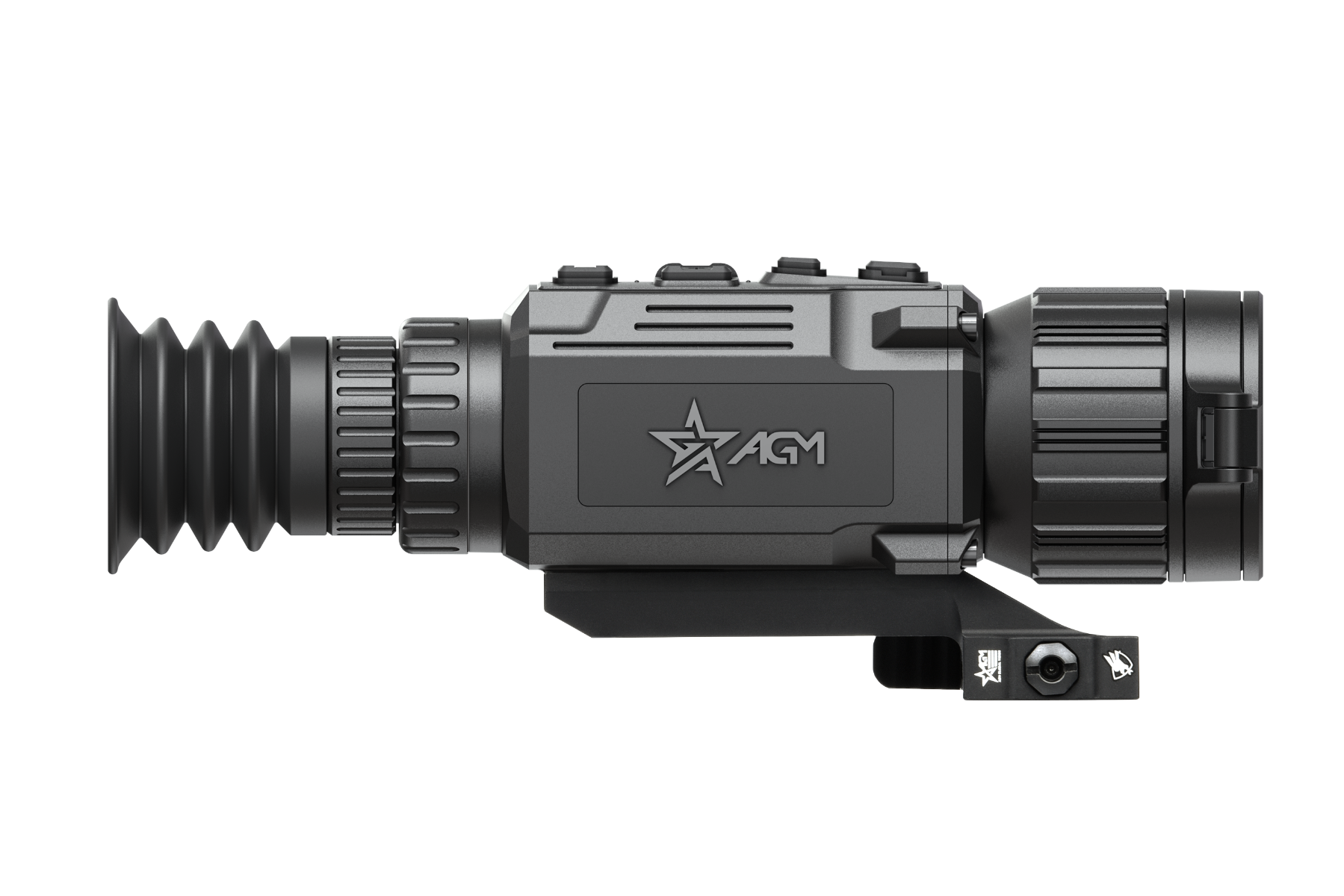

Although it seems like just yesterday the celebrated AGM Rattler thermal riflescope family got upgraded with the introduction of the RattlerV2’s, the NEW RattlerV3 LRF testifies to the fact that evolution never stops. The RattlerV3 LRF 35-384 pairs a 35 mm Germanium lens with an industry-leading sub-15mK thermal sensor and a new 1920x1080 high resolution display, which combines to produce the best 384 resolution thermal image. These technical parameters work together to produce a detection range 1.5 miles. The RattlerV3 LRF 35-384 also brings the once inconceivable new in-lens LRF technology to the compact Rattler series. A fully integrated 1,000m laser rangefinder is paired with a new on-board ballistic calculator. The RattlerV3 LRF 35-384 has a base magnification of 3.5X, making it an optimal option for predator hunters in wide-open terrain, which entices longer range engagements. Its also the first Rattler ever to come with a shutterless NUC and AGM’s powerful new Image Boost 2.0 imaging algorithm. Large sturdy buttons were designed to aid gloved fingers in cold winter weather, while the removable rechargeable NE-4400 battery offers one of the most robust and easy to install battery systems on the market. The firmware package allows users an amazing level of customization: on-board pitch scale, 10 brightness and contrast settings, warm & cold viewing modes, multiple color palettes, picture in picture, ballistic calculation, on-board video recording with sound, WiFi hotspot, multiple zeroing profiles, shot activated video recording, defective pixel repair, hotspot locator and multiple laser range finding modes.
Image Sensor 12μm VOx Uncooled Focal Plane Array
Resolution 384×288
Frame Rate 50 Hz
NETD Less than 15 mK (@25°C, F# = 1.0)
Lens System 35 mm; F/1.0
Focus Mode Focus Ring
Detection Range 2480 m (2710 yd)
Magnification 3.5x - 28x
Field of View (H × V) 7.5° × 4.5° (13.2 × 7.9@100m)
Exit Pupil 6 mm
Eye Relief 45 mm
Diopter Adjustment-4 D to 3 D
Minimum Focusing Distance 10 m
Display 1920×1080, 0.49 inch, OLED
Picture-in-Picture (PiP) Yes
Hot Tracking Yes
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Image Boost 2.0 Yes
Zoom Pro Yes
Shutterless Technology Yes
Flat Field Correction (FFC) Semi-Auto, Manual
Defective Pixels Correction (DPC) Yes
Ballistic Calculation Yes
Reticle 10 types, 4 colors, on/off
Zeroing Profiles 5
Freeze Zeroing Yes
WiFi Hotspot Yes
Video Recording Yes (1920 × 1080)
Image Capture Yes (1920 × 1080)
Audio Recording Yes
Shot-Activated Recording (SAR) Yes
Storage Built-in EMMC (64 GB)
Local Album Yes
Standby Mode Yes
Battery Type Replacable and Rechargeable Li-ion Battery pack NE-4400
Battery Life (operating) ≥7h (25 °C, with hotspot off)
External Power Supply 5V DC/2 A
Operating Temperature -30°C to +55°C (-22°F to 131°F)
Max. Recoil 1000 g/0.4 ms
Protection Level IP67
Dimension 229 × 66 × 67 mm (9.0 × 2.6 × 2.6 in)
Weight (w/o battery) 0.68 kg (1.5 lb)
Safety Class for Laser Class1
Wavelength 905 nm
Max. Measuring Range 1000 m
Measurement Accuracy ±1 m
Min. Measuring Range 10 m
■ Superior sub-15 milikelvin thermal sensitivity
■ 384×288 resolution with 12-micron sensor
■ Built-in 1,000m laser rangefinder in the lens
■ Integrated ballistic calculator
■ Large OLED display with 1920x1080 resolution
■ Shutterless technology
■ Various reticle types and colors
■ 3.5x to 28x magnification
■ Built-in EMMC storage (64 GB)
■ Standby mode
■ On-board video/audio recording and image capture
■ Shot-Activated Recording (SAR)
■ Wi-Fi data transmission
■ Over 7 hours battery life
■ External power supply compatibility
■ Waterproof & shockproof
