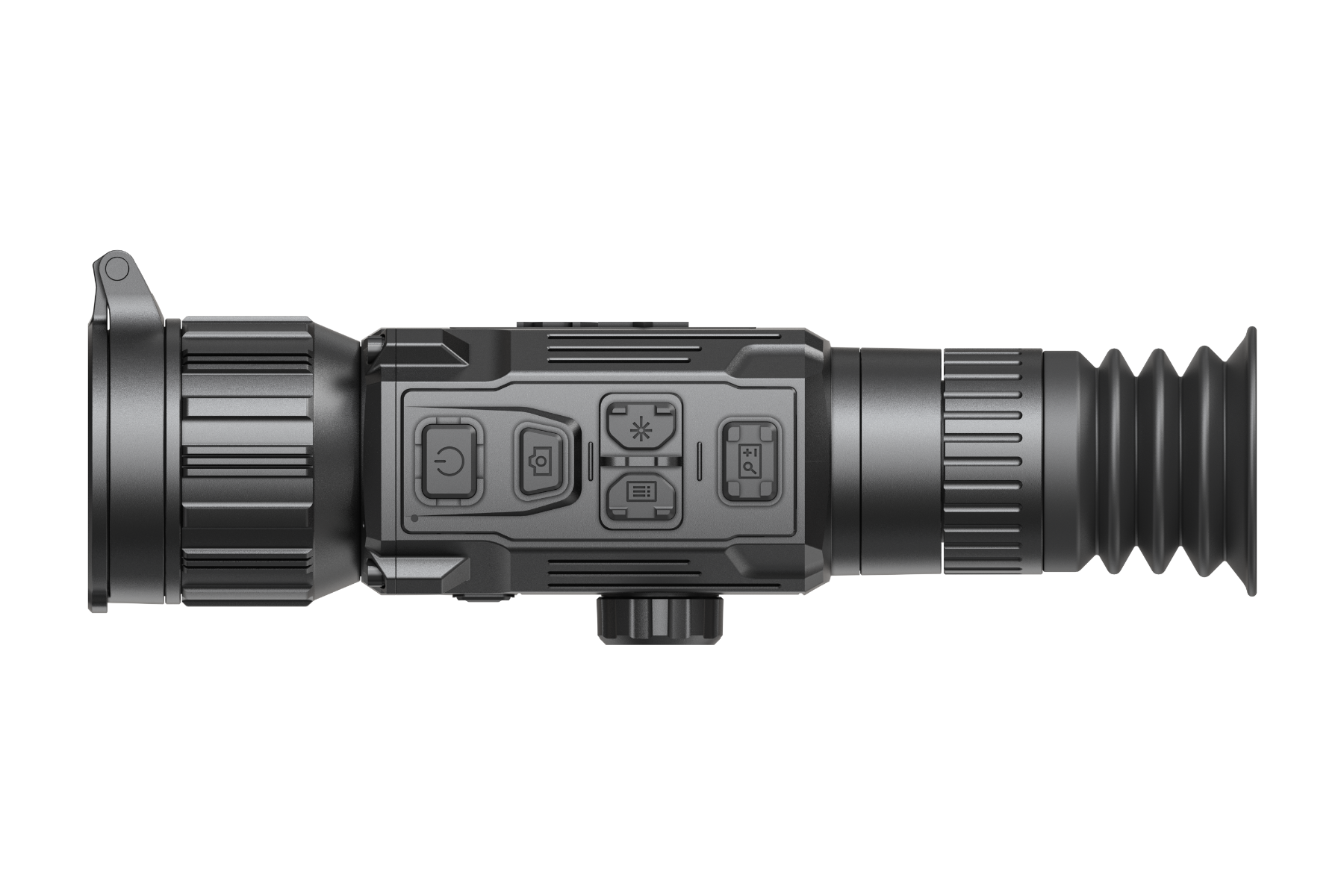

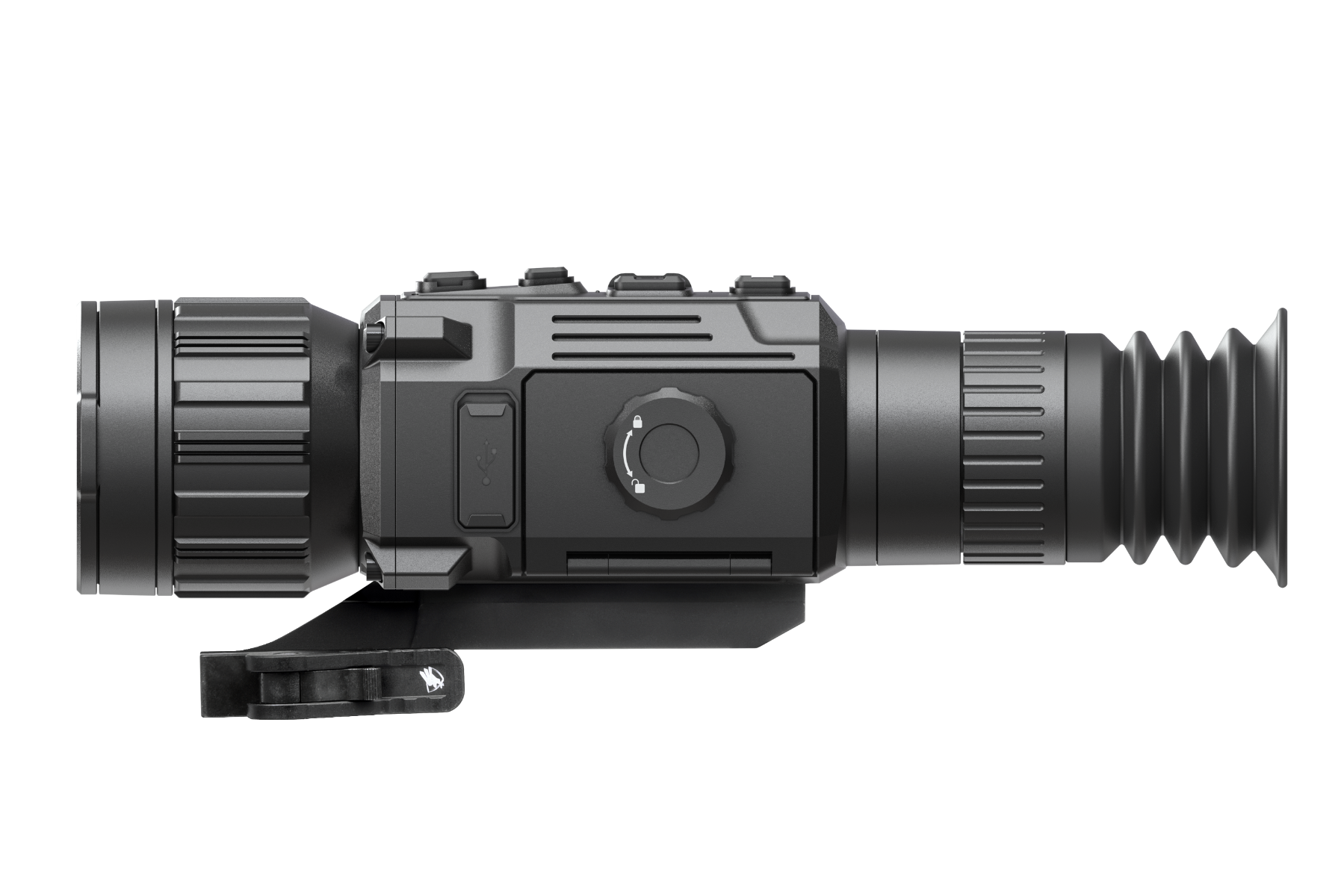

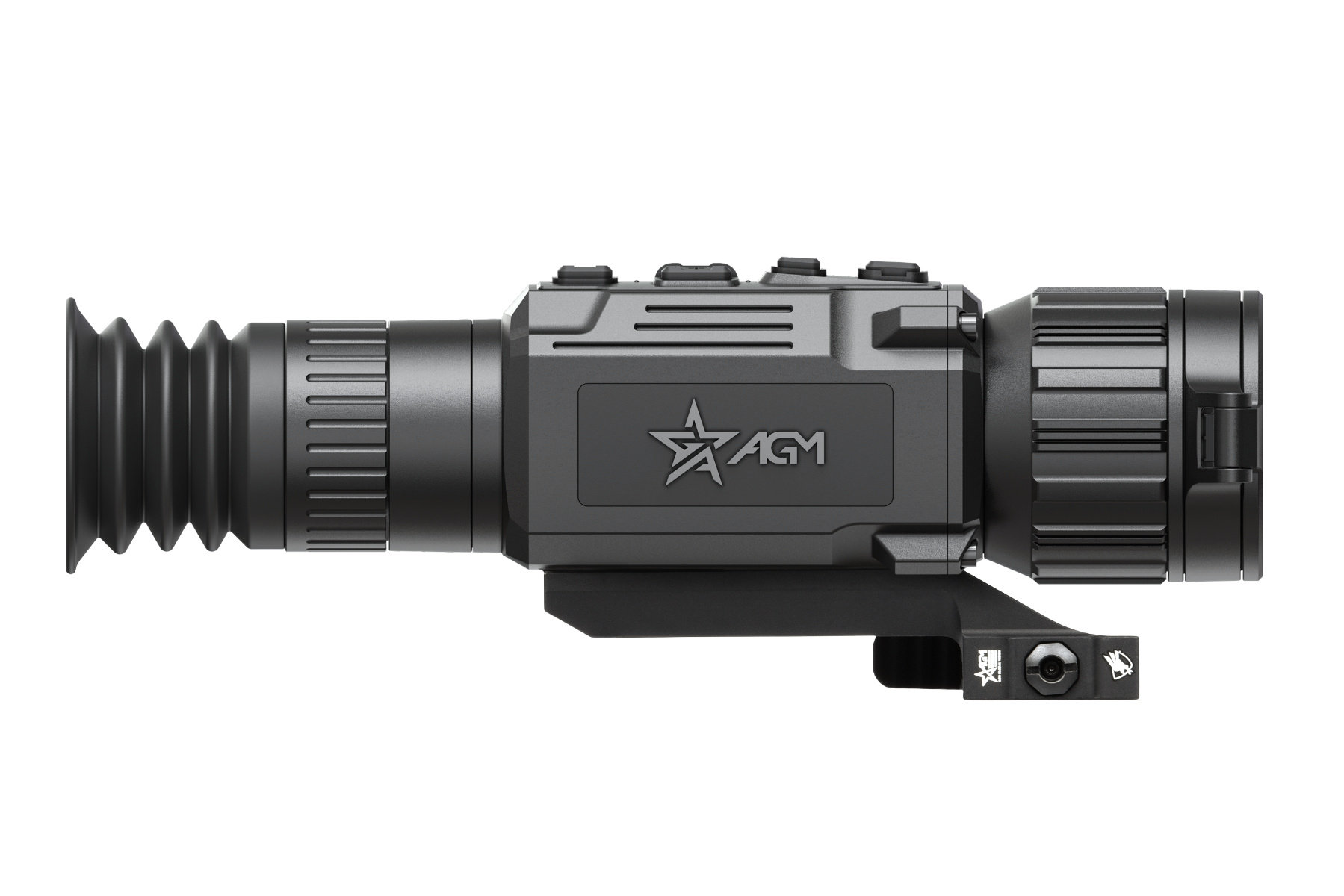

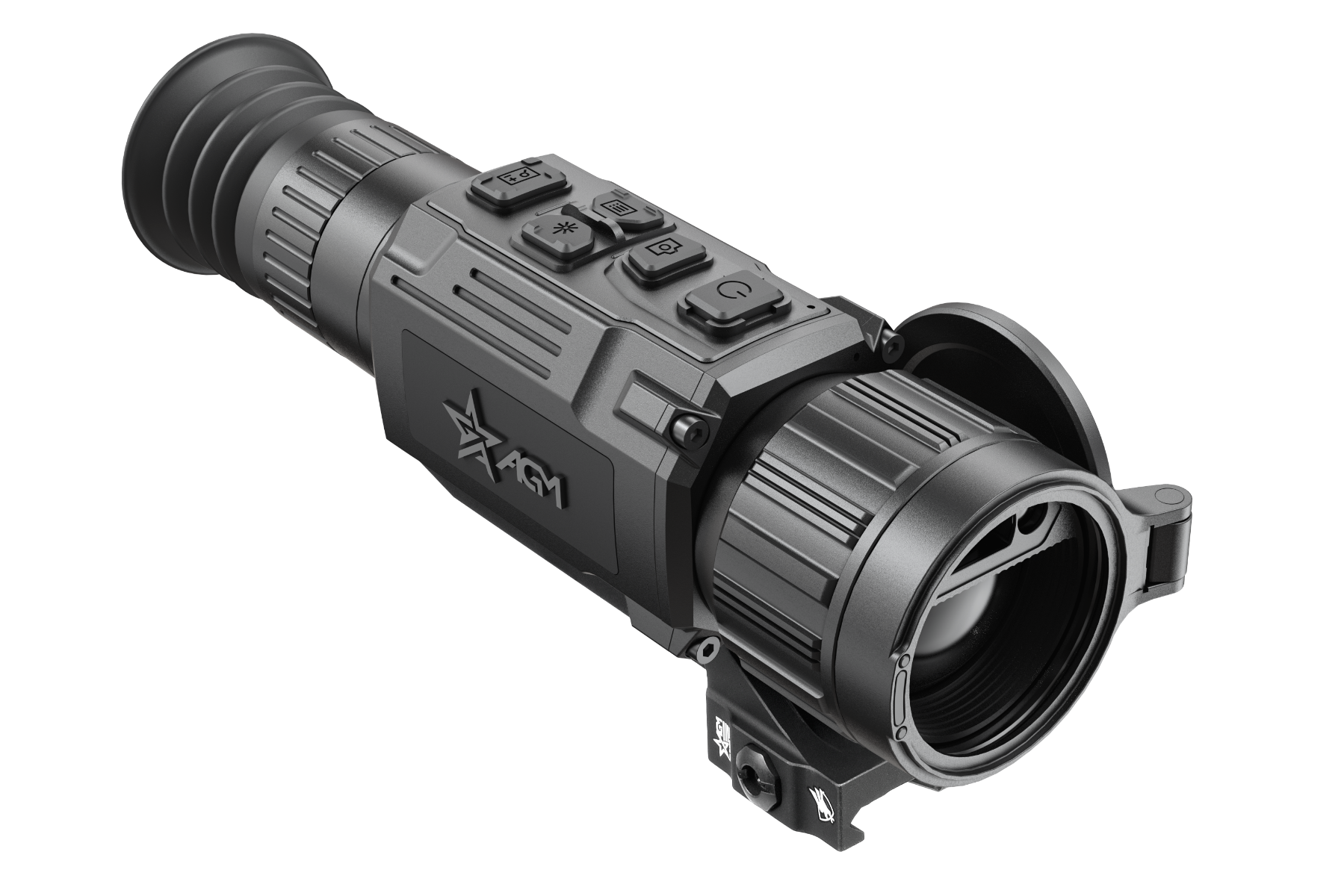

AGM RattlerV3 LRF 35-640 Thermal Imaging Rifle Scope

Financing available at checkout

■ Superior sub-15 milikelvin thermal sensitivity
■ 640×512 resolution with 12-micron sensor
■ Built-in 1,000m laser rangefinder in the lens
■ Integrated ballistic calculator
■ Large OLED display with 2560×2560 resolution
■ Shutterless technology
■ Various reticle types and colors
■ 2.5x to 20x magnification
■ Standby mode
■ On-board video/audio recording and image capture
■ Built-in EMMC storage (64 GB)
■ Shot-Activated Recording (SAR)
■ Wi-Fi data transmission
■ Over 5.5 hours battery life
■ External power supply compatibility
■ Waterproof & shockproof

$4,295
SKU: RATT35-640-V3

Did you know?

Financing options are available at checkout!

  • Description
  • Manufacturer Specifications
  • Technical Specs

Although it seems like just yesterday the celebrated AGM Rattler
thermal riflescope family got upgraded with the introduction of the
RattlerV2’s, the NEW RattlerV3 LRF testifies to the fact that evolution
never stops. The RattlerV3 LRF 35-640 pairs a 35 mm Germanium
lens with an industry-leading sub-15mK thermal sensor and a new
2560×2560 high resolution display, which combines to produce the
best 640 resolution thermal image. These technical parameters work
together to produce a detection range 1.5 miles. The RattlerV3 LRF 35
640 also brings the once inconceivable new in-lens LRF technology to
the compact Rattler series. A fully integrated 1,000m laser rangefinder
is paired with a new on-board ballistic calculator. A newly designed
eyepiece gives the RattlerV3 LRF 35-640 a base magnification of 2.5X,
making it an optimal option for predator hunters in wide-open terrain,
which entices longer range engagements. Its also the first Rattler
ever to come with a shutterless NUC and AGM’s powerful new Image
Boost 2.0 imaging algorithm. Large sturdy buttons were designed
to aid gloved fingers in cold winter weather, while the removable
rechargeable NE-4400 battery offers one of the most robust and easy
to install battery systems on the market. The firmware package allows
users an amazing level of customization: on-board pitch scale, 10
brightness and contrast settings, warm & cold viewing modes, multiple
color palettes, picture in picture, ballistic calculation, on-board video
recording with sound, WiFi hotspot, multiple zeroing profiles, shot
activated video recording, defective pixel repair, hotspot locator and
multiple laser range finding modes.

Image Sensor 12mm VOx Uncooled Focal Plane Array
Resolution 640×512
Frame Rate 50 Hz
NETD Less than 15 mK (@25degC, F# = 1.0)
Lens System 35 mm; F/1.0
Focus Mode Focus Ring
Detection Range (6′ object) 2480 m (2710 yd)
Magnification 2.5x – 20x
Field of View (H x V) 12.5deg x 10.0deg (21.9 x 17.6@100m)
Exit Pupil 6 mm
Eye Relief 45 mm
Diopter Adjustment-5 D to 5 D
Minimum Focusing Distance 10 m
Display 2560×2560, 1.03 inch, OLED
Picture-in-Picture (PiP) Yes
Hot Tracking Yes
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Image Boost 2.0 Yes
Zoom Pro Yes
Shutterless Technology Yes
Flat Field Correction (FFC) Semi-Auto, Manual
Defective Pixels Correction (DPC) Yes
Ballistic Calculation Yes
Reticle 10 types, 4 colors, on/off
Zeroing Profiles 5
Freeze Zeroing Yes
WiFi Hotspot Yes
Video Recording Yes (1280 x 1280)
Image Capture Yes (1280 x 1280)
Audio Recording Yes
Shot-Activated Recording (SAR) Yes
Storage Built-in EMMC (64 GB)
Local Album Yes
Standby Mode Yes
Battery Type Replacable and Rechargeable Li-ion Battery pack NE-4400
Battery Life (operating) ?5.5h (25 degC, with hotspot off)
External Power Supply 5V DC/2 A
Operating Temperature -30degC to +55degC (-22degF to 131degF)
Max. Recoil 1000 g/0.4 ms
Protection Level IP67
Dimension 237 x 66 x 67 mm (9.3 x 2.6 x 2.6 in)
Weight (w/o battery) 0.73 kg (1.6 lb)
Safety Class for Laser Class1
Wavelength 905 nm
Max. Measuring Range 1000 m
Measurement Accuracy +-1 m
Min. Measuring Range 10 m
