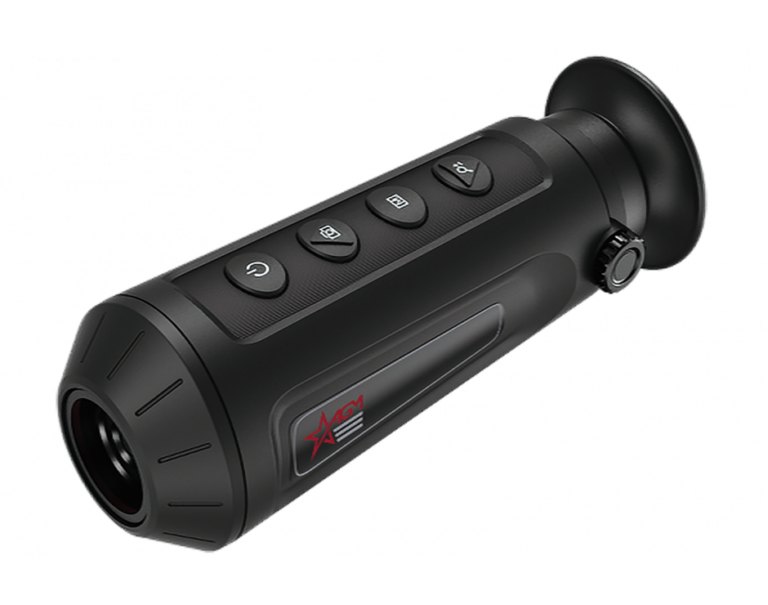

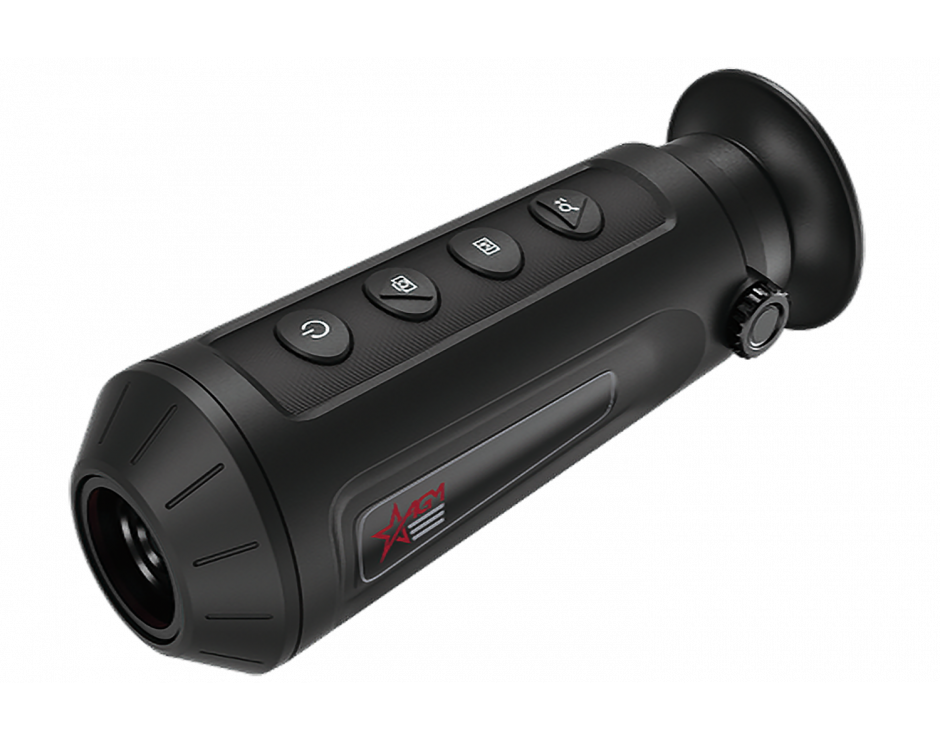

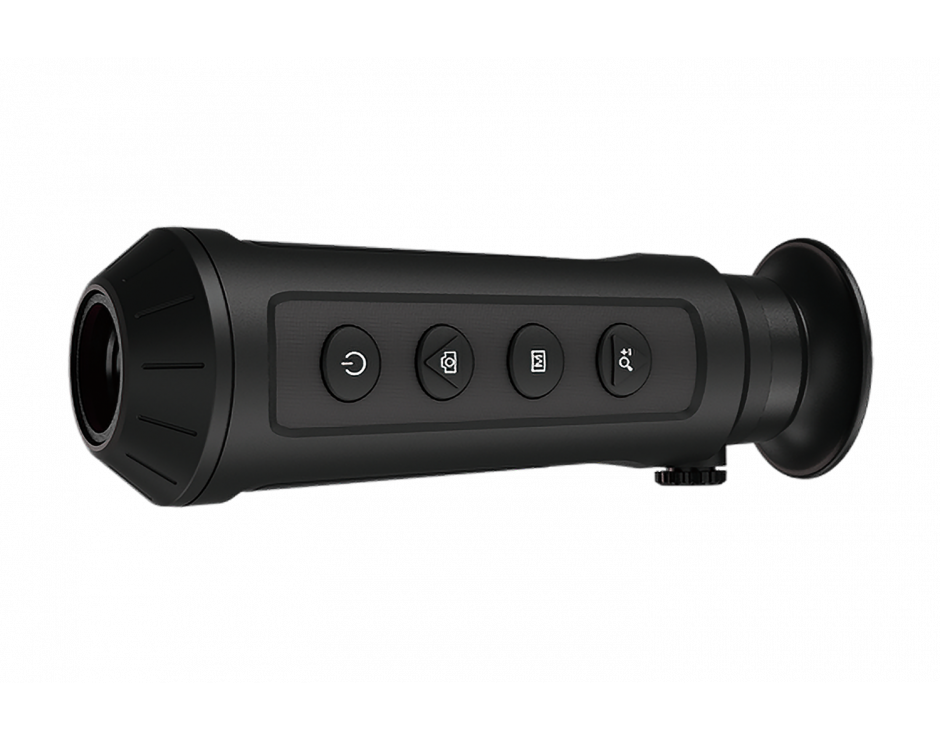

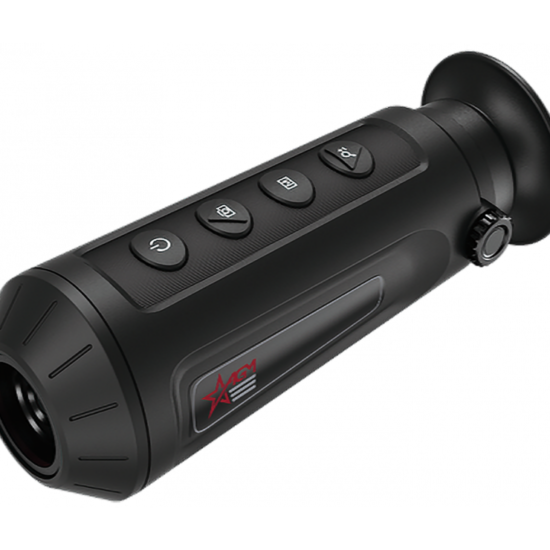

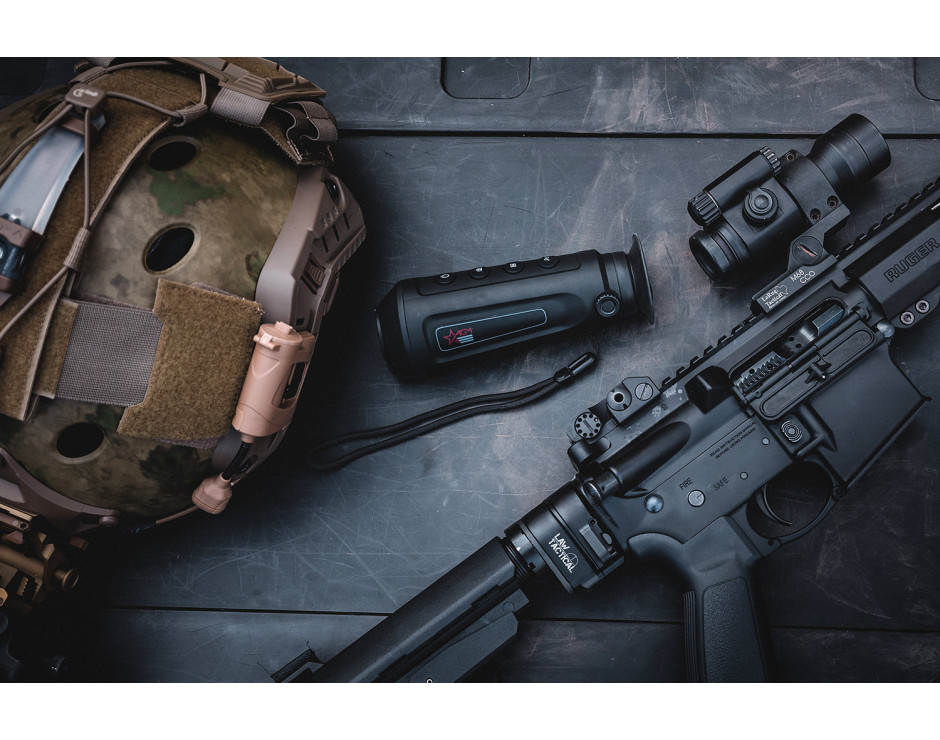

AGM TAIPAN TM10-256 Thermal Imaging Monocular
–
AGM TAIPAN TM10-256 Thermal Imaging Monocular
The Taipan-256 handheld observational thermal imaging monocular is equipped with a 256×192 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.
FEATURES:
- 256×192 resolution, 12 μm, high sensitivity detector
- Adaptive AGC, DDE, 3D DNR
- 720 × 540 LCOS display
- Built-in rechargeable Lithium battery
- Up to 8 hours continuous running (with Wi-Fi hotspot function off)
- “Auto Power Off” and “Sleep” modes
- Wi-Fi hotspot
- Type-C interface
- Limited 3-year warranty
FUNCTIONS
- Distance Measurement: The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
- Hot Spot Mark: The device detects and marks the hot spot of highest temperature.
- Mode Switch: Device supports pallet switch and distance measurement.
- Storage: Built-in memory module supports video recording/snapshot capturing.
- Digital Zoom: Device supports 1×, 2×, 4×, and 8× digital zoom.
- Wi-Fi Hotspot: Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
$371.40
SKU:
3092851013TA01-OB
Did you know?
Financing options are available at checkout!
Description
Specifications
Technical Specs
Description
AGM TAIPAN TM10-256 Thermal Imaging Monocular
The AGM Taipan TM10-256 Thermal Imaging Monocular available at Night Vision Guys is a versatile and compact thermal optic designed for hunters, outdoor enthusiasts, and tactical professionals. It features a 256×192 thermal sensor with a 12-micron pixel pitch, delivering clear and detailed thermal imagery even in complete darkness or challenging weather conditions. The 720×540 LCOS display ensures sharp visuals for effective target detection and identification.
Equipped with 1× to 8× digital zoom, the monocular allows users to adjust their field of view for both near and distant observation. It is powered by a built-in rechargeable lithium battery that provides up to eight hours of continuous use. Additional features such as adaptive AGC, DDE, 3D DNR, auto power-off, and sleep modes optimize performance and extend battery life.
The Taipan TM10-256 also includes Wi-Fi hotspot functionality and a Type-C interface for easy data transfer and connectivity. Rugged, lightweight, and weather-resistant, this thermal monocular is built for reliable performance in demanding outdoor environments.
FEATURES:
- 256×192 resolution, 12 μm, high sensitivity detector
- Adaptive AGC, DDE, 3D DNR
- 720 × 540 LCOS display
- Built-in rechargeable Lithium battery
- Up to 8 hours continuous running (with Wi-Fi hotspot function off)
- “Auto Power Off” and “Sleep” modes
- Wi-Fi hotspot
- Type-C interface
- Limited 3-year warranty
FUNCTIONS
- Distance Measurement: The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
- Hot Spot Mark: The device detects and marks the hot spot of highest temperature.
- Mode Switch: Device supports pallet switch and distance measurement.
- Storage: Built-in memory module supports video recording/snapshot capturing.
- Digital Zoom: Device supports 1×, 2×, 4×, and 8× digital zoom.
- Wi-Fi Hotspot: Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
| Detector Type | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|---|
| Resolution | 256×192 |
| Pixel Interval | 12 μm |
| Refresh Rate | 25 Hz |
| Response Waveband | 8μm to 14μm |
| NETD | Less than 35 mk (@25°C), F#=1.0 |
| Detection Range | 458 m |
| Lens (Focal Length) | 10 mm |
| Aperture | F1.0 |
| Field of View | 18.00° × 13.55° (H × V) |
| Magnification | 1× to 8× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Monitor | 720×540, 0.2 inch, LCOS |
| FFC (Flat Field Correction) | Auto, Manual, External Correction |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Highest Temperature Spot Tracking | Yes |
| Wi-Fi Hotspot | Yes |
| Standby Mode | Yes |
| Storage | Built-in memory module (8 GB) |
| Record Video | On-board video recording |
| Capture Snapshot | Yes |
| CVBS Output | Yes (via USB) |
| Multi Language menu | Yes |
| Battery Type | Built-in rechargeable Lithium battery |
| Battery Operating Time | Up to 8 hours continuous running (with Wi-Fi hotspot function off) |
| Battery Capacity Display | Yes |
| Power | 5 VDC/2 A, 1.5 W |
| Interface | USB Type-C |
| Working Temperature | -20°C to 55°C (-4°F to 131°F) |
| Protection Level | IP67 |
| Drop Test Height | 1.5 m (4.9 feet) |
| Dimension | 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in) |
| Weight | 260 g (0.57 lb) |
Specifications
AGM TAIPAN TM10-256 Thermal Imaging Monocular
| Detector Type | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|---|
| Resolution | 256×192 |
| Pixel Interval | 12 mm |
| Refresh Rate | 25 Hz |
| Response Waveband | 8mm to 14mm |
| NETD | Less than 35 mk (@25degC), F#=1.0 |
| Detection Range | 458 m |
| Lens (Focal Length) | 10 mm |
| Aperture | F1.0 |
| Field of View | 18.00deg x 13.55deg (H x V) |
| Magnification | 1x to 8x |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Monitor | 720×540, 0.2 inch, LCOS |
| FFC (Flat Field Correction) | Auto, Manual, External Correction |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Highest Temperature Spot Tracking | Yes |
| Wi-Fi Hotspot | Yes |
| Standby Mode | Yes |
| Storage | Built-in memory module (8 GB) |
| Record Video | On-board video recording |
| Capture Snapshot | Yes |
| CVBS Output | Yes (via USB) |
| Multi Language menu | Yes |
| Battery Type | Built-in rechargeable Lithium battery |
| Battery Operating Time | Up to 8 hours continuous running (with Wi-Fi hotspot function off) |
| Battery Capacity Display | Yes |
| Power | 5 VDC/2 A, 1.5 W |
| Interface | USB Type-C |
| Working Temperature | -20degC to 55degC (-4degF to 131degF) |
| Protection Level | IP67 |
| Drop Test Height | 1.5 m (4.9 feet) |
| Dimension | 158 x 61 x 57 mm (6.23 x 2.4 x 2.2 in) |
| Weight | 260 g (0.57 lb) |
