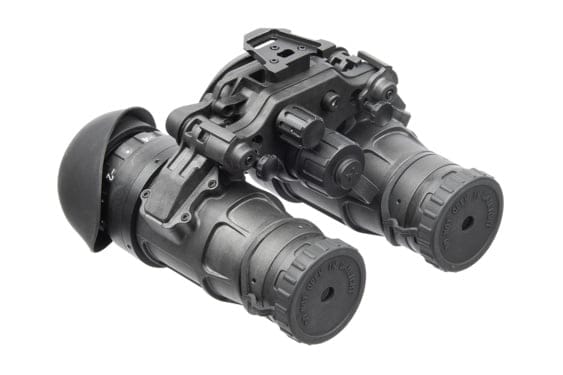

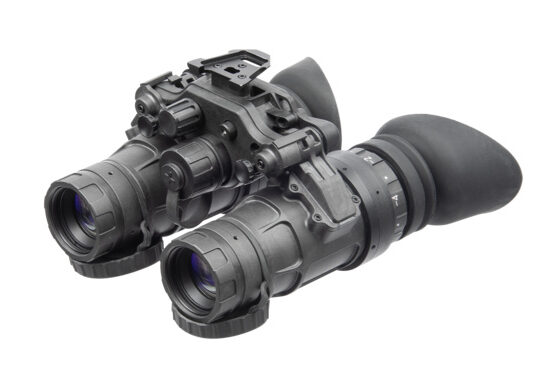

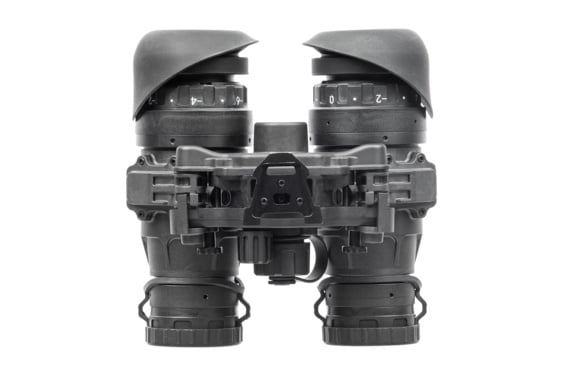

AGM UNVG-51 NL1 – Ultralight Night Vision Goggle/Binocular 51 degree FOV with Gen 2+ “Level 1”, P43-Green Phosphor IIT.
–
The AGM UNVG-51 is a dual-channel night vision system. With a 51 field of view, it provides a large visual field without needing to move the binoculars. The UNVG-51 uses advanced multi-coated optics and is built to last with a compact composite housing. The device can be outfitted with a Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected. The UNVG-51 is also equipped with manual gain control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. A programmable setting system allows to activate the flip-up shutdown function and automatic sleep mode depending on the tactical situation. Operating from a single AA alkaline battery, the UNVG-51 can run up to 25 hours. Also equipped with an integral infrared illuminator for reading in the dark.
$6,395
SKU:
12UN51284153011
Did you know?
Financing options are available at checkout!
Description
Specifications
Technical Specs
Description
- Low Power Consumption Design: Automatic dormancy when not in use, quick wake-up on movement, low-power
- indicator. Utilizes single AA battery or external battery pack.
- Built-in Gyroscope Chip System: Prevents eyepiece astigmatism exposure during helmet flip-up.
- Programmable Tactical Strategy Setting: Customizable settings for flip-up shutdown and automatic dormancy.
- Flip-Up Auto Off Feature: Each tube will automatically turn off when flipped up out of the way.
- Corrosion and Impact-Resistant Housing: Matte black finish with PEEK+Glass fiber material for longevity.
- Quick Attachment Design: Dovetail base support for strong compatibility and durability.
- PVS-14-style Compatible: Objective lens and eyepiece lens are compatible with PVS-14 style components and attachments.
- Independent Pod Movement: Pods can roll up and down for quick configuration changes.
- Ultralight Housing: 16oz/460g weight means improved mobility, responsiveness, and reduced fatigue.
- Single/Double Eye Configuration: Pods independently adjustable for improved operational flexibility.
- IR Complement Function: Infrared illuminator for enhanced visibility in total darknessand close quarters environments.
- Manual Gain Control: Adjust image intensifier gain for optimal vision preferences.
- New Simplified IP Stop Design: Improve IP Stop design allows you to set your tube positions to what is most comfortable for the user.
Specifications
The AGM UNVG-51 is a dual-channel night vision system. With a 51 field of view, it provides a large visual field without needing to move the binoculars. The UNVG-51 uses advanced multi-coated optics and is built to last with a compact composite housing. The device can be outfitted with a Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected. The UNVG-51 is also equipped with manual gain control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. A programmable setting system allows to activate the flip-up shutdown function and automatic sleep mode depending on the tactical situation. Operating from a single AA alkaline battery, the UNVG-51 can run up to 25 hours. Also equipped with an integral infrared illuminator for reading in the dark.
| Specification | Value |
|---|---|
| Image Intensifier Tube | Gen 3 Autogated |
| Magnification | 1x |
| Lens System | 19 mm, F/1.26 |
| FOV | 51deg |
| Exit Pupil Diameter | 14 mm |
| Focus Range | 0.25 m to Infinity |
| Diopter Adjustment | -6 to +2 diopters |
| Interpupillary Distance | 56 to 72 mm |
| Eye Relief | 25 mm |
| Manual Gain Control | Yes |
| Bright Light Cut-Off | Yes |
| Built-in Gyroscope | Yes |
| Flip-up Turn-Off System | Yes (programmable) |
| Automatic Shut-Off System | Yes (programmable) |
| Infrared Illuminator | Yes |
| Battery Type | One AA (1.5 V) or External Battery Pack (four AA or two CR123A) |
| Battery Life (Operating, 20degC) | One AA – up to 25 hoursExternal Battery Pack with four AA – up to 50 hoursExternal Battery Pack with two CR123A – up to 30 hours |
| Operating Temperature Range | -40degC to +50degC (-40degF to +122degF) |
| Storage Temperature Range | -50degC to +70degC (-58degF to +158degF) |
| Protection Level | IP67 |
| Immersion | 20m (66 feet) for 2 hours |
| Weight | 460 g (16 oz) |
| Overall Dimensions | 101 x 116 x 85 mm (4.0 x 4.6 x 3.3 in) |

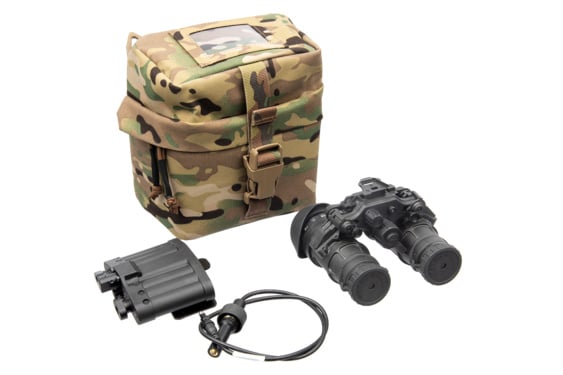

| Package Includes | Night Vision Goggles, External Battery Pack, Battery Adapter, Demist Shield (2), Sacrificial Window (2), Carrying Case, Lens Cloth, User Manual |
Technical Specs
| Attributes | Value |
|---|---|
| Weight | 10.2 lbs |
| Generation | |
| Is Accessory |
No |
| Refresh Rate | |
| Sensor Resolution | |
| Color |
Black |
| Condition |
New |
| Max Magnification |
0 reviews for AGM UNVG-51 NL1 – Ultralight Night Vision Goggle/Binocular 51 degree FOV with Gen 2+ “Level 1”, P43-Green Phosphor IIT.
