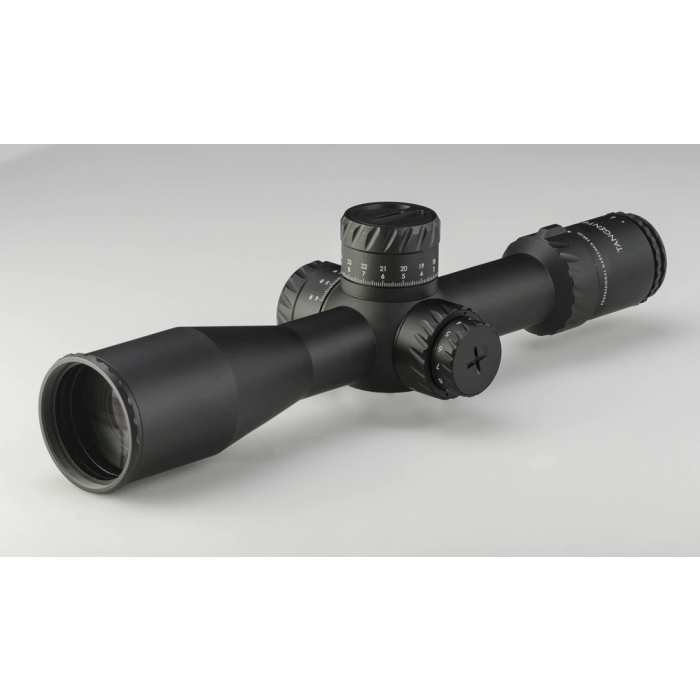

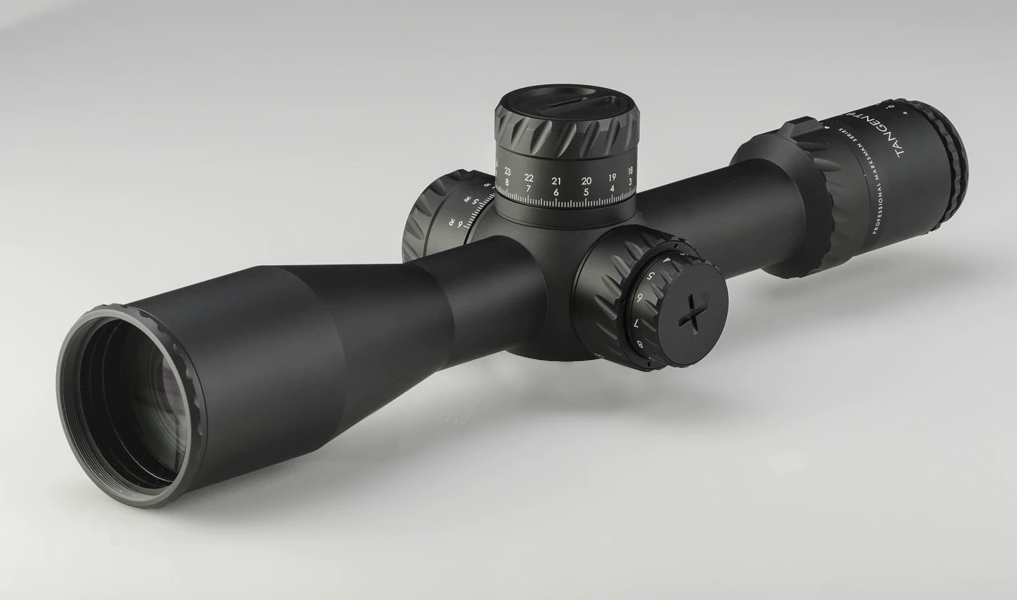

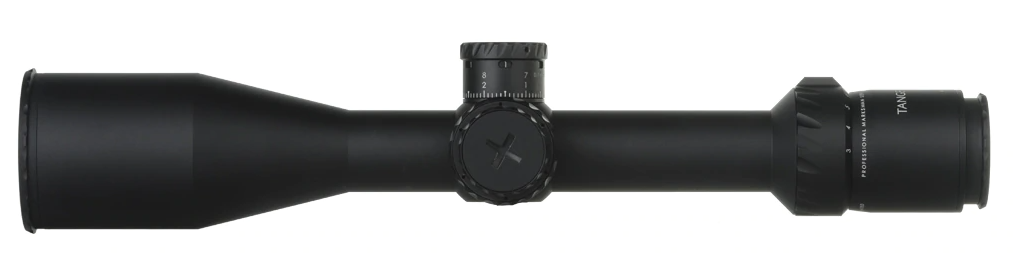

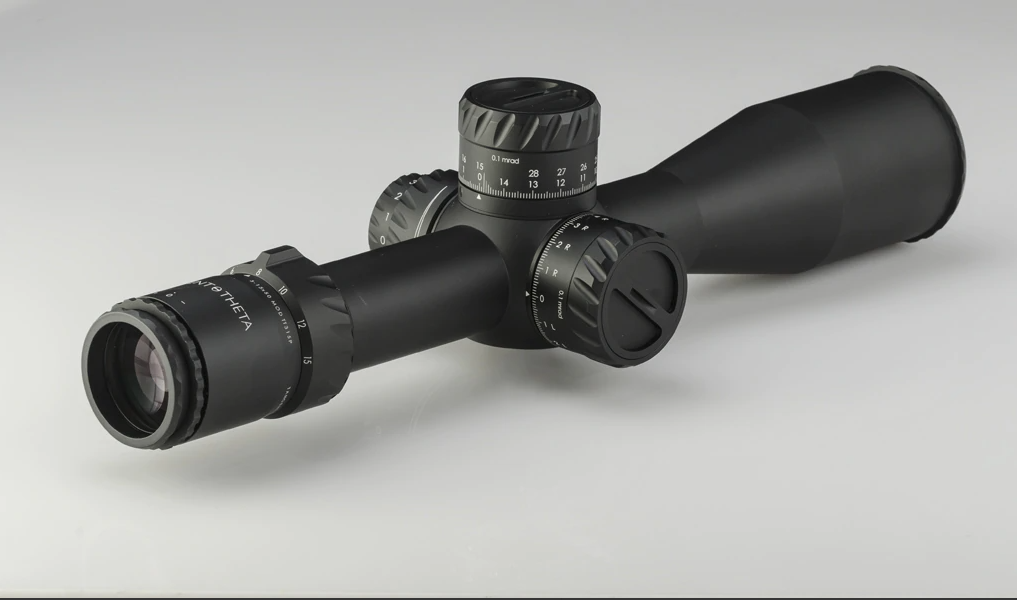

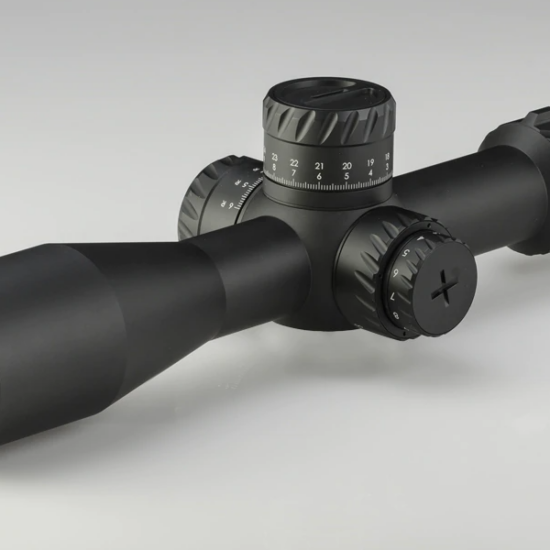

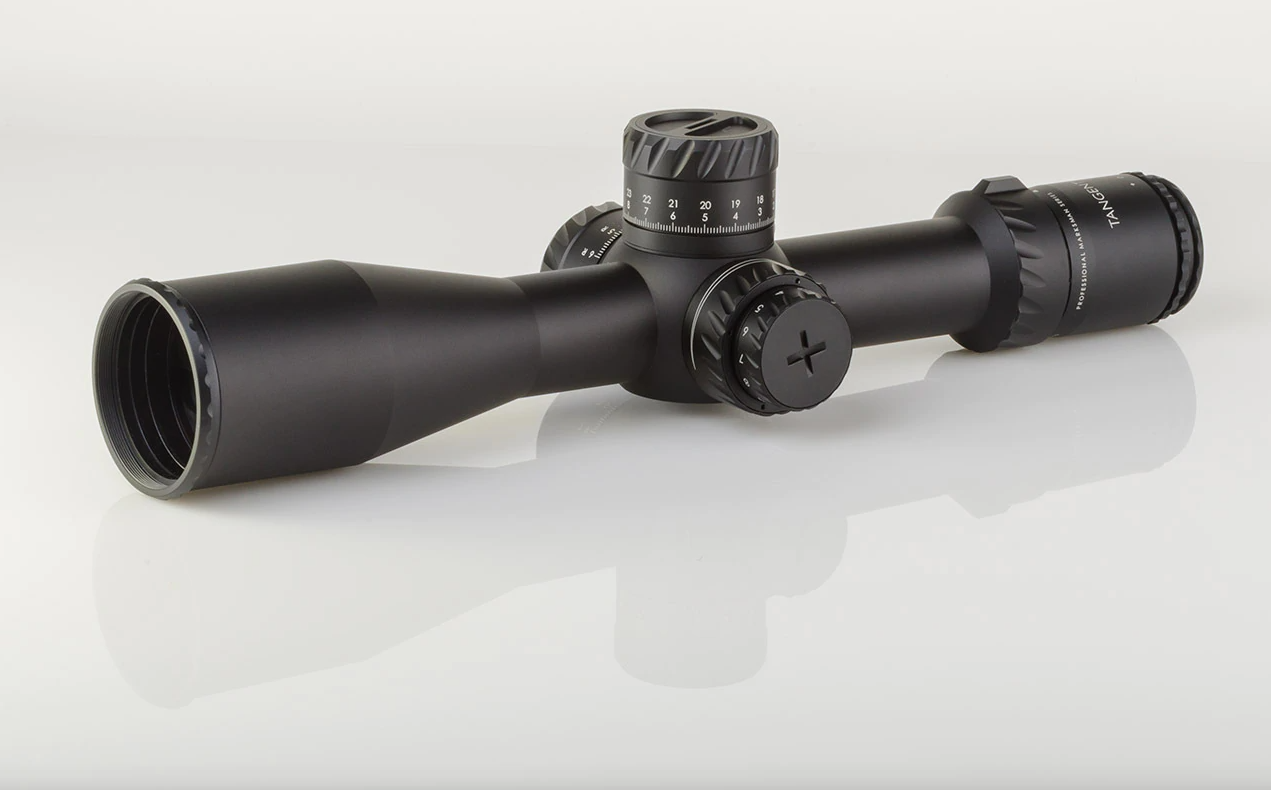

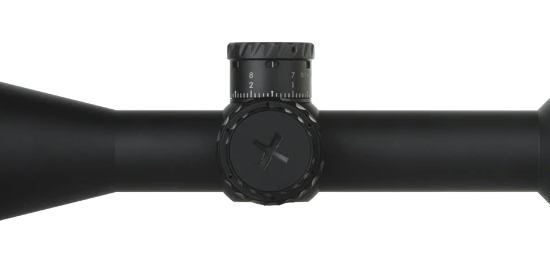

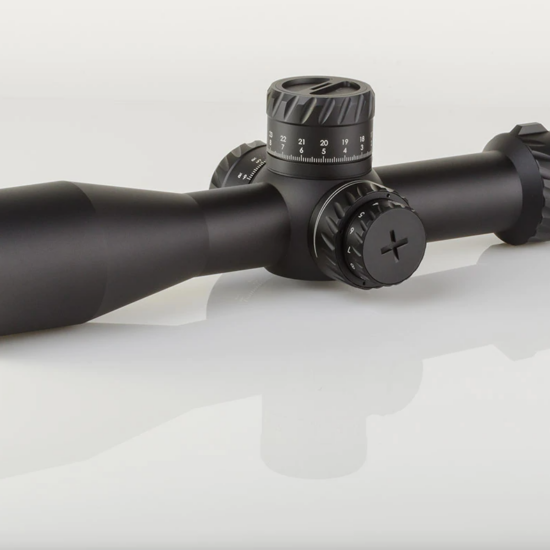

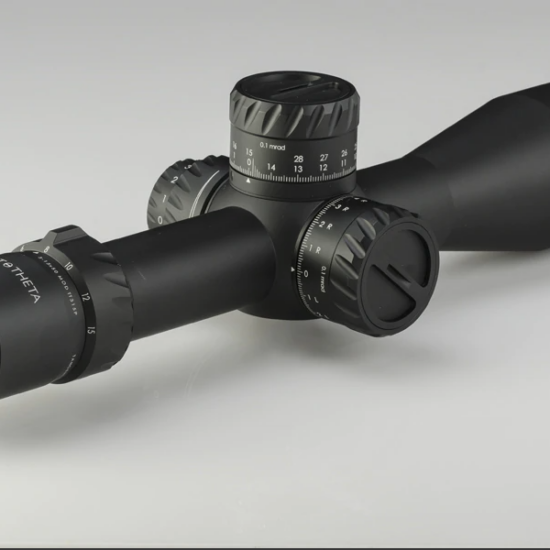

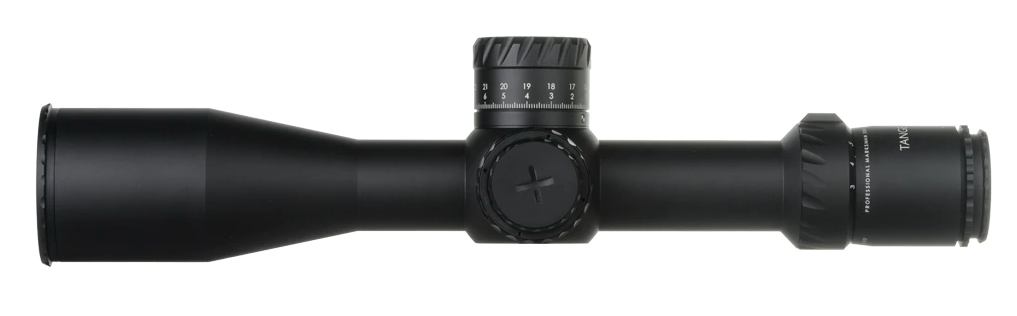

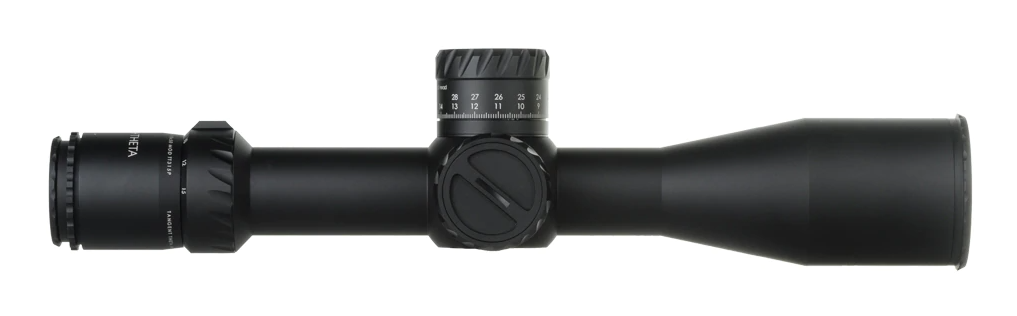

**Armament Technology Inc. 3-15x50mm Professional TT315P Rifle Telescope Gen 3 XR reticle**

Designed for heavy field use, Tangent Theta’s industry-leading development team has used their extensive experience to optimize and refine it for unfailing ruggedness, mechanical precision and unsurpassed image quality. Elevation and windage mechanisms exhibit precise tactile response and feature a truly TOOL-LESS RE-ZERO® procedure.

Tangent Theta rifle telescopes are built in Canada and are specifically designed and function-tested for long lifecycles in the harshest of environmental conditions.

FEATURES:

* 50mm objective lens
* 34mm main tube
* eleven reticle illumination settings
* side parallax adjustment
* TOOL-LESS RE-ZERO® feature (patent pending)
* non-translating knobs with elevation zero-stop
* double-turn elevation with revolution indicator
* 3-15x magnification range
* lockable rapid adjusting diopter

| Magnification | 3x-15x |
| ————————- | ———————————– |
| Length | 356mm |
| Width | 103mm |
| Height | 82mm |
| Weight | 1025g |
| Tube diameter | 34mm |
| Objective bell diameter | 57mm |
| Objective lens diameter | 50mm nominal |
| Eyepiece diameter | 45mm |
| Reticle options | Gen 2, Gen 2XR, MoA, Gen 3XR |
| Field of View @ 3x | 7.3 degrees (12.8m @ 100m) |
| Field of View @ 15x | 1.6 degrees (2.8m @ 100m) |
| Diopter range | -3 to +2.5 |
| Eye relief | 90mm |
| Exit pupil @ 3x | 11.5mm |
| Exit pupil @ 15x | 3.5mm |
| Re-zero mechanism | TOOL-LESS RE-ZERO® (patent pending) |
| Total Adjustment Range | |
| Elevation | 34 mrad (117 MoA) |
| Windage | +/- 8 mrad (+/- 27 MoA) |
| Working Adjustment Range | |
| Elevation | 28 mrad /96 MoA |
| Windage | +/- 6 mrad (+/- 20.5 MoA) |
| Adjustment resolution | 0.1 mrad or 1/4 MoA |
| Parallax adjustment range | 50m to infinity |
| Crosshair illumination | LED, 11 settings |
| Battery type | DL2032 3v lithium |
| Exterior finish | Type II Anodized, matte |
| Environmental | |
| Waterproof: | 4 hours @ 10 meters |
| Shockproof: | 700g?s @ 10,000 cycles |
