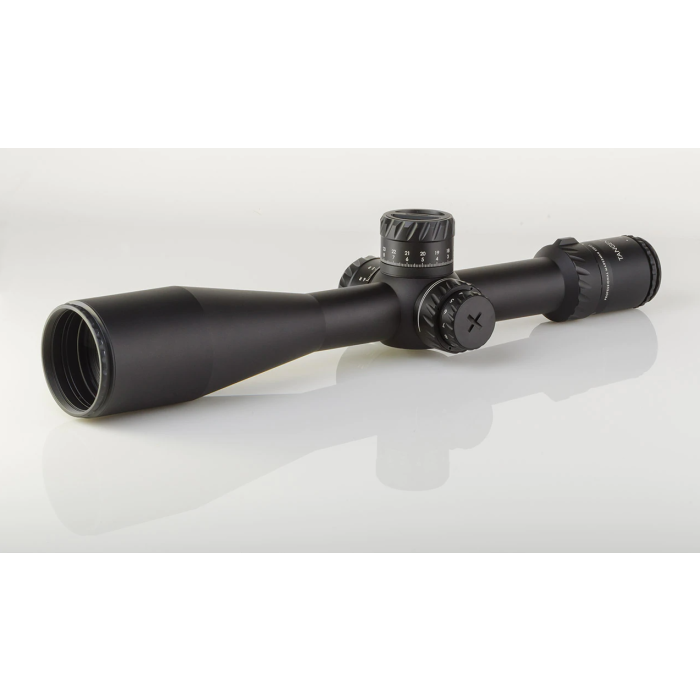

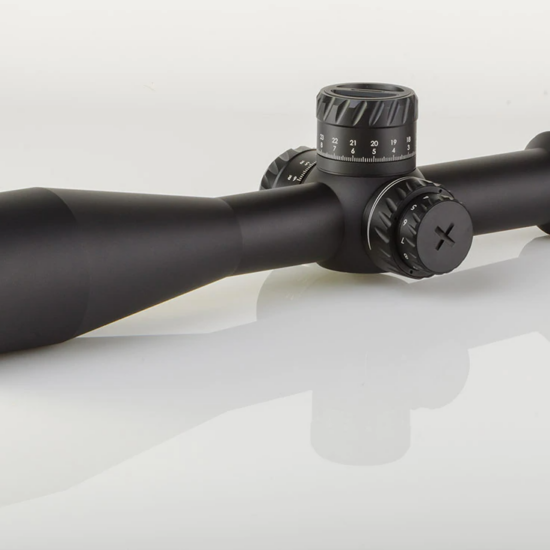

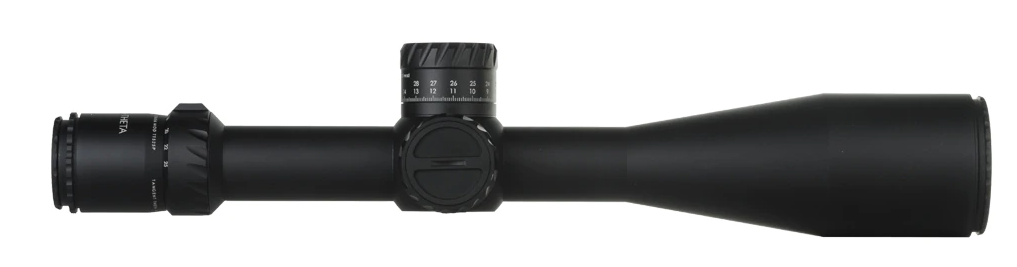

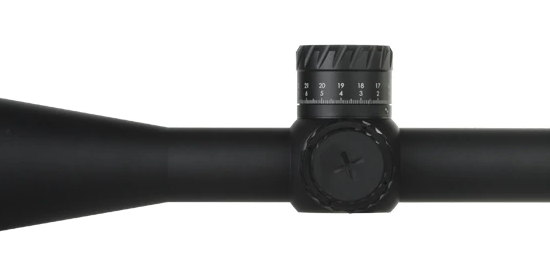

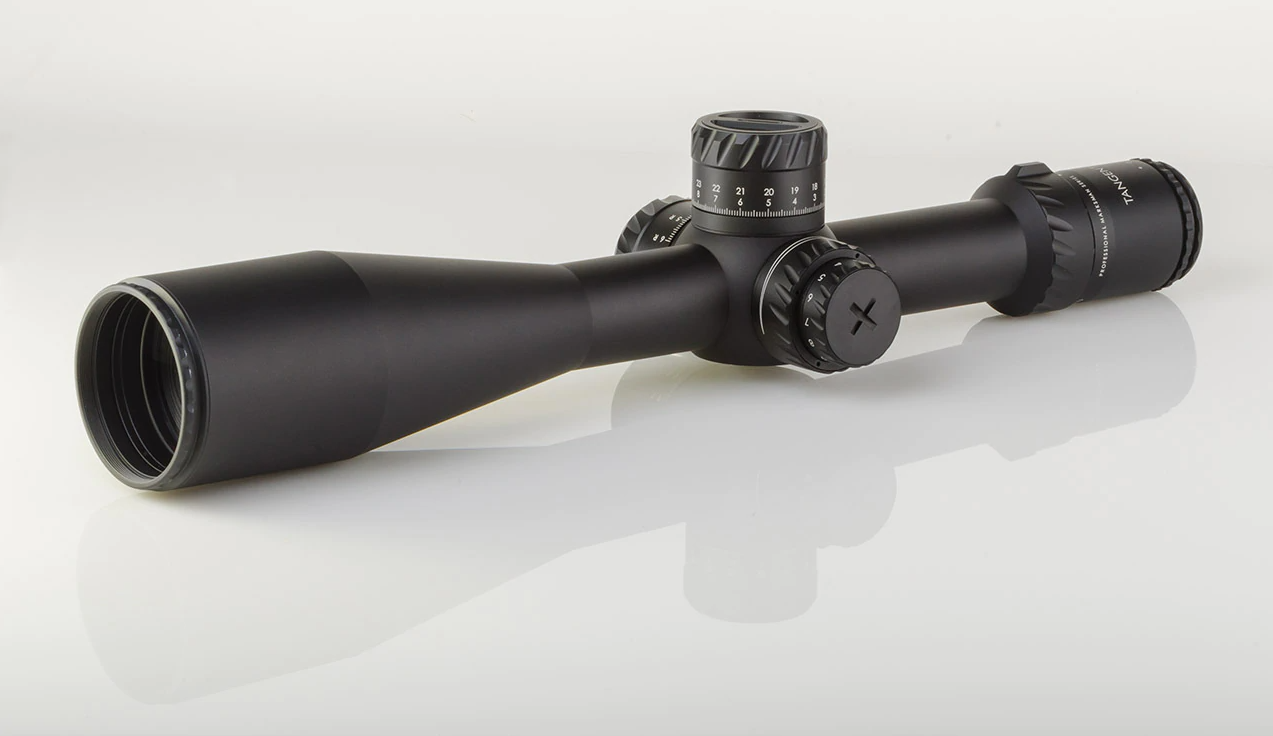

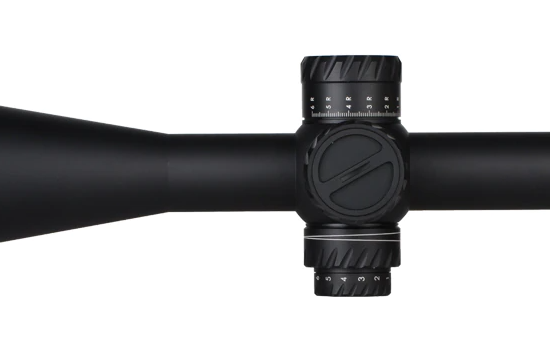

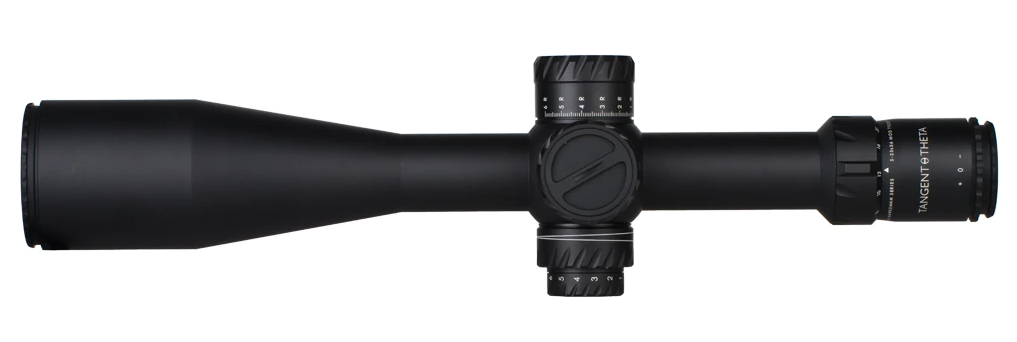

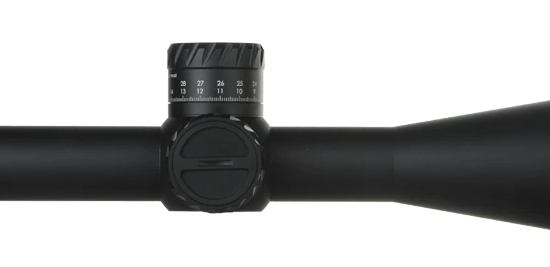

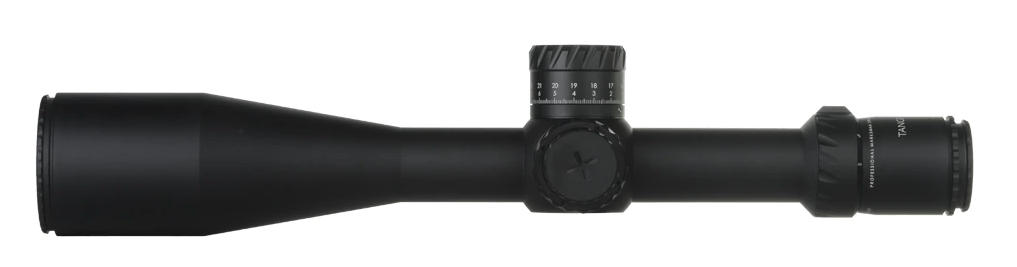

Armament Technology Inc. 5-25x56mm Professional TT525P Rifle Telescope Gen 3 XR reticle, AIF
Financing available at checkout
FEATURES:
- 56mm objective lens
- 34mm main tube
- eleven reticle illumination settings
- side parallax adjustment
- TOOL-LESS RE-ZERO® feature (patent pending)
- non-translating knobs with elevation zero-stop
- double-turn elevation with rev indicator
- 5-25x magnification range
- lockable rapid adjusting diopter
$5,684
SKU:
800100-0406
Did you know?
Financing options are available at checkout!
Description
Specifications
Technical Specs
Description
Tangent Theta 5-25x56mm model TT525P Rifle Telescope is an extreme-range precision sighting instrument for professional marksmen. Designed for heavy field use, Tangent Theta’s industry-leading development team has used their extensive experience to optimize and refine it for unfailing ruggedness, mechanical precision and unsurpassed image quality. Elevation and windage mechanisms exhibit precise tactile response and feature a truly TOOL-LESS RE-ZERO® procedure.
Tangent Theta rifle telescopes are built in Canada and are specifically designed and function-tested for long lifecycles in the harshest of environmental conditions.
Specifications
| Magnification | 5x-25x |
|---|---|
| Length | 425mm |
| Width | 103mm |
| Height | 86mm |
| Weight | 1150g |
| Tube diameter | 34mm |
| Objective bell diameter | 65mm |
| Objective lens diameter | 50mm nominal |
| Eyepiece diameter | 45mm |
| Reticle options | Gen 2XR, MoA |
| Field of View @ 5x | 4.3 degrees (7.6m @ 100m) |
| Field of View @ 25x | 0.9 degrees (1.6m @ 100m) |
| Diopter range | -3 to +2.5 |
| Eye relief | 90mm |
| Exit pupil @ 5x | 11mm |
| Exit pupil @ 25x | 2.3mm |
| Re-zero mechanism | TOOL-LESS RE-ZERO(r) (patent pending) |
| Total Adjustment Range | |
| Elevation | 30 mrad (103 MoA) |
| Windage | +/- 10 mrad (+/- 34 MoA) |
| Working Adjustment Range | |
| Elevation | 28 mrad (96 MoA ) |
| Windage | +/- 6 mrad (+/- 20 MoA) |
| Adjustment resolution | 0.1 mrad or 1/4 MoA |
| Parallax adjustment range | 50m to infinity |
| Crosshair illumination | LED, 11 settings |
| Battery type | DL2032 3v lithium |
| Exterior finish | Type II Anodized, matte |
| Environmental | |
| Waterproof: | 4 hours @ 10 meters |
| Shockproof: | 700g’s @ 10,000 cycles |
