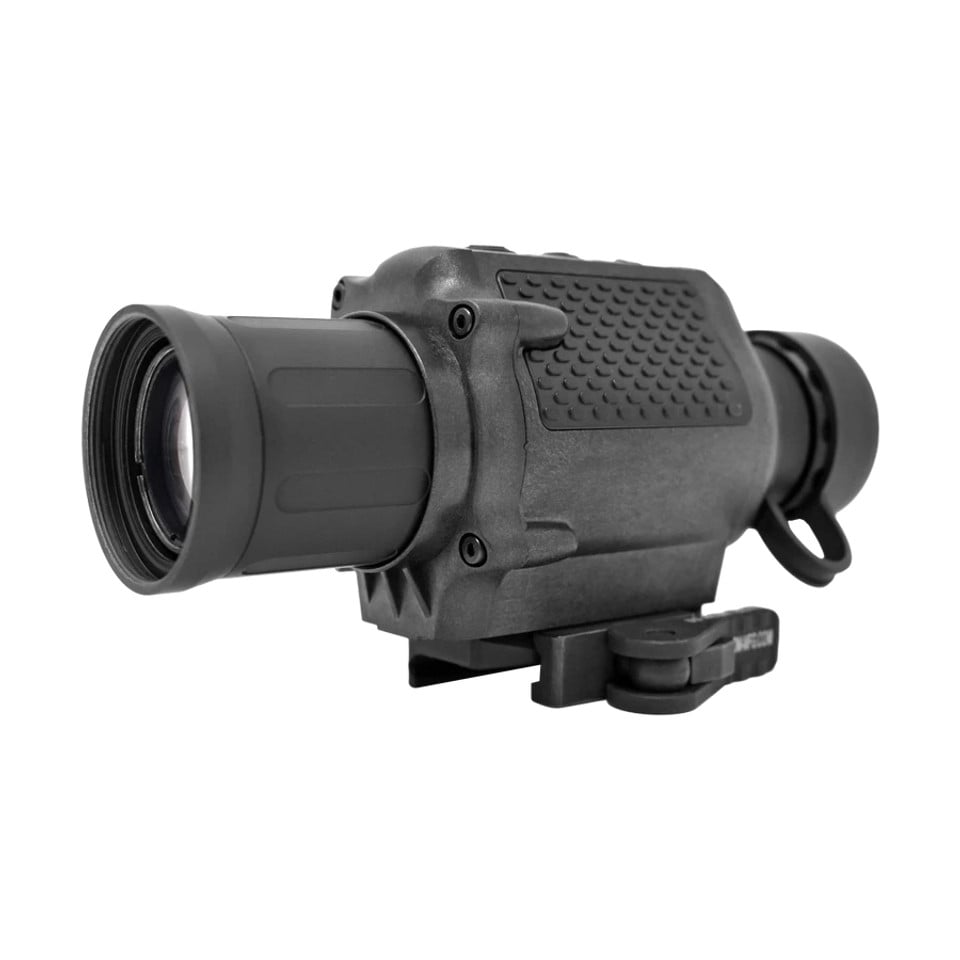

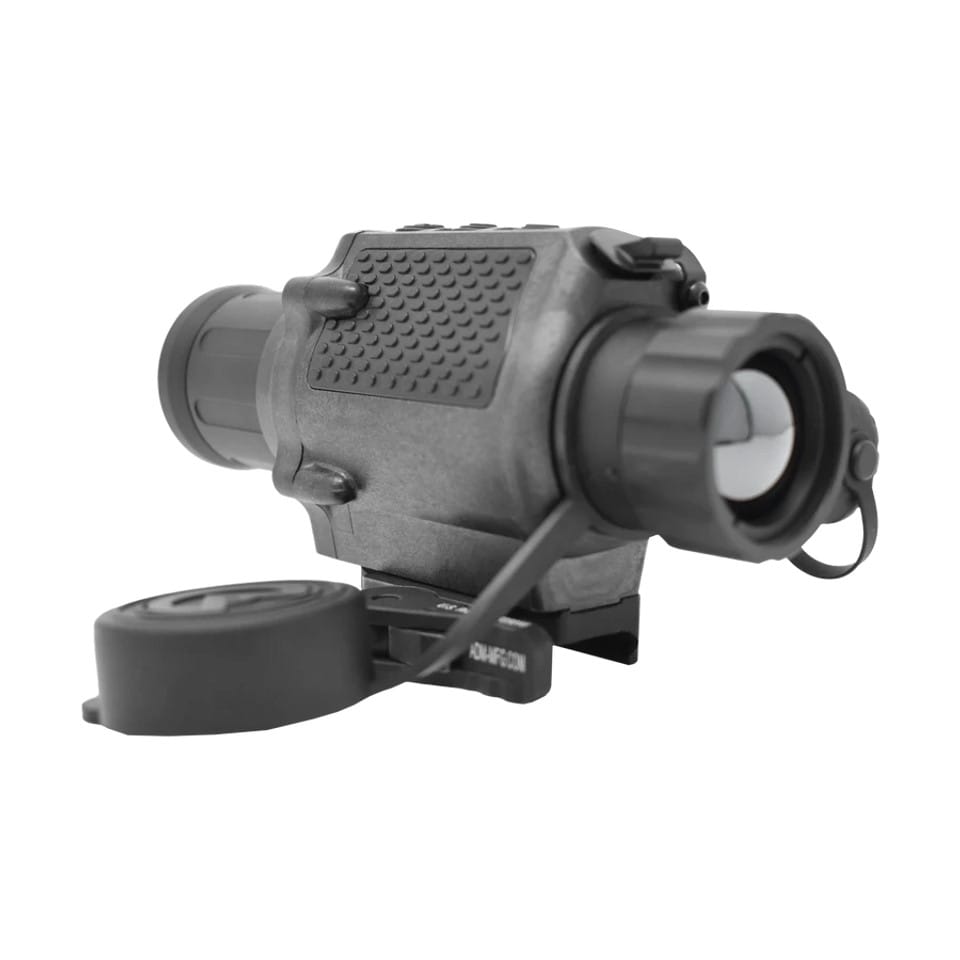

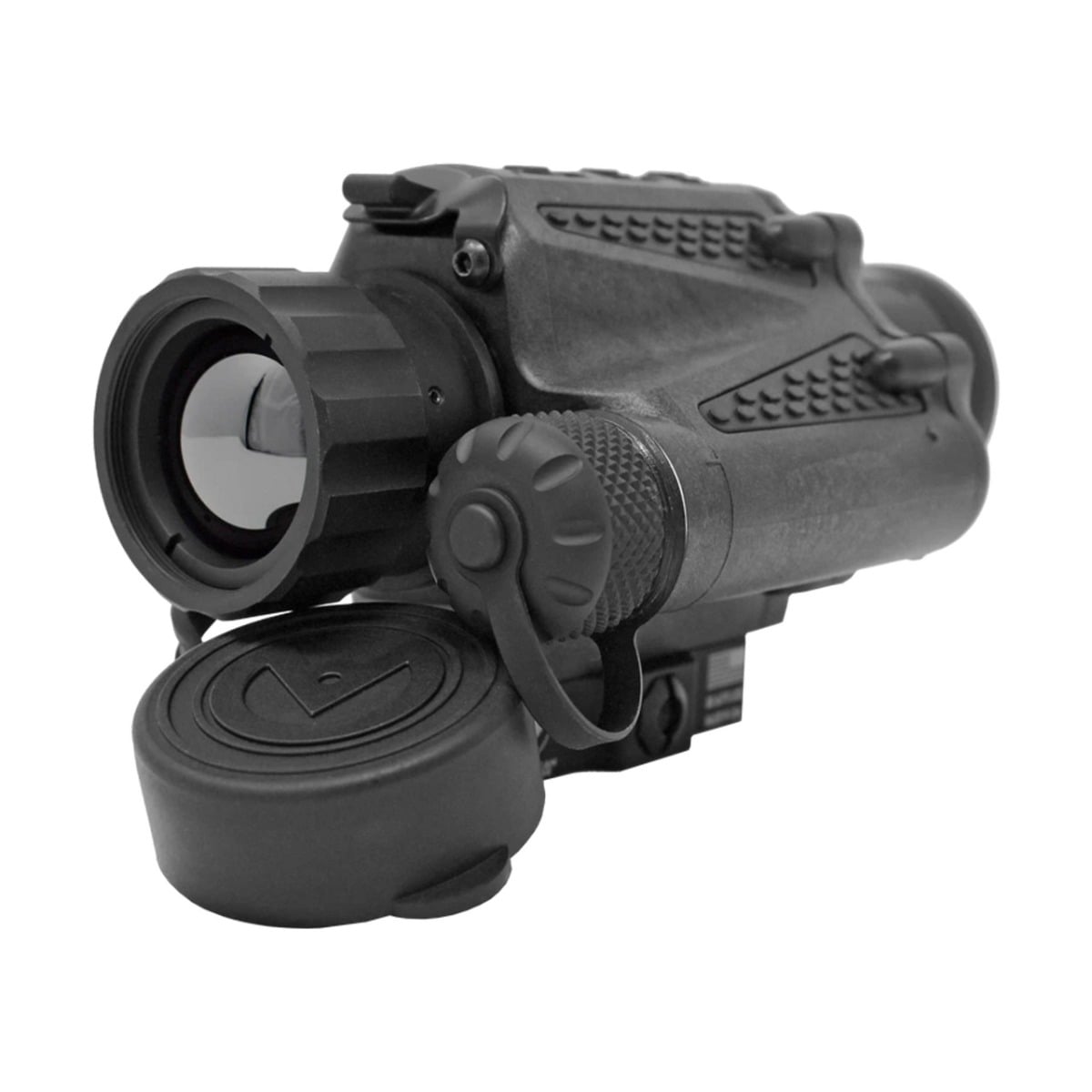

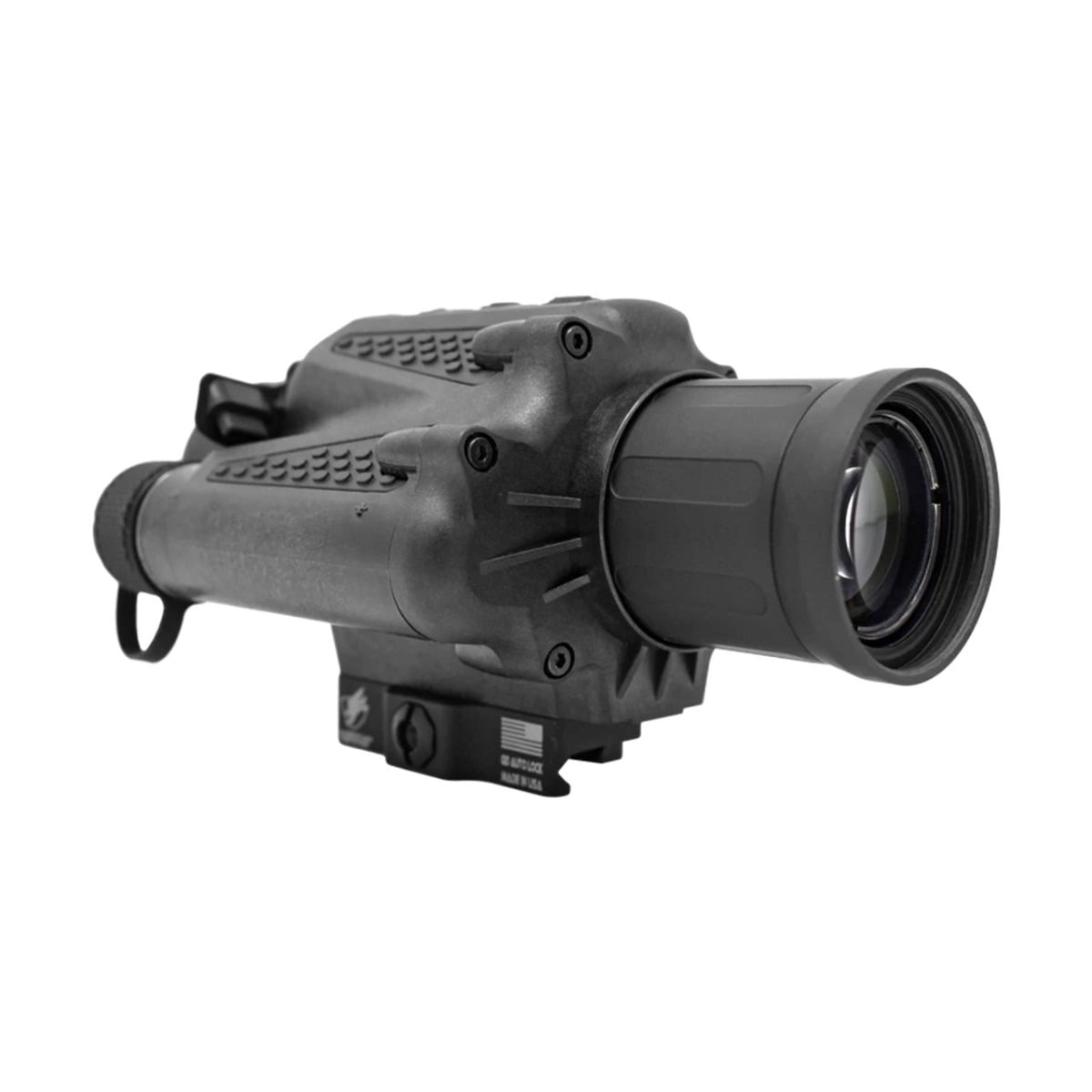

Armasight Jockey 640 Thermal Clip-on

Financing available at checkout

**Features**

* Multiple Color Palettes
* Intuitive 3-Button Controls
* Reticle (for Digital Zoom)
* 4 Hours Runtime at 20° C
* Image Detail Enhancement
* Simple Alignment for Digital Zoom Capabilities
* Quick Detach Mount Included
* Video Recording & Image Capture
* USB Video Stream
* USB-C Interface for External Devices
* Reticle ON/OFF Selection
* Battery Status Indicator
* ULTEM Composite Body and Ergonomic Design
* Designed and Assembled in the USA from U.S. and Global Components

**Package Includes**

* Jockey 640 Compact Thermal Clip-On
* Quick Detach Mount
* USB-C Cable
* Light Suppressor
* Thermal Zeroing Target
* 2 × CR123A Battery
* Lens Cloth
* Soft Case
* Product Manual

$3,499
SKU: TAVT66CN2JOCK102

Did you know?

Financing options are available at checkout!

  • Description
  • Manufacturer Specifications
  • Technical Specs

The Jockey 640 easily mounts in front of your existing 1-6x day scope with no additional zeroing required, working flawlessly with most optics under 5x magnification. The Jockey’s compact and lightweight design keeps your favorite .308, rimfire, airgun, or crossbow nimble and responsive.

This unit boasts the high-performance ArmaCORE™ 640 thermal core, fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight’s Iron Wolf thermal technology platform. An extensive suite of features includes video and image capture, USB video stream, USB-C interface for viewing your recordings and photos on external devices such as computers or televisions. The Jockey 640 offers multiple color palettes, intuitive simple 3 button controls, a quick detach mount, and long battery life.

Detector Type: ArmaCORE(tm) 640 x 480 12um Thermal Core

Refresh Rate: 60 Hz

Thermal Sensitivity: NETD < 40mK

Detection Range: 932m on a Human Sized Target

Recognition Range: 233m on a Human Sized Target

Identification Range: 146m on a Human Sized Target

Exit Pupil: 25mm

Field of View: 17.6deg x 13.2deg

Optical Magnification: 1x unity (recommended for daytime optics with 1x – 6x magnification)

Digital Zoom: 1x – 4x

Display: XGA (1024 x 768) OLED

Wireless: None

Graphics: Active On-Screen Graphics and Iconology

Recoil Rating: .308

Lens System: F/1.00; 25mm manual focus

Rear Collimator: f38mm

Diopter Adjustment: N/A

Power Supply: 2 x CR123A (3V) or 1 x 16650 (3V)

Battery Life: 4 hours at 20deg C

Memory: 4 Hours of Video

Image Processing: Digital Enhancement

Environmental Rating: IP67

Operating Temperature: -40deg C to +50deg C (-40deg F to + 122deg F)

Dimensions: 147.07 x 77.22 x 77.72 mm / 5.79 x 3.04 x 3.06 in

Weight: 398g / 0.88lbs. w/o eyepiece cap, light suppressor or battery

Warranty: 3 years w/ registration

Color: Black
