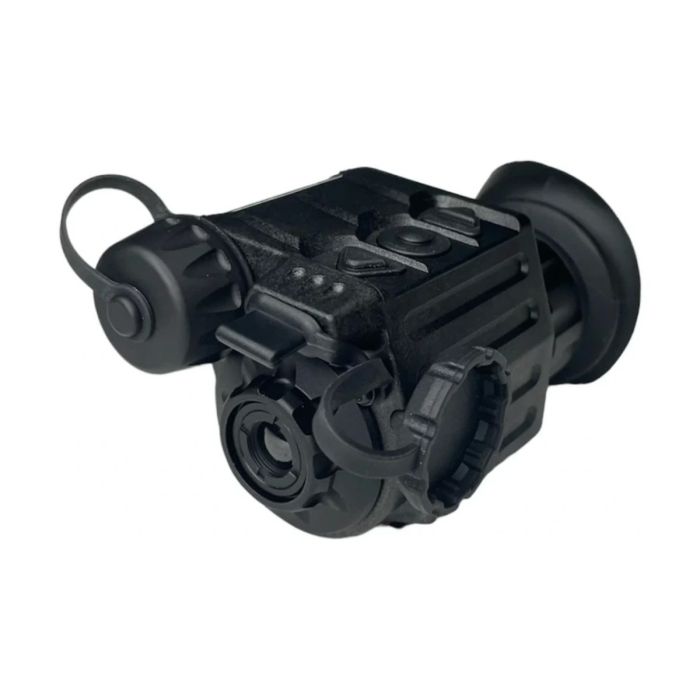

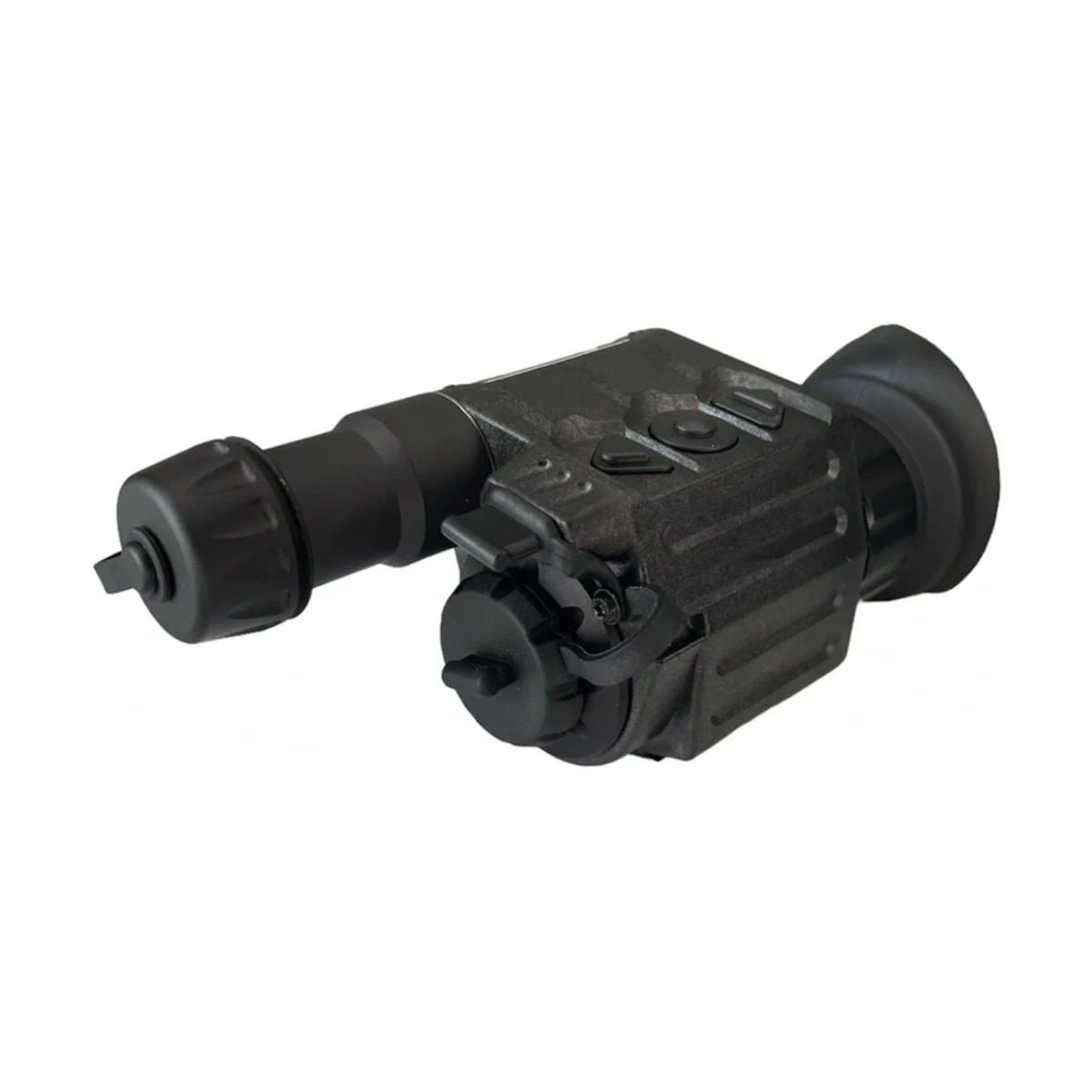

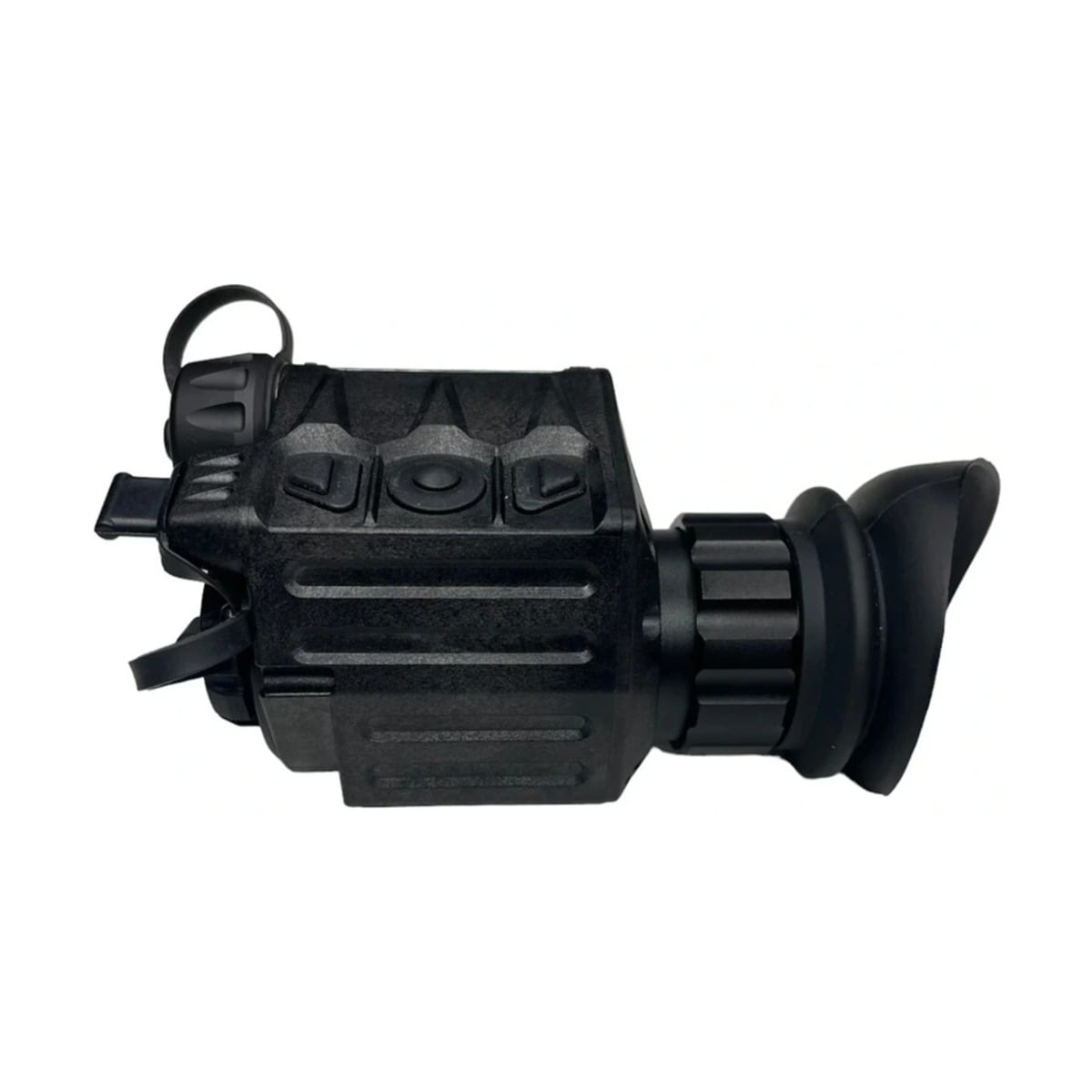

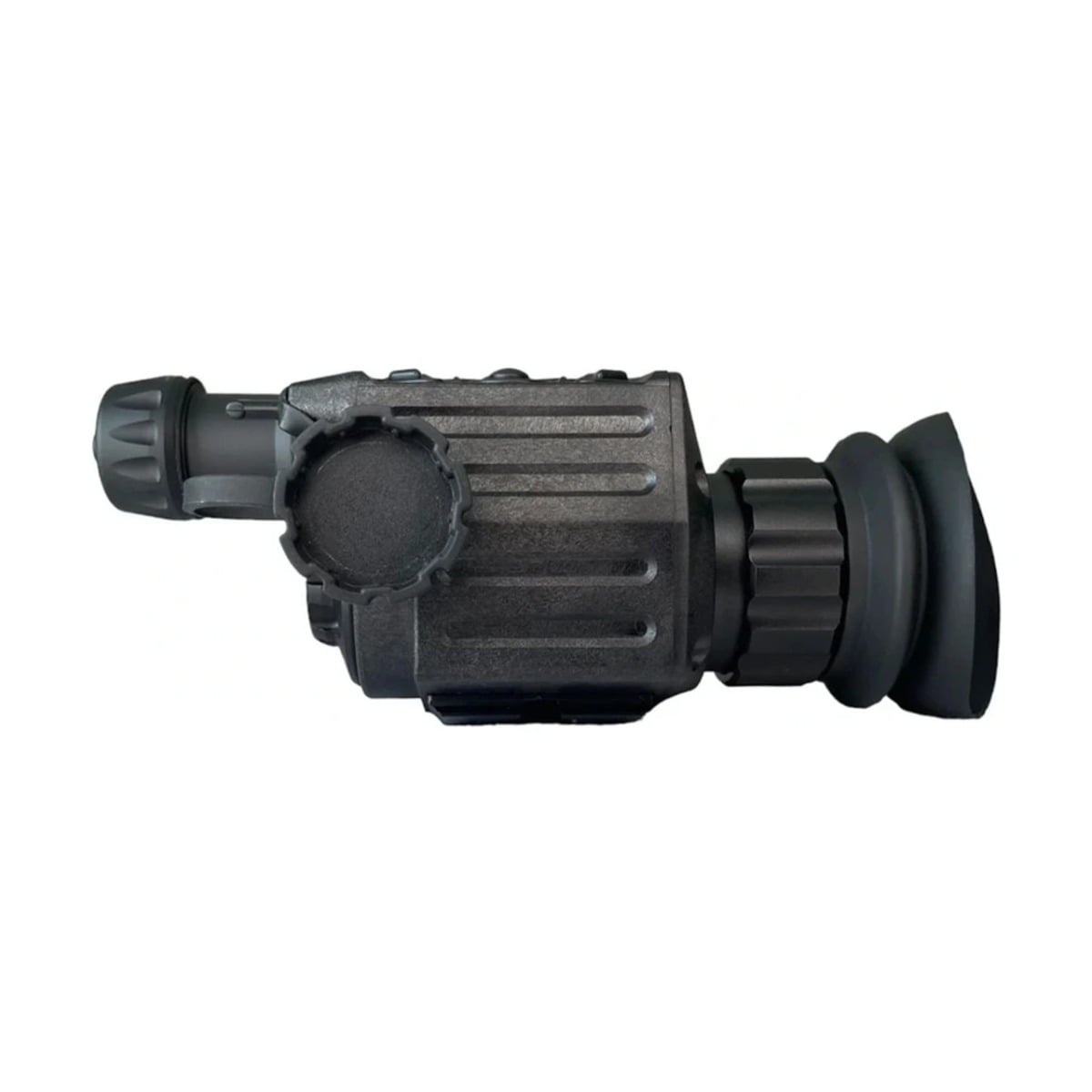

Armasight Sidekick 320 Thermal Monocular

SKU
TAVT36MNASIDE101
$1,759.12
Add to Compare
0% APR for 6/12 months or interest bearing for 36 months*

The Sidekick 320 is the smallest fully multi-functional 12-micron 320 thermal imaging monocular on the market. This unit boasts a fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight’s Iron Wolf thermal technology platform. Weighing under 210 grams, the Sidekick can be used as a handheld mini-monocular or can be headset/helmet mounted utilizing the built-in mini-rail for hands-free operation. The high definition 1024×768 OLED display provides a crisp image, with iconography providing key information. The Sidekick utilizes simplified 3 button controls that allow for easy manipulation in the field and offers one-touch in-unit video recording to capture all of your experiences.

Detector Type: ArmaCORE™ 320x240 12um Thermal Core
Refresh Rate: 60 Hz
Thermal Sensitivity: NETD < 40mK
Detection Range: 331m on a Human Sized Target
Recognition Range: 85m on a Human Sized Target
Identification Range: 53m on a Human Sized Target
Eye Relief: 15mm
Field of View: 24.18° x 18.13°
Optical Magnification: 1x
Digital Zoom: 1x - 4x
Display: XGA (1024 x 768) OLED
Wireless: None

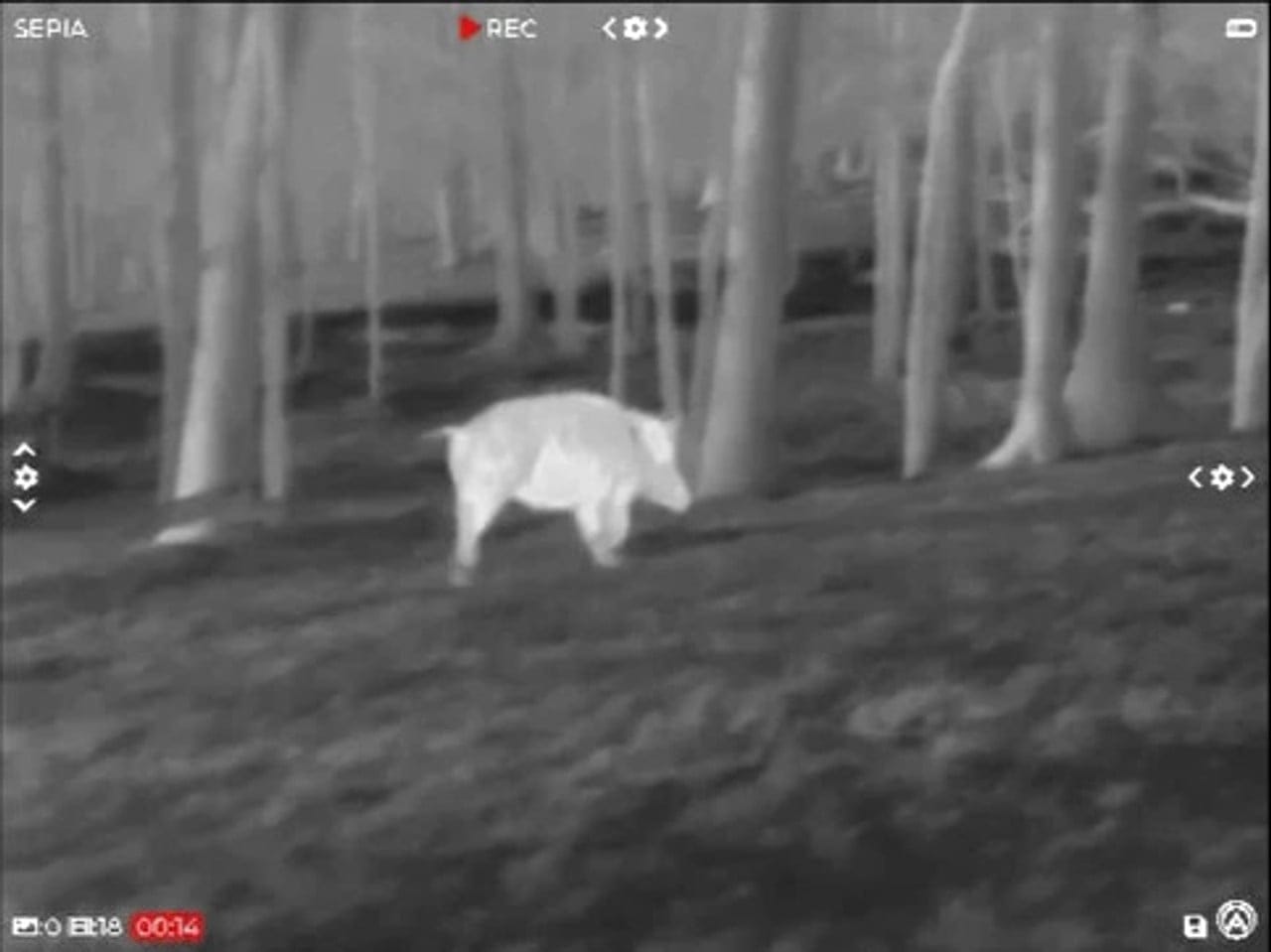

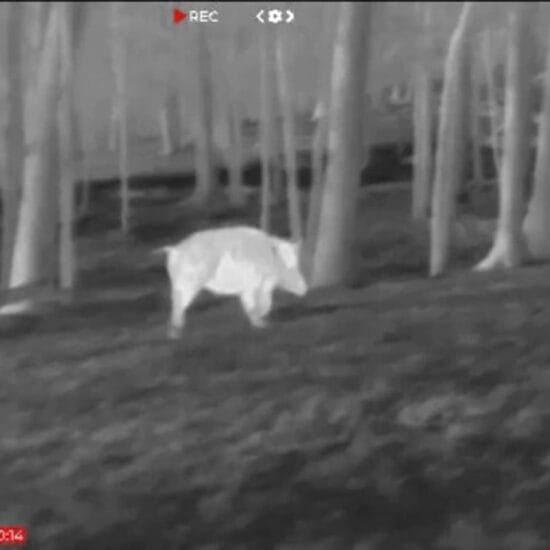

Graphics: Active On-Screen Graphics and Iconology
Lens System: F/1.00; 9.1mm fixed focus
Diopter Adjustment: -5 to +5 dpt
Power Supply: 1 x CR123A or 2 x CR123A / 1 x 16650
Battery Life: 1x / 2x CR123A - 1.5h / 5.5h at 20°C (68°F)
Low Battery Indicator: Yes
Memory: 4 Hours of Video
Image Processing: Digital Enhancement
Environmental Rating: IP67
Operating Temperature: -40° C to +50° C (-40° F to + 122° F)
Dimensions: 98.81 x 65.28 x 59.69 mm / 3.89 x 2.57 x 2.35 in
Weight: 214g / 0.47lbs. w/ rubber eyecup; no battery
Warranty: 3 years w/ registration
Color: Black

Features

  • Multiple Color Palettes

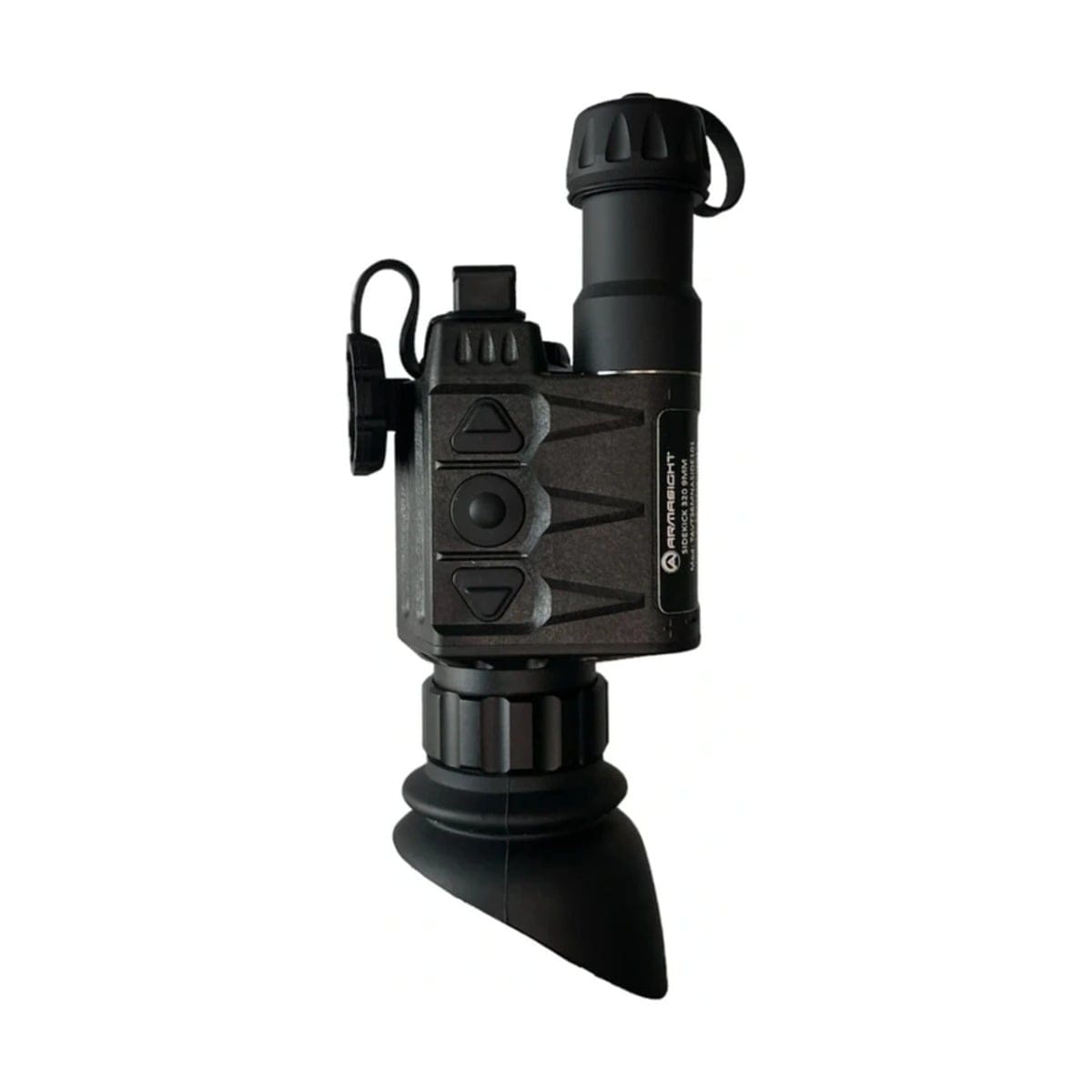

  • Intuitive 3-Button Control
  • 1.5h Runtime on 1 x CR123A Battery, 5.5h on 2 Batteries with Included Battery Extender
  • Image Detail Enhancement
  • Dovetail Mini-Rail Included for Helmet Mounting (with Optional Mount)
  • Works with Rayvn Group Modular Bridge Mount for Helmet-Mounting with PVS-14, MNVD, or Second Sidekick (sold separately)
  • Ability to Shift Thermal Image to Collimate Sidekick Image with NVD when Bridged

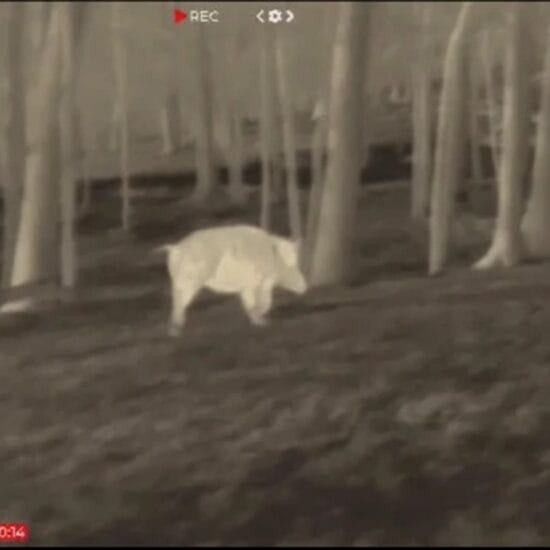

  • Video Recording & Image Capture
  • USB Video Stream
  • USB-C Interface for External Devices
  • Compass
  • Battery Status Indicator
  • ULTEM Composite Body and Ergonomic Design
  • Designed and Assembled in the USA from U.S. and Global Component

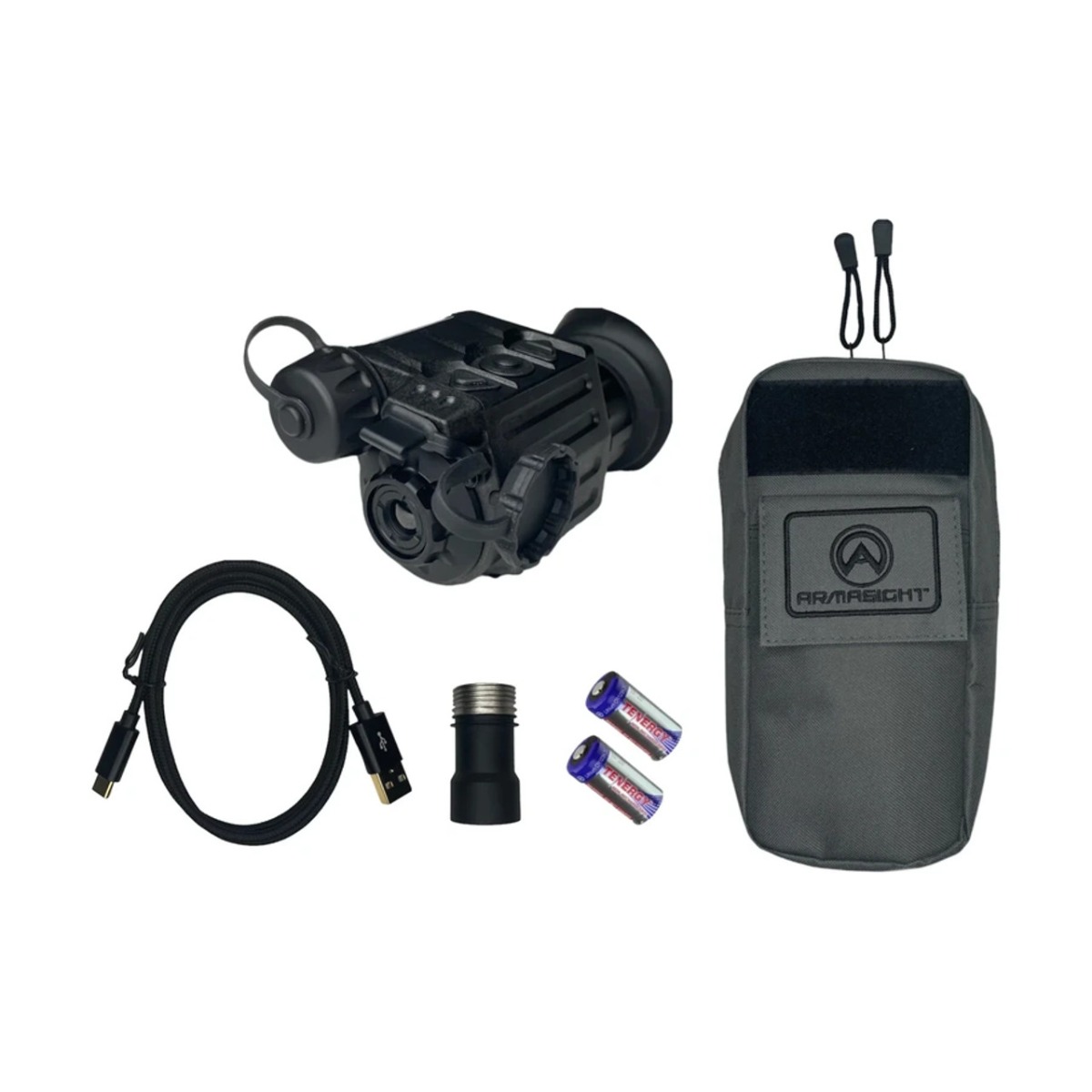

Package Includes

  • Sidekick 320 Mini Thermal Monocular
  • 2 x CR123A Battery
  • USB-C Cable
  • Battery Extender
  • Lens Cloth
  • Soft Case
  • Product Manual
