Armasight Sidekick 640 Thermal Monocular

–

**Features**

* Multiple Color Palettes
* Intuitive 3-Button Control
* 1.5h Runtime on 1 x CR123A Battery, 5.5h on 2 Batteries with Included Battery Extender
* Image Detail Enhancement
* Dovetail Mini-Rail Included for Helmet Mounting (with Optional Mount)
* Works with Rayvn Group Modular Bridge Mount for Helmet-Mounting with PVS-14, MNVD, or Second Sidekick (sold separately)
* Ability to Shift Thermal Image to Collimate Sidekick Image with NVD when Bridged
* Video Recording & Image Capture
* USB Video Stream
* USB-C Interface for External Devices
* Compass
* Battery Status Indicator
* ULTEM Composite Body and Ergonomic Design
* Designed and Assembled in the USA from U.S. and Global Component

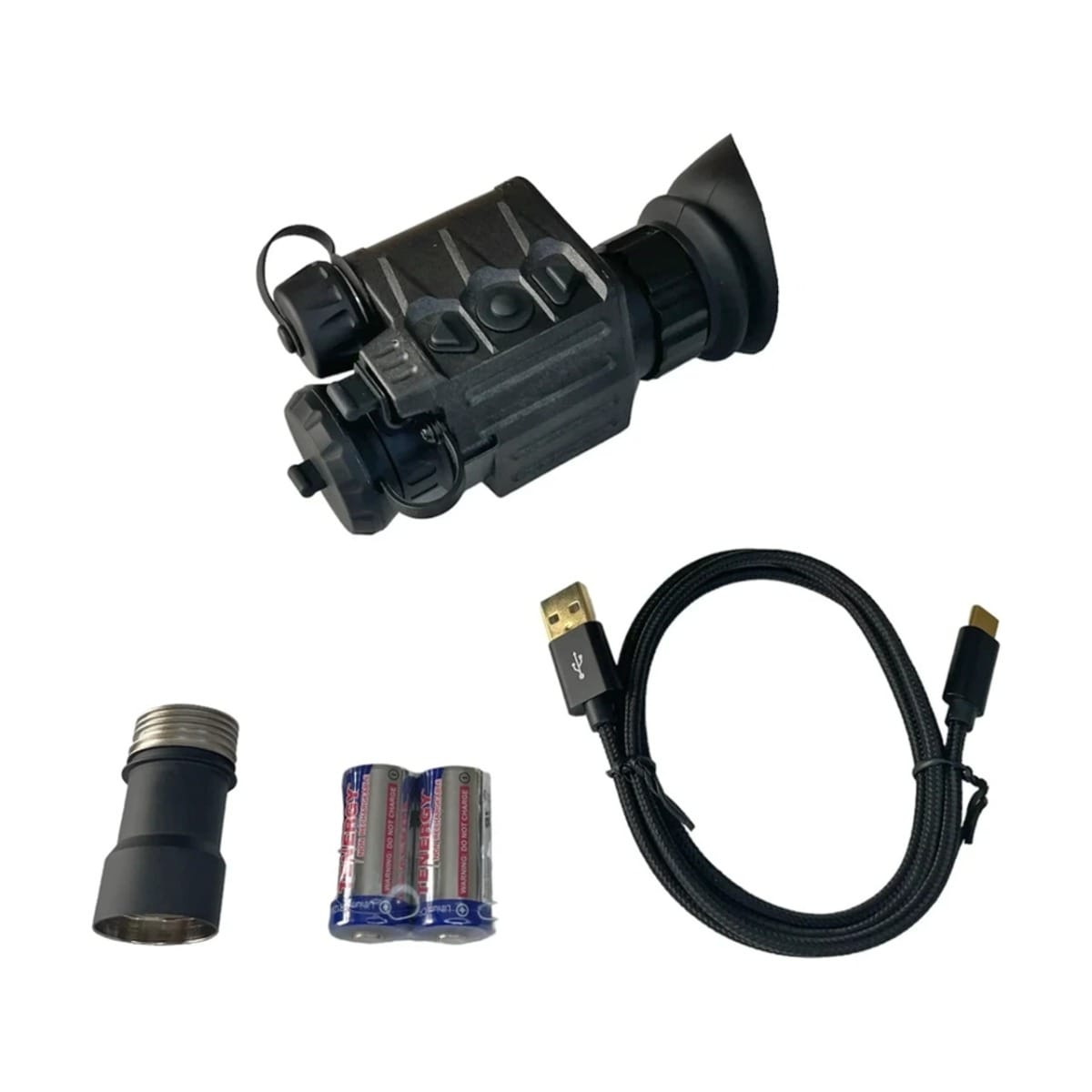

**Package Includes**

* Sidekick 640 Mini Thermal Monocular
* 2 x CR123A Battery
* USB-C Cable
* Battery Extender
* Lens Cloth
* Soft Case
* Product Manual

$2,999
SKU: TAVT66MN9SIDE101

Did you know?

Financing options are available at checkout!

  • Description
  • Manufacturer Specifications
  • Technical Specs

The Sidekick 640 is the smallest fully multi-functional 12-micron 640 thermal imaging monocular on the market. This unit boasts a fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight’s Iron Wolf thermal technology platform. Weighing under 250 grams, the Sidekick can be used as a handheld mini-monocular or can be headset/helmet mounted utilizing the built-in mini-rail for hands-free operation. The high definition 1024×768 OLED display provides a crisp image, with iconography providing key information. The Sidekick utilizes simplified 3 button controls that allow for easy manipulation in the field and offers one-touch in-unit video recording to capture all of your experiences.

Detector Type: ArmaCORE(tm) 640×480 12um Thermal Core

Refresh Rate: 60 Hz

Thermal Sensitivity: NETD < 40mK

Detection Range: 709m On a Human Sized Target

Recognition Range: 177m on a Human Sized Target

Identification Range: 111m on a Human Sized Target

Eye Relief: 15mm

Field of View: 24.16deg x 17.37deg

Optical Magnification: 1x

Digital Zoom: 1x – 4x

Display: XGA (1024 x 768) OLED

Wireless: None

Graphics: Active On-Screen Graphics and Iconology

Lens System: F/1.00; 19mm manual focus

Diopter Adjustment: -5 to +5 dpt

Power Supply: 1 x CR123A or 2 x CR123A / 1 x 16650

Battery Life: 1x / 2x CR123A – 1.5h / 5.5h at 20degC (68degF)

Low Battery Indicator: Yes

Memory: 4 Hours of Video

Image Processing: Digital Enhancement

Environmental Rating: IP67

Operating Temperature: -40deg C to +50deg C (-40deg F to + 122deg F)

Dimensions: 104.90 x 65.28 x 59.69 mm / 4.13 x 2.57 x 2.35 in

Weight: 254g / 0.56lbs. w/ rubber eyecup; no battery

Warranty: 3 years w/ registration

Color: Black

Attributes Value
Weight 0.65 lbs
Is Accessory

Condition

Refresh Rate

Sensor Resolution

Warranty

0 reviews for Armasight Sidekick 640 Thermal Monocular
