THERMAL PERFORMANCE & VISUAL CLARITY

* 6th Gen Ultra Thermal Sensitivity

?15mK NETD sensors and a 12mm pixel pitch deliver sharper detail and faster detection, letting hunters spot game earlier in fog, brush, or total darkness.

* ATN SharpIR AI Technology

Proprietary AI imaging automatically enhances sharpness and contrast, making targets stand out clearly against complex backgrounds.

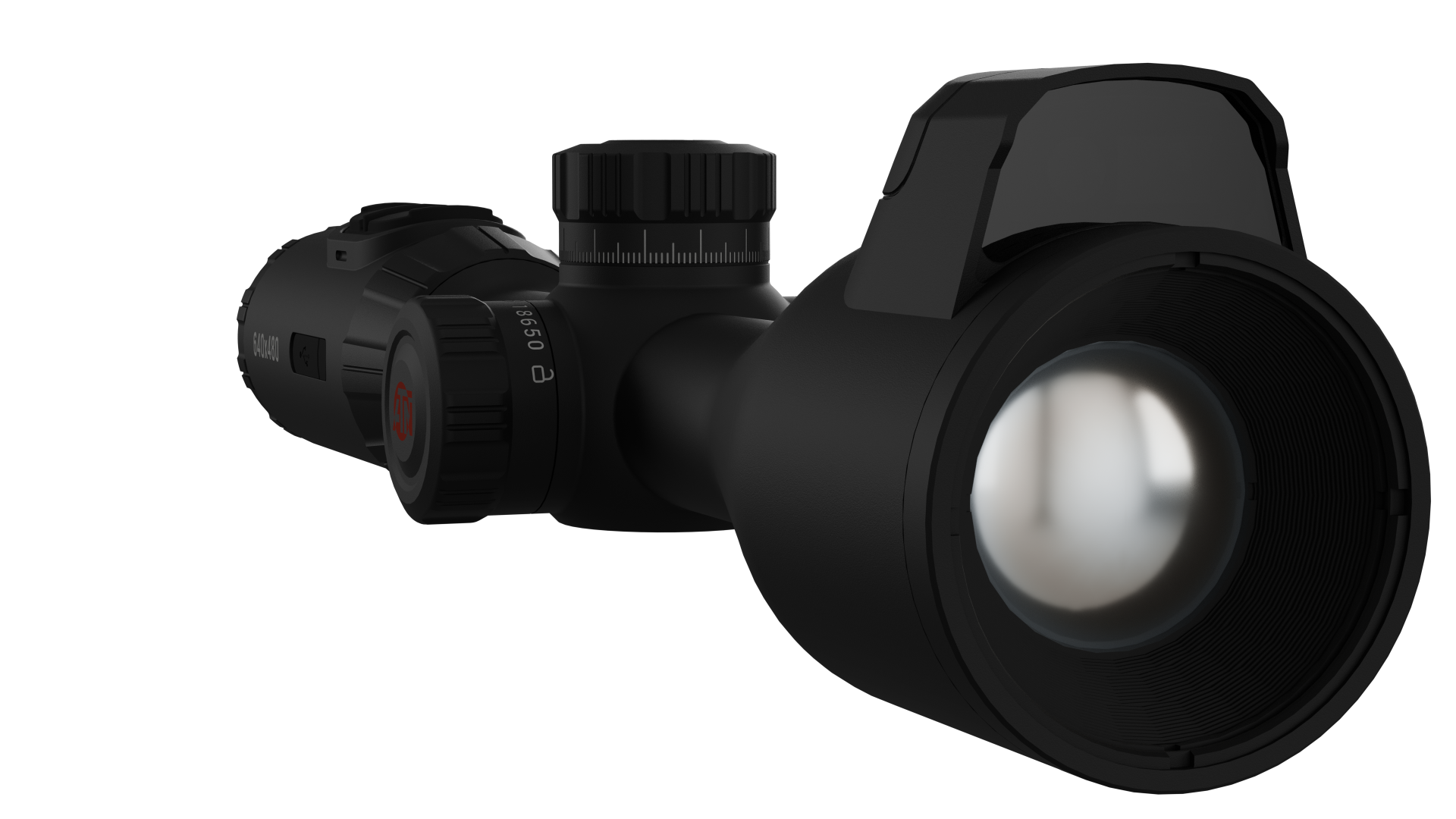

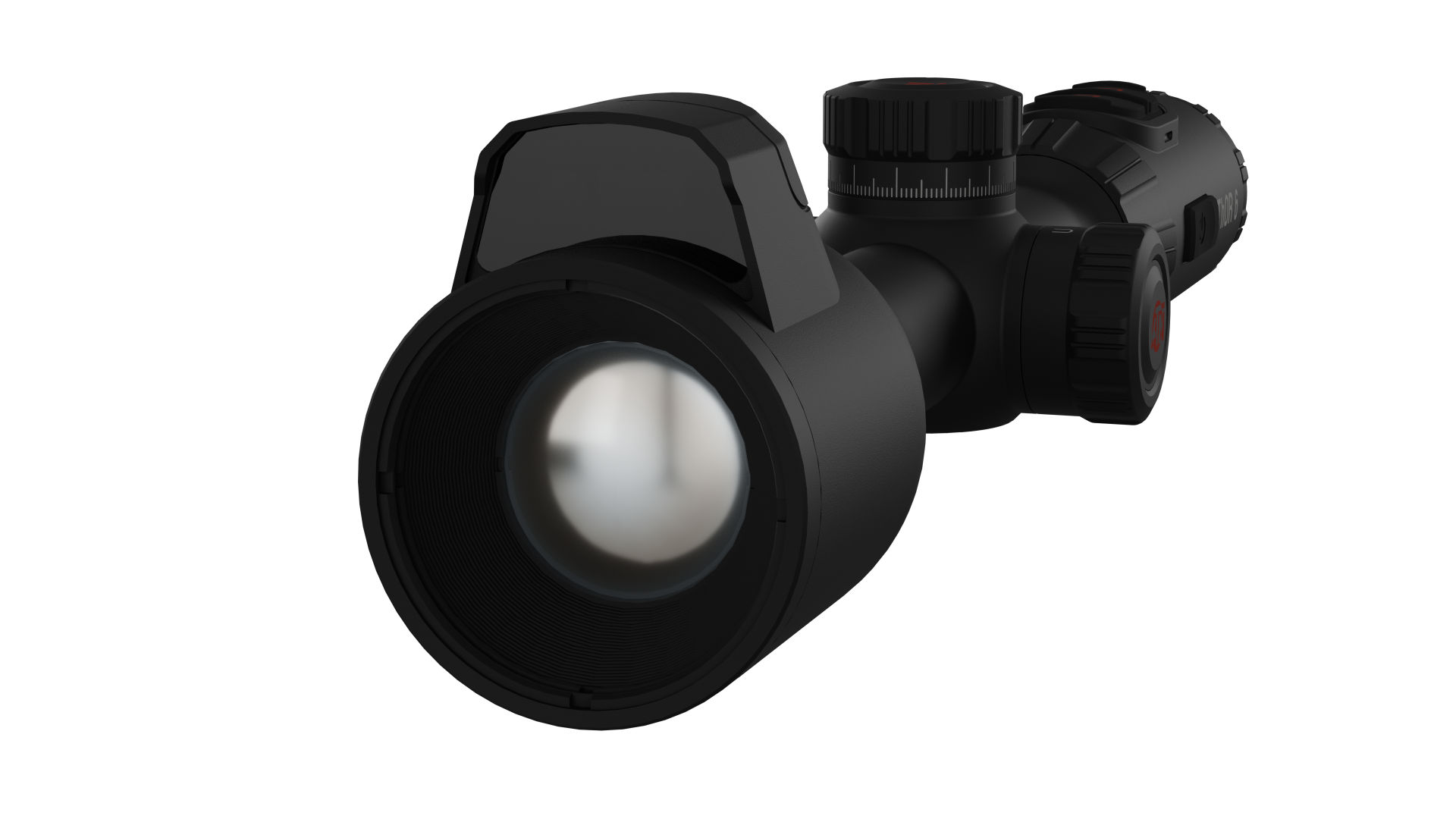

* High Transmission Germanium Lens

Premium germanium optics maximize light transmission for brighter, clearer images and longer detection ranges.

* Full-HD 0.49″ OLED Display

The 1920×1080 display provides vivid contrast and smooth visuals while reducing eye strain during extended use.

* Multiple Color Modes

Six viewing palettes let hunters adapt to any terrain or light condition for optimal target visibility.

* Hot Point Tracking

Highlights the hottest object in view for instant target acquisition, ideal for fast-moving game.

RECORDING, CONNECTIVITY & STORAGE

* Video and Audio Recording

Record every hunt with built-in video, audio, and 64GB of internal memory — no extra gear needed.

* Recoil Activated Video (RAV)

Automatically captures footage before and after each shot so every key moment is saved.

* Internal Gallery

View and replay photos or videos directly on the scope with no cables or phone required.

* Built-In Wi-Fi Connectivity

Connect to the ATN Connect 6 app for live streaming, playback, or sharing your hunts instantly.

PRECISION TARGETING TECHNOLOGY

* Built-In Laser Rangefinder

Get instant, accurate distance readings for confident long-range shots. (LRF models only.)

* Ballistic Calculator

Automatically adjusts the reticle for range and angle, keeping every shot precise. (LRF models only.)

* Zeroing Freeze

Pause the image to make precise adjustments quickly and easily while zeroing.

* Picture-in-Picture (PIP)

Zoom in on your target while maintaining a wide field of view for full situational awareness.

* Reticle Transparency Control

Adjust reticle brightness and opacity to maintain a clear sight picture in any lighting.

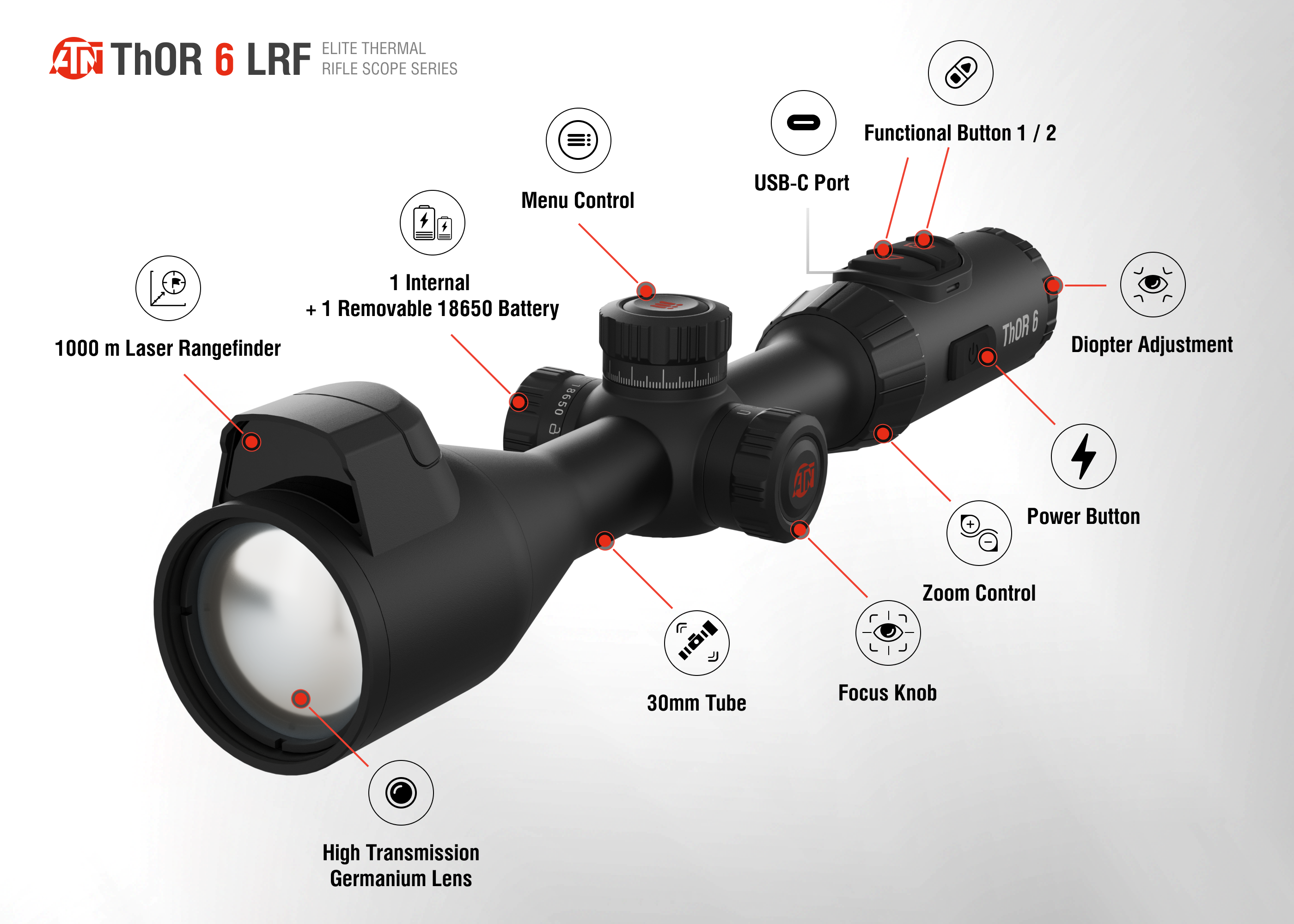

EASE OF USE & FIELD-READY DESIGN

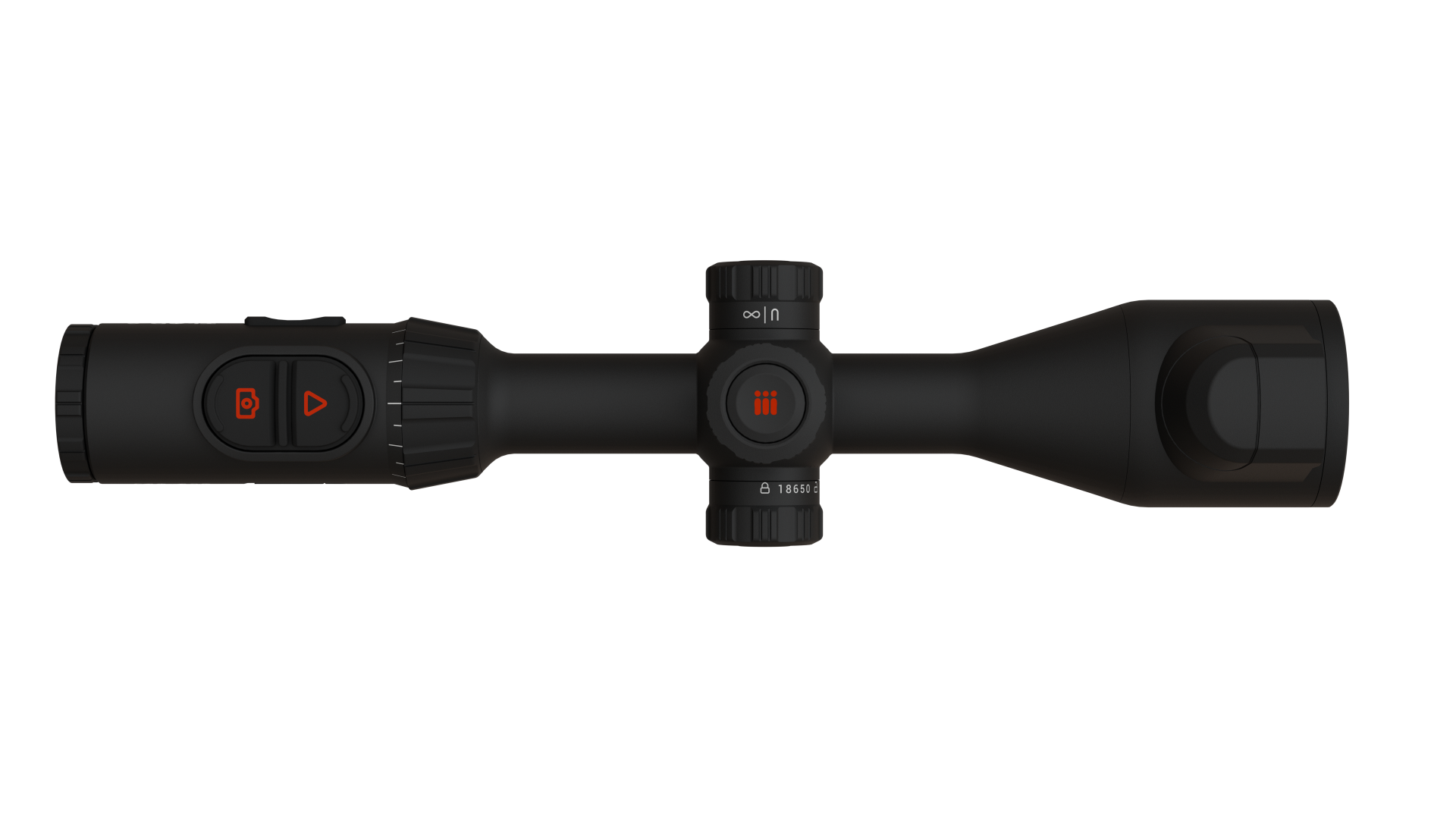

* Streamlined 3-Button Control

Simple controls make on-the-fly adjustments easy, even with gloves on.

* Traditional Scope-Like Zoom

Smooth, familiar zoom control offers precision and comfort for hunters used to traditional optics.

* Easy-Access Focus Knob

Large textured focus knob allows fast, accurate adjustments in any condition.

* Lightweight and Balanced

Weighing under 1.9 lbs, the ThOR 6 reduces fatigue and improves control for long hunts.

* Dual Power System

Internal rechargeable battery with replaceable 18650 cell keeps you powered all day and night.

* Rugged Magnesium Housing

Lightweight magnesium alloy provides strength, balance, and superior heat dissipation.

* Weatherproof Construction

Built to perform in rain, dust, and extreme temperatures — ready for every season and every hunt.

OPTICS & SENSOR

* Model: TIWST6650LRF

* Detector Type: 12mm VOx Uncooled Focal Plane Array

* Sensor Resolution: 640×512

* Thermal Sensitivity (NETD): ?15 mK

* Refresh Rate: 50 Hz

* SharpIR(c): Yes

* Non-Uniformity Correction (NUC): Auto / Semi Auto / Manual

* Lens System: 50 mm (Ge); F/1.0

* Field of View (HxV): 8.78deg x 6.59deg

* Focus Mechanism: Manual, Central Knob Control

* Detection Range: 3650 m

* High Transmission Germanium Lens: Yes

MAGNIFICATION & DISPLAY

* Magnification: 3-24x

* Digital Zoom: 1x, 2x, 4x, 8x

* Zoom Type: Step & Smooth Zoom

* Display Type: 0.49″ OLED

* Display Resolution: 1920×1080

* Eye Relief: 50 mm

* Diopter Range: -5 to +5 D

* Picture-in-Picture (PIP): Yes

RETICLE & TARGETING

* Reticle Types: 10 Styles

* Reticle Transparency Control: Yes

* Zeroing Freeze: Yes

* Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia

* Hot Point Tracking: Yes

* Built-in Laser Rangefinder (LRF): Yes

* LRF Range: 1002 m

* LRF Accuracy: +-1 m

* LRF Laser Specs: 907 nm, Class 1 (Eye Safe)

* Ballistic Calculator: Yes

RECORDING & CONNECTIVITY

* Video / Audio Recording: Yes

* Internal Gallery: Yes

* Recoil Activated Video (RAV): Yes

* Internal Storage Capacity: 64 GB

* Media Output: USB Type-C

* Built-in Wi-Fi (Hotspot): Yes

* App (Apple Store / Google Play): Yes (ATN Connect 6 – iOS & Android)

POWER & CONTROLS

* Battery Type: 1 x 18650 (Internal) & 1 x 18650 Rechargeable (Replaceable)

* Battery Life: ~9 hours

* Supports External Power Supply: Yes, USB Type-C (5 VDC / 2A)

* Standby / Sleep Mode: Yes

* Startup Time: <7 seconds (instant from Standby)

* Geomagnetic + Gyroscope: Yes

MECHANICAL & ENVIRONMENTAL

* Material: Magnesium Alloy

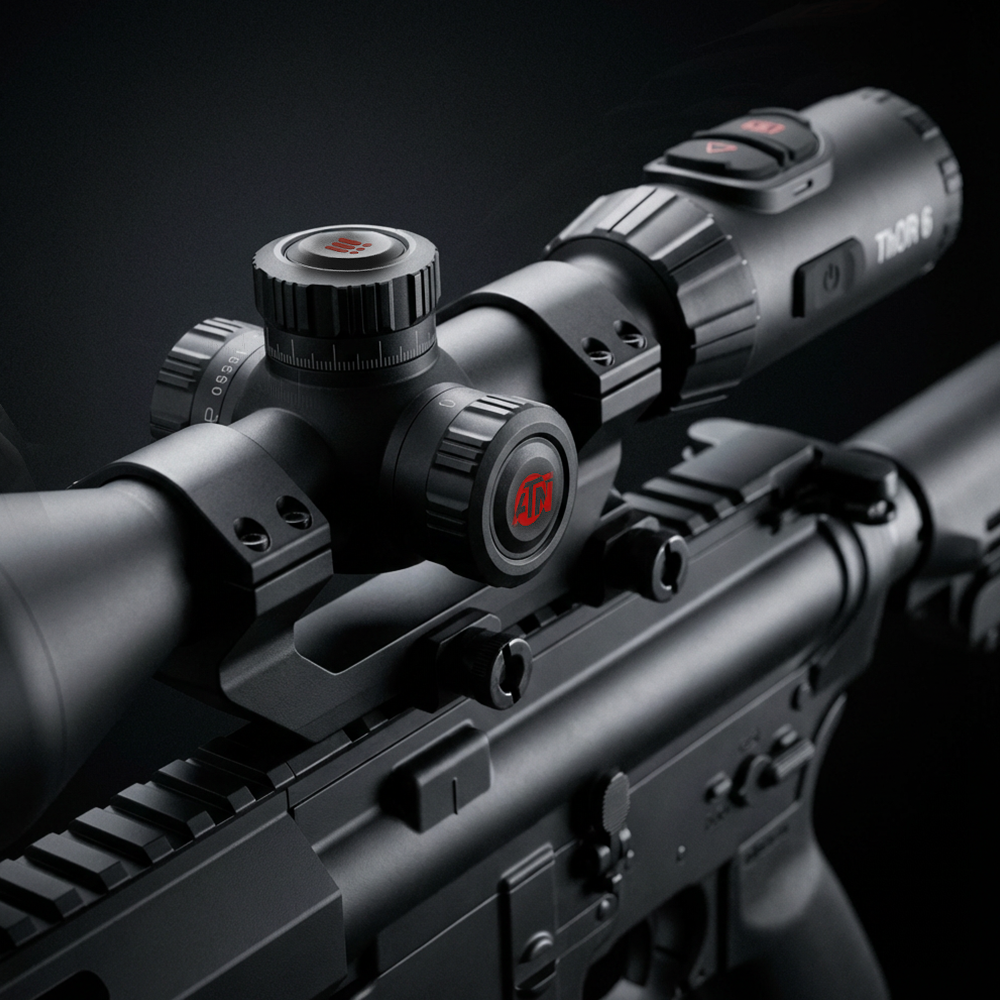

* Mounting: 30 mm Rings (not included)

* Weight: 855 g / 1.89 lbs

* Dimensions (L x W x H): 430 x 85 x 80 mm (16.93 x 3.35 x 3.15 in)

* Max Recoil Rating: 6000 Joules / 1000g acceleration over 0.4 ms

* Operating Temperature: -30degC to 55degC (-22degF to 131degF)

* Waterproof / IP Rating: IP67
