THERMAL PERFORMANCE & IMAGE CLARITY

* 6th Gen High Thermal Sensitivity

Powered by ATN’s 6th Generation Thermal Engine with a 12mm pixel pitch, the ThOR 6 mini is available in 256×192 (?20mK NETD, Enhanced Sensitivity) and 384×288 or 640×512 (?18mK NETD, High Sensitivity). Hunters get sharper detail, faster detection, and superior clarity in fog, brush, or total darkness.

* ATN SharpIR AI Technology

Proprietary AI imaging enhances edge sharpness and contrast in real time, making heat signatures stand out clearly through heavy cover or challenging light conditions.

* High-Resolution OLED Display

The 256×192 model features a 0.32-inch 800×600 OLED display, while the 384×288 and 640×512 models include a 0.49-inch 1920×1080 OLED display. Both deliver crisp, smooth visuals and reduced eye strain for extended hunts.

* Picture-in-Picture (PIP)

Zoom in for precise aiming while maintaining a wide view of your surroundings. Perfect for keeping awareness while tracking fast or multiple targets.

* Hot Point Tracking

Highlights the hottest object in view for instant target acquisition and faster identification of game hidden in brush or low-contrast environments.

* Multiple Color Modes

Six viewing palettes including White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia let hunters adapt to any terrain or lighting for optimal visibility.

* Reticle Transparency Control

Adjustable reticle brightness and opacity allow a clear, unobstructed sight picture while keeping your point of aim visible in every condition.

RECORDING, CONNECTIVITY & STORAGE

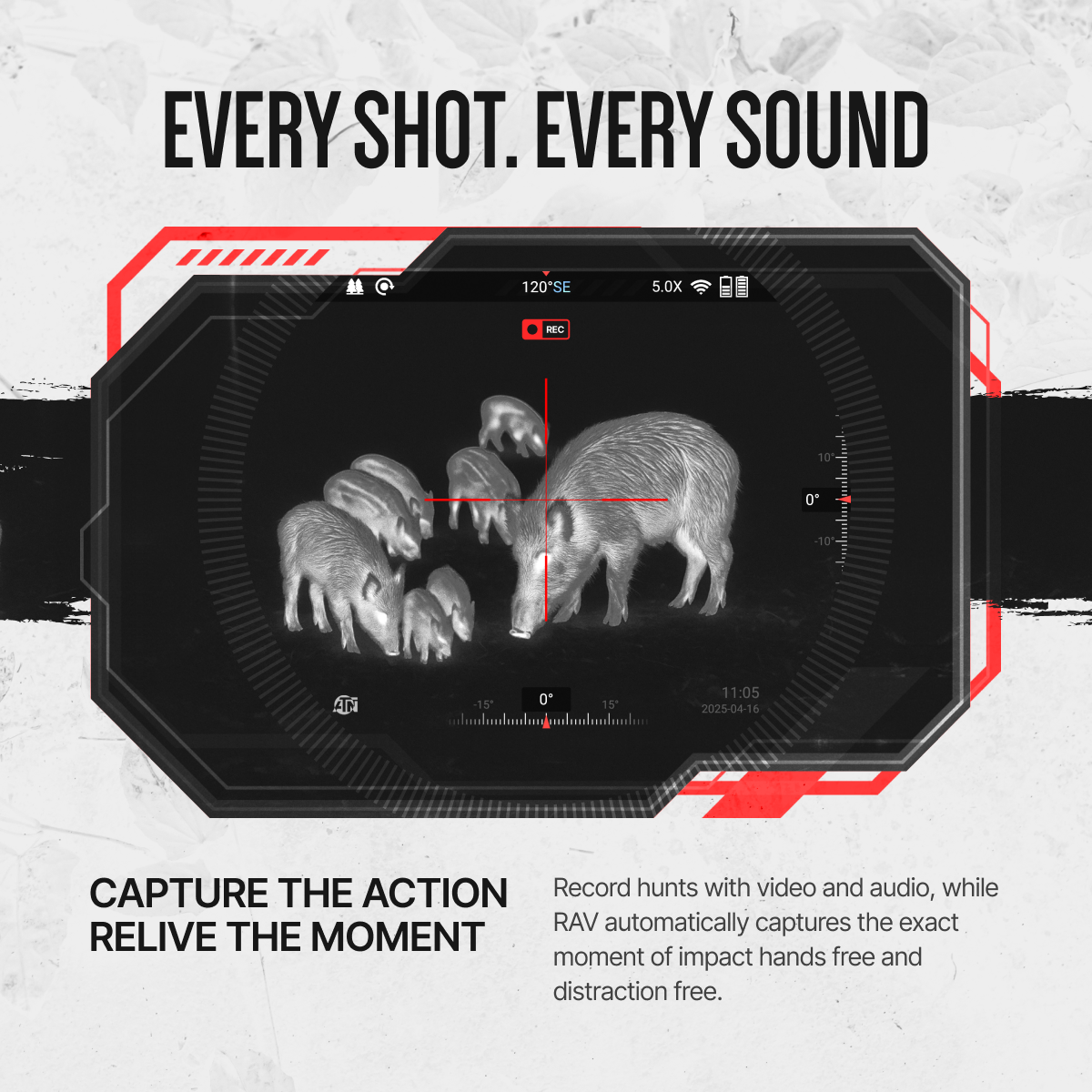

* Video and Audio Recording

Capture every moment of your hunt with built-in video and audio recording saved directly to 64GB of internal memory.

* Recoil Activated Video (RAV)

Automatically records before and after each shot so every key moment is saved hands-free.

* Internal Gallery

View and replay photos or videos directly on the scope with no cables, cards, or external devices required.

* Built-In Wi-Fi Connectivity

Connect to the ATN Connect 6 app for live streaming, instant playback, or sharing your hunts directly from the field.

* Internal Memory

64GB of onboard storage keeps your recordings safe and ready to transfer via USB-C.

EASE OF USE & CONTROL

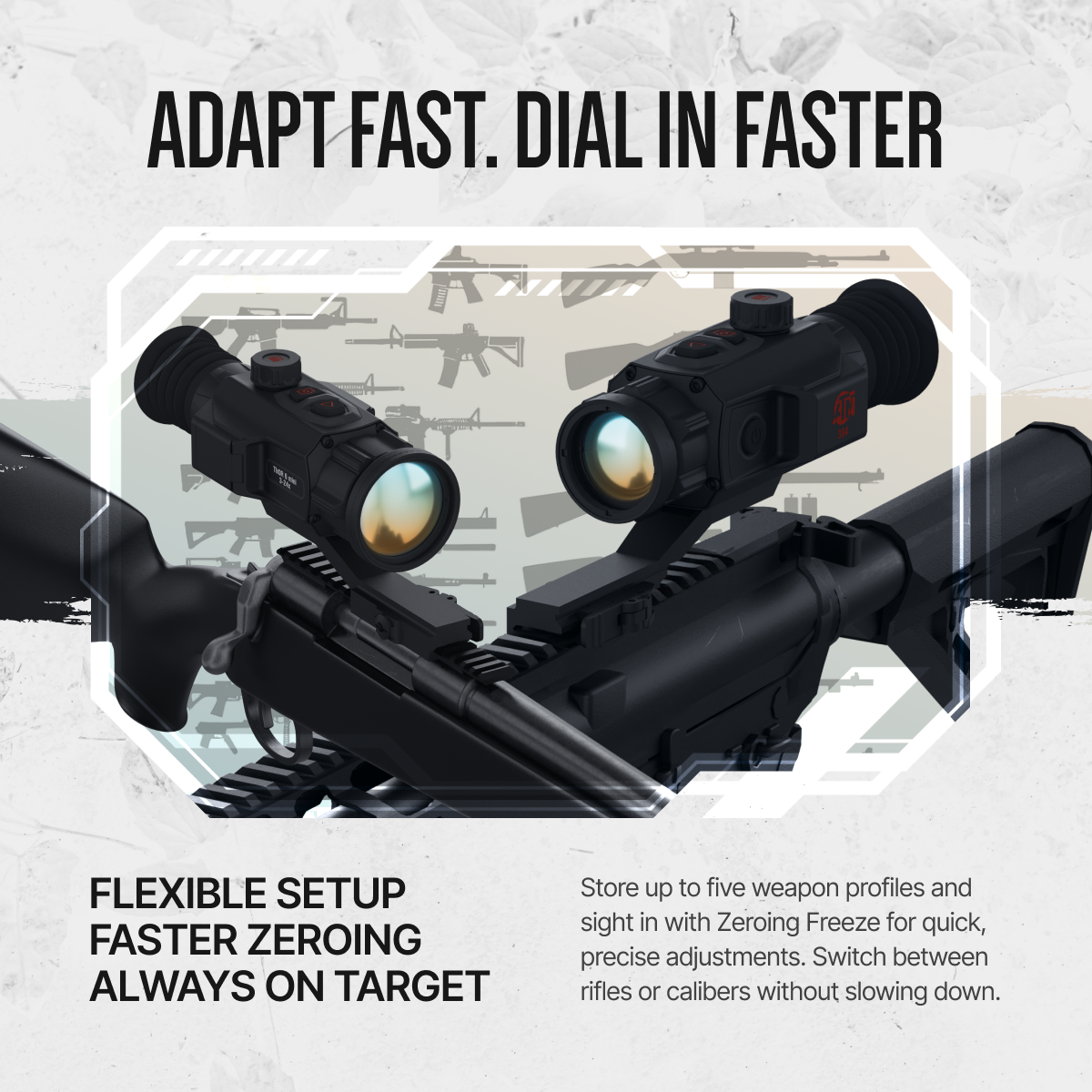

* Multiple Weapon Profiles

Store up to five weapon profiles to switch between rifles, calibers, or setups without needing to rezero.

* Zeroing Freeze

Pause the image to make precise reticle adjustments quickly and easily while sighting in.

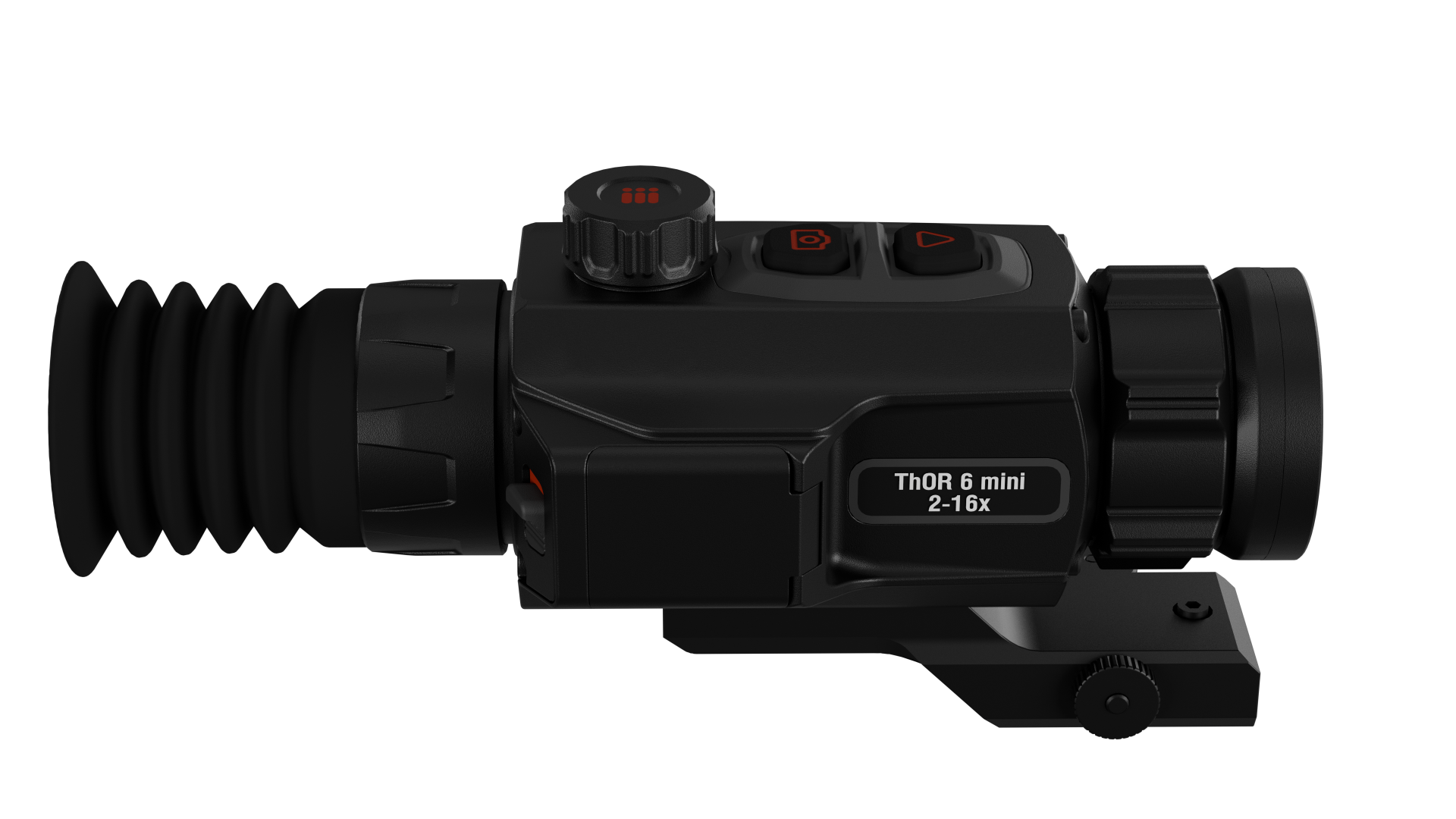

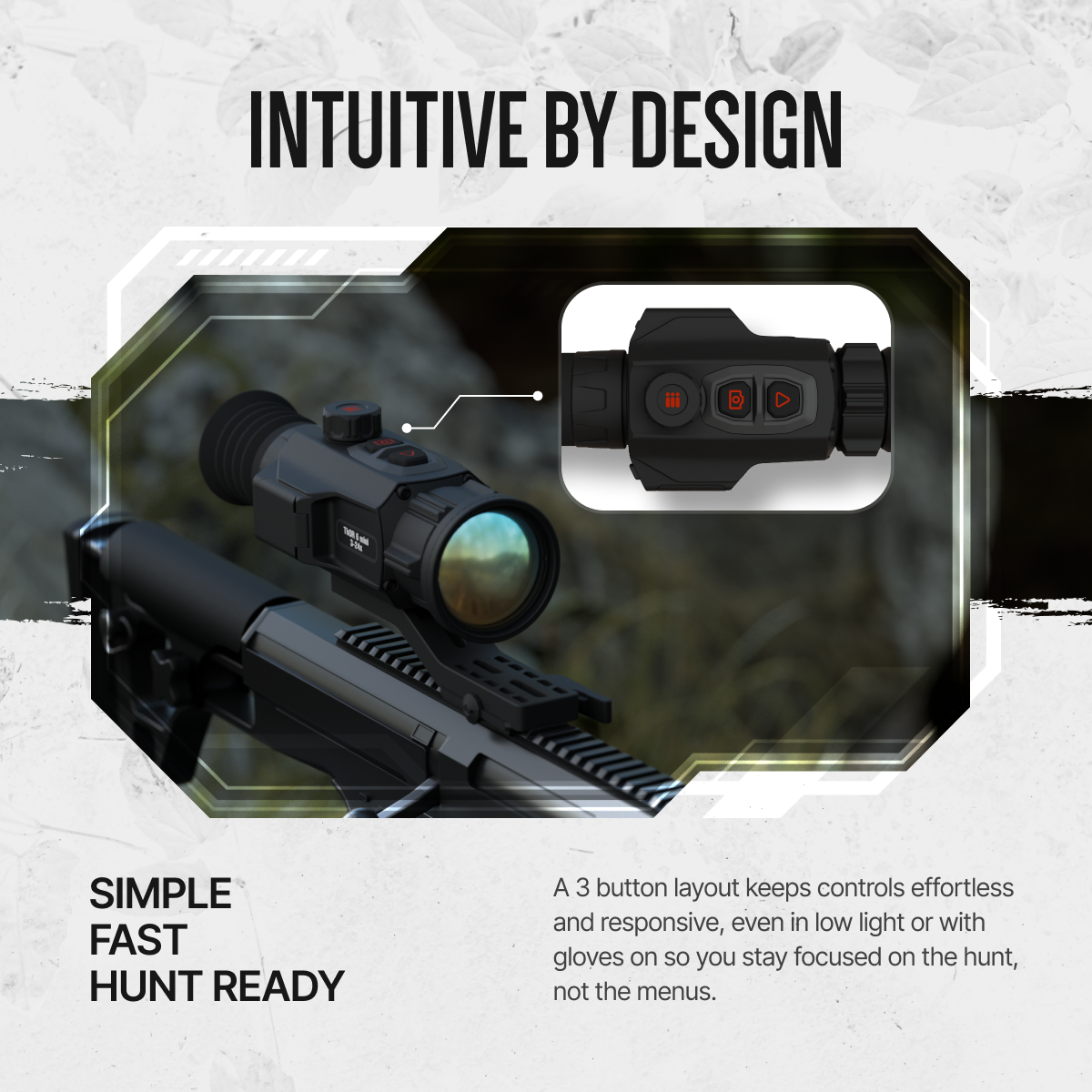

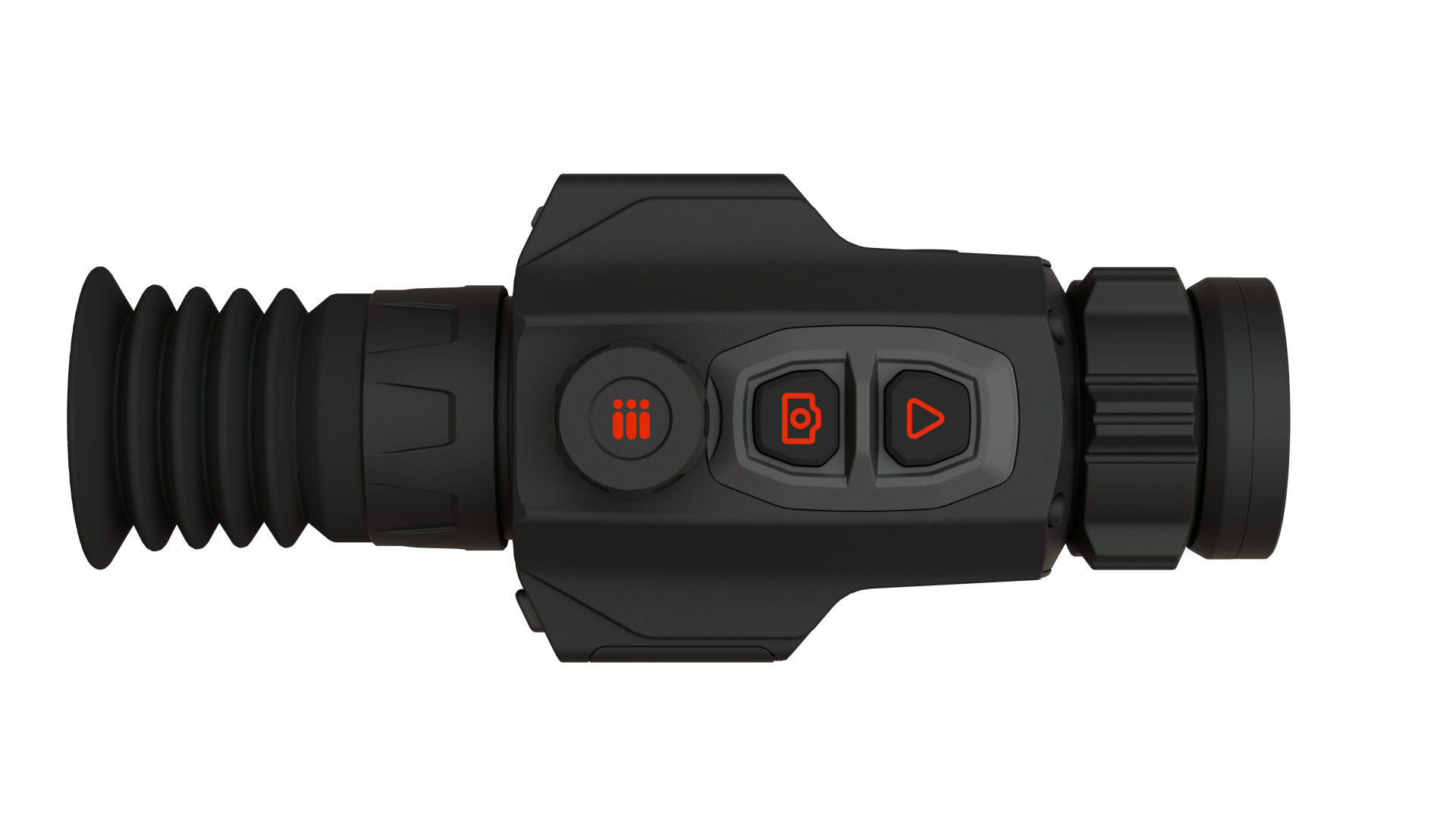

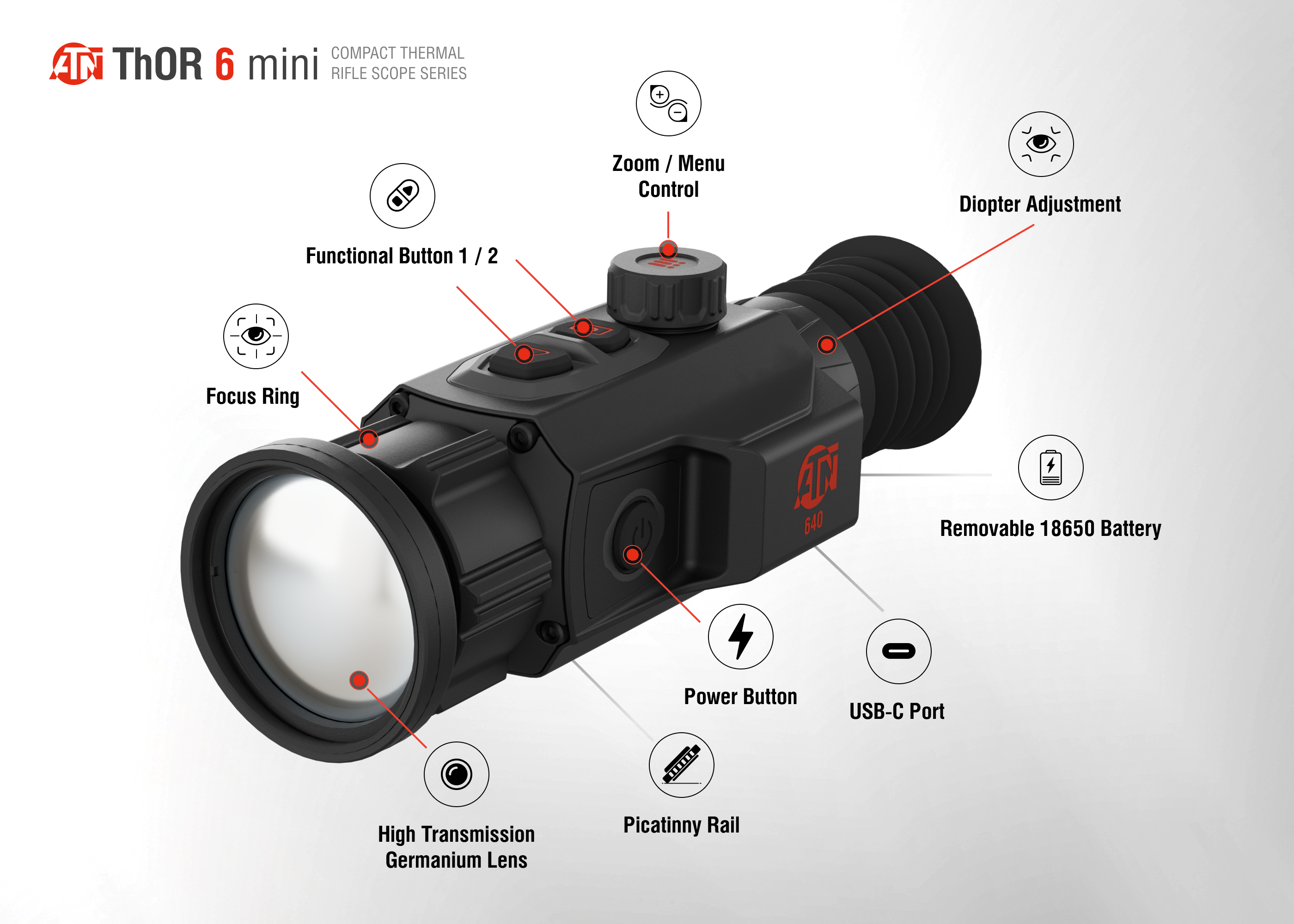

* Streamlined 3-Button Control

Simple and intuitive controls make on-the-fly adjustments effortless, even in low light or with gloves on.

FIELD-READY DESIGN

* Lightweight and Rugged

Built from durable magnesium alloy and weighing under 500 grams, the ThOR 6 mini provides excellent balance, comfort, and durability for long hunts.

* Field-Ready Battery

Powered by a single high-capacity 18650 rechargeable battery, the 256×192 model runs up to 8 hours, while 384×288 and 640×512 versions operate around 7 hours. Swappable batteries keep you powered for extended use.

* Weatherproof Construction

Designed to withstand rain, dust, and extreme temperatures, the ThOR 6 mini performs reliably in any season or environment.

OPTICS & SENSOR

* Detector Type: 12 mm VOx Uncooled Focal Plane Array

* Sensor Resolution: 640×512

* Refresh Rate: 50 Hz

* Thermal Sensitivity (NETD): ? 18 mK

* SharpIR(c): Yes

* Non-Uniformity Correction (NUC): Auto / Semi Auto / Manual

* Lens System: 35 mm (Ge); F/1.0

* Field of View (HxV): 12.5deg x 10.0deg

* Focus Mechanism: Manual, Front Lens Adjustment

* Detection Range: 3000 m

MAGNIFICATION & DISPLAY

* Magnification: 2 – 16x

* Digital Zoom: 1x, 2x, 4x, 8x

* Zoom Type: Step & Smooth Zoom

* Display Resolution: 0.49″ OLED, 1920×1080

* Picture-in-Picture (PIP): Yes

* Reticle Types: 10 Styles

* Reticle Transparency Control: Yes

* Zeroing Freeze: Yes

* Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia

* Eye Relief: 50 mm

* Diopter Range: -5 to +5 D

RECORDING & CONNECTIVITY

* Internal Storage: 64 GB

* Video / Audio Recording: Yes

* Internal Gallery: Yes

* Recoil Activated Video (RAV): Yes

* Built-in Wi-Fi (Hotspot): Yes

* App: ATN Connect 6 (iOS & Android)

* Media Output: USB Type-C

* Hot Point Tracking: Yes

* Geomagnetic + Gyroscope: Yes

POWER SYSTEM

* Battery Type: 1 x 18650 Rechargeable (Replaceable)

* Battery Life: ~7 hrs

* Supports External Power: Yes (USB Type-C 5 VDC / 2 A)

* Standby / Sleep Mode: Yes

* Startup Time: < 7 seconds (instant from Standby)

DESIGN & DURABILITY

* Material: Magnesium Alloy

* Mounting: Picatinny Rail

* Weight: 540 g / 1.19 lbs

* Dimensions (LxWxH): 190x65x65 mm (7.48×2.56×2.56 in)

* Max Recoil Rating: 6000 J / 1000 g over 0.4 ms

* Operating Temperature: -30 degC to +55 degC (-22 degF to 131 degF)

* Waterproof / IP Rating: IP67
