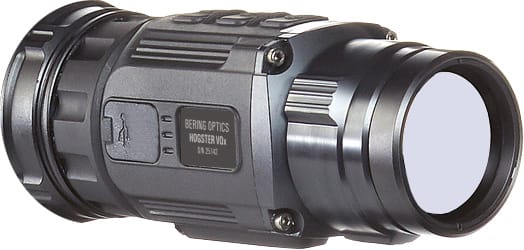

HOGSTER-C™DEDICATED LONG-RANGE COMPACTTHERMALCLIP-ON(BE43142D)PRODUCTOVERVIEWTheBering Optics® HOGSTER-C™
Dedicated Long-Range Compact Thermal Clip-On truly stands out in thethermal optics market.Vanadium Oxide (VOx) 384x288 thermal core offers excellent thermal sensitivity and imageclarity.High-quality 42mm 100% Germanium lensis the gold standard formedium to long-range detectiondue to itssuperior infrared transmission.Designed for medium-and long-range shooting, it's versatile for a variety of hunting and tactical scenarios.
Compact and lightweight the HOGSTER-C™ is ideal for mounting on rifles without adding bulk, which is crucial for field mobility.It is simple to operate with just three buttons for control and menu navigation.The clip-on can be installed to a day scope hood using a customized diameter Quick Disconnect (QD) Adapter(BE809XX) or set in-line with non-round tactical scopes using a Picatinny-style quick release (QR) mount (BE80990,BE80991, BE80991).When mounted tothe day sight lens hood, the clip-on recoil resistance rated for .300 Win Mag150gr. P.P. and other heavy recoil calibers.
In case if clip-on installed on a rifle with the QR mount, its recoil rating issuitable for .308 Win SX 150gr.Theclip-onis nitrogen-purged and is water-, dust-, and shock-proof. The HOGSTER C 384x288 Thermal Clip-on isaction-ready in virtually any environment or lighting condition, including situations with environmental obscurants such assmoke, dust, haze, or fog.
Product Modification |
HOGSTER-C™ Dedicated Clip-on |
|
Product SKU# |
BE43142D |
|
Optical Magnification in the Clip-on mode, x |
1.0x |
|
Objective lens system |
42mmF/1.1 |
|
Angular FOV at 1.0x (horizontal x vertical), degree |
9.0° x 6.7° |
|
Focus range, approx., yard |
1 to infinity |
|
Core resolution, pxl |
384x288 |
|
Pixel pitch, µm |
17 |
|
Image refresh rate, Hz |
50 |
|
Thermal Sensitivity (NETD), mK |
≤ 35 |
|
Display type and resolution, pxl |
OLED 1024x768 |
|
Start-up time, min., sec. |
8 |
|
Object type and size, approx., ft² / m² |
8 / 0.75 |
25.8 / 2.4 |
Detection*, approx., yds / m |
1200 / 1100 |
2000 / 1800 |
Recognition*, approx., yds / m |
500 / 450 |
700 / 640 |
Identification*, approx., yds / m |
200 / 180 |
440 / 400 |
Dimensions w/out Adapter and QD mount, approx.., in / mm |
5.9"x2.4"x2.4" / 150x61x61 |
|
Weight without batteries (clip-on mode w/out accessories), approx., oz/g |
15.2 / 432 |
|
Power supply options |
3V CR123 (two) or 3.7V rechargeable Li-ion 16340 or 3.7V rechargeable Li-ion 16650 (two) or 5V DC over the USB-C type port and cable |
|
Estimated battery life with two 3V Lithium non-rechargeable CR123, approx., hour** |
up to 5 |
|
Estimated battery life with two 3.7V rechargeable Li-ion 16650, approx., hour** |
up to 10 |
|
Operating temperature, °F/°С |
4° to +122° / -15° to +50° |
|
Water intrusion |
IPX66 |
|
Humidity, % |
Up to 96% |
* The detection, recognition and identification range provided by the thermal imaging device depends on a number of factors such as ambivalent temperatures, atmospheric transparency, temperature contrast ratio between the target and its background, etc.
** Operational duration is influenced by several factors, including video recording activity, display brightness settings, battery type and capacity, and ambient temperature.
- Best-in-class compatibility range with daytime scopes from 2.0x to 8.0x magnification
- Best-in-class list of accessories (sold separately)
- Class-leading detection range for human size figure up to 1200 yards
- Class-leading effective detection range in high-humidity conditions
- Class-leading .300 Win Mag 150gr P.P. rated if mounted with the Quick Disconnect Adapter BE809XX*

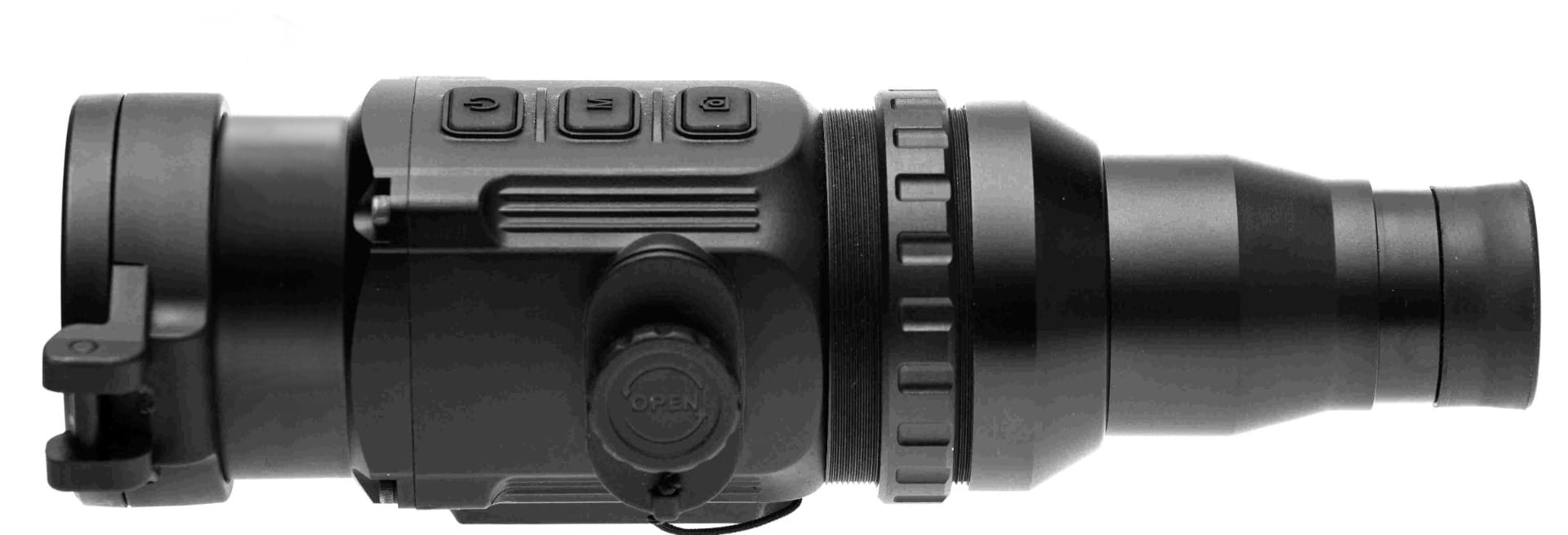

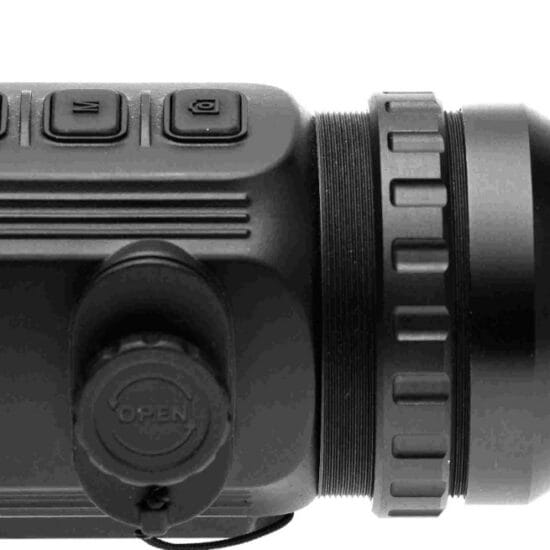

- Using a Quick the 2.0x native magnification hand held Thermal Scanner when coupled with a Detachable Eyepiece (BE80902)
- Using a Quick Disconnect (QD) Adapter of the appropriate diameter (BE809XX), it can be installed on a daytime optics hood with a lens diameter from 24 mm to 64 mm.
- Mounts in-line with tactical sights using the Bering Optics® Picatinny QR quick-release mount (BE80990, BE80991) or the LaRue Tactical® Mil-Spec QR low-profile mount with wrench less adjustment (BE80991).
- Uncooled VOx 384x288 core with Auto- or Manual calibration
- 4 color switchable palette options: White Hot / Black Hot / Red Hot / Colored Hot
- Adjustable screen brightness
- Ability to align the screen with respect to the POI
- 4-profile memory for zeroing setting
- External 5VDC power and video streaming capability via USB-C type port and cable
- Built-in electronic compass and inclinometer
- Battery status indicator
- Blind Pixel repair tool
- Standby mode
- Video output
- Nitrogen purged
KIT INCLUDES
HOGSTER-C™ 384x288 Thermal Clip-on
Standard supply Kit options: (a) a kit with one custom-sized QD adapter (BE809XX) screws for installation on the lens hood of a day sight or (b) a kit with a QR mount (BE80990 or BE80991) and two M5 screws allowing the clip-on to be mounted in line with a day sight mounted on a Picatinny rail.
Self-heating zeroing target
Soft Carrying Case with a shoulder strap
Front lens protective cap
2 CR123 batteries
USB-C type cable
Lens Cleaning Cloth
