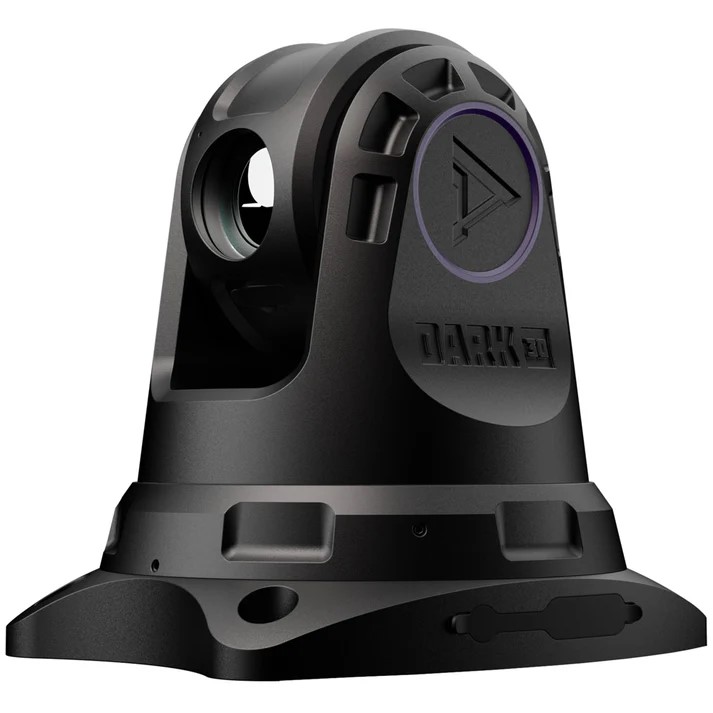

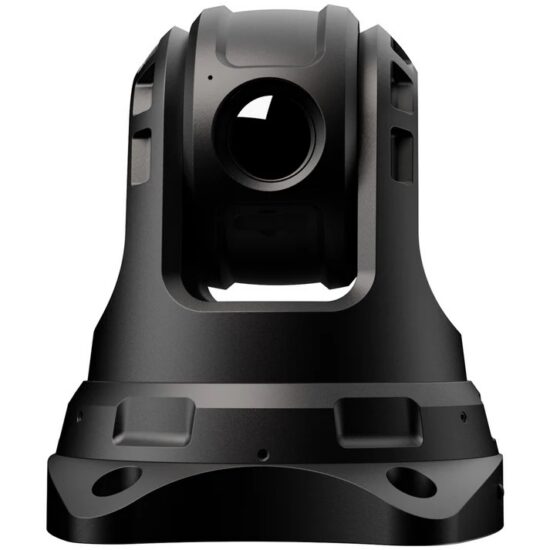

DARK30 Defiance 640 PTZ Vehichle-Mounted Thermal Camera

SKU
DT27000
$6,499.00
Add to Compare
0% APR for 6/12 months or interest bearing for 36 months*

Variable Speed Remote Control
Sleep Mode
Return To Home Function
High Resolution 640x480 thermal imaging
Infinite 360° Panning
Low Latency HDMI compatible Wired Screen
App Control on he Dark 30 App
Versatile Mounting Options:
Permanent bolts, suction cups, or 100lb pull magnets
Water Resistant

GENERAL

Water Resistance IP66
Pan angle Continuous 360°
Tilt angle Straight downward to 45 degrees above horizontal
Body Material Aluminum
Width 6.65”
Depth  7.68“
Height  7.8”
Weight  111 oz
Operating Temperture Range °F  -4°F x 122°F
Ports 1 TF card slot, 2 HDMI ports, 2 DC ports
Display type LCD
Screen Size 10.1”

POWER

Power Supply 12VDC
Camera Amperage @12V DC 750mA
Display Amperage @ 12VDC 320mA
Adaptor Connection with both Camera and Display 1200mA

SENSOR

Device Technology Thermal Imaging
Sensor resolution, pixels 640x480
Frame rate  60 fps
Pixel size 17 micron
Spectral range 8 - 14μm
Detector NEDT  <30 mK
Color palettes 5
Detection range yd 1250 yds

OPTICS

Lens material Germanium
F/# NUMBER (lens) 1
Lens diameter 32 mm
Focal length 30 mm
Digital zoom 1-8x
Magnification n/a
Field of View Horizontal 20°
Field of View Vertical 15°
Field of View Diagonal 25



  • Variable Speed Remote Control
  • Sleep Mode
  • Return To Home Function
  • High Resolution 640x480 thermal imaging
  • Infinite 360° Panning
  • Low Latency HDMI compatible Wired Screen
  • App Control on he Dark 30 App
  • Versatile Mounting Options:
    Permanent bolts, suction cups, or 100lb pull magnets
  • Water Resistant

Additional Accessories



  • 2" Riser
  • Base Kit
  • Remote
  • 10.1" Screen
