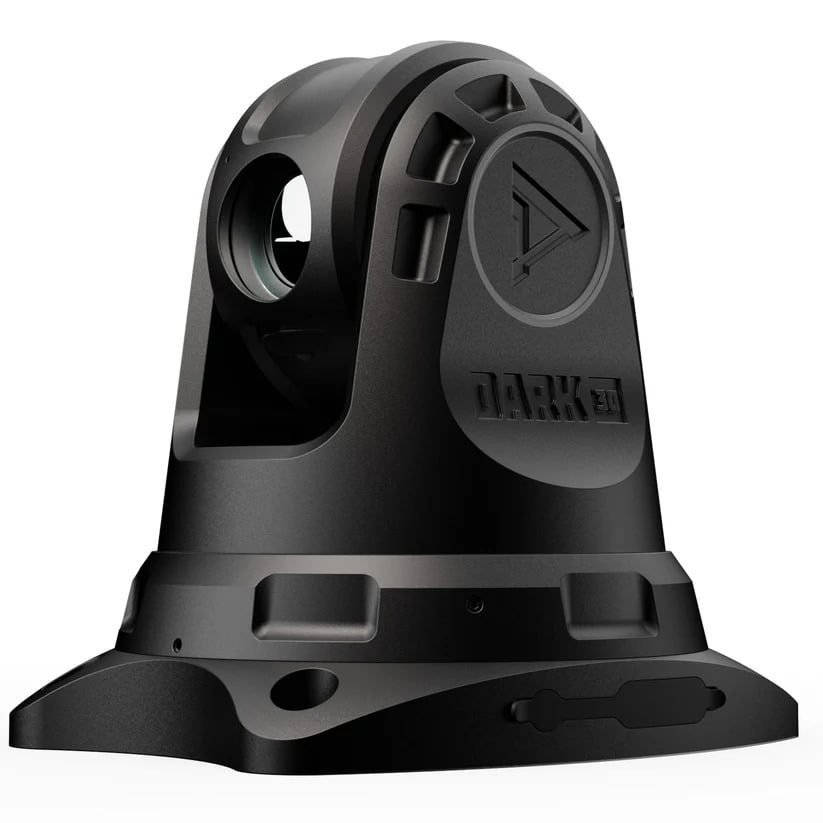

Dark30 Defiance LS – 384 PTZ Thermal Camera

–

### Features

* Variable Speed Remote Control
* Sleep Mode
* Return To Home Function
* 384×288 Thermal Imaging Sensor
* Infinite 360° Panning
* Low Latency HDMI compatible Wired Screen
* App Control on the Dark 30 App
* Versatile Mounting Options:
Permanent bolts, suction cups, or 100lb pull magnets
* Water Resistant
* #### Accessories
* Base Kit
* Remote
* 10.1″ Screen

$3,499.97
SKU: DT27001

Did you know?

Financing options are available at checkout!

  • Description
  • Manufacturer Specifications
  • Technical Specs

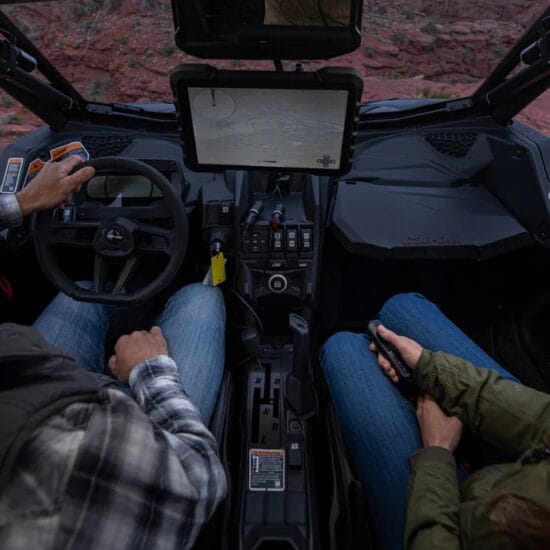

The Dark 30 Defiance LS 384 PTZ is a heavy duty thermal imaging unit purpose-built for vehicle mounting. Whether you’re patrolling fence lines, tracking predators, or rolling deep into ranch country after dark, this system gives you the eyes you need when it matters most.

Outfitted with a 384×288 thermal sensor and precision-engineered PTZ control, the Defiance LS sees heat through brush, fog, and pitch darkness—while you stay behind the wheel. With app-based control, onboard recording, and ruggedized construction, this rugged vehicle-mounted camera is a turn-key thermal solution for trucks, UTVs, and off-road platforms.

GENERAL
Water Resistance IP66
Pan angle Continuous 360deg
Tilt angle Straight downward to 45 degrees above horizontal
Body Material Aluminum
Width 6.65″
Depth 7.68″
Height 7.8″
Weight 111 oz
Operating Temperature Range degF -4degF x 122degF
Ports 1 TF card slot, 2 HDMI ports, 2 DC ports
Display type LCD
Screen Size 10.1″
POWER
Power Supply 12VDC
Camera Amperage @12V DC 750mA
Display Amperage @ 12VDC 320mA
Adaptor Connection with both Camera and Display 1200mA
SENSOR
Device Technology Thermal Imaging
Sensor resolution, pixels 384×288
Frame rate 60 fps
Pixel size 17 micron
Spectral range 8 – 14mm
Detector NETD <40 mK
Color palettes 5
Detection range yd 1250 yds
OPTICS
Lens material Germanium
F/# NUMBER (lens) 1
Lens diameter 30 mm
Focal length 30 mm
Digital zoom 1-8x
Magnification n/a
Field of View Horizontal 20deg
Field of View Vertical 15deg
Field of View Diagonal 25deg
Attributes Value
Weight 7 lbs
Is Accessory

Condition

Refresh Rate

Sensor Resolution

Warranty
