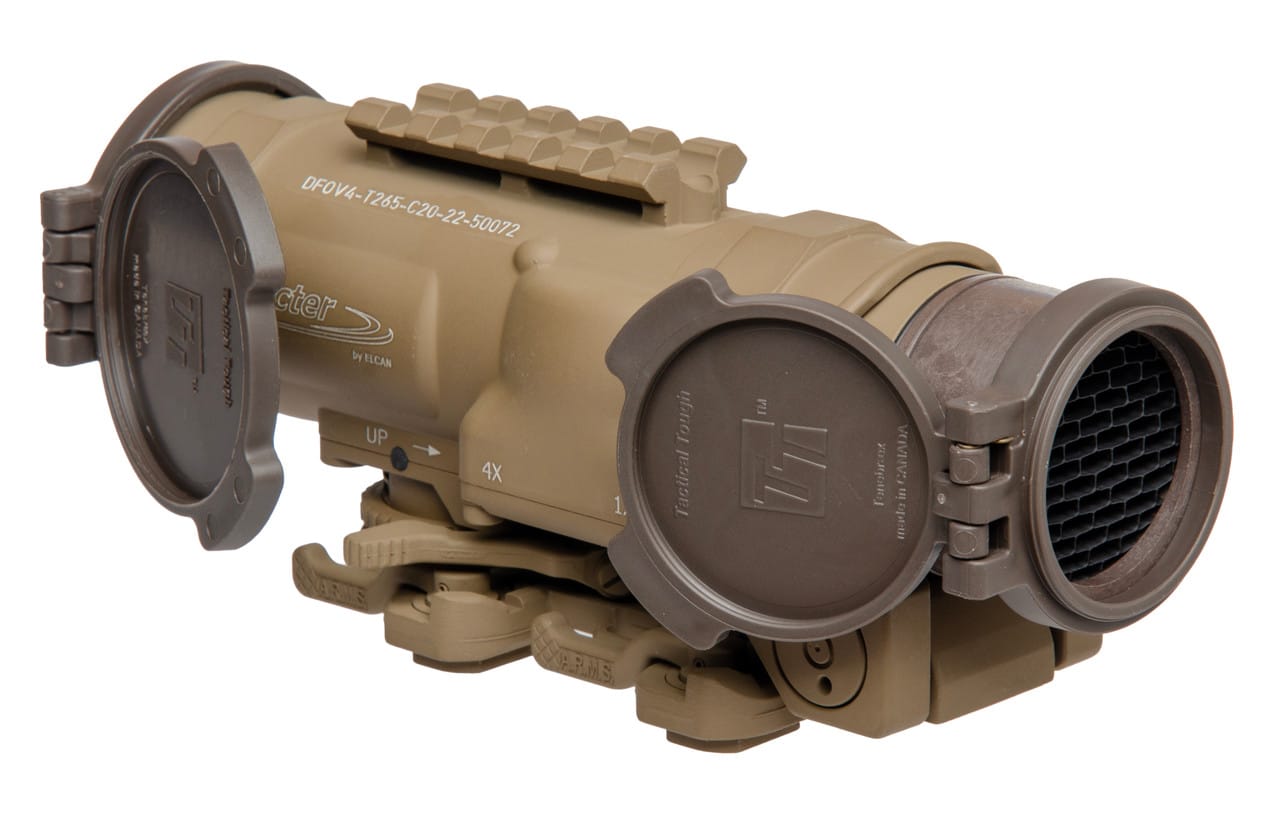

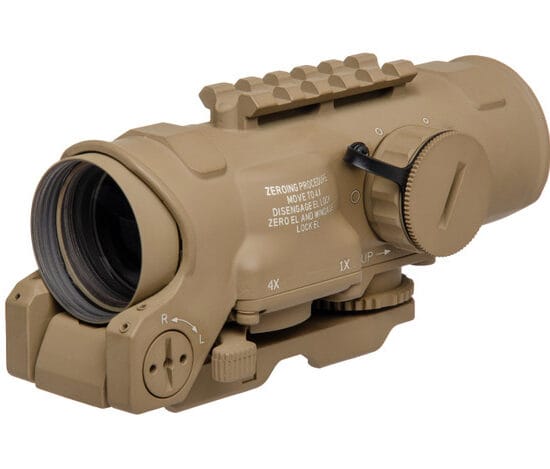

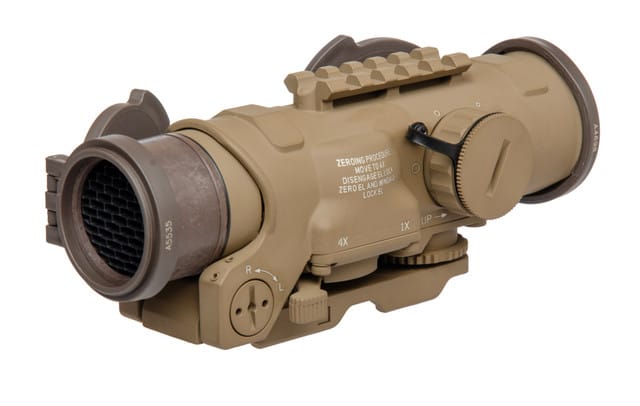

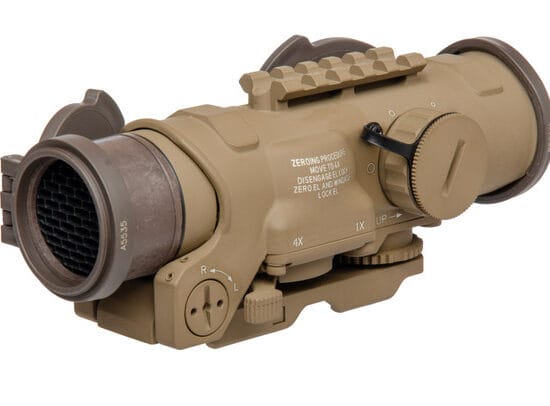

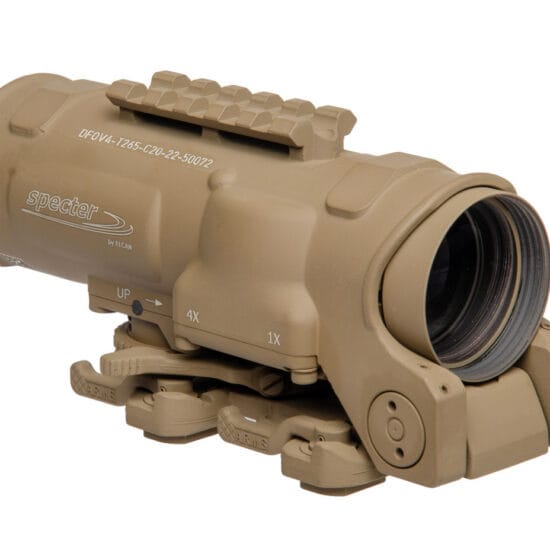

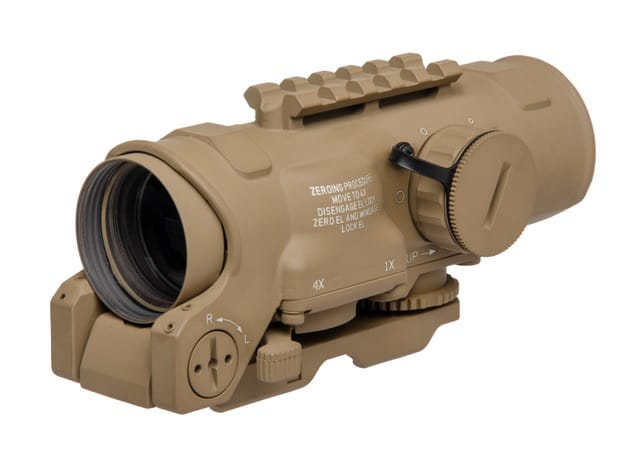

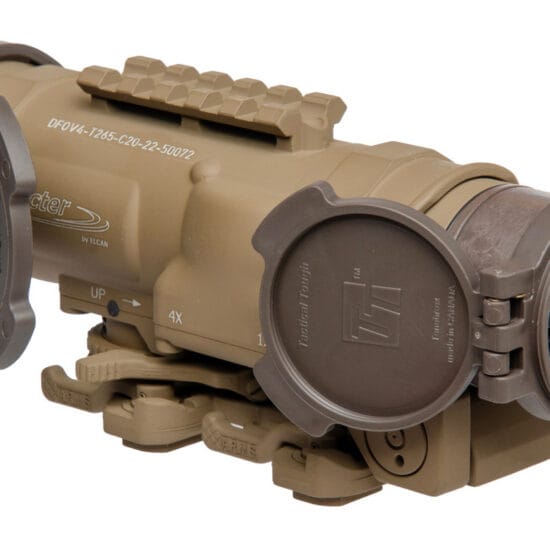

ELCAN Specter DR 1x/4 5.56 BDC Reticle, FDE

Email for Availability

Features

The Specter DR provides two reticle modes: A Red Dot at the center of the crosshairs, and a Range Estimating and Drop Compensation Reticle. Each reticle mode has multiple brightness settings and is set by the Illumination switch on the left side of the sight.

* CQB – 1X Magnification with a 6 MOA illuminated red dot
* Long Range Red Dot – 4X Magnification with a 1.5 MOA illuminated red dot
* Long Range Crosshair – 4X Magnification with an illuminated ballistically compensated and ranging reticle
* DFOV14-C1 & T1 reticles: Specter DR 1x/4x: (5.56x45mm) is calibrated with NATO M855 (62gr) on a 16” M4 Barrel

$2,884
SKU: DFOV4-T265-C10

Did you know?

Financing options are available at checkout!

  • Description
  • Manufacturer Specifications
  • Technical Specs

Elcan SpecterDR 1-4

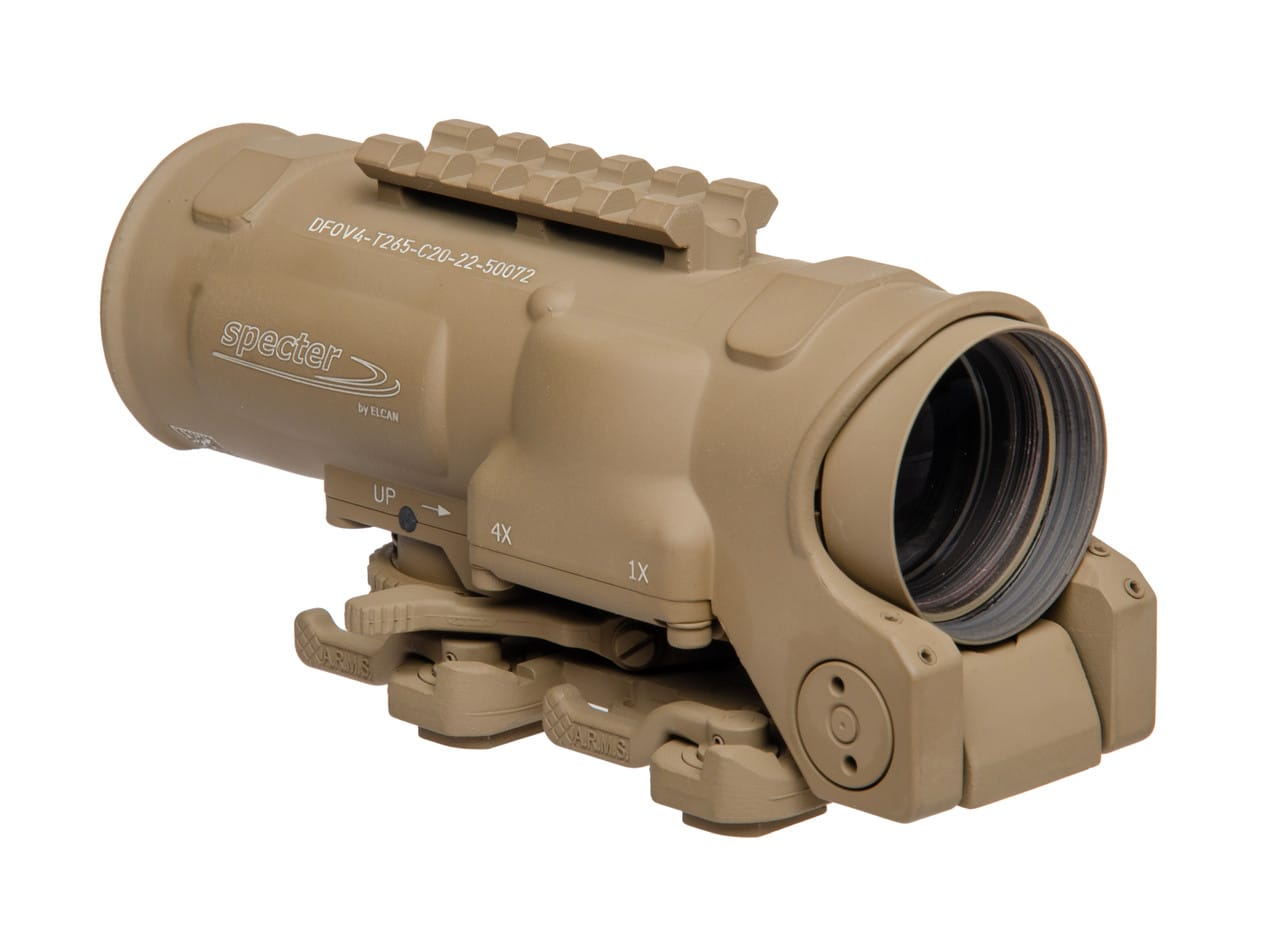

NEW for 2024, the ELCAN SpecterDR 1x/4x comes equipped with integrated Picatinny rails, ambidextrous magnification throw levers, improved battery covers, and hard-wearing CERAKOTE® performance finishes in Black or Flat Dark Earth (FDE). The SpecterDR 1-4 Dual Role Optical Sight represents a revolution in optical sight design. The world’s first truly dual field of view combat optical sight, the SpecterDR switches instantly from a 4x magnified sight to a 1x CQB sight with the throw of a lever. Unlike zoom sights, the SpecterDR offers an optimized optical path and identical eye relief in both 4x and 1x modes.
Depending upon the situation, the user may adjust the sight to illuminate the crosshair or just a brilliant red dot in the center. In 1x mode, the SpecterDR has by far the largest field of view in the industry. In 4x mode the SpecterDR offers a generous field of view, long eye relief, and ELCAN’S legendary crystal clear image.
The SpecterDR 1-4 offers the best single solution for both Medium Range and CQB engagements and is designed to withstand the rigors of modern professional use.

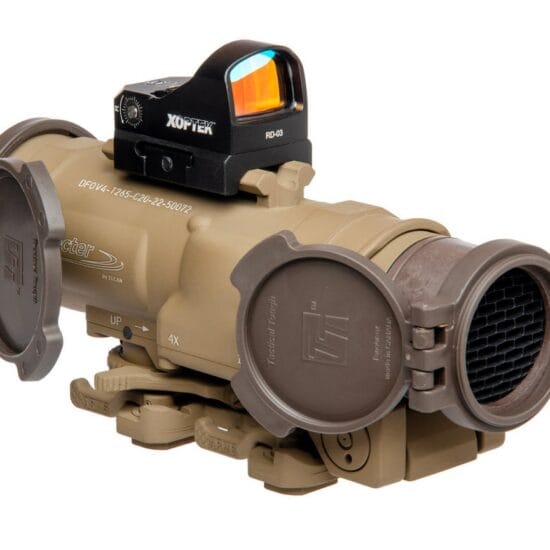

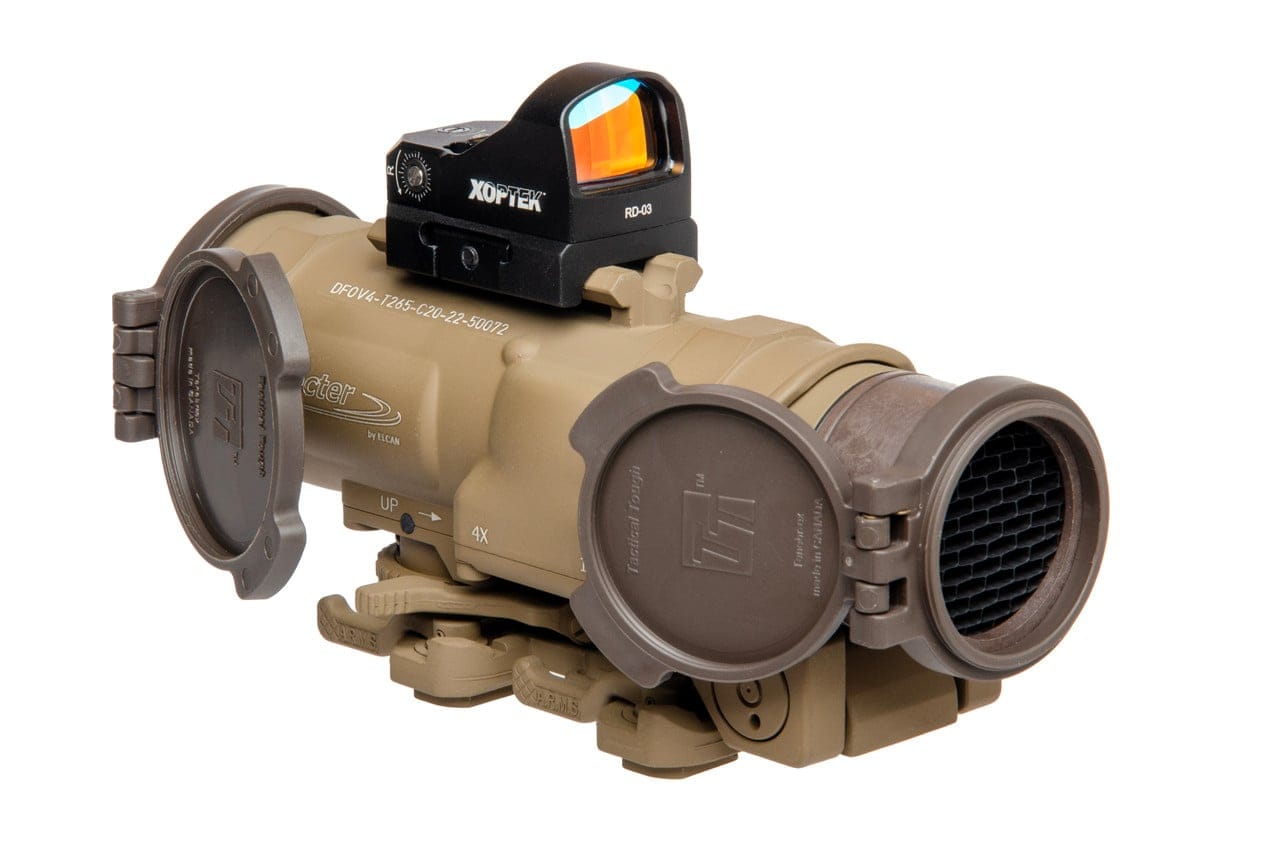

Optional XOPTEK™ Micro Reflex Sight
Now add the XOPTEK™ Micro Reflex Sight as an included option on your SpecterDR 1-4. The XOPTEK™ Micro Reflex Sight is designed as a lightweight rapid aiming device for pistols and carbines and as an auxiliary sight for long-range magnified optical sights. In operation, the sight projects a brilliantly illuminated red dot into the user’s field of view to act as a precise aiming point for close to mid-range targets.
Reticles

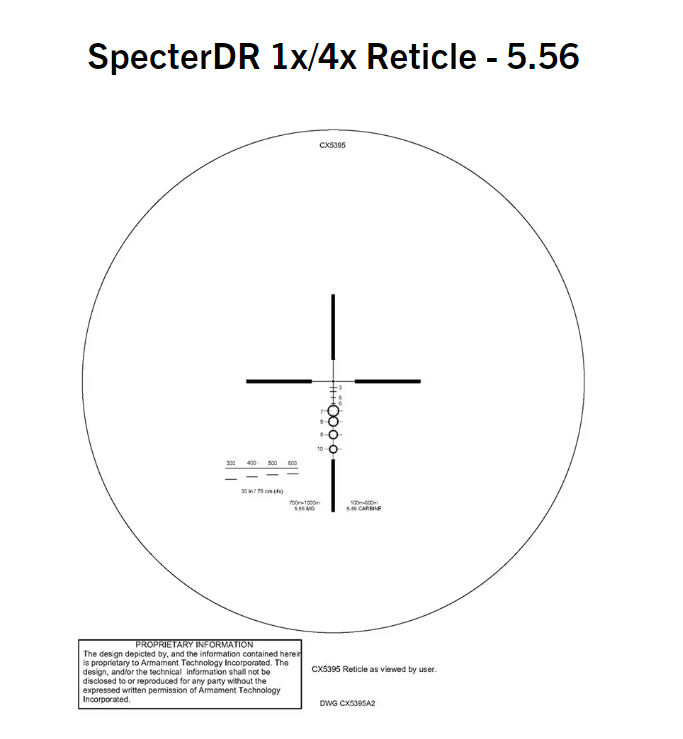

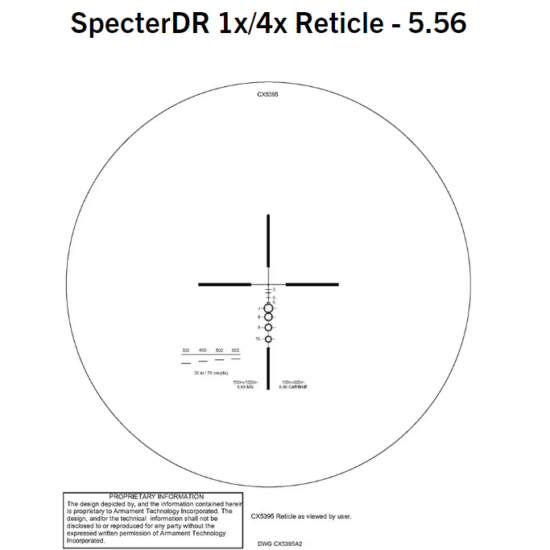

5.56 (CX5395)
7.62 (CX5396)

Feature Specification
Magnification 4x / 1x
Length 153mm nominal
Width 74mm nominal
Height 78mm nominal
Weight 660g nominal
Reticle Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles.
Aiming Dot diameter 1.5 MoA @ 4x, 6 MoA @ 1x
Ballistic correction: Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles.
DFOV14-C1: CX5395 reticle: 100-600m for 5.56 carbine,700-1000m for 5.56mm LMG
DFOV14-C2: CX5396 reticle: 100-600m for 7.62 rifle, 700-1000m for 7.62mm LMG
CQB offset <44mm @ 60m
Field of View 26 deg @ 1x, 6.5 deg @ 4x
FoV @4x 11.4 m @ 100 m (34.2 ft @ 100 yds)
FoV @1x 48.8 m @ 100 m (146.3 ft @ 100 yds)
Illumination source Battery-powered LED
Crosshair illumination 5 settings, AN/PVS-22 compatible
Red Dot illumination 5 settings, AN/PVS-22 compatible
Eye Relief 70mm
Entrance pupil 32mm
Exit pupil 8mm
Nominal focus 150m @ 4x, 70m @ 1x
Fixed focus range 20m to infinity
Battery type CR2032 (3v Lithium)
Battery life 382hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting
Exterior finish CERAKOTE(r) performance finish in Black or Flat Dark Earth (FDE)
Adjustment resolution 0.5 minute of angle
Adjustment range 120 minutes of angle
Base requirement Mil-Std-1913 ‘Picatinny Rail’
Attachment A.R.M.S. Levers
Shockproof: 450 g’s
