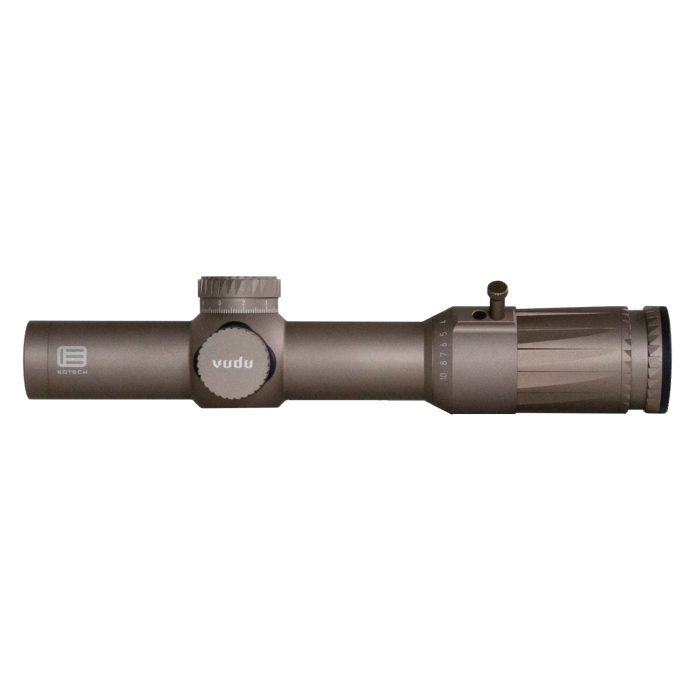

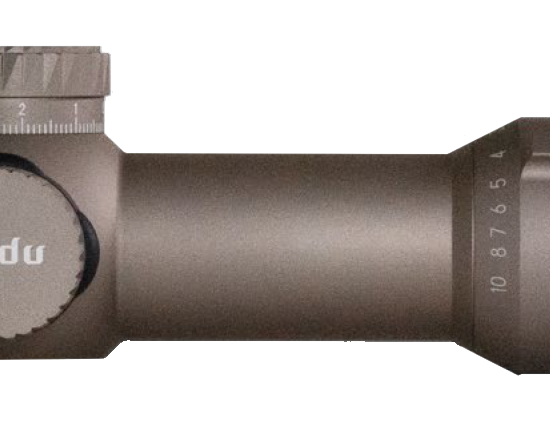

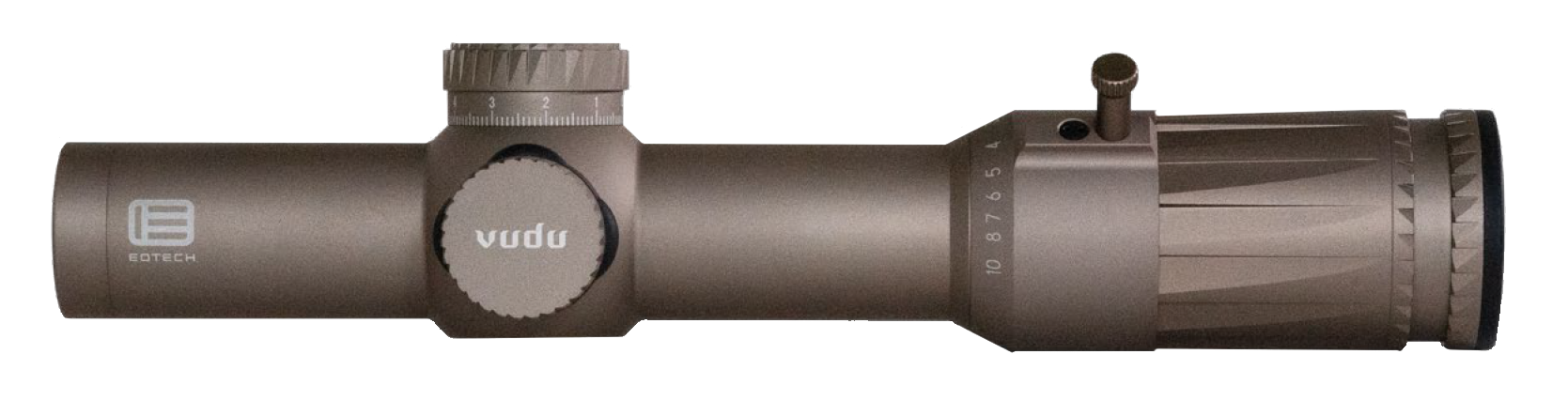

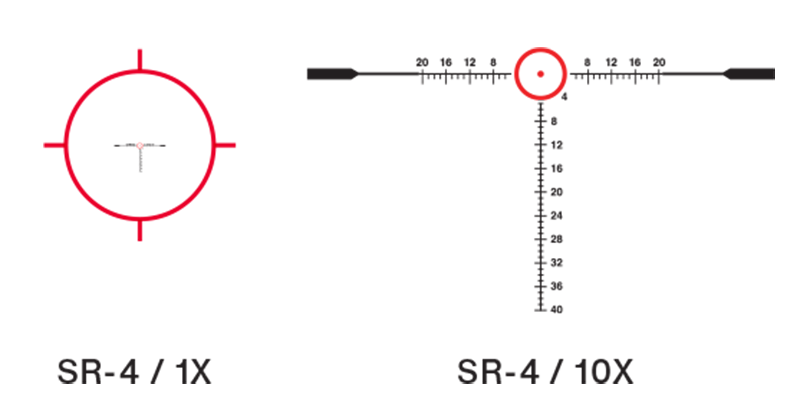

EOTECHs Vudu 1-10×28 offers a robust 34mm, one-piece aircraft aluminum tube and single-piece eyepiece that includes a removable throw-lever for fast changes in magnification. The low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero. The illuminated, glass-etched reticle and first focal plane design allows for distance estimation at any magnification and lighting condition. The SR-4 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MOA subtension lines for ranging holdover and wind compensation. With a 1 MOA center aiming dot, the clean sight picture provides improved down range visibility while still allowing the full use of the horizontal and vertical stadia lines for hold-overs and wind calls. The Vudu 1-10x contains an auto-shutdown feature that will automatically turn the illumination off after approximately 2 hours of inactivity (no button pushes). This preserves battery life and eliminates the chance of accidentally leaving the illumination on.
| Max Magnification |
1-10x |
| Objective Lens Diameter |
28mm |
| Field of View |
116.6 x 11.7 ft @ 100 yds |
| Eye Relief |
3.27″ – 3.90″ |
| Tube Diameter |
34mm |
| Length |
10.63″ |
| Weight |
21.30 oz |
| Reticle |
Illuminated Red SR4 MOA |
| Proofs |
Fog/Shock/Water Resistant |
| Optic Coating |
Anti-Reflection |
