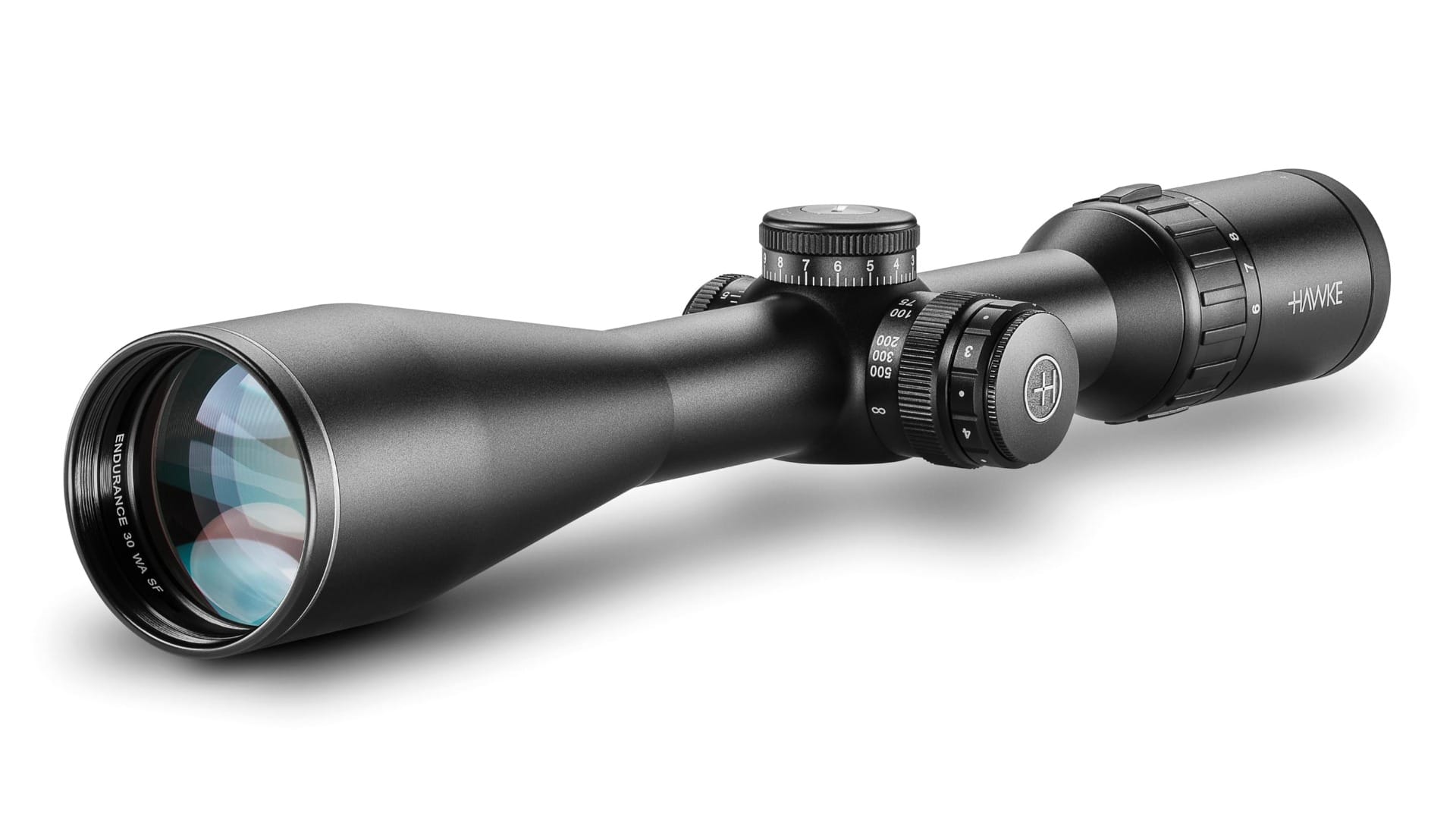

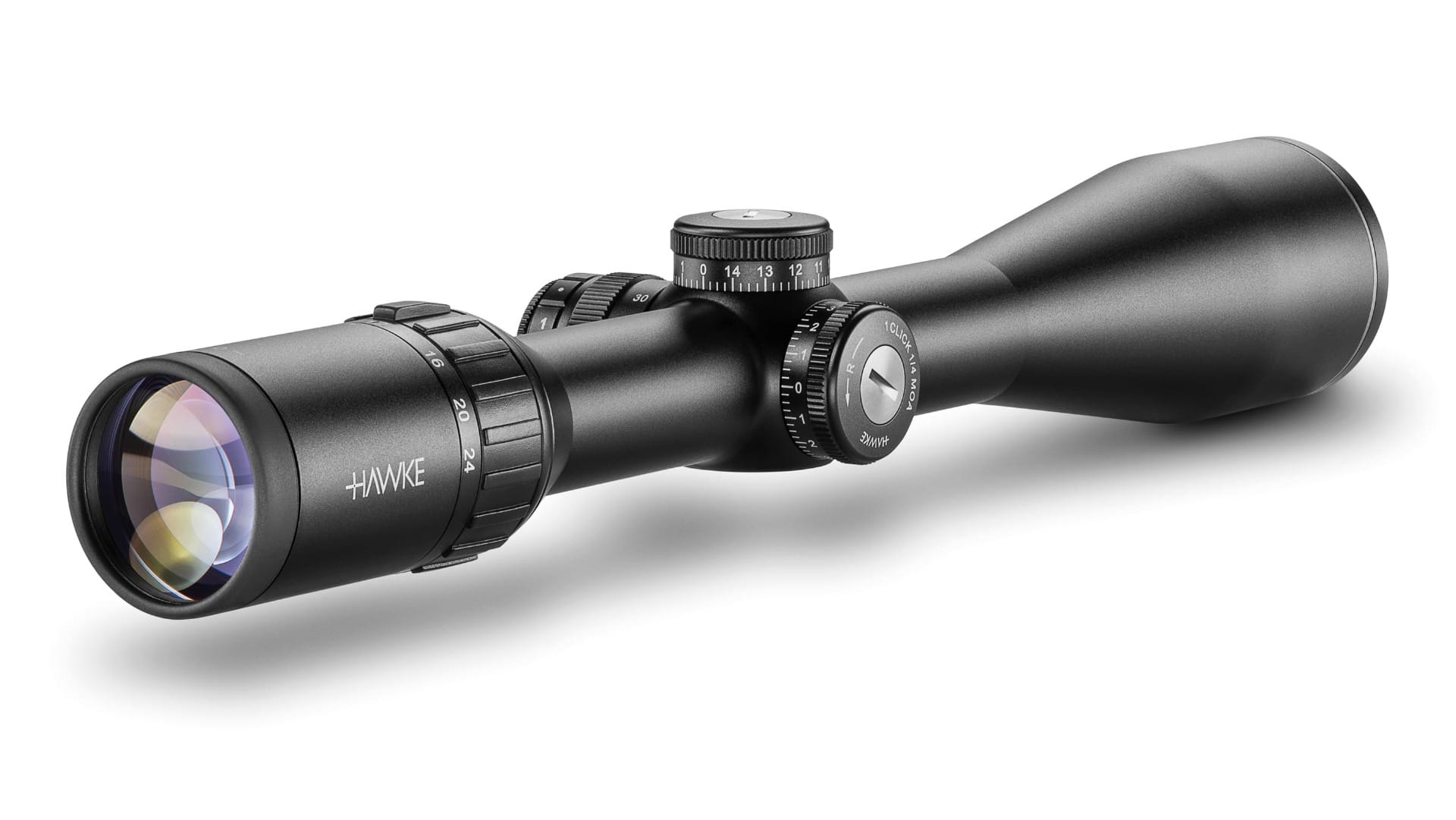

HAWKE ENDURANCE 30 WA SF 6-24×50 Lr Dot 16x Reticle Riflescope

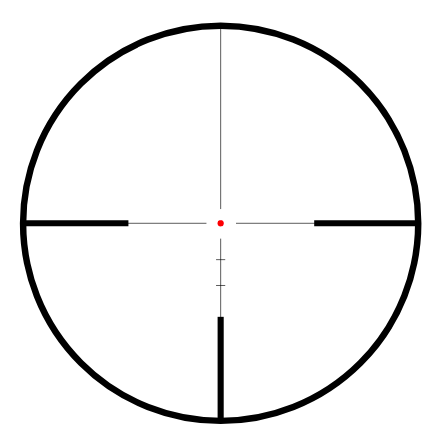

LR Dot Reticle
The LR Dot reticle was developed around a typical centrefire trajectory, like the .308 Winchester round, which is popular around the world for shooting fairly large game. It also suits some of the faster bullets that might be used for hunting foxes and similar quarry.
This design also makes it suitable for European shooters who might prefer a metric set of figures and therefore to zero their rifle in for 100 metres on the centre crosshair and use the lower aim points for 200, 300, 400 and 500 metres. A useful tip: at 16x magnification, the thick posts to the right and left of the centre dot would bracket the body length of a Roe deer at 100yds; a popular sized animal to hunt with this type of reticle.
FEATURES:

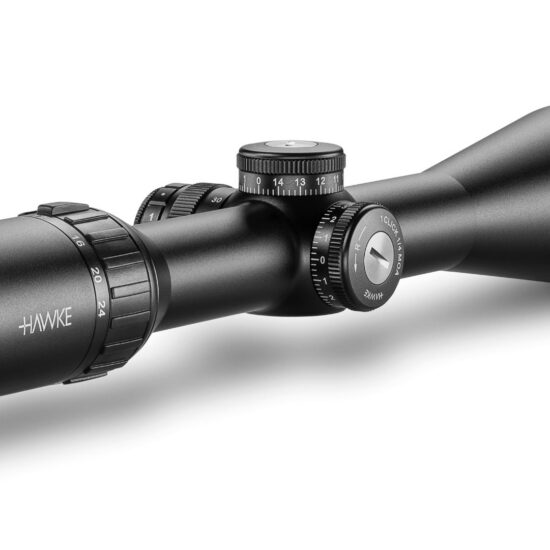

- Exposed, Locking Turrets
- 30mm Mono-Tube Chassis

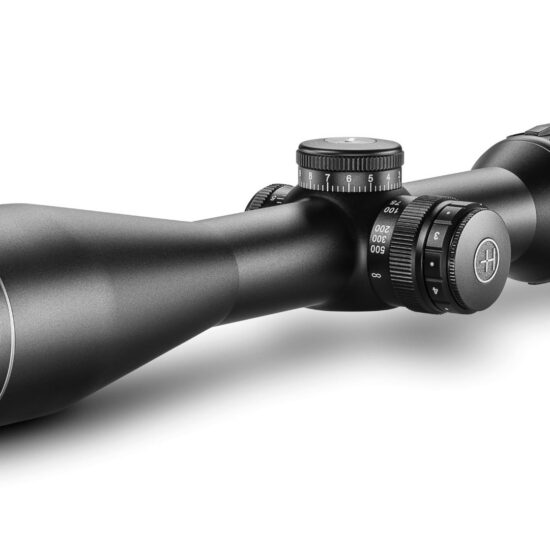

- Side Focus
- Illumination
- Ultra-Wide Angle 24° FOV
- High Volume Eyebox
- 100mm Eye Relief
- Multi-LED High Intensity Reticle
- High Grade, Low Dispersion Crown Glass
- 18 Layer Fully Multi-Coated Lenses
- High Torque Rubber Zoom Ring
- Fast Focus Eyebell

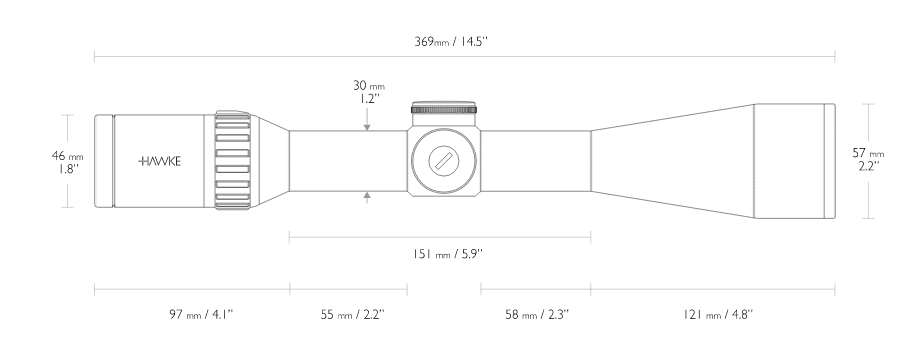

| Length |
369mm |
14.5″ |
| Weight |
644g |
22.7oz |
| Eye relief: |
102mm |
4″ |
| Focus/Parallax – Side Focus |
14m – ∞ |
15yds – ∞ |
| Field of View: |
6.9 – 1.7m @100m |
20.7 – 5.1ft @100yds |
| Exit Pupil: |
8-2mm |
0.3-0.1″ |
| Chassis |
30mm Mono-tube |
|
| Optical System |
6-24× |
|
| Objective |
50mm |
|
| Illumination |
Red |
|
| Reticle |
LR Dot |
|
| Elevation Increment |
1⁄4 MOA |
|
| Elevation Adjustment Range: |
75 MOA |
|
| Windage Increment |
1⁄4 MOA |
|
| Windage Adjustment Range |
75 MOA |
|
| Material |
Aluminium |
|
| Ocular Type |
Fast Focus |
|
| Lens Coating |
Fully Multi-Coated – 18 Layers |
|
| Power Selector Style |
Rubber Coated Posi-Grip |
|
| Focal Plane |
Second Focal Plane (SFP) |
|
| Turret Caps |
No |
|
| Turret Type |
Exposed, Locking |
|
