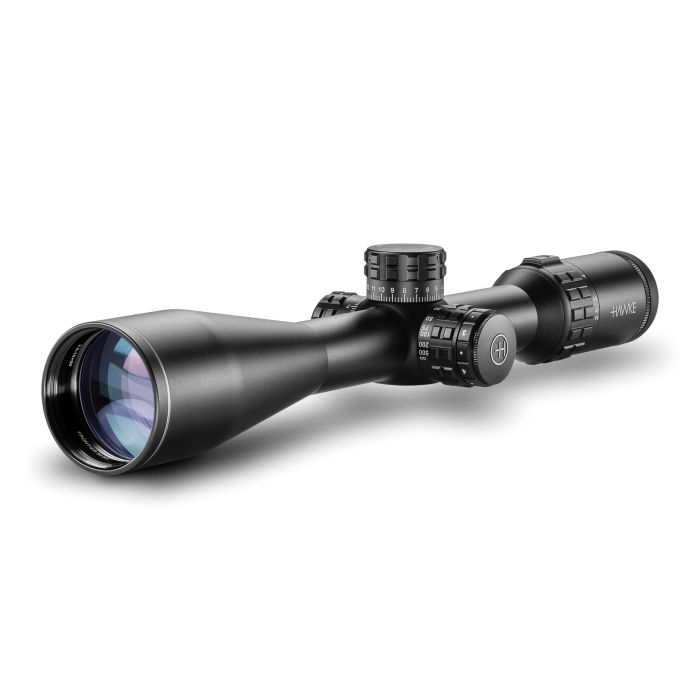

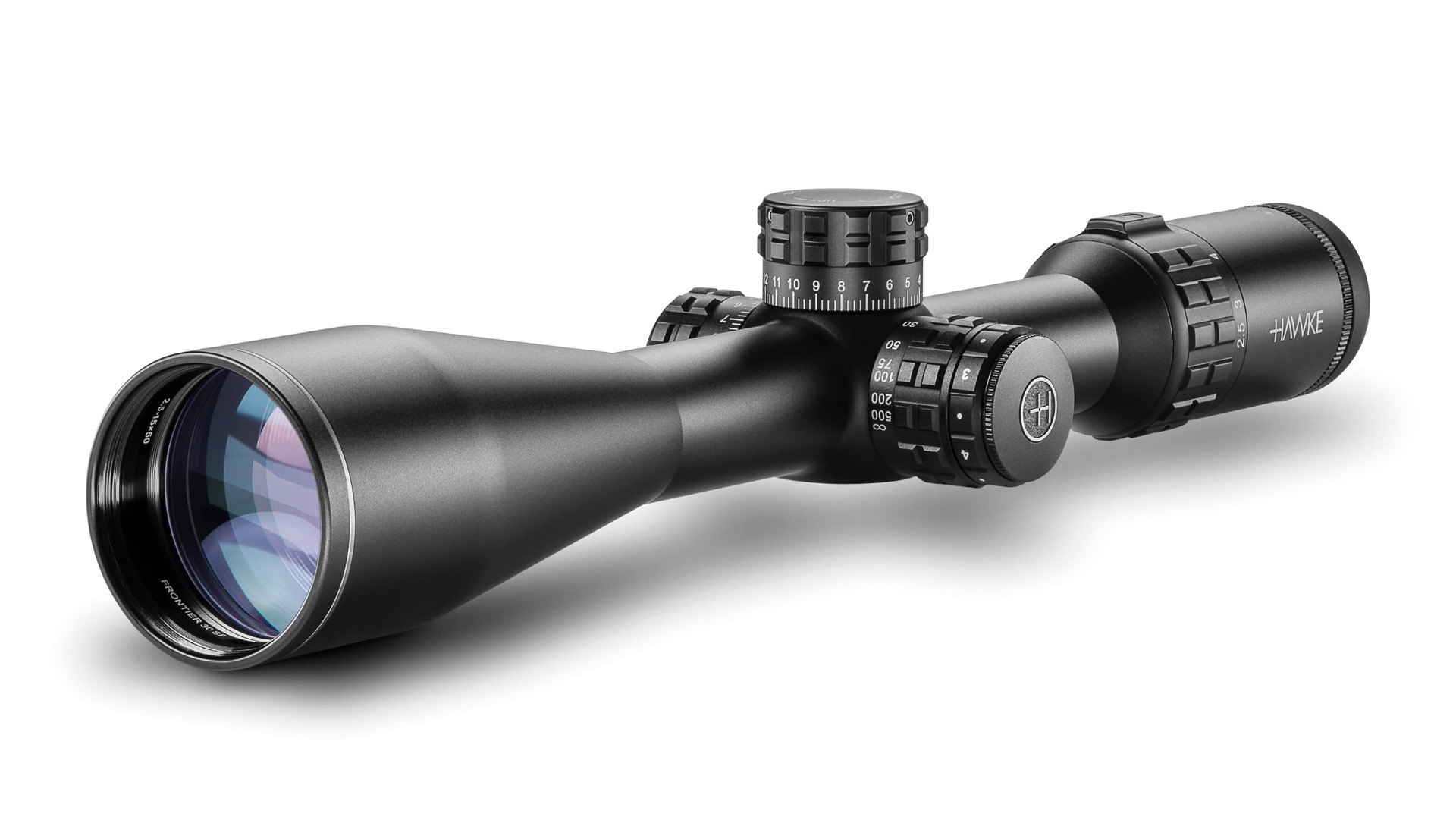

**HAWKE FRONTIER 30 SF 2.5-15×50 Lr Dot Reticle Riflescope**

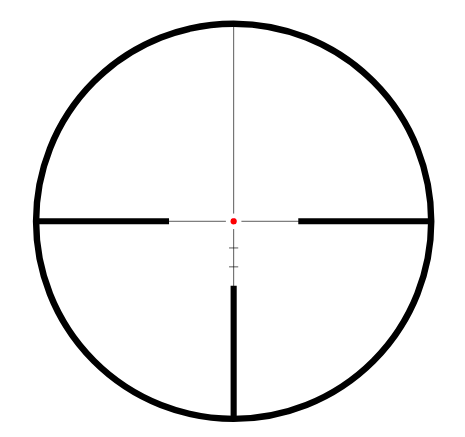

**LR Dot Reticle**

The LR Dot reticle was developed around a typical centrefire trajectory, like the .308 Winchester round, which is popular around the world for shooting fairly large game. It also suits some of the faster bullets that might be used for hunting foxes and similar quarry. Many hunters like to use the same magnification for the rifle scope as their binoculars so the LR Dot reticle markings were designed at 8x magnification.

This design also makes it suitable for European shooters who might prefer a metric set of figures and therefore to zero their rifle in for 100 metres on the centre crosshair and use the lower aim points for 200, 300, 400 and 500 metres. A useful tip: at 8× magnification, the thick posts to the right and left of the centre dot would bracket the body length of a Roe deer at 100yds; a popular sized animal to hunt with this type of reticle.

FEATURES:

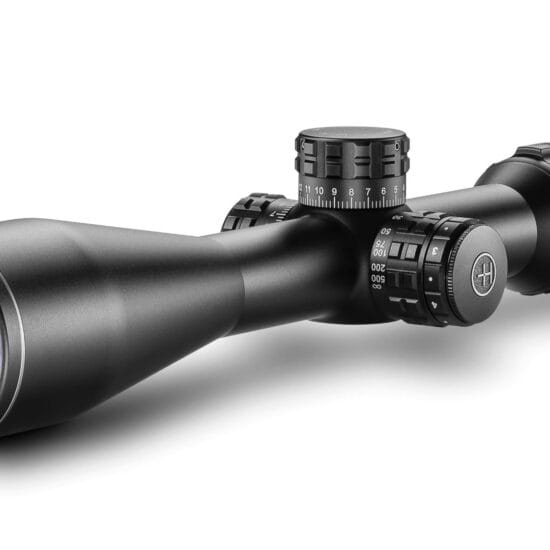

* Patented Exposed Zero Lock ‘N’ Stop Elevation Turret
* 30mm Mono-Tube Chassis
* Side Focus
* Illumination
* Wide Angle FOV
* High Volume Eyebox
* 100mm Eye Relief
* Multi-LED High Intensity Reticle
* High Grade, Low Dispersion Crown Glass
* 21 Layer Fully Multi-Coated Lenses
* Zoom Magnification Throw Lever (Removable)
* Fast Focus Eyebell With Lock Ring
* Supplied With Professional Metal Flip-Up Covers.

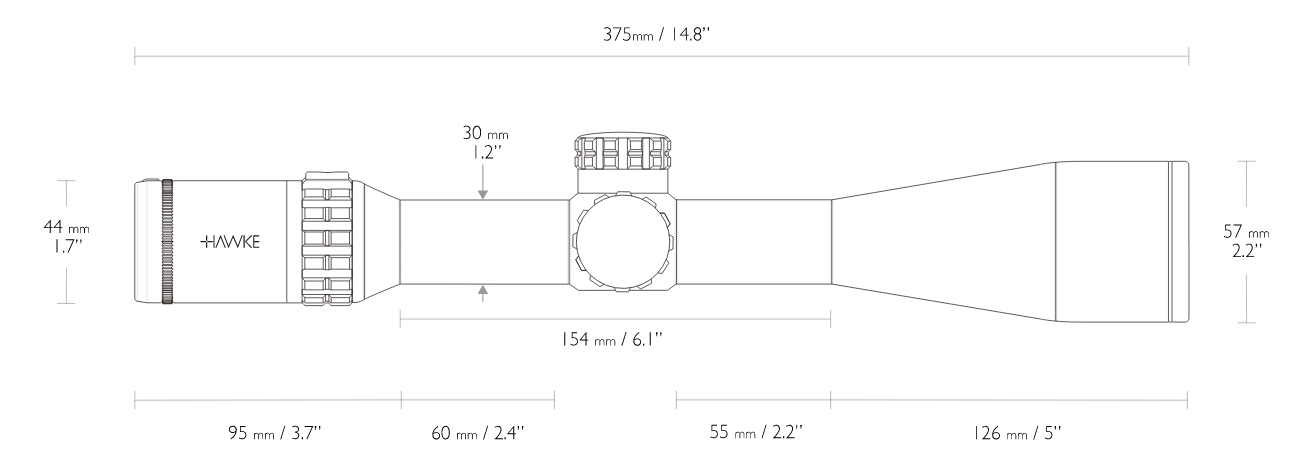

| Length | 375mm | 14.8″ |
| ————————— | ——————————————— | —————— |
| Weight | 660g | 23.3oz |
| Eye relief: | 102mm | 4″ |
| Focus/Parallax – Side Focus | 14m – ∞ | 15yds – ∞ |
| Field of View: | 15.1-2.5m @100m | 45.3-7.5ft @100yds |
| Exit Pupil: | 20-3.3mm | 0.79-0.13″ |
| Chassis | 30mm Mono-tube | |
| Optical System | 6× | |
| Objective | 50mm | |
| Illumination | Red | |
| Reticle | LR Dot | |
| Elevation Increment | 1⁄4 MOA | |
| Elevation Adjustment Range: | 110 MOA | |
| Windage Increment | 1⁄4 MOA | |
| Windage Adjustment Range | 110 MOA | |
| Material | Aluminium | |
| Ocular Type | Locking Fast Focus | |
| Lens Coating | Fully Multi-Coated – 21 Layers | |
| Power Selector Style | Removable Zoom Lever | |
| Focal Plane | Second Focal Plane (SFP) | |
| Turret Caps | No | |
| Turret Type | Exposed Zero Lock ‘n’ Stop Turrets (Patented) | |
