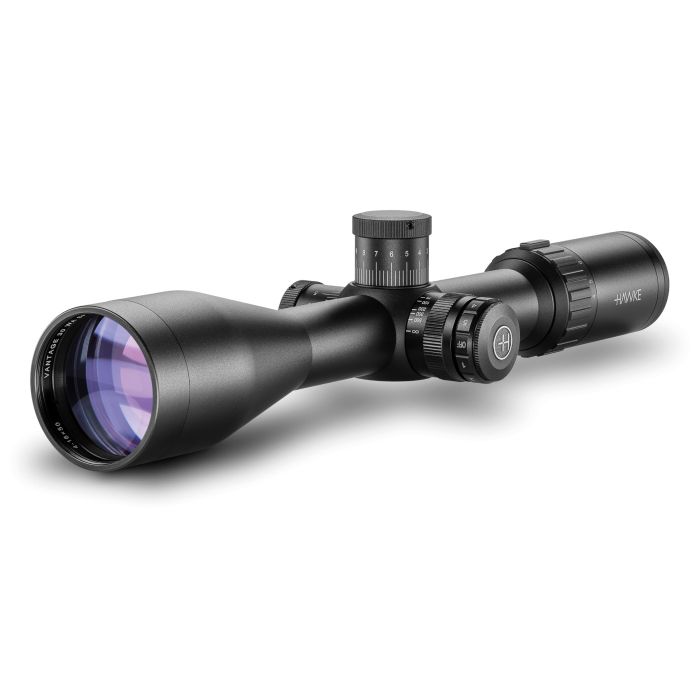

**Hawke VANTAGE 30 WA SF IR 4-16×50 RIMFIRE .17 HMR Reticle Riflescope**

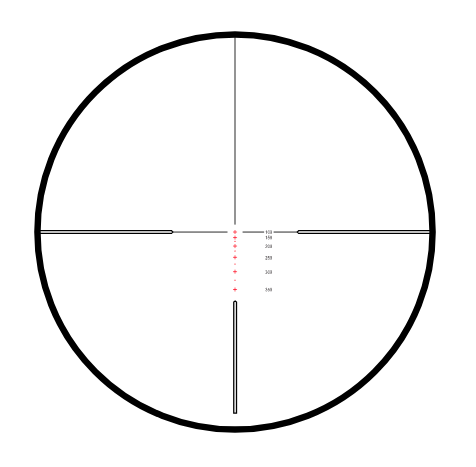

**Rimfire .17 HMR Reticle (16x)**

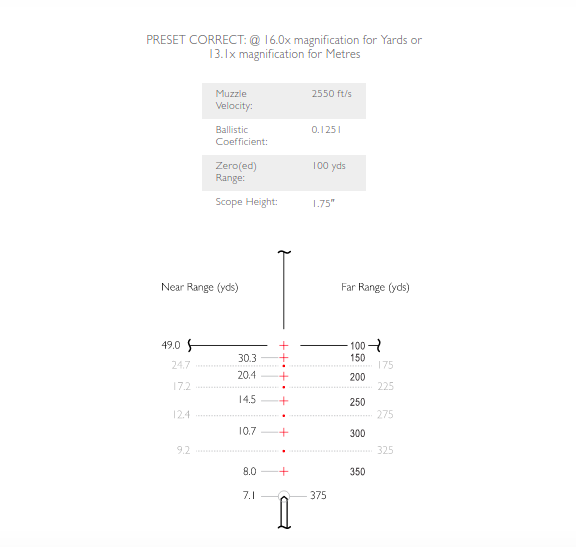

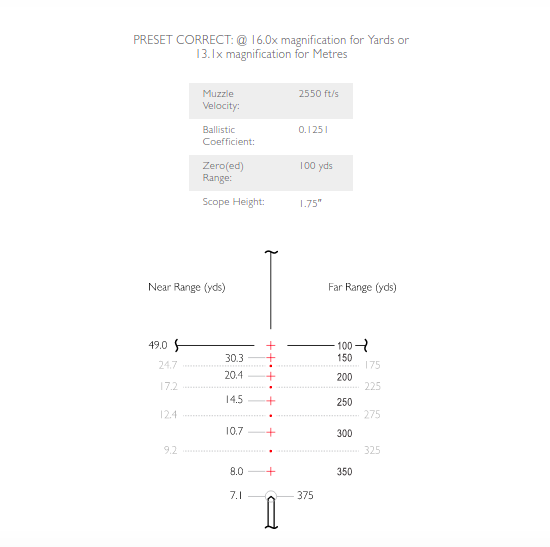

Registered reticle design exclusive to Hawke. Aim points calculated for your specific caliber. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view, designed for use on maximum magnification.

Designed for the .17 HMR caliber. Zero on 16x magnification at 100 yards and all aim points are pre-calculated. 2500 fps (777 m/s).

The scope can also be used for 100m zero with aimpoints correct in metric when the magnification is set to 13.1x.

FEATURES:

* Exposed Locking Turrets
* 30mm Mono-Tube Chassis
* Wide Angle
* Side Focus
* Illumination
* 11 Layer Fully Multi-Coated Lenses
* High Torque Zoom Ring
* Fast Focus Eyebell

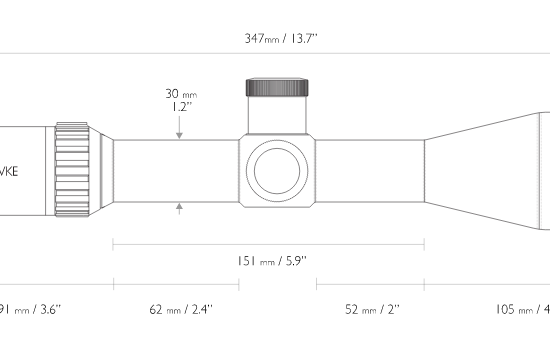

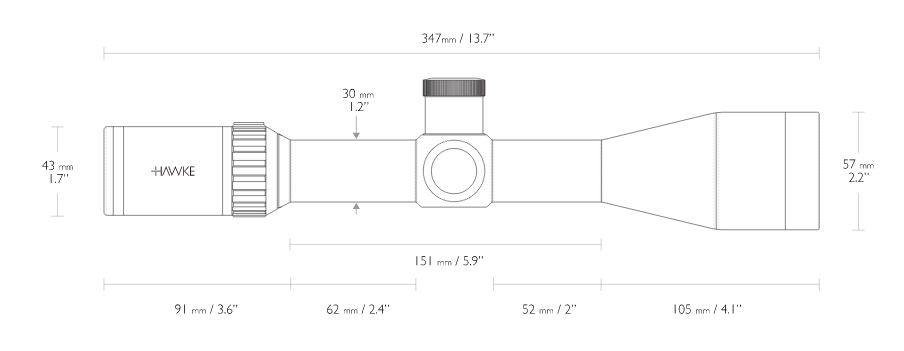

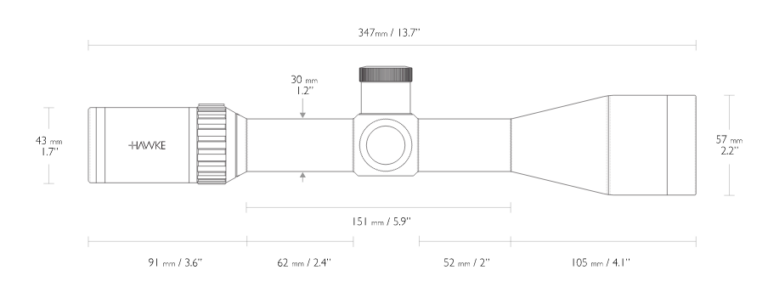

| Length | 347mm | 13.7″ |
| ————————— | —————————— | ——————– |
| Weight | 740g | 26.1oz |
| Eye relief: | 90mm | 3.5″ |
| Focus/Parallax – Side Focus | 9m – ∞ | 10yds – ∞ |
| Field of View: | 9.6 – 2.6m @100m | 28.8 – 7.8ft @100yds |
| Exit Pupil: | 12.5-3.1mm | 0.49-0.12″ |
| Chassis | 30mm Mono-tube | |
| Optical System | 4-16× | |
| Objective | 50mm | |
| Illumination | Red / Green | |
| Reticle | Rimfire .17 HMR | |
| Elevation Increment | 1⁄4 MOA | |
| Elevation Adjustment Range: | 96 MOA | |
| Windage Increment | 1⁄4 MOA | |
| Windage Adjustment Range | 96 MOA | |
| Material | Aluminium | |
| Ocular Type | Fast Focus | |
| Lens Coating | Fully Multi-Coated – 11 Layers | |
| Power Selector Style | Knurled Posi-Grip | |
| Focal Plane | Second Focal Plane (SFP) | |
| Turret Caps | No | |
| Turret Type | Exposed, Locking | |
