**Hawke VANTAGE IR 4-12×50 L4A Dot Reticle**

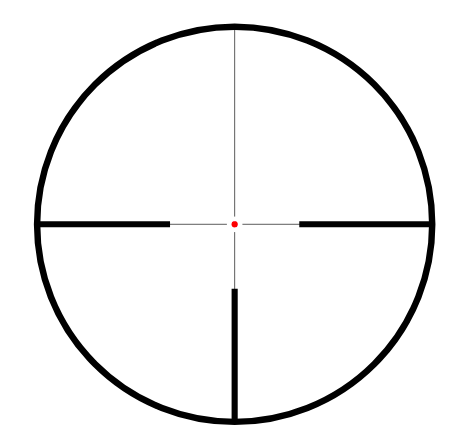

**L4A Dot Reticle**

A variant of the classic L4 reticle, the L4A Dot uses a more open outer post design to keep more of the target visible while aiming. 30″ spacing from center to post at 100yds when on 4x magnification. This is equivalent to 83cm at 100m.

FEATURES:

* Capped Low-Profile Turrets
* 1 Inch Mono-Tube Chassis
* Illumination
* 11 Layer Fully Multi-Coated Lenses
* High Torque Zoom Ring
* Fast Focus Eyebell

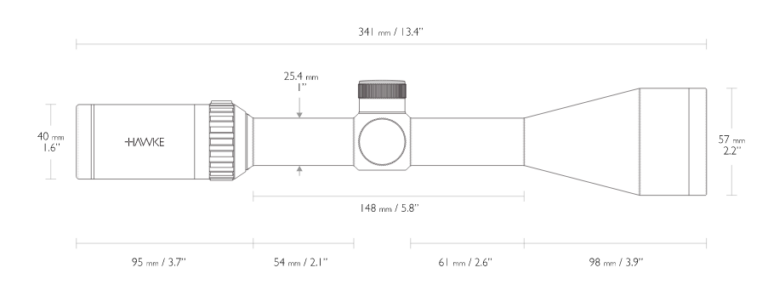

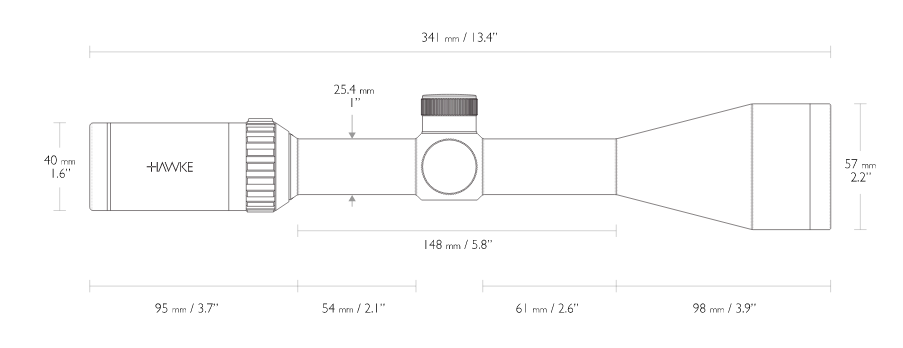

| Length | 341mm | 13.4″ |
| ————————— | —————————— | —————— |
| Weight | 497g | 17.5oz |
| Eye relief: | 89mm | 3.5″ |
| Focus/Parallax – Side Focus | 91m | 100yds |
| Field of View: | 8.7-2.9m @100m | 26.2-8.7ft @100yds |
| Exit Pupil: | 12.5-4.2mm | 0.5-0.2″ |
| Chassis | 1″ Mono-tube | |
| Optical System | 4-12× | |
| Objective | 50mm | |
| Illumination | Red / Green | |
| Reticle | L4A Dot | |
| Elevation Increment | 1⁄4 MOA | |
| Elevation Adjustment Range: | 80 MOA | |
| Windage Increment | 1⁄4 MOA | |
| Windage Adjustment Range | 80 MOA | |
| Material | Aluminium | |
| Ocular Type | Fast Focus | |
| Lens Coating | Fully Multi-Coated – 11 Layers | |
| Power Selector Style | Knurled Posi-Grip | |
| Focal Plane | Second Focal Plane (SFP) | |
| Turret Caps | Yes | |
| Turret Type | Low Profile | |
