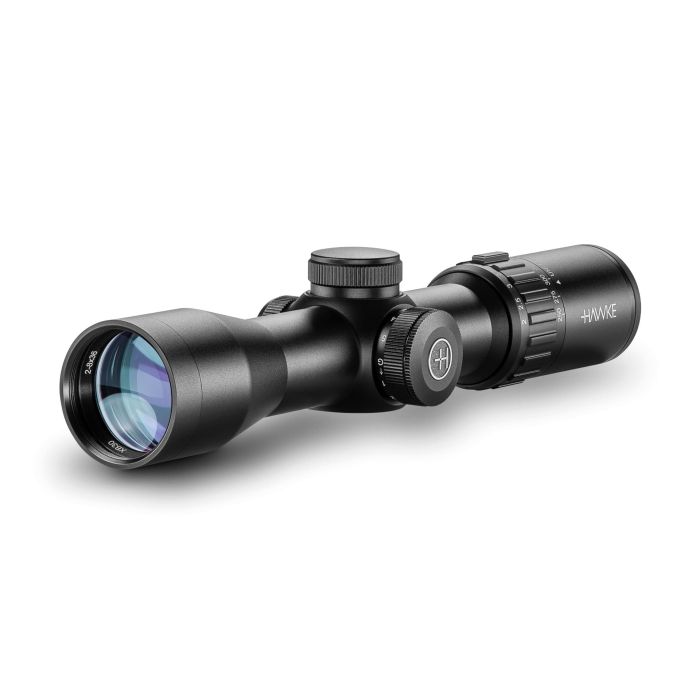

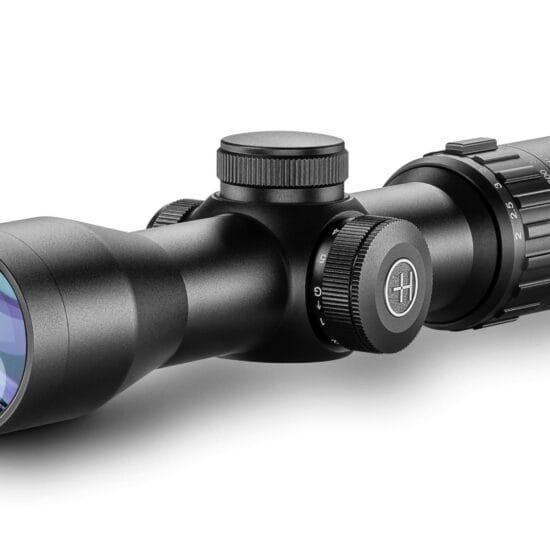

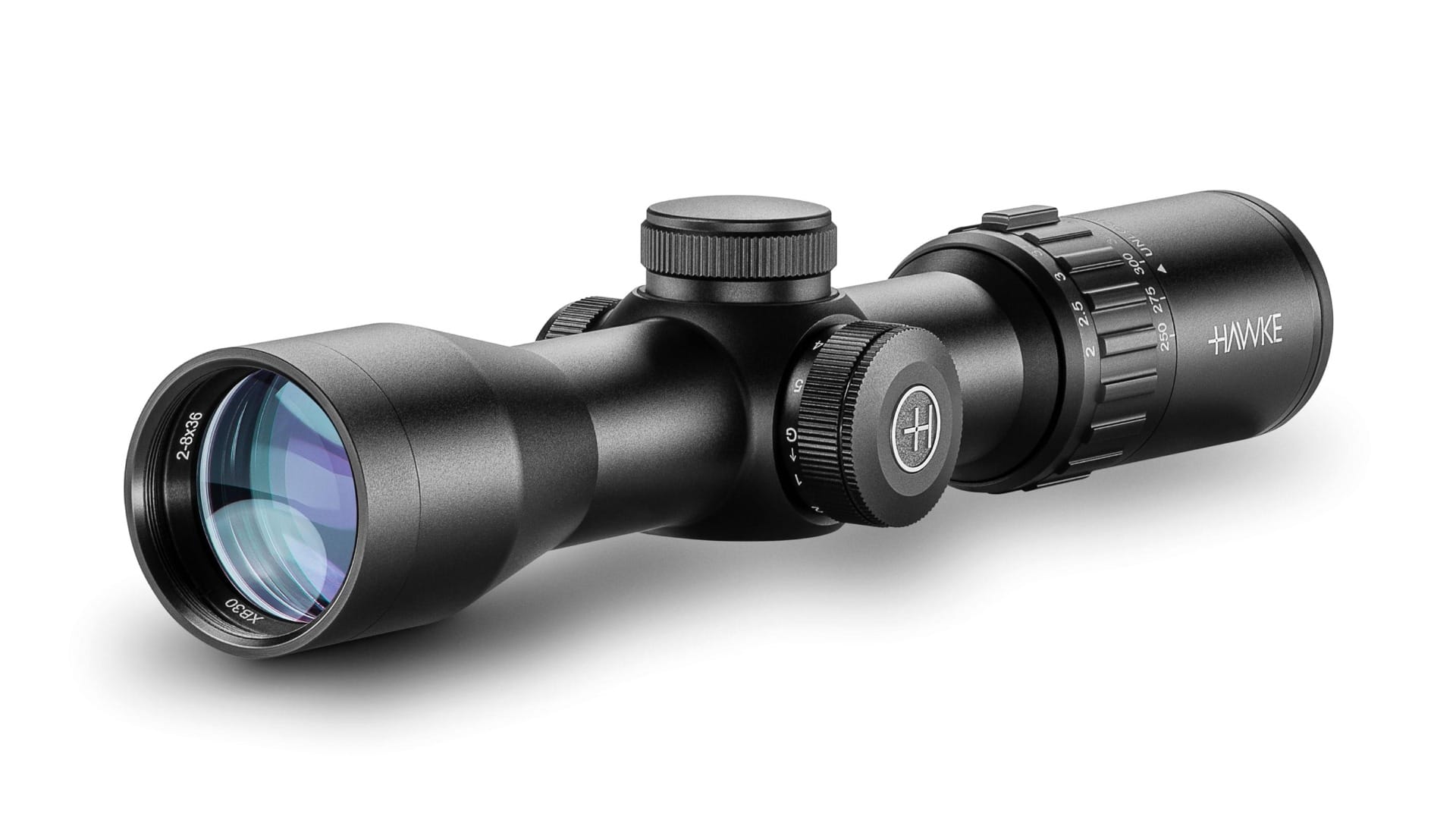

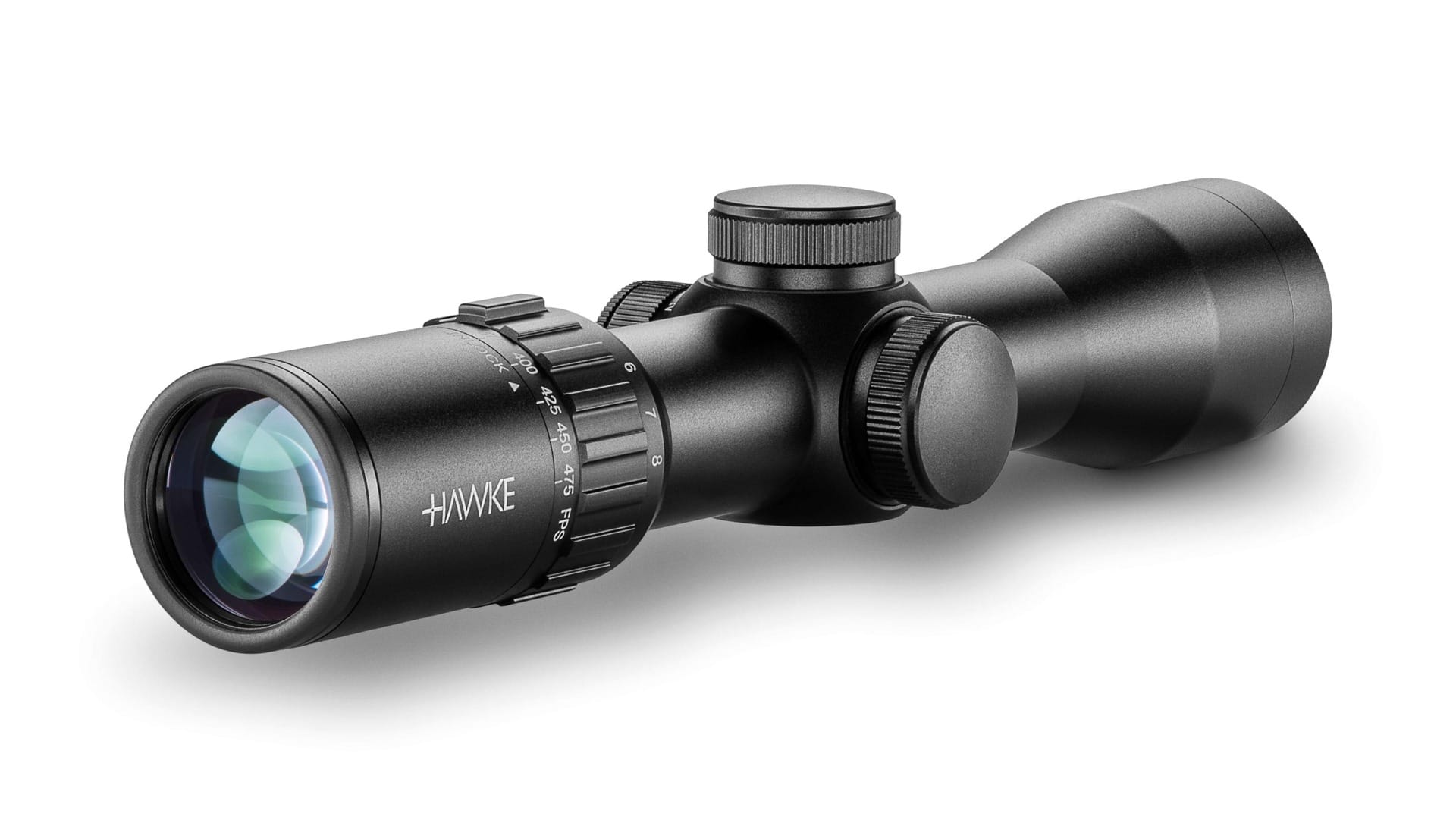

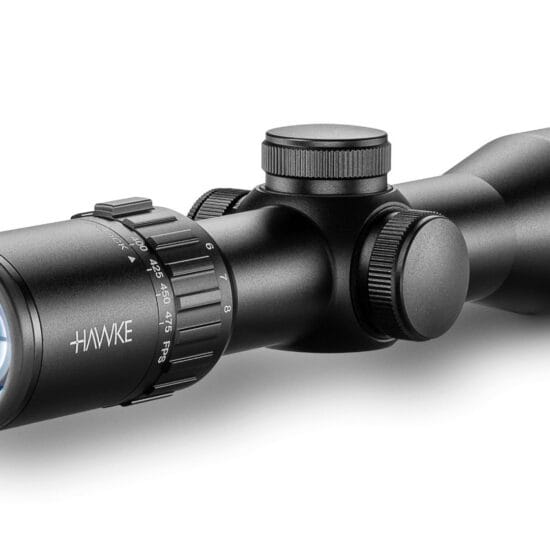

**Hawke XB30 COMPACT 2-8×36 SR Reticle Crossbow Scope**

**XB30** **Compact Crossbow Scope** **SR Reticle**

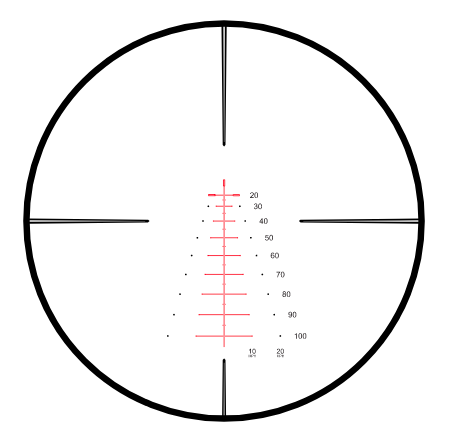

Aim points from 20 – 100 yards with 5 yard marks. 10 yard aim points incorporate windage bars and dots to compensate for 10 mph and 20 mph cross winds.

FEATURES:

* Capped Low-Profile Turrets
* 30mm Mono-Tube Chassis
* Wide Angle
* Patented Locking Zoom
* Illumination
* 1⁄2 MOA Low-Profile Fingertip Turrets
* Fixed Parallax At 45 Metres
* 14 Layer Fully Multi-Coated Lenses
* High Torque Zoom Ring
* Fast Focus Eyebell
* XB Multi-Line Reticles With Range Finding

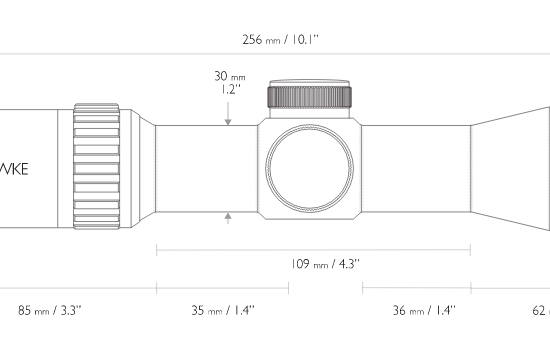

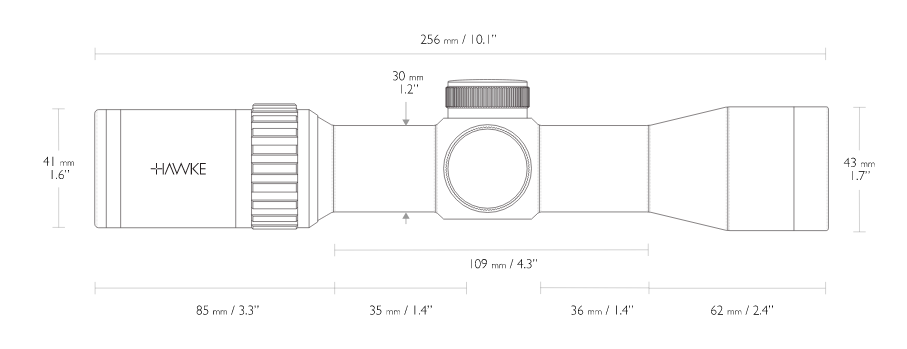

| Length | 256mm | 10.1″ |
| ————————— | ——————————- | ——————— |
| Weight | 435g | 15.3oz |
| Eye relief: | 76mm | 3″ |
| Focus/Parallax – Side Focus | 46m | 50yds |
| Field of View: | 21.9 – 5.5m @100m | 65.7 – 16.4ft @100yds |
| Exit Pupil: | 18-4.5mm | 0.71-0.18″ |
| Chassis | 30mm Mono-tube | |
| Optical System | 2-8× | |
| Objective | 36mm | |
| Illumination | Red | |
| Reticle | XB30 Compact SR | |
| Elevation Increment | 1⁄2 MOA | |
| Elevation Adjustment Range: | 180 MOA | |
| Windage Increment | 1⁄2 MOA | |
| Windage Adjustment Range | 180 MOA | |
| Material | Aluminium | |
| Ocular Type | Fast Focus | |
| Lens Coating | Fully Multi-Coated – 14 Layers | |
| Power Selector Style | Posi-Grip | |
| Focal Plane | Second Focal Plane (SFP) | |
| Turret Caps | Yes | |
| Turret Type | Low Profile, No-Snag, Fingertip | |
