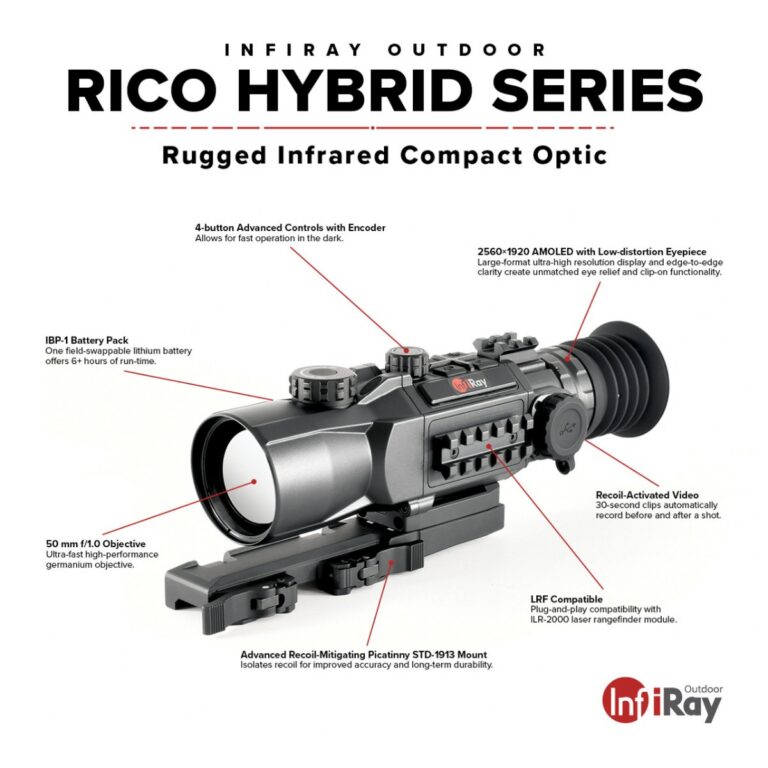

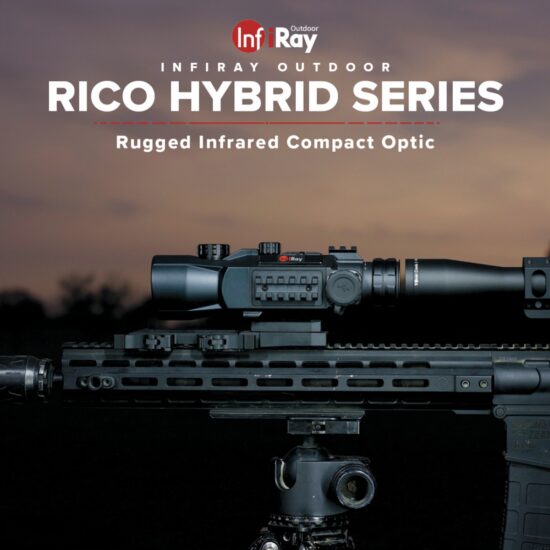

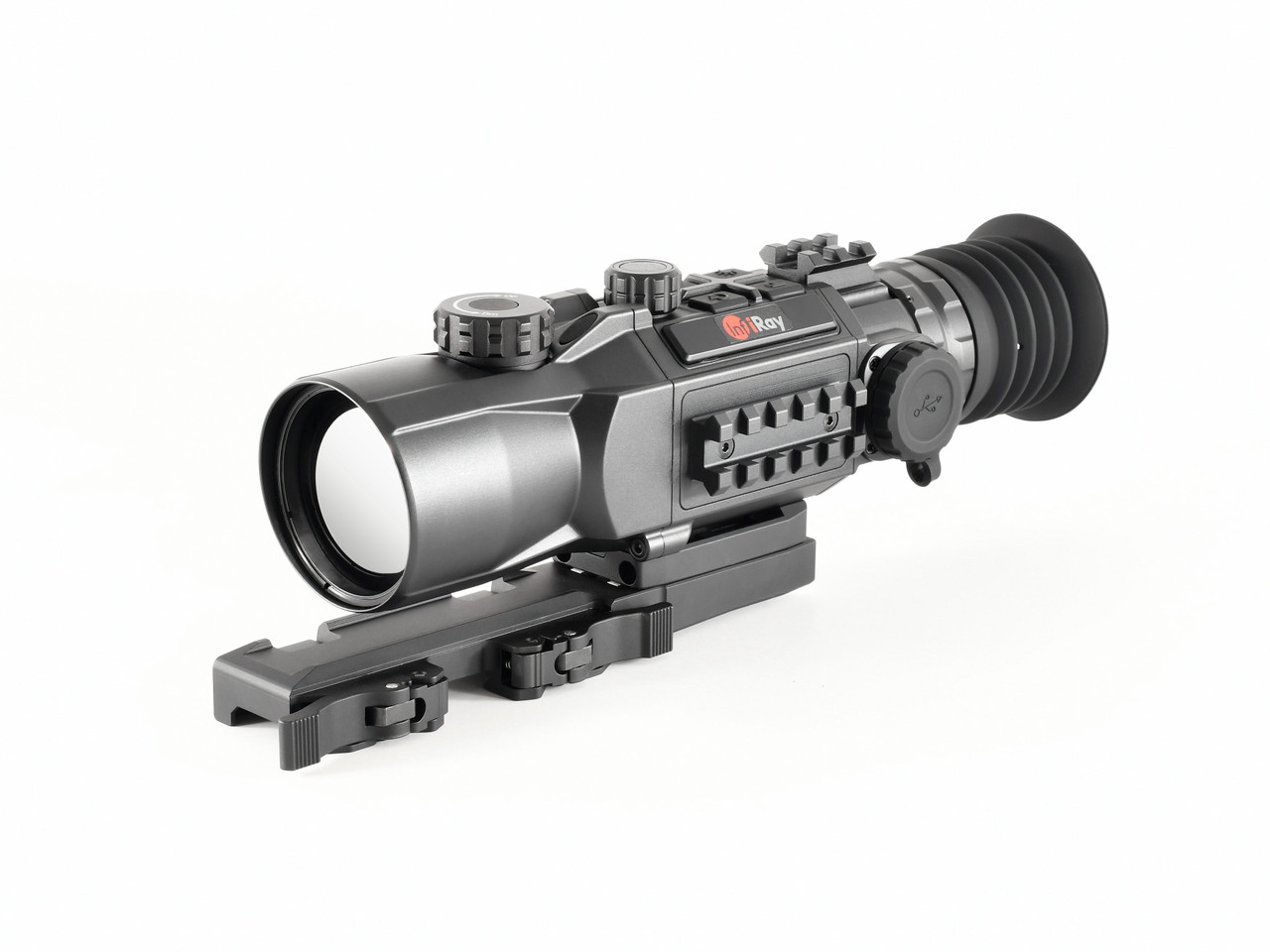

The RICO HYBRID fuses the capabilities of a thermal clip-on and a thermal weapon sight to create a new breed of thermal device. This new HYBRID breed gives you never-before-seen versatility and performance boasting a 2,400 yard detection range as a dedicated thermal sight or an inline clip-on sight with day optics up to 10X. The combination of the HYBRID’s low-distortion orthoscopic eyepiece paired with a 1.03” 2560×1920 UHD display allows for an extra large sight picture with edge to edge clarity. The HYBRID’s extra large sight picture is comfortable viewing as a dedicated sight, and still maintains the pixel density and resolution for use as a clip-on optic. The HYBRID also unlocks advanced new features such as compatibility with a 2,000 yard laser rangefinder, a custom reticle generator, bluetooth, and an onboard ballistic solver.
Ballistic Solver
The HYH50W supports ballistic calculation via a user-uploaded .xlsx file. Calculate your ballistics with your prefered software, then export and upload your trejectory in 5 meter increments. Once you have a balistic profile loaded, plug in the ILR-2000 laser rangefinder and the HYBRID can calculate your drop and display a second reticle in split second.
| Optics |
|
| Objective Focal Length |
50 mm |
| Detection Range |
2400 Yards |
| Objective Lens Material |
Germanium |
| Optical Magnification |
3X |
| Digital Magnification |
8X, stepped |
| Focusing Mechanism |
Manual Focus |
| Display Type |
AMOLED |
| Features & Performance |
|
| Mobile App |
Yes |
| Wifi |
Yes |
| Image Capture |
Yes |
| Connector Type |
USB-C |
| Video Output |
Analog RS-170/NTSC |
| Connector Output |
Power/Data |
| Onboard Recording |
Yes |
| Environmental Specifications |
|
| Recoil Rating |
1000 g/s² (300 Win./7mm Mag) |
| Physical |
|
| Mounting Interface |
Picatinny STD-1913 rail |
| Sensor Specifications |
|
| Device Technology |
Thermal Imaging |
| Sensor Type |
InfiRay MICRO II |
| Sensor Pixel Size |
12μm |
| Thermal Sensitivity |
<50mk |
| Non-Uniformity Correction (NUC) |
Manual, Automatic, Semi-Automatic |
| Spectral Response |
8-12 Microns |
| Sensor Frame Rate |
50hz |
| Sensor Resolution |
640×512 |
