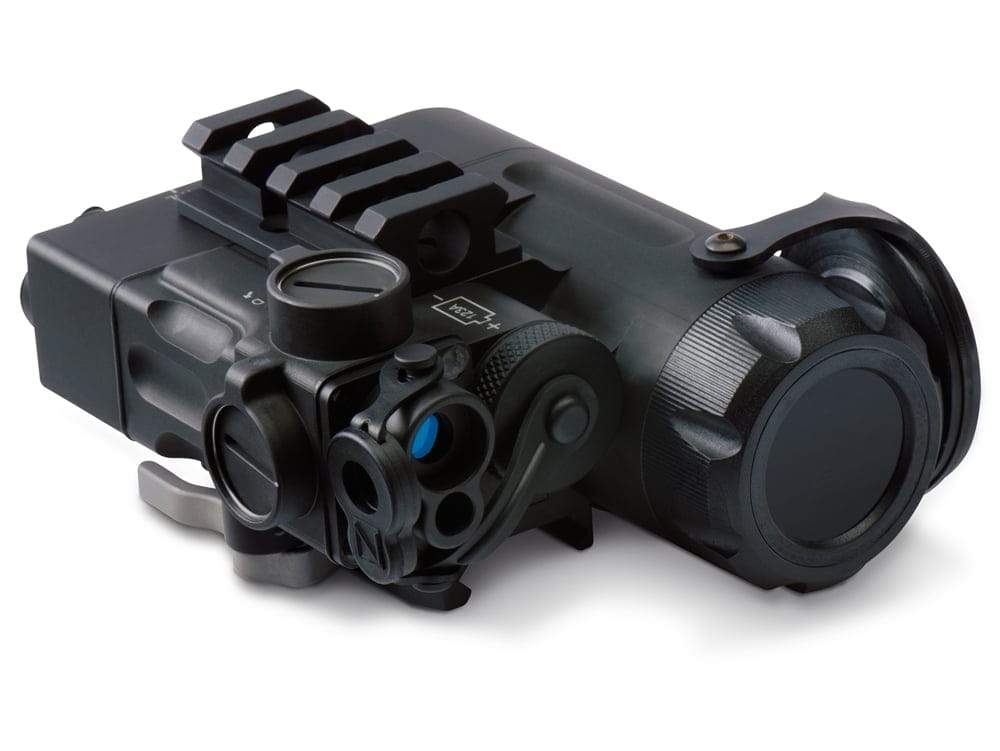

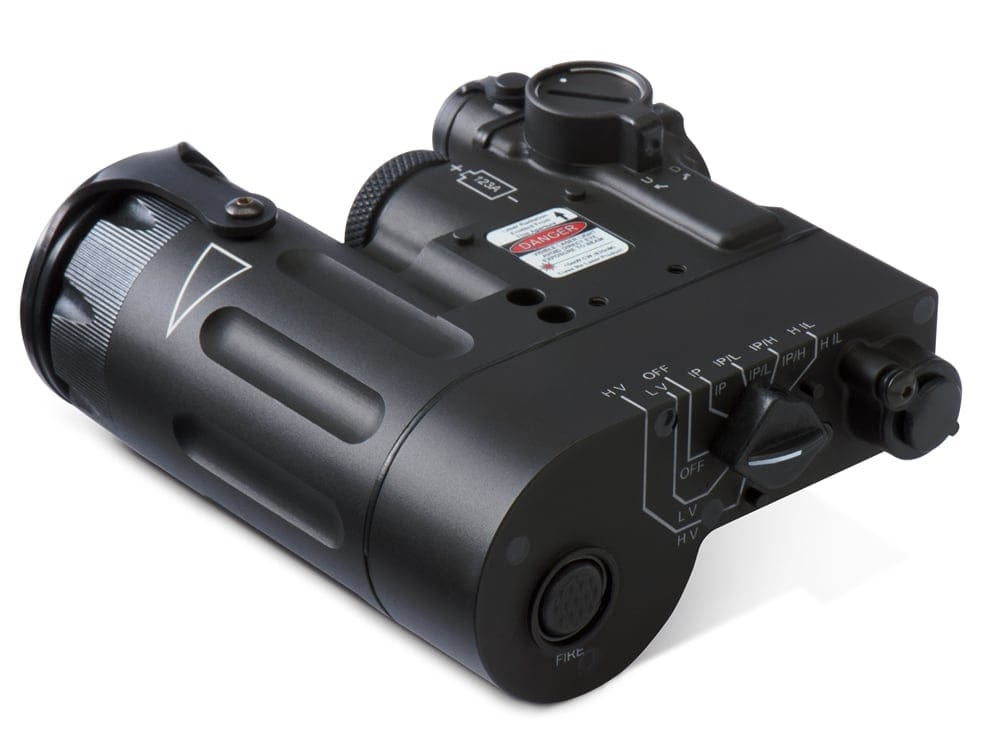

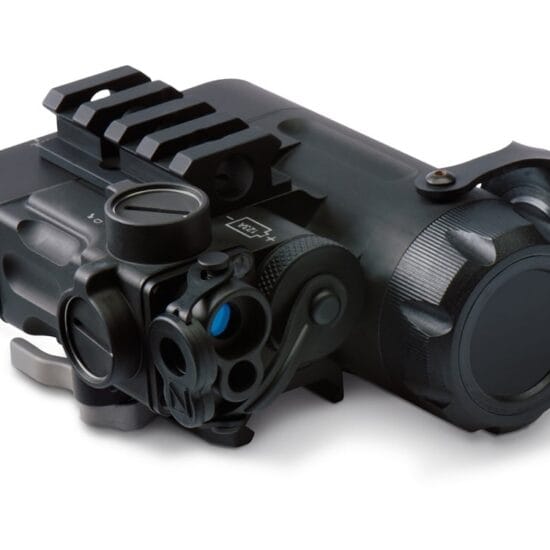

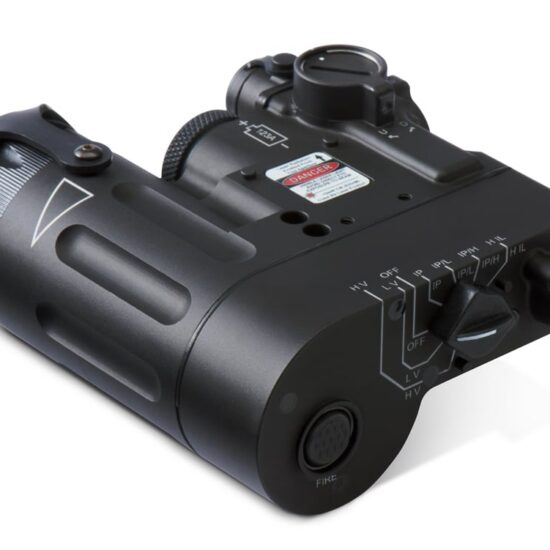

The Class 1 DBAL-D2 is a dual beam aiming laser system similar to the AN/PEQ-15 (DBAL-A2). The Class 1 DBAL-D2 features both visible and infrared (IR) aiming lasers with the addition of a new, technologically advanced IR LED illuminator (patent pending). The integration of this powerful, eye-safe illuminator sets the DBAL-D2 apart from any other tactical device of its kind. The Class 1 variant of the DBAL D-2 Steiner aiming laser has a lower visible and IR laser output than the MIL/LE restricted versions making it legal for civilian use.

Manufactured with high definition, aspherical telescopic lens technology, the infrared illuminator on the DBAL-D2 dual beam aiming laser can be focused from 2° to 30°. The adjustable focus benefits operators using the DBAL-D2 in CQB as well as long distance illumination, as the D2′s illuminator can reach out to up to 1000m. The MIL/LE D2 also features an enhanced end cap, taking full advantage of the added switching capabilities of the full powered DBAL-D2.

• Instantly switch between between Steiner visible laser, IR laser, Adjustable IR LED illuminator, or IR pointer & IR illuminator combined

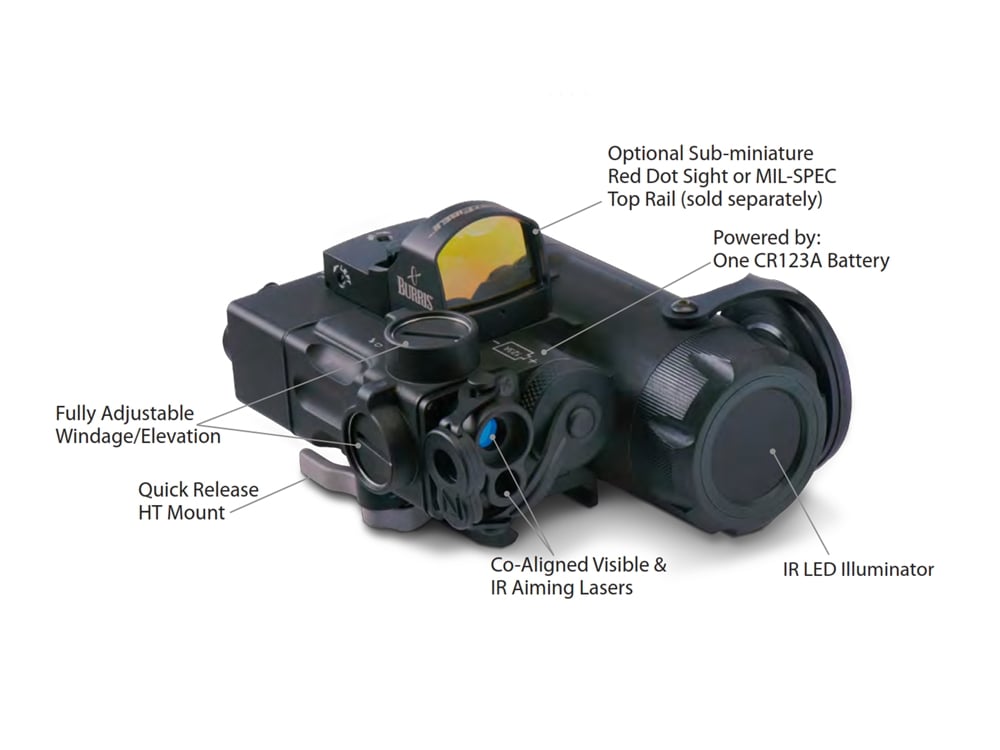

• Co-aligned Visible & IR aiming lasers
• Superior IR illumination quality enhances night vision performance (Gen I acts like Gen II)

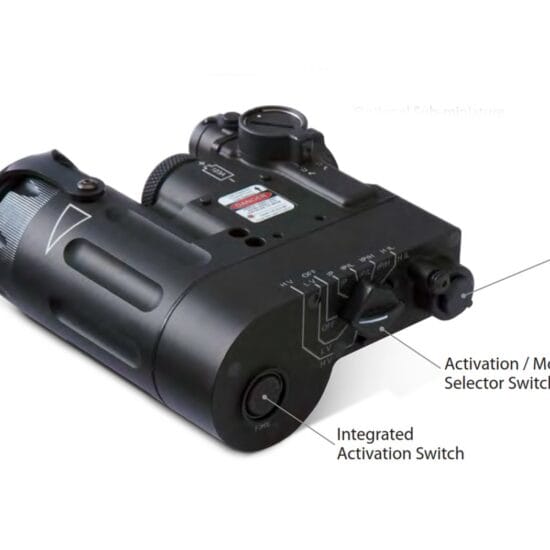

• Integrated push button switch & remote cable pressure pad switch activation
• Tap and release for momentary activation
• Tap twice for 5 minute continuous ON

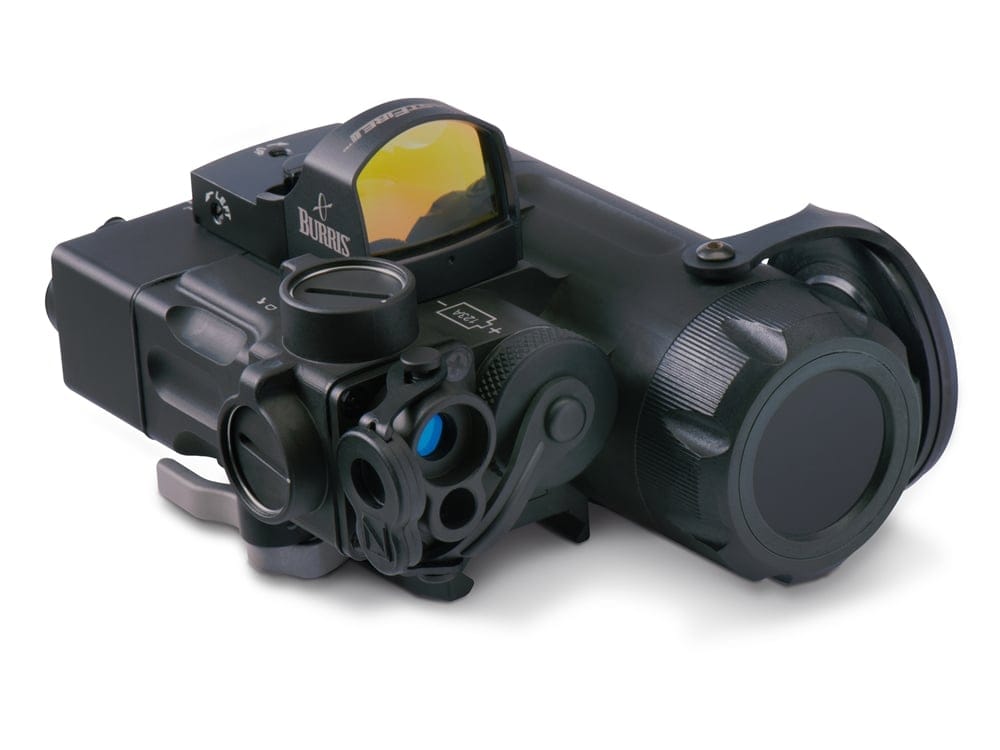

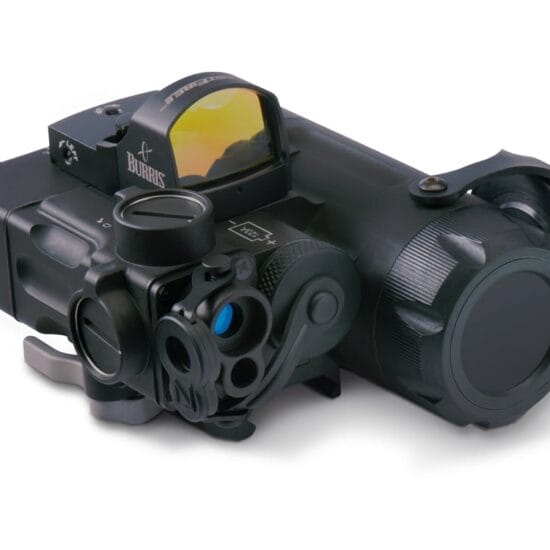

• Optional mini Red Dot Sight or MIL-STD Top Rail sold separately
