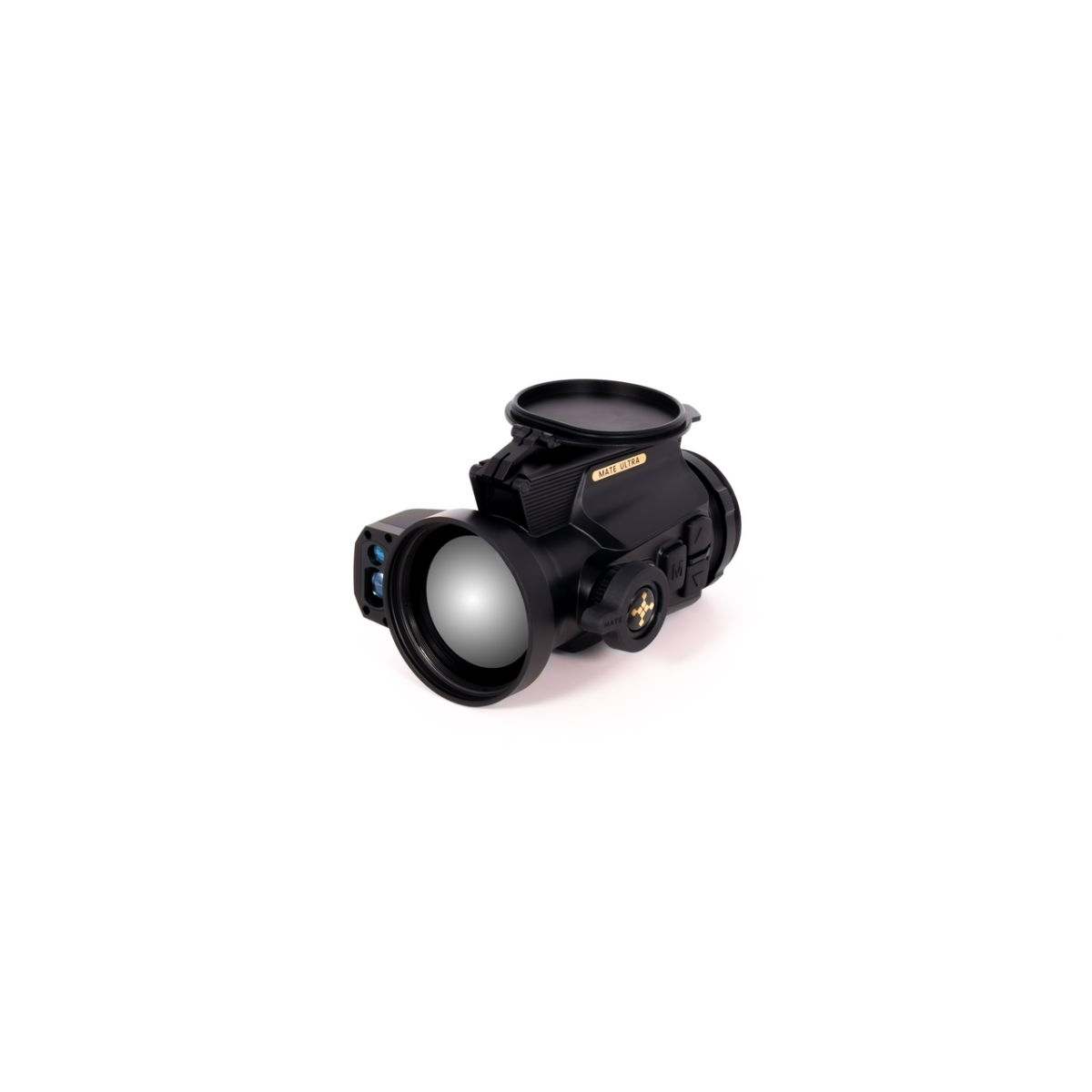

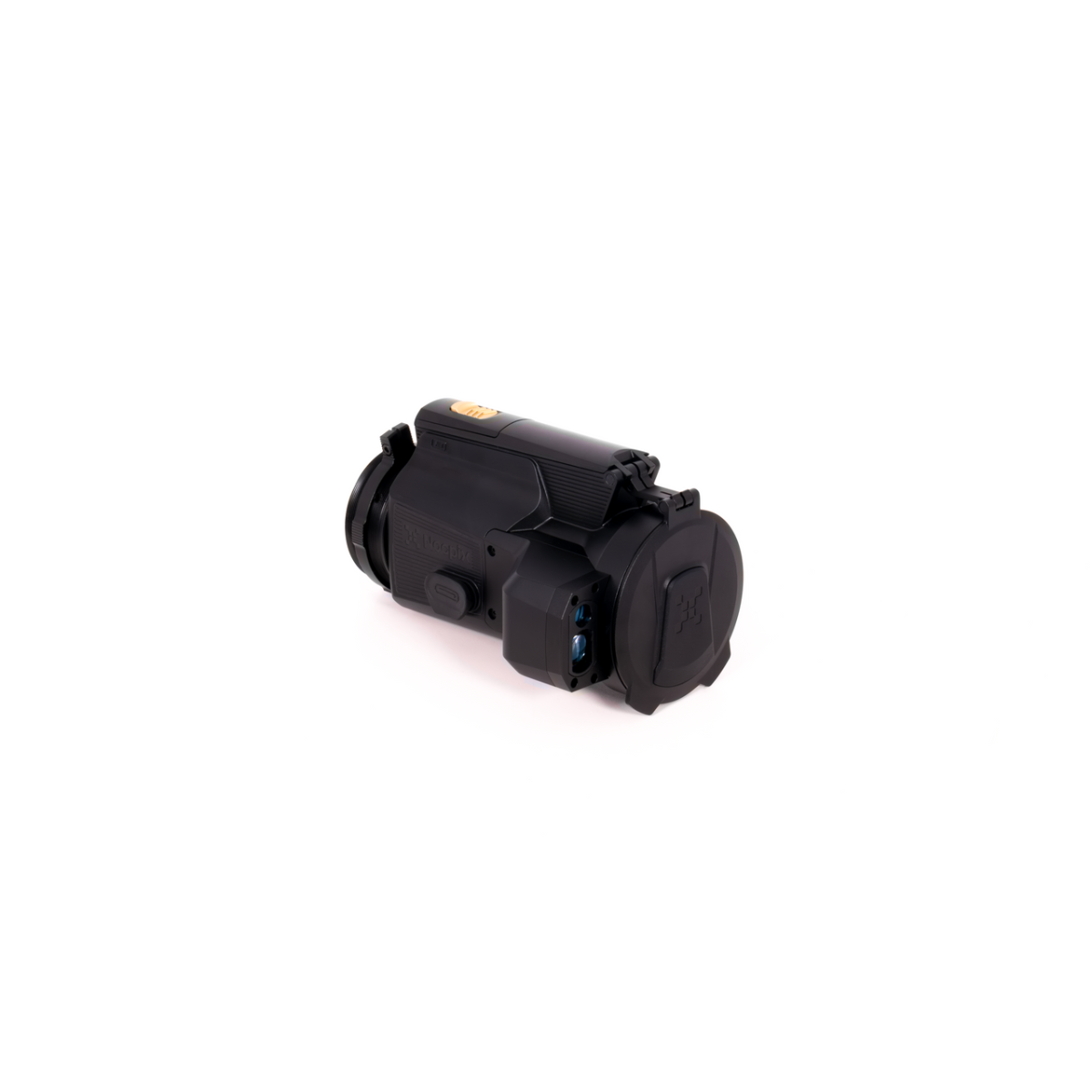

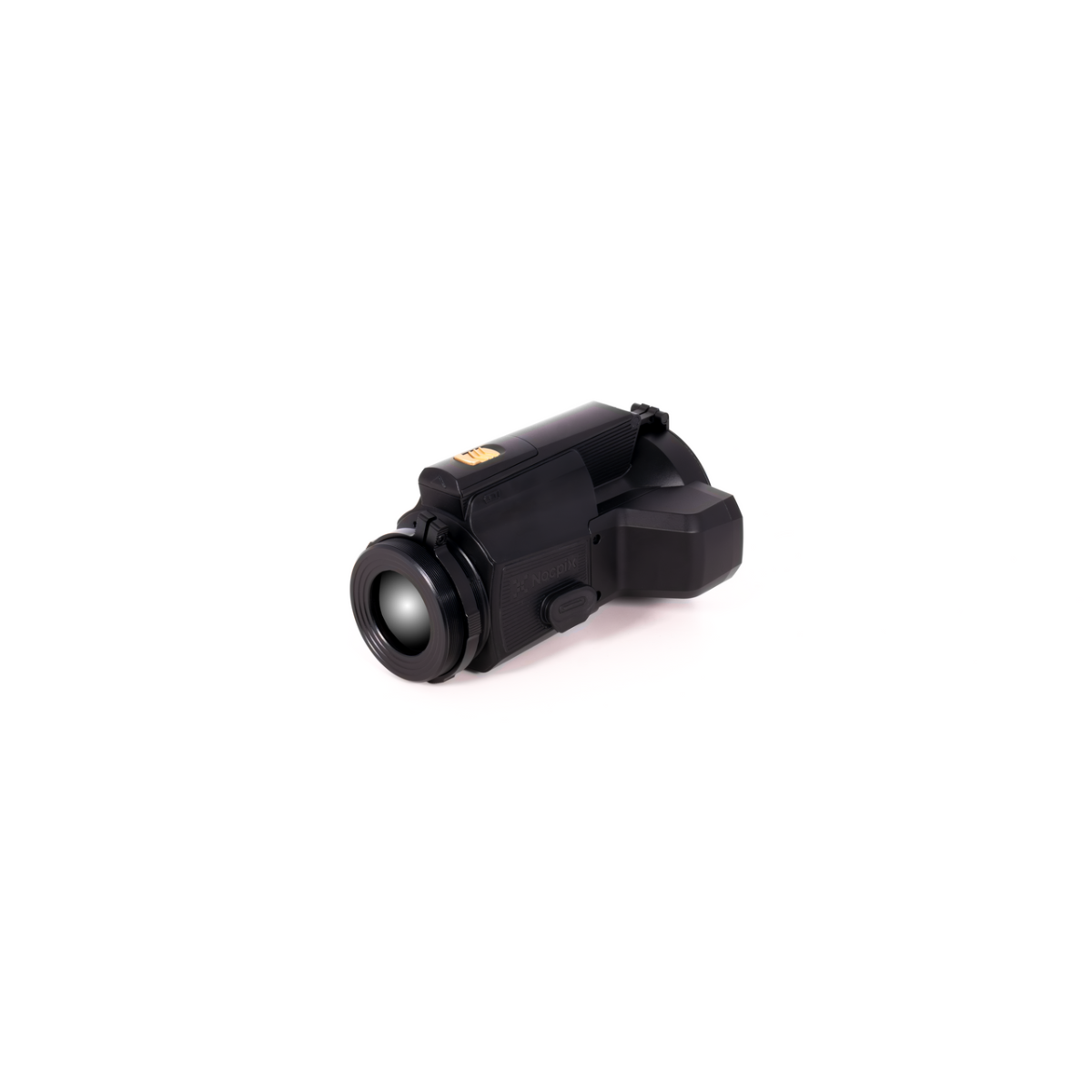

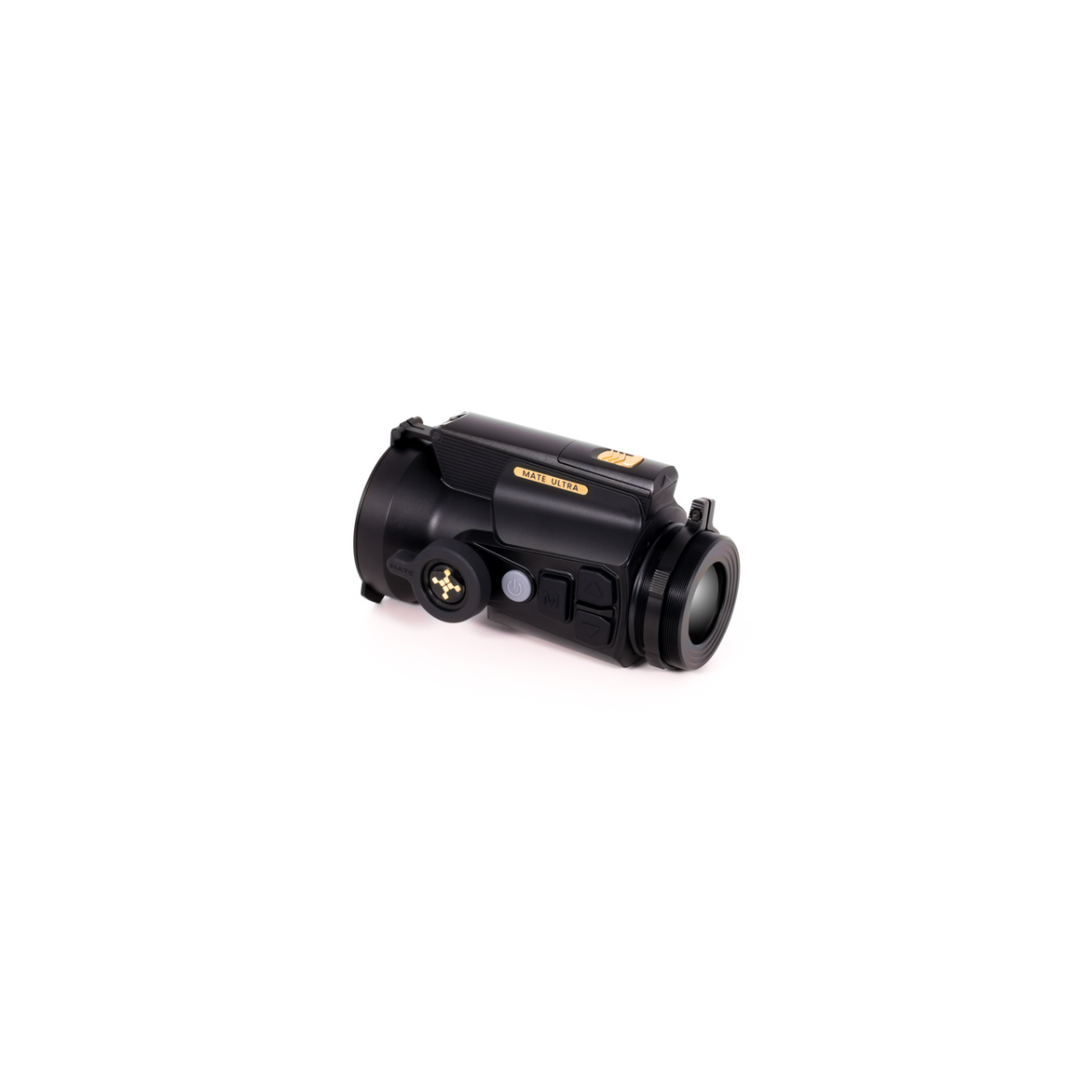

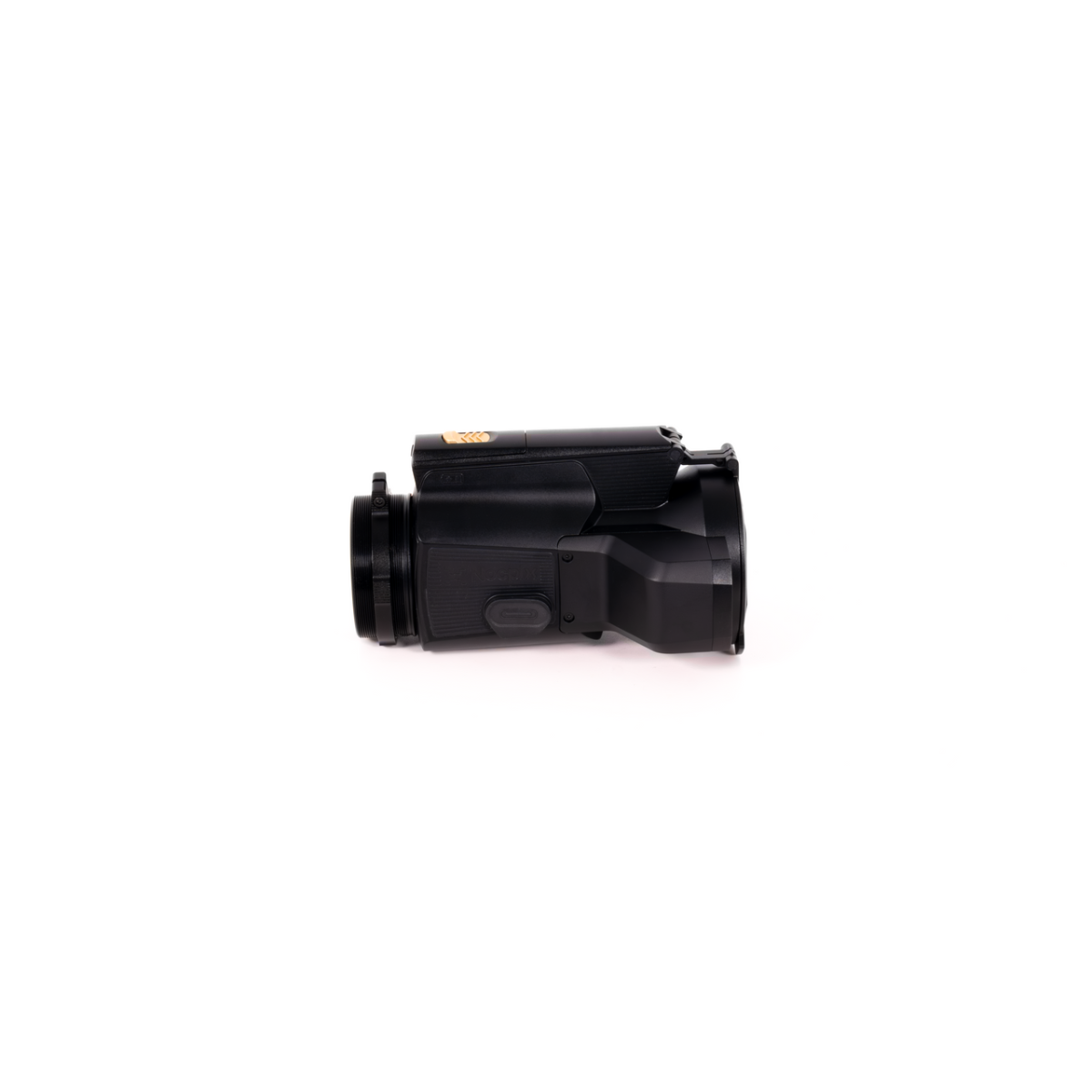

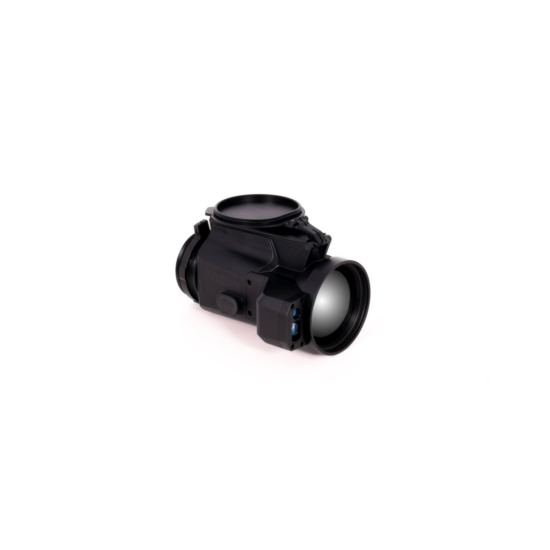

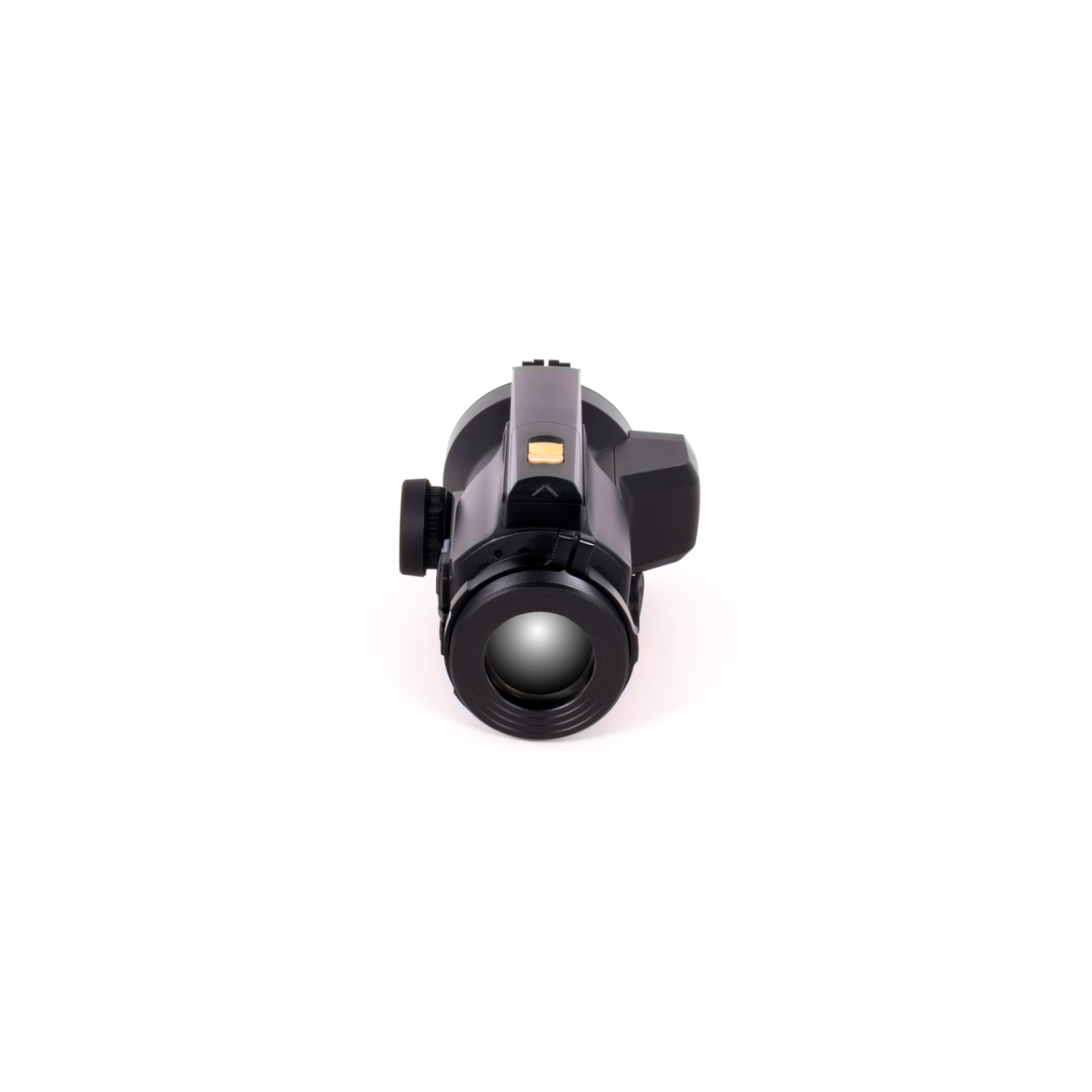

Nocpix MATE Ultra 1280 60mm Clip-On Thermal Weapon Sight w/ LRF

SKU
MATE-S60R
$5,999.00
Financing options available at checkout
Add to Compare

The Mate Ultra represents the next generation of thermal clip-on technology, allowing hunters to convert their existing daytime optic into a powerful thermal system without changing their shooting setup. Built around a 1280×1024 high-resolution thermal sensor with ≤15 mK sensitivity, the Mate Ultra captures subtle heat signatures with exceptional clarity, making it easier to identify game through brush, across open terrain, or in challenging weather conditions. A large 60mm objective lens gathers more thermal energy for enhanced long-range detection and improved image detail. Advanced image processing algorithms and Reality+ technology help maintain sharp visuals as magnification changes, ensuring a clear and stable image throughout the entire zoom range. With a 60 Hz refresh rate and shutterless imaging, the Mate Ultra delivers smooth, uninterrupted visuals that keep fast-moving targets sharp and easy to track. Designed for precision shooting, the system maintains consistent point-of-impact alignment, even after repeated mounting and removal from different rifles. An integrated 1,300 yard laser rangefinder with ballistic calculation provides accurate distance data and real-time aiming correction for confident shot placement. Built with a lightweight magnesium alloy housing and powered by widely available 18650 rechargeable batteries, the Mate Ultra combines durability, precision, and advanced thermal performance in a premium clip-on platform designed for serious hunters.

Specification Value
Objective Focal Length 60mm
Detection Range 3390 Yards
Optical Magnification 1X
Display Type AMOLED
Eye Relief 20mm
Vertical Angular Field of View 11.7°
Horizontal Angular Field of View 14.7°
Focusing Mechanism Manual Focus
Objective F# 1.0
Objective Diameter 60mm
Display Resolution 1920x1200



Specification Value
Startup Time <10 Seconds, Instant from Standby
Rangefinder Integrated 1300 yd LRF
Color Palettes White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
Picture-in-Picture Yes
Storage Capacity 64GB
User-Updatable Firmware Yes
Mobile App Yes
One-Shot Zero Yes
Stand-by Mode Yes
Warranty 5 Years
Run Time 4+
Power Source USB-C External, 18650 Battery
Connector Type USB-C
External Power Source USB-C
Country of Manufacture China
Wifi Yes
Onboard Recording Yes
Image Capture Yes
Video Output Yes



Specification Value
Operating Temperature Range -4°F~122°F
Recoil Rating 1000 g/s² (300 Win./7mm Mag)
Ingress Protection IP67



Specification Value
Housing Material Magnesium Alloy
Weight 19.75 oz
Height 3.07
Width 3.78
Length 5.51



Specification Value
Non-Uniformity Correction (NUC) Manual, Automatic, Semi-Automatic
Device Technology Thermal Imaging
Sensor Resolution 1280x1024
Sensor Type Nocpix 1280
Sensor Pixel Size 12μm
Thermal Sensitivity <15mk
Sensor Frame Rate 60hz
Objective Focal Length: 60mm
Detection Range: 3390 Yards
Optical Magnification: 1X
Device Technology: Thermal Imaging
Sensor Resolution: 1280x1024
Sensor Pixel Size: 12μm
Objective F#: 1.0
Objective Diameter: 60mm
Sensor Frame Rate: 60hz
Onboard Recording: Yes

The Mate Ultra represents the next generation of thermal clip-on technology, allowing hunters to convert their existing daytime optic into a powerful thermal system without changing their shooting setup. Built around a 1280×1024 high-resolution thermal sensor with ≤15 mK sensitivity, the Mate Ultra captures subtle heat signatures with exceptional clarity, making it easier to identify game through brush, across open terrain, or in challenging weather conditions. A large 60mm objective lens gathers more thermal energy for enhanced long-range detection and improved image detail. Advanced image processing algorithms and Reality+ technology help maintain sharp visuals as magnification changes, ensuring a clear and stable image throughout the entire zoom range. With a 60 Hz refresh rate and shutterless imaging, the Mate Ultra delivers smooth, uninterrupted visuals that keep fast-moving targets sharp and easy to track. Designed for precision shooting, the system maintains consistent point-of-impact alignment, even after repeated mounting and removal from different rifles. An integrated 1,300 yard laser rangefinder with ballistic calculation provides accurate distance data and real-time aiming correction for confident shot placement. Built with a lightweight magnesium alloy housing and powered by widely available 18650 rechargeable batteries, the Mate Ultra combines durability, precision, and advanced thermal performance in a premium clip-on platform designed for serious hunters.
