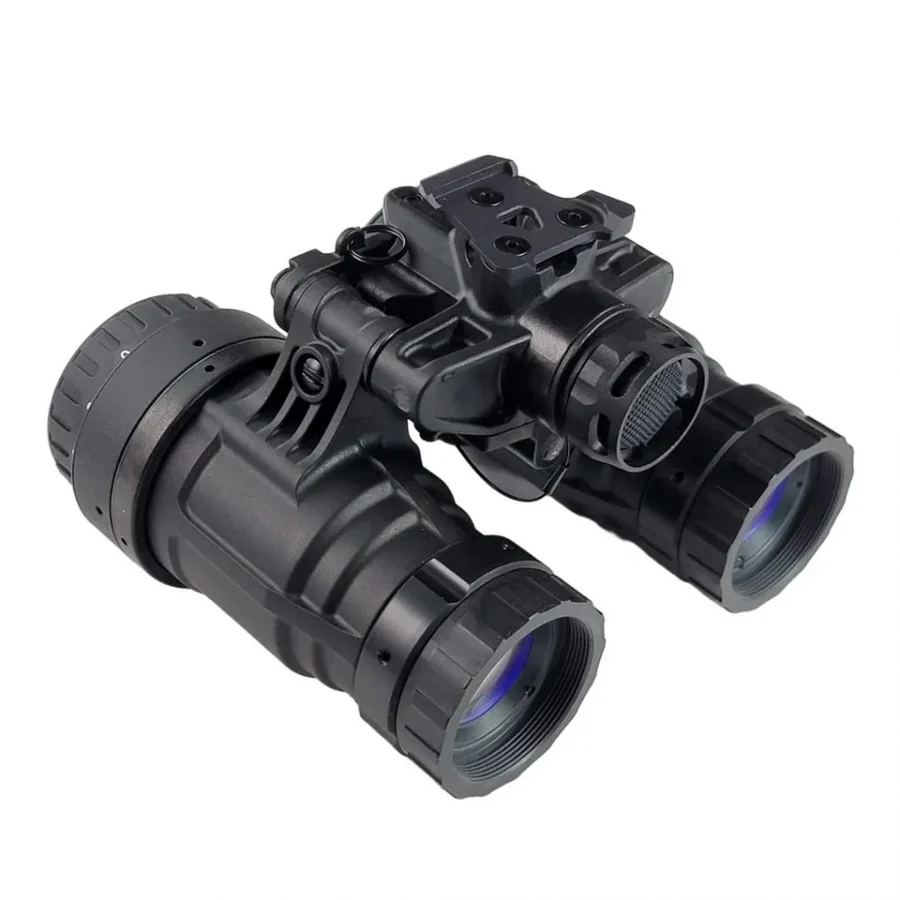

The Ultralight Articulating Night Vision Binocular (UANVB “Katana”) remains the lightest binocular on the market, with on board power, weighing in less than 15 oz fully built. All Molded Katanas will included a LEMO 00B External Battery Port that works with the Nocturn Industries Batpack.

The articulating design allows for individual pod shut off, enabling the user to use one or both eyes while utilizing rail mounted, non-passive aiming systems. End users will be able to mount and dismount vehicles easier with the low profile of the UANVB when stowed. The UANVB features the original Friction Lock Interpupillary Adjustment feature so you can set it and forget it with no additional tools. This unit may be lightweight but does not compromise strength as it exceeds MIL-STD-810G and had been drop tested beyond NATO or TOP standards (6 feet to concrete in 6 different orientations on a single device).

NNVT Autogated 1600+ FOM tubes are in the MX10160 format. All tubes have autogain and utilize the standard 2-pin contacts. These tubes average 64 resolution and 25 SNR. All tubes come with specification sheets.

SPECIFICATIONS:

• Material(s): High strength hybrid fiber reinforced injection molded polymer
• Finish: Matte Black, H-Series Cerakote for Coyote Brown, and OD Green
• Tube Type: 18mm MX-10160 or MX-11769 style with EGAC pigtail removed
• IR Illuminator: No
• Individual Pod on/off: Yes, individually.
• Housing Weight: 3.88 oz – 0.24 lbs. – 110 g
• Device Weight Standard: 17.35 oz – 1.08 lbs. – 492 g
• Device Weight Lightweight w/o battery: 14.07 oz – 0.88 lbs. – 399 g
• On-Board Power: CR123A onboard with a runtime of ~25hours
• Out-Board Power: Yes, LEMO 00B port
• Low Battery Indicator: Yes
• Manual Gain Control: No
• Ingress rating: Exceeds IP-68, and MIL-STD-810H
