MAIN SPECIFICATION
Detector Type 12μm VOx Uncooled Focal Plane Array
Sensor Resolution 320 × 240
Thermal Sensitivity (NETD) ≤18mK
Lens System 25 mm (Ge); F/1.0
Magnification 2–16x
Detection Range 1300 m
Ballistic Calculator Yes
-10%
Did you know?
Financing options are available at checkout!
At the heart of the Odin 6 MFT is ATN’s most advanced thermal engine to date—a proprietary 6th Generation core built around a 12μm VOx uncooled focal plane array with a ≤15mK NETD rating. Available in 320×240 and 640×480 sensor resolutions with a fast 50Hz refresh rate, this next-gen system delivers razor-sharp contrast, smooth thermal imaging, and rapid heat detection across a wide range of environments. Whether you’re tracking game, scanning your land, or navigating through smoke and darkness, the Odin 6 MFT reveals what others overlook—so you can act with clarity and confidence.
Powered by ATN’s proprietary SharpIR© technology, the Odin 6 MFT uses advanced AI algorithms to enhance image sharpness and clarity in real time. This dynamic processing improves edge definition and target contrast, making it easier to identify heat signatures in cluttered or low-visibility environments—whether you’re spotting a threat in dense cover or identifying movement across open terrain. You’re not just seeing heat—you’re seeing defined shapes and crisp movement, giving you the confidence to react fast and act with precision.

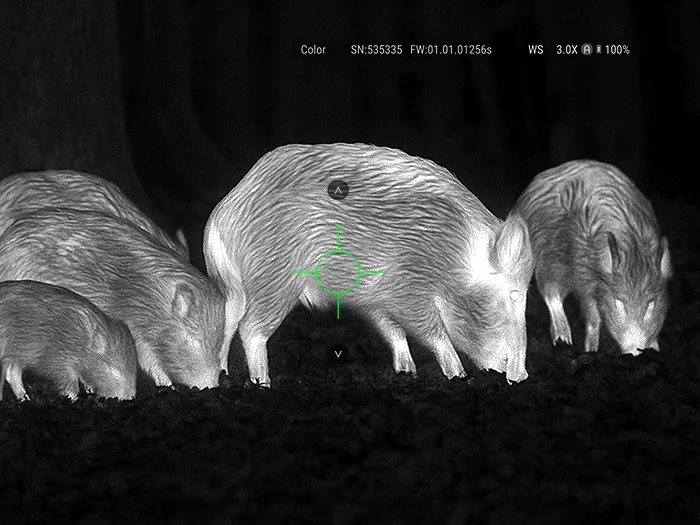

Tailor your thermal view to match your surroundings with six distinct color palettes: White Hot, Black Hot, High Red, Green Hot, Sepia, Ironbow. Each mode is purpose-built to enhance contrast and visibility in different terrains and lighting conditions—whether you’re scanning open fields, navigating dense brush, or hunting in total darkness. Quickly switch between modes to highlight heat signatures with maximum clarity and gain the edge when conditions shift. More control. Better contrast. Every time.

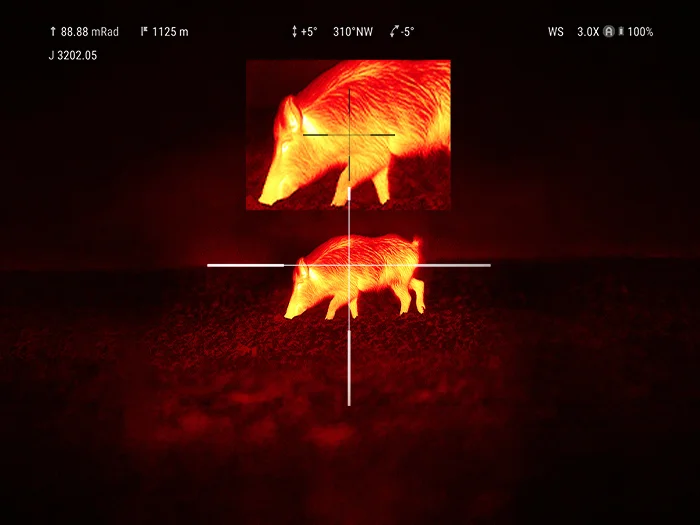

Choose from a wide selection of reticles to match your shooting style, weapon, or mission. With the ODIN 6 MFT, you can customize each reticle’s color and pattern to suit your environment—whether you’re aiming through dense forest, scanning open terrain, or locking onto a distant heat source. Fine-tune your sight picture so your reticle works for you, delivering precision and clarity when it matters most.
| Specification | Details |
|---|---|
| Modes of Operation | Clip-on, Weapon Sight, Helmet Monocular, Handheld Monocular |
| Detector Type | 12μm VOx Uncooled Focal Plane Array |
| Sensor Resolution | 320 × 240 |
| Refresh Rate | 50 Hz |
| Thermal Sensitivity (NETD) | ≤18mK |
| SharpIR© | Yes |
| Non-Uniformity Correction (NUC) | Auto / Manual |
| Lens System | 25 mm (Ge); F/1.0 |
| Field of View (HxV) | 8.8° × 6.6° |
| Focus Mechanism | Manual Focus Controlled by Lens Adjustment |
| Magnification | 2–16x |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Detection Range | 1300 m |
| LRF Range | — |
| LRF Accuracy | — |
| LRF Laser Specs | — |
| Display Resolution | 0.37″ OLED, 1280 × 1024 HD Resolution |
| Picture-in-Picture (PIP) | Yes |
| Reticle Types | Ballistic reticle optimized for 5.56 × 45mm and 7.62 × 51mm; user-defined reticles supported |
| Reticle Styles | 7 Styles |
| Color Palettes | Multiple |
| Eye Relief | Unlimited |
| Diopter Range | -3 to +3D |
| NV Retention Mode | Special mode for retaining natural night vision capability |
| Customizable User Interface | Yes |
| Ballistic Calculator | Yes |
| Manual Range Finder | Yes |
| Ballistic Profiles | 9 Customizable Profiles |
| Video / Audio Recording | Yes |
| Media Output | USB Type-C (Data Transfer, Power Supply) |
| Internal Storage Capacity | 64 GB |
| Recoil Activated Video (RAV) | Yes |
| Geomagnetic + Gyroscope | Yes |
| Hot Point Tracking | Yes |
| Standby / Sleep Mode | Yes (includes Shake-to-Wake function) |
| Startup Time | <5 seconds |
| Battery Type | 1x 18650 or 1x CR123 or External USB Type-C (5V DC) |
| Battery Life | ~8 hrs (18650), ~1 hr (CR123) |
| Supports External Power Supply | Yes, 5 VDC/2A, USB Type-C interface |
| Material | Magnesium Alloy |
| Mounting | Wilcox NVG Shoe Interfaces / Picatinny (MIL-STD-1913) Rail Mount |
| Button Configuration | 5 functional buttons including power |
| Weight | 360g / 0.79 lbs (without battery or eyecup) |
| Dimensions (L × W × H) | 100 × 75 × 60 mm (3.94 × 2.95 × 2.36 in) |
| Max Recoil Rating | 4500 Joules / 800g acceleration over 0.3 ms |
| Working Temperature | -46°C to +49°C (-51°F to +120°F) |
| Waterproof / IP Rating | IP67 |
| Warranty | 5 years |
