Name: Nocpix SLIM-H35 Multi-function Thermal Optic 640x512 35 mm
Brand: Nocpix
SKU: SLIM-H35
Price: 2499 USD
Availability: InStock

Download our Mobile App and get 10% off

Sale

Secure Shipping

Your products are safe

Return and Refund

Hassle-free returns

Fast Delivery

Get your order quickly

New Products Category, NVG Specials, Rifle Scopes, Thermal Scopes

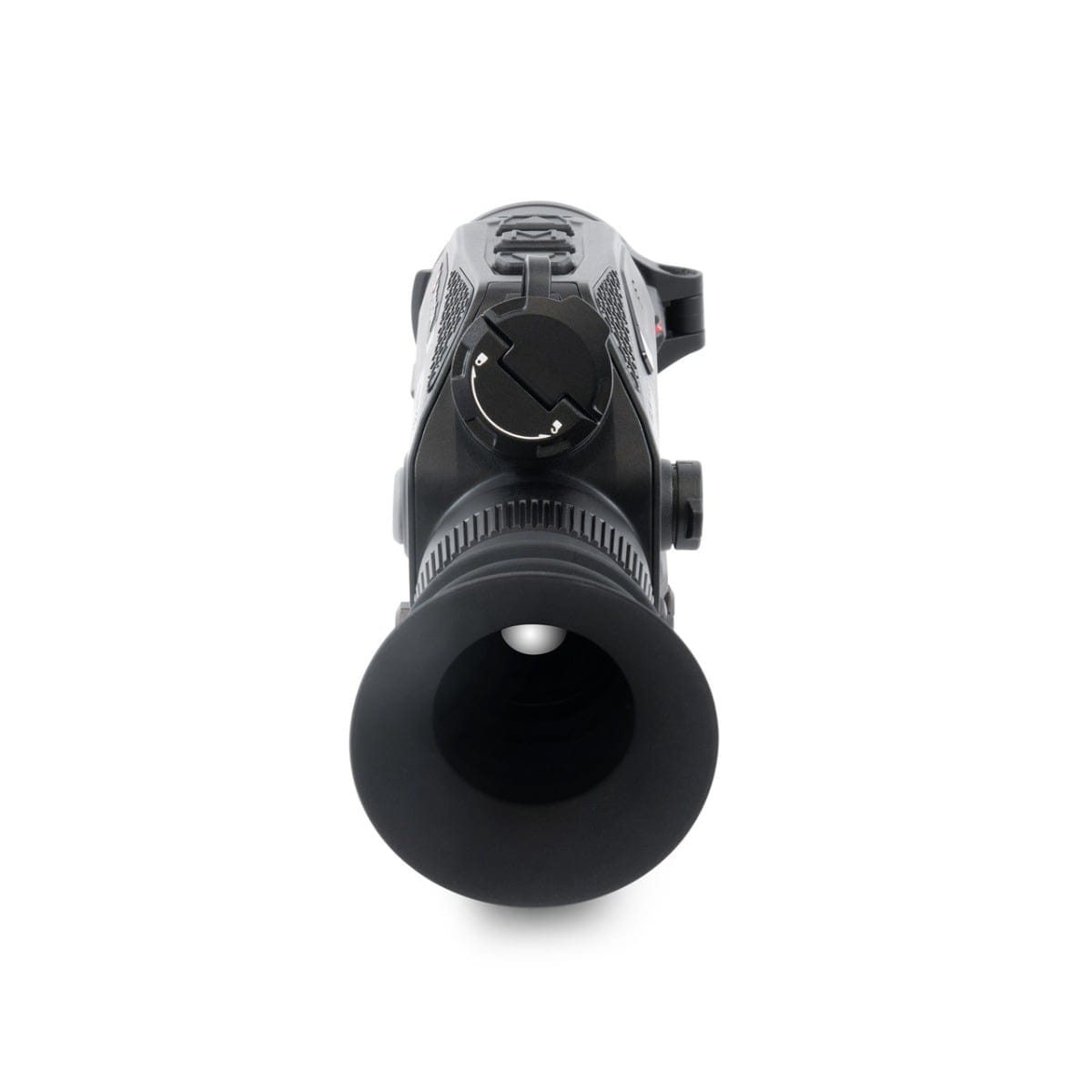

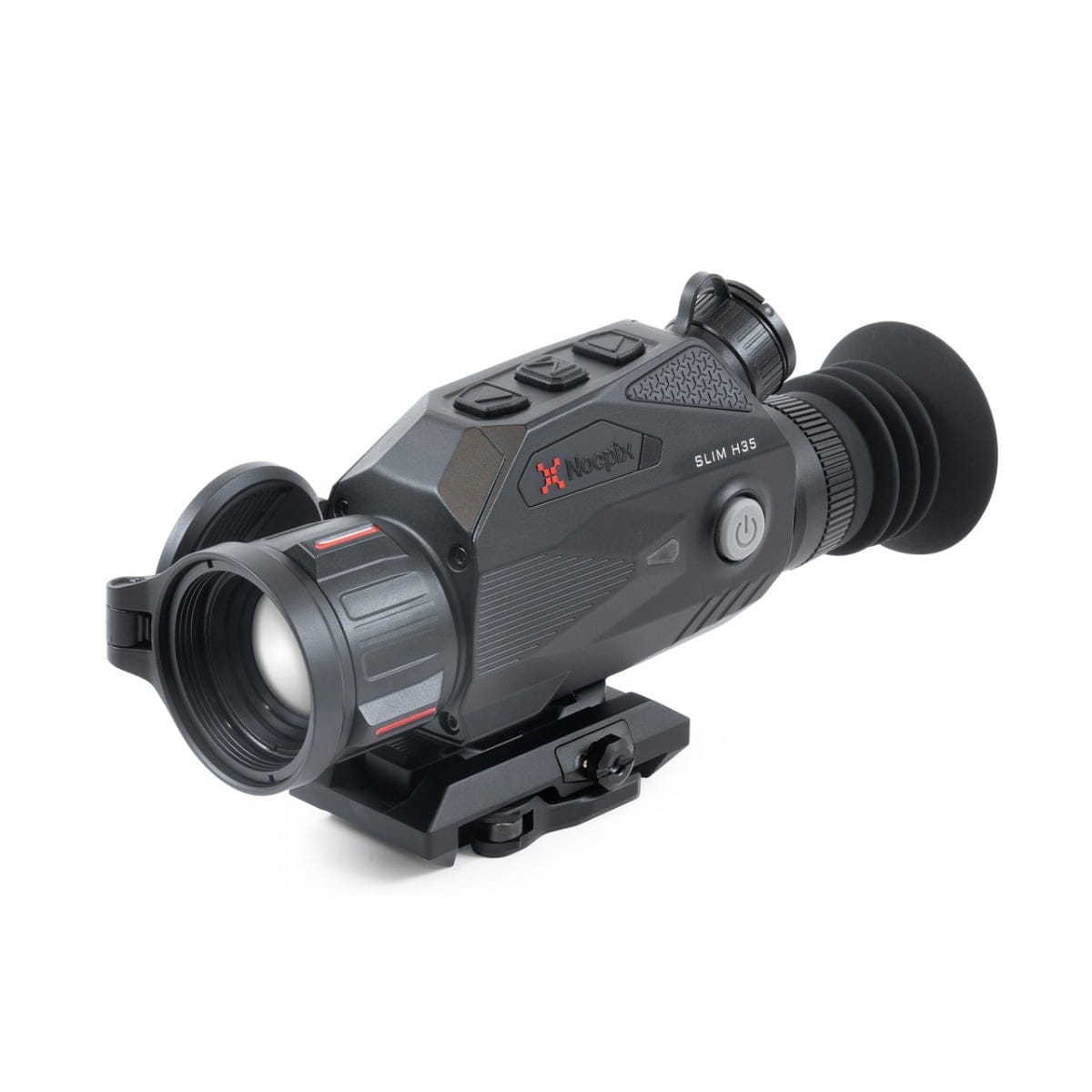

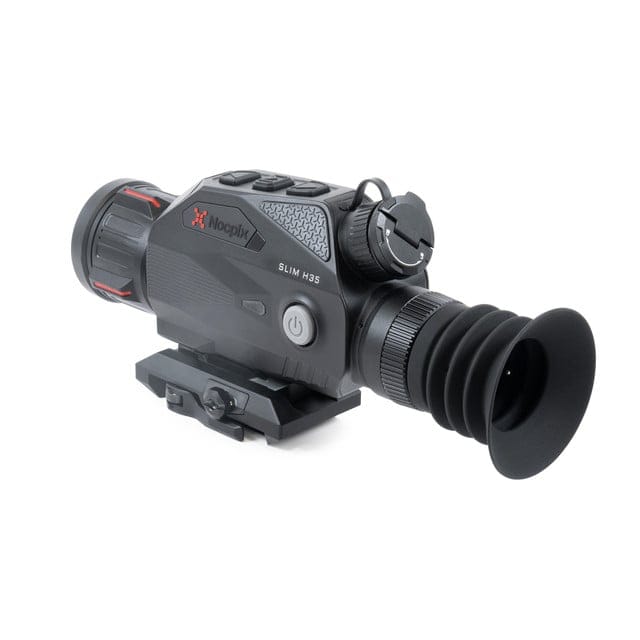

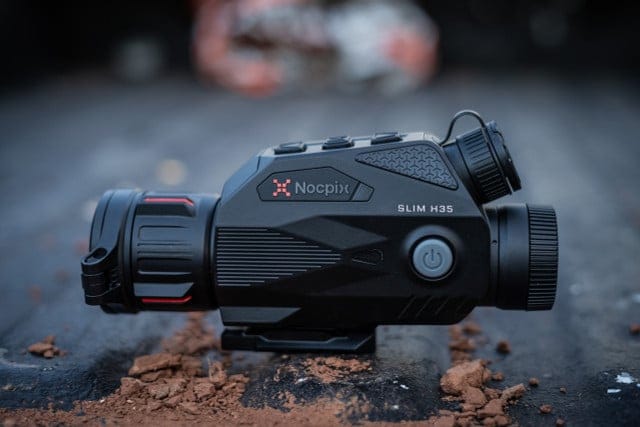

Nocpix SLIM-H35 Multi-function Thermal Optic 640×512 35 mm

Financing available at checkout

MAIN SPECIFICATIONS

Thermal Detector: 12 µm High-Performance
Thermal Sensitivity (NETD): ≤18 mK
Digital Zoom: 1.0×–4.0×
Detection Range: 1800 m
Display: 1024 × 768 AMOLED
Refresh Rate: 50 Hz
Internal Storage: 32 GB
Battery: 2 × Rechargeable 18650
Housing: Magnesium Alloy

-24%

SKU: SLIM-H35

Description

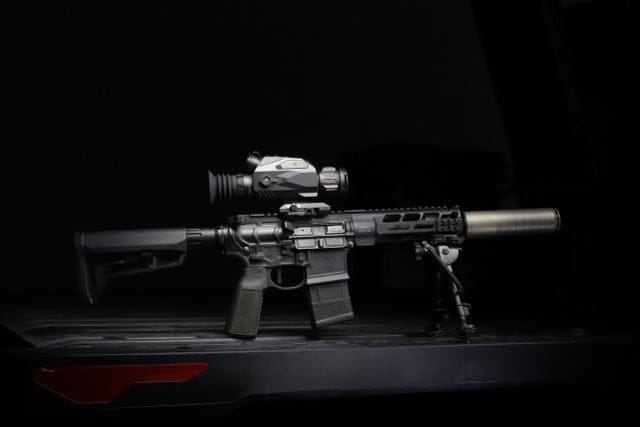

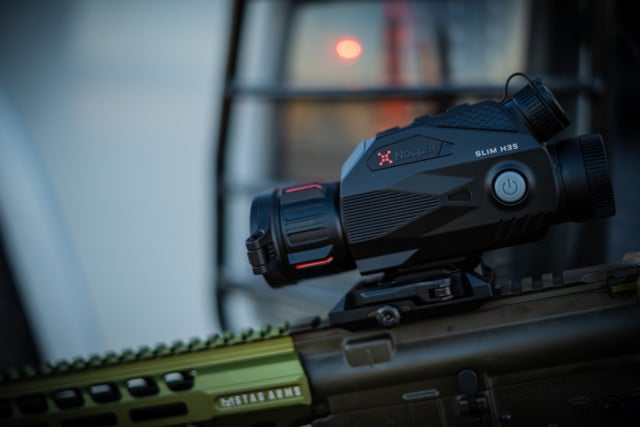

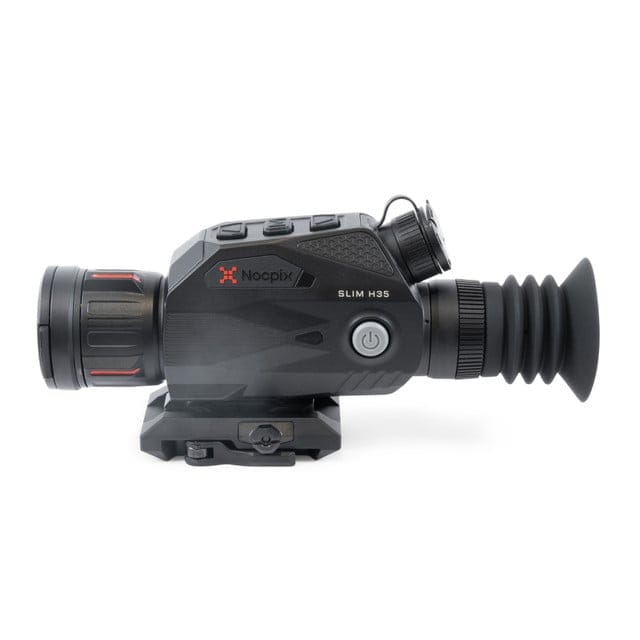

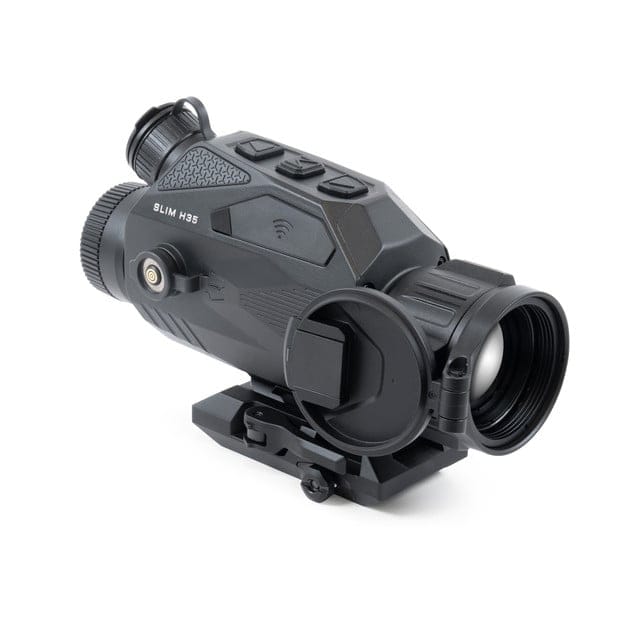

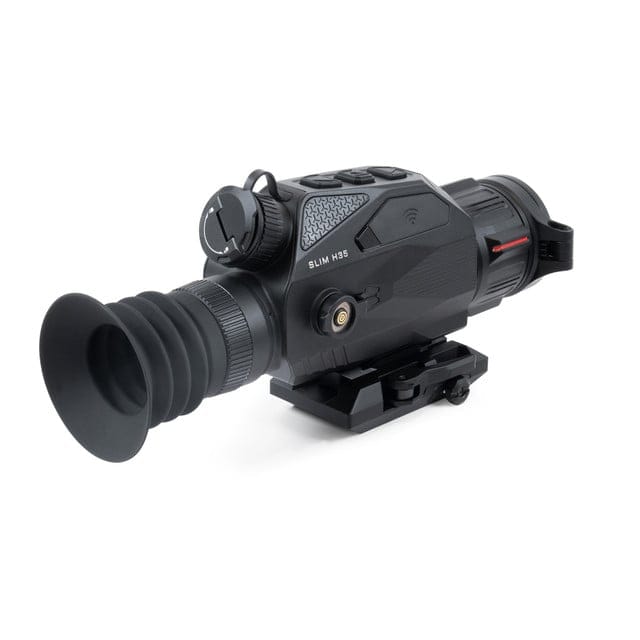

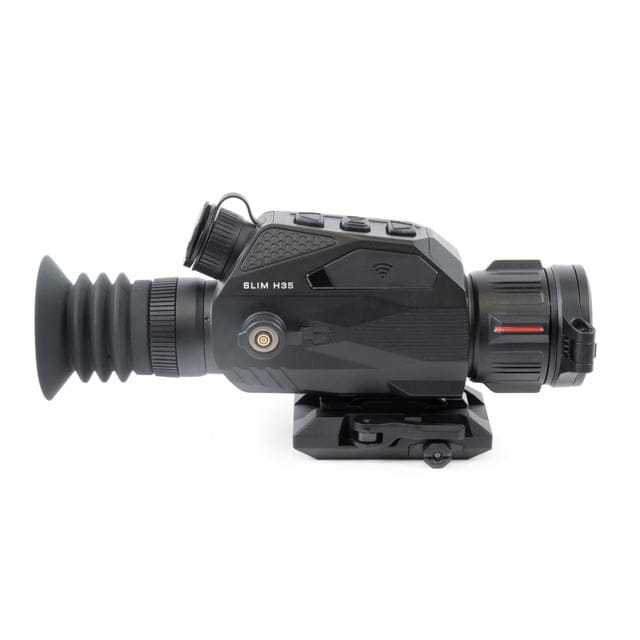

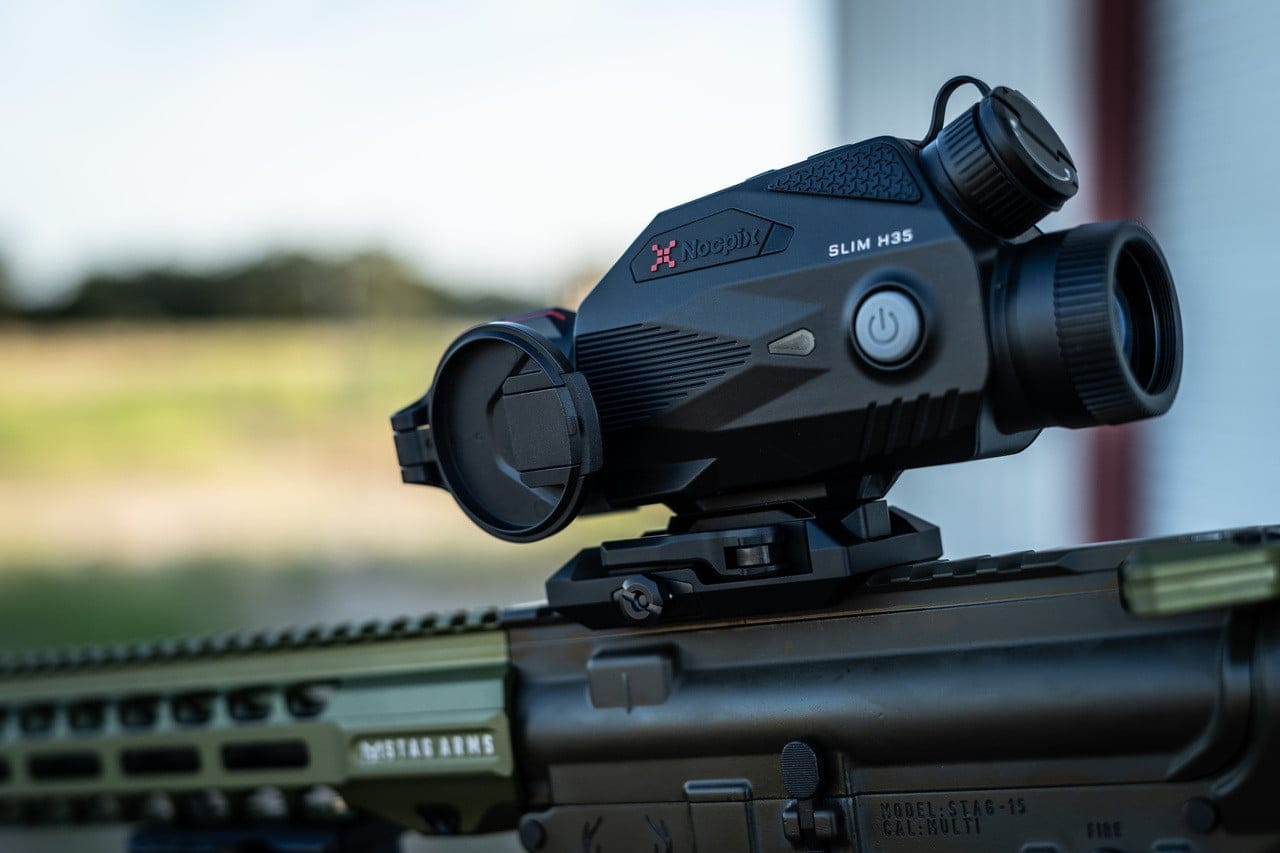

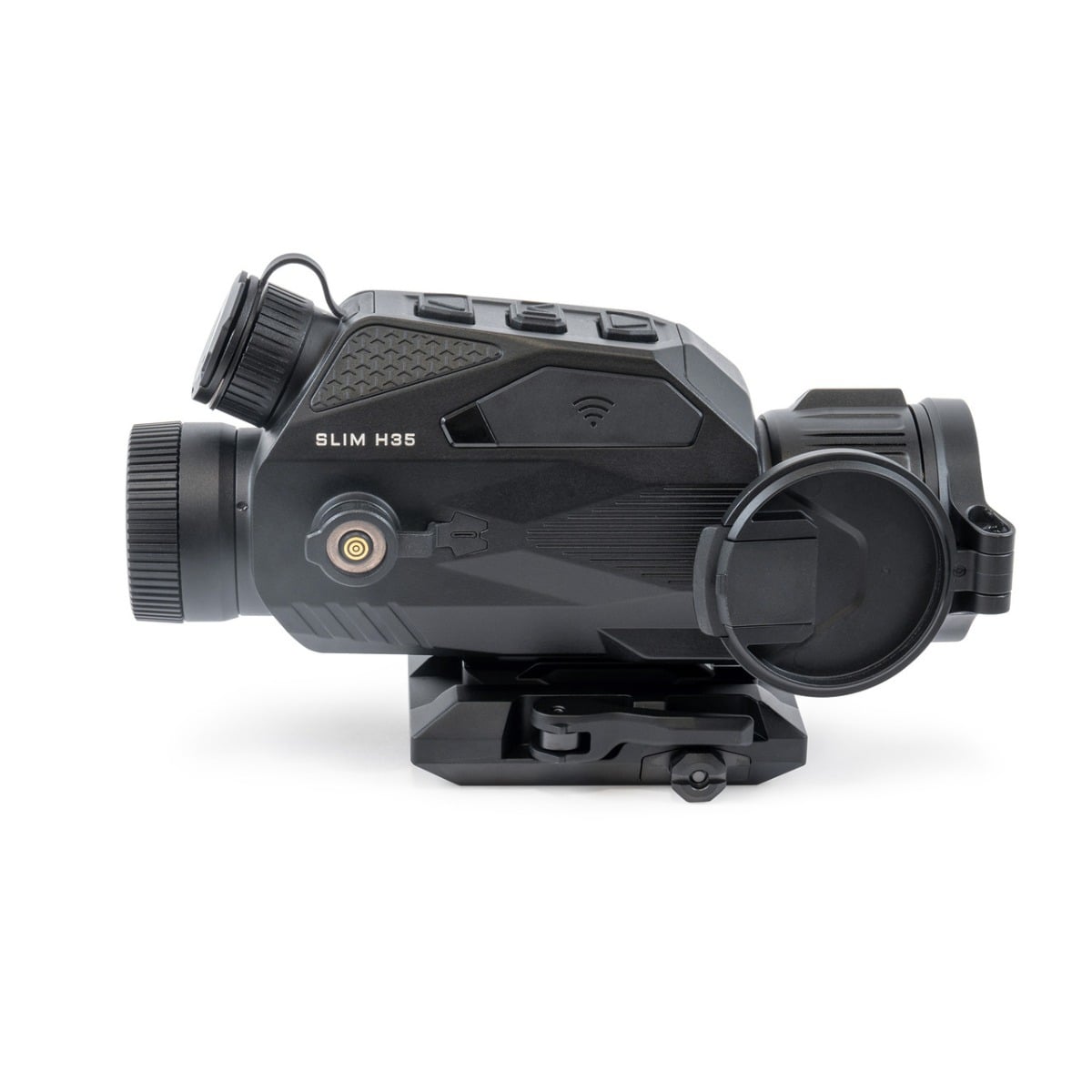

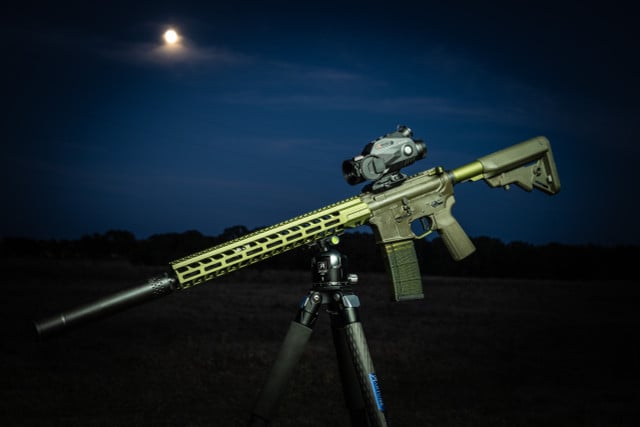

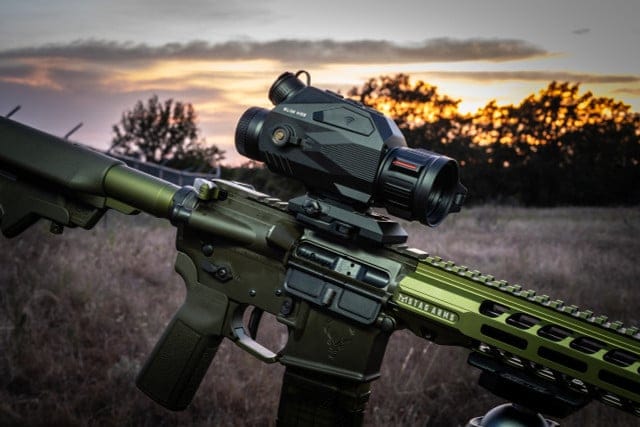

The all-new SLIM series from NOCPIX offers exceptional value and features in a compact optic. Designed for versatility, these units can be used both as a handheld monocular and a weapon sight. With a magnesium alloy body and quiet, soft-touch buttons, the SLIM series provides excellent ergonomics in both handheld and weapon-mounted configurations. The included 18650 batteries ensure extended field time, and the ability to charge through the optic using a magnetic cable simplifies the charging process. Additionally, the generous eye relief and 1024×768 AMOLED display deliver a comfortable and highly detailed viewing experience.

Specifications

Category	Specification	Details
THERMAL PERFORMANCE & IMAGE CLARITY	Resolution	640 × 512 pixels
	Pixel Size	12 µm
OPTICS	Objective Lens	F35 / 1.0
	Field of View	12.5° × 9.4°
	Linear Field of View (H × V)	21.9 × 16.5 m at 100 m
	Visual Magnification	2–8×
	Eye Relief	48 mm
	Diopter Adjustment	-5 to +5 D
	Exit Pupil Diameter	10 mm
DISPLAY	Display Type	AMOLED
	Display Size	0.39″
POWER	Battery Type	Li-ion 18650
	Max Operating Time	4 hours at 22°C
	Service Voltage	3–4.2 V
	External Power Supply	5 V (USB Type-C)
	Charging Options	Multiple charging options, including a magnetic charging cable
RECORDING & CONNECTIVITY	Wi-Fi / App Support	Yes – Nocpix
	Mobile App	Compatible
	Photo / Video Recorder	Yes
	Recoil Activated Video	Yes
	MIC Support	Yes
FEATURES	Reticles	Multiple reticle types and color options
	Zero Profiles	Multiple zero profiles and ranges
	Picture in Picture (PIP)	Yes
	User Interface	User-friendly interface
	Pixel Calibration	Yes
DURABILITY & CONSTRUCTION	IP Rating	IP67
	Operating Temperature	-20°C to +50°C
	Weight	~530 g
	Dimensions	216 × 76 × 46 mm
	Max. Recoil Power on Rifled Weapon (Eo)	6000 Joules

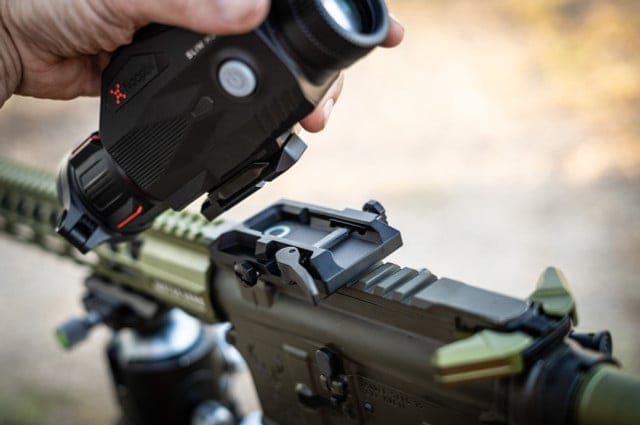

MOUNTING	Mount	Picatinny mount
