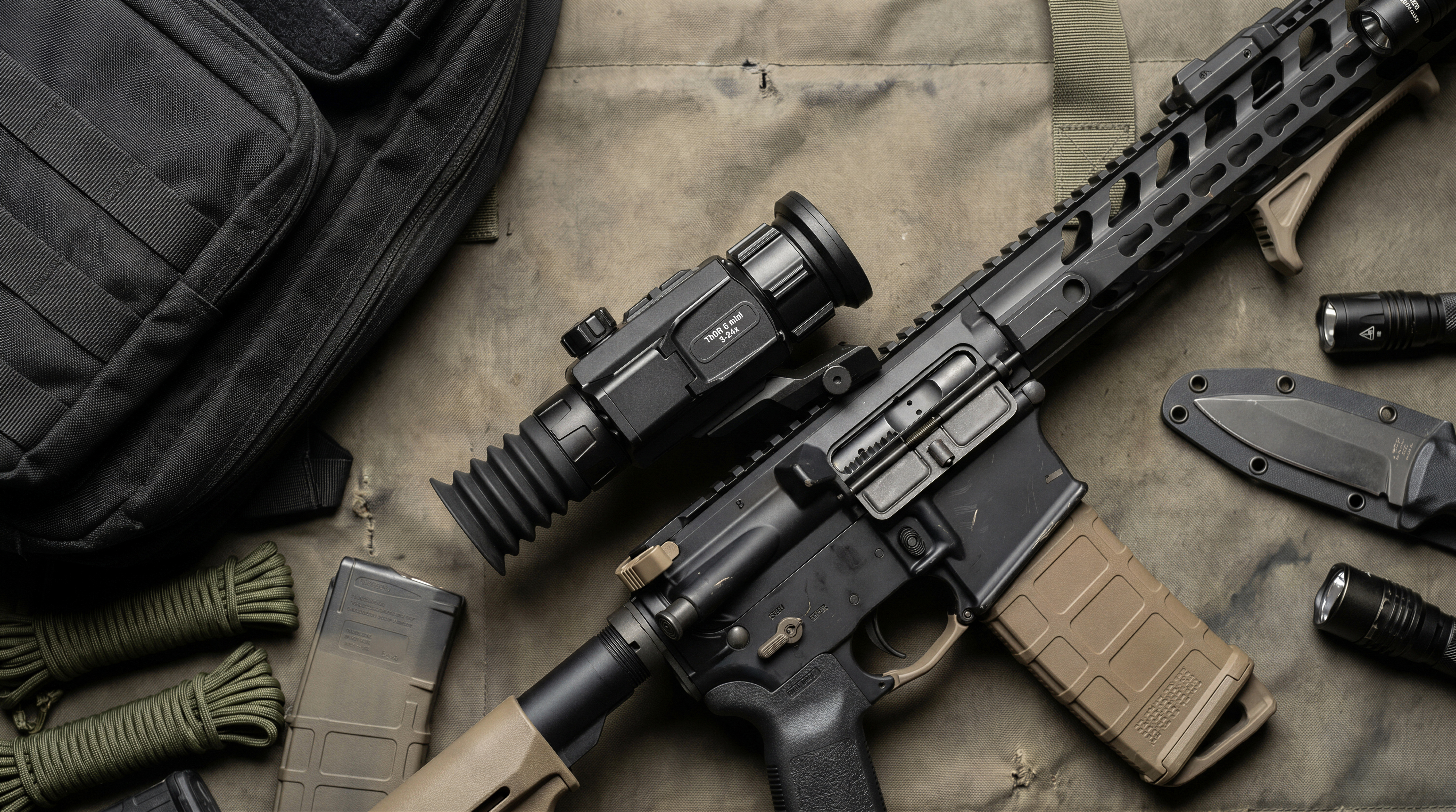

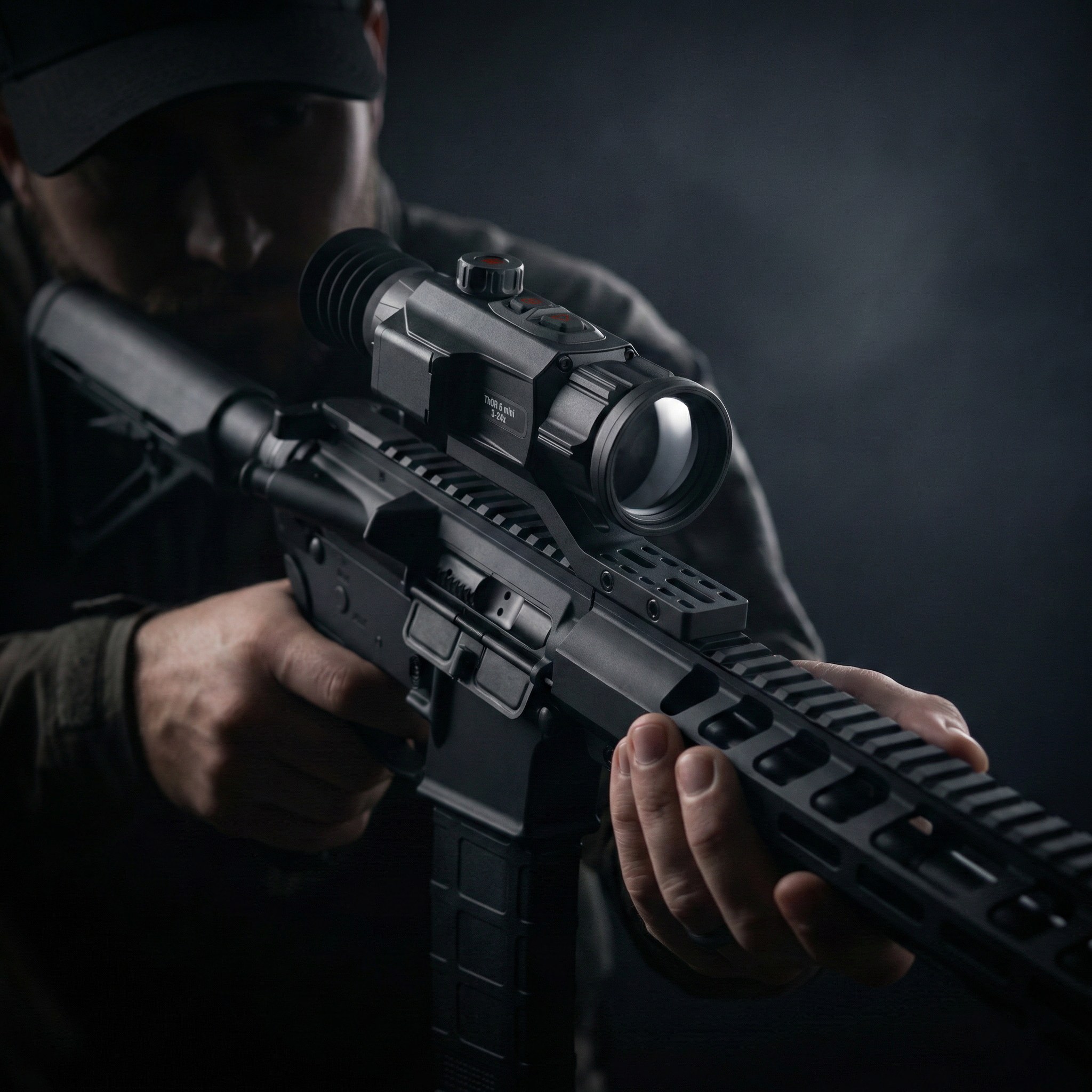

ATN ThOR 6 mini Compact Thermal Riflescope, 256×192 Sensor, 12μm, ≤20mK NETD, ThOR 6 mini 256 2–16x

SKU
TIWST6M215
$895.00
Financing options are available for orders above $1000
Add to Compare

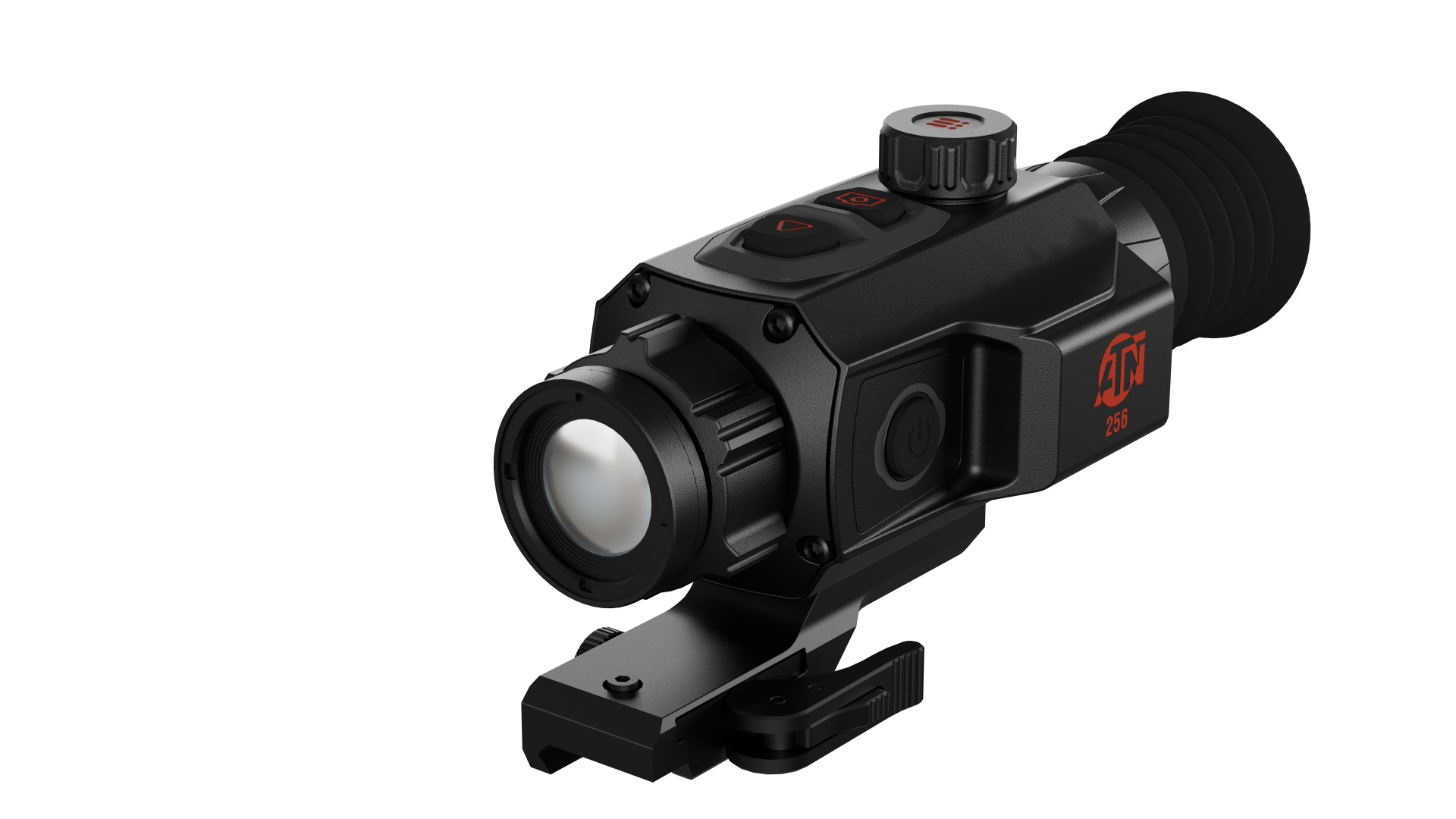

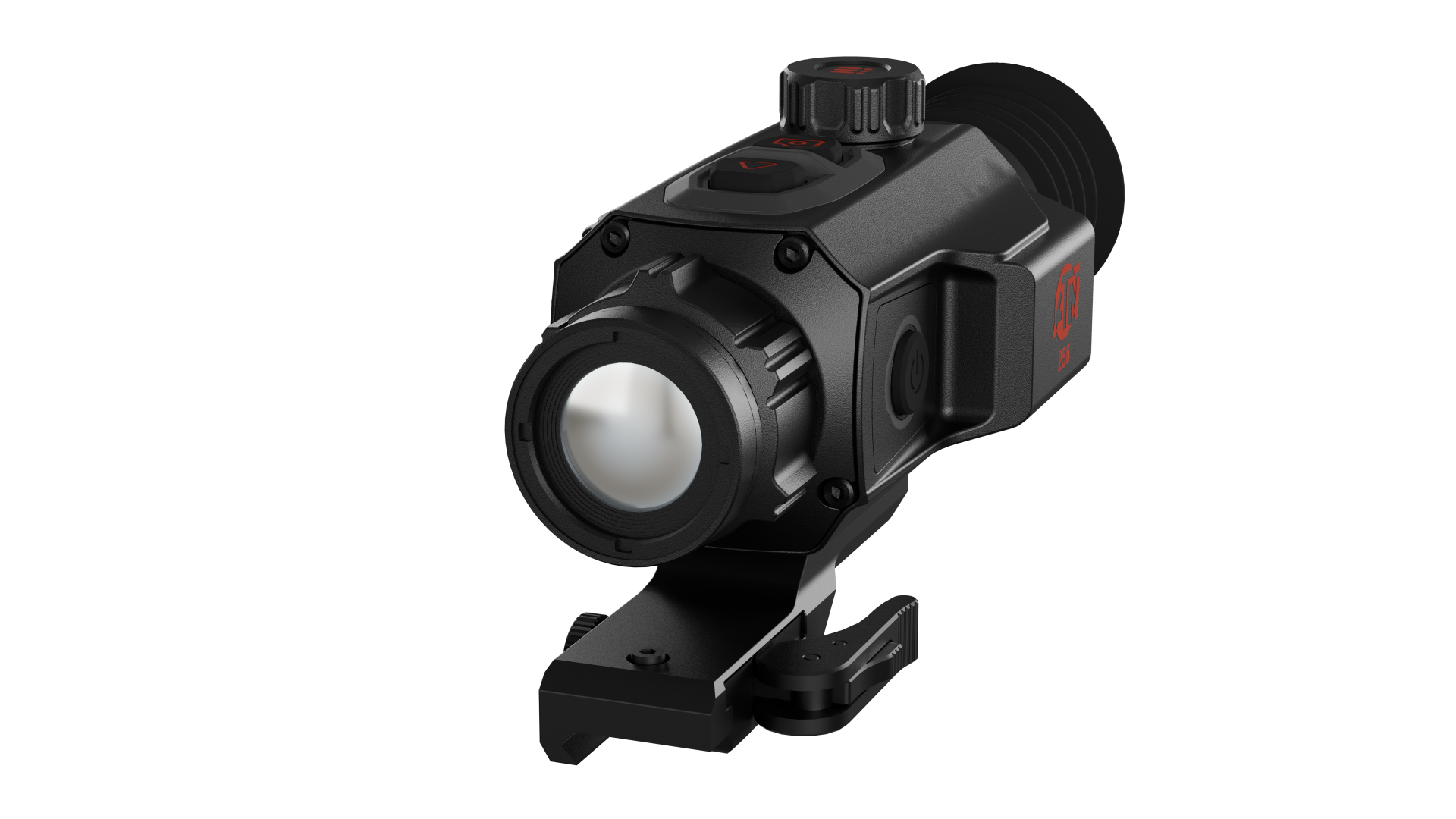

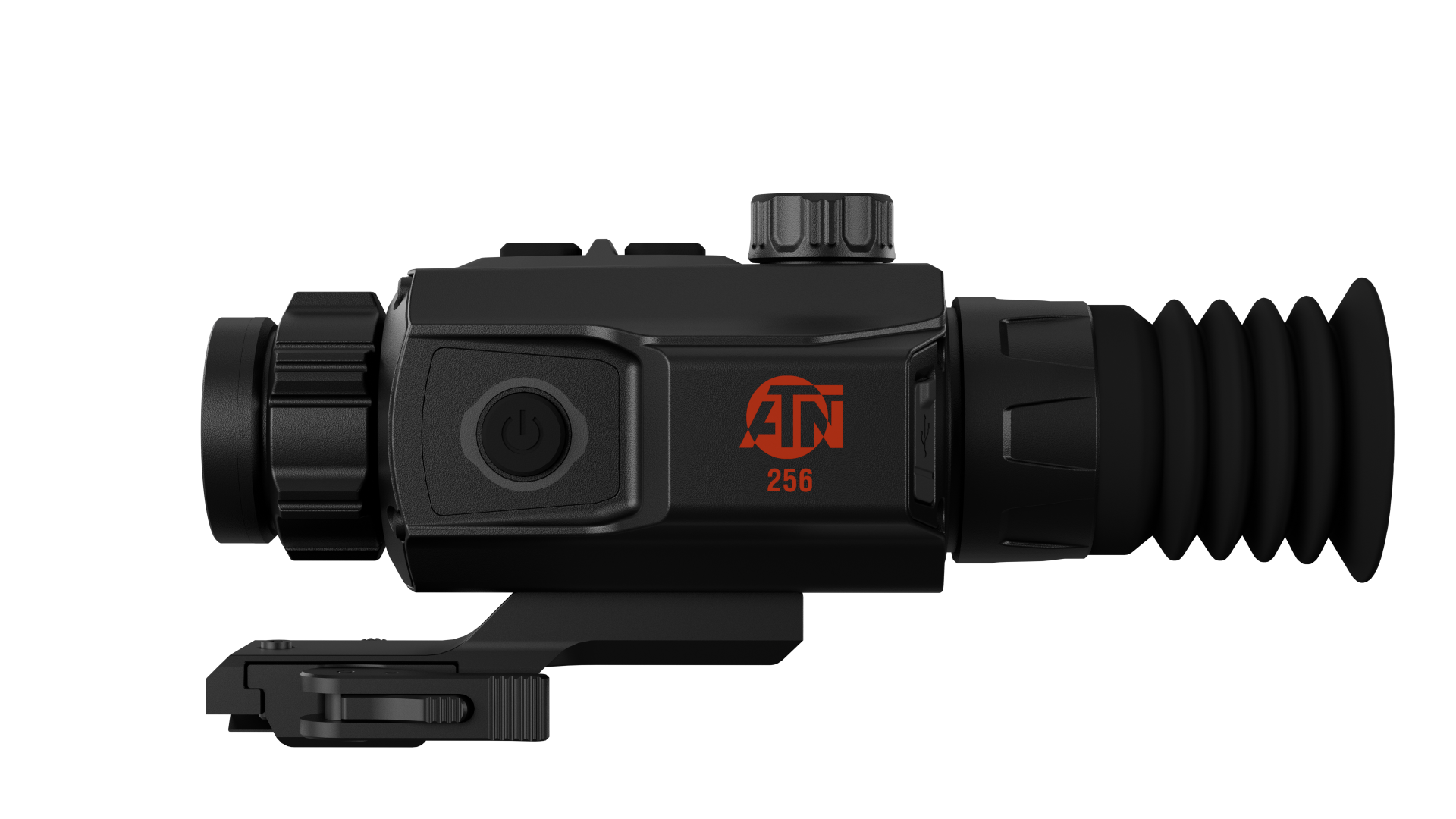

ATN ThOR 6 MINI
COMPACT POWER. FULL-SCALE PERFORMANCE.
Sharper, Smarter, Stronger


The ATN ThOR 6 Mini strikes the perfect balance between lightweight mobility and full-scale thermal performance. Built for hunters who value speed, precision, and reliability, this compact optic delivers high-quality imaging, smart functionality, and rugged durability in a streamlined design that will not weigh you down in the field.


At its core is ATN’s all-new 6th Generation Thermal Engine, the most advanced we have ever built. It provides crisp, detailed thermal imagery whether you are stalking hogs through heavy brush, tracking coyotes at a distance, or locking onto varmints across open fields. Day or night, through darkness, fog, or thick cover, the ThOR 6 Mini keeps you locked in and ready.


Now available in three thermal sensor options: 256×192 resolution with a ≤20mK NETD enhanced-sensitivity sensor, or 384×288 and 640×512 resolutions with ≤18mK NETD high-sensitivity sensors. Built on a 12μm pixel pitch, this lineup gives you the flexibility to choose the right balance of size, performance, and price for your hunt. From lightweight versatility to maximum detection range and clarity, there is a ThOR 6 Mini for every pursuit.


Engineered for every hunt
The ThOR 6 Mini is designed for hunters who move fast and cover ground. Whether scanning open fields or navigating dense woods, it offers fast target detection, smooth tracking, and dependable clarity in any environment. Lightweight, compact, and durable, it gives you the confidence to act quickly without sacrificing performance.


The 256×192 model features a 0.32-inch 800×600 OLED display, while the 384×288 and 640×512 models include a larger 0.49-inch 1920×1080 OLED display for sharper visuals and smoother motion. Both displays deliver high contrast, vivid detail, and reduced eye strain for long nights in the field.


Powered by ATN SharpIR, our proprietary AI-enhanced imaging technology, the ThOR 6 Mini automatically sharpens edges, enhances contrast, and separates targets from the background in real time. This means faster target identification, improved precision, and a clear visual advantage in difficult conditions.


With industry-leading ≤18mK or ≤20mK NETD thermal sensitivity, every ThOR 6 Mini delivers exceptional clarity, contrast, and target definition even in hot, humid, or low-contrast environments.

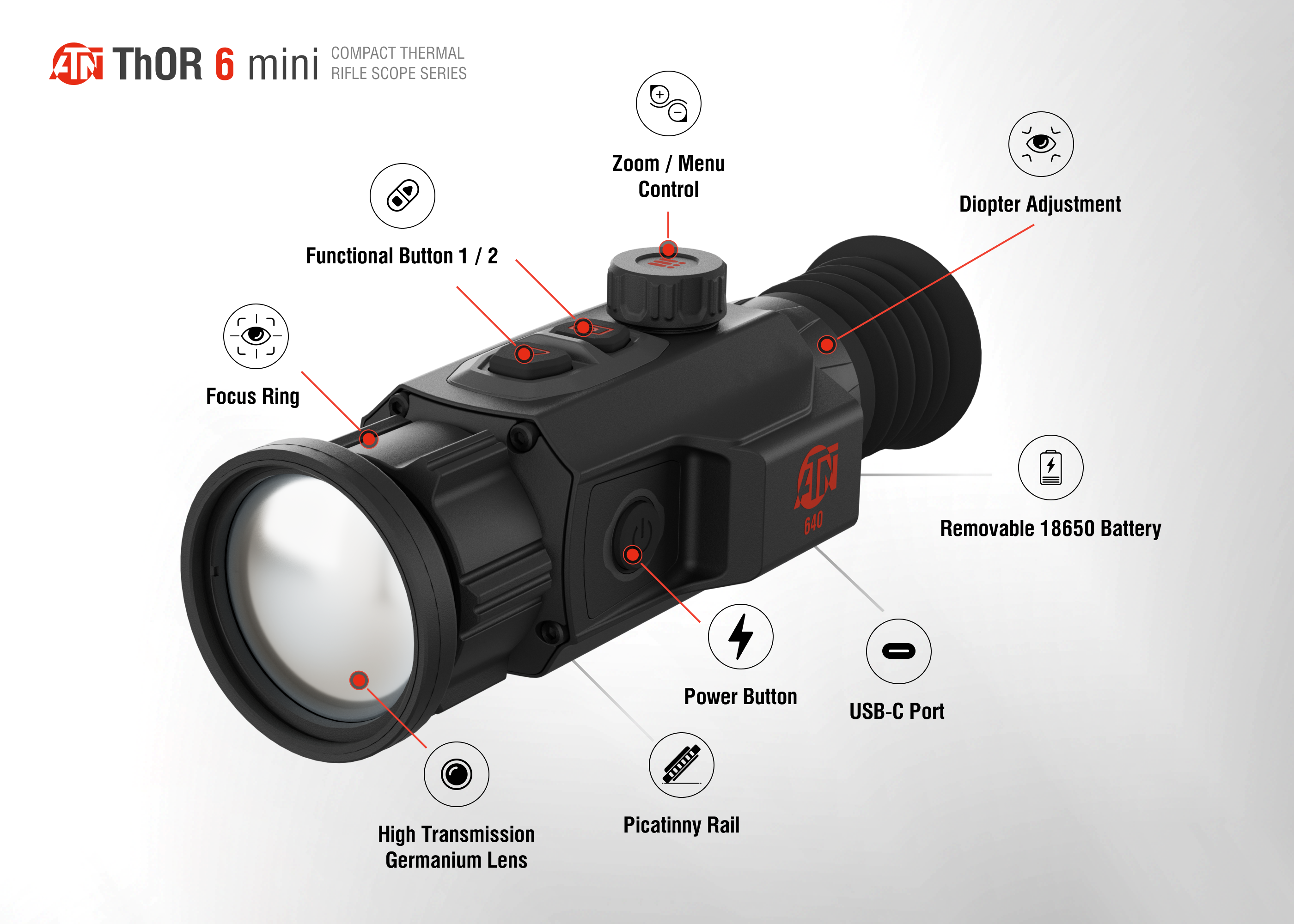

Stay in control with intelligent features
• High transmission germanium lens for enhanced light throughput and image clarity
• Picture-in-Picture for precision aiming without losing field awareness
• Hot Point Tracking to instantly highlight the warmest object in view
• Reticle Transparency Control for an unobstructed sight picture
• Built-in video and audio recording with Recoil Activated Video (RAV)
• Internal gallery to view and replay content directly on the device
• Built-in Wi-Fi Hotspot for streaming and sharing through the ATN Connect 6 app
• Multiple color palettes to adapt to any terrain or lighting condition
• Efficient power system with long-lasting performance for extended hunts
• Rugged magnesium alloy housing for strength, heat dissipation, and durability
• Streamlined 3-button control for quick, intuitive operation in the field


Compact, weatherproof, and built for all-day use, the ThOR 6 Mini is ready for any hunt, any season, day or night.


When every ounce matters, ThOR 6 Mini delivers big performance in a small package.



THERMAL PERFORMANCE & IMAGE CLARITY
• 6th Gen High Thermal Sensitivity
Powered by ATN’s 6th Generation Thermal Engine with a 12μm pixel pitch, the ThOR 6 mini is available in 256×192 (≤20mK NETD, Enhanced Sensitivity) and 384×288 or 640×512 (≤18mK NETD, High Sensitivity). Hunters get sharper detail, faster detection, and superior clarity in fog, brush, or total darkness.
• ATN SharpIR AI Technology
Proprietary AI imaging enhances edge sharpness and contrast in real time, making heat signatures stand out clearly through heavy cover or challenging light conditions.
• High-Resolution OLED Display
The 256×192 model features a 0.32-inch 800×600 OLED display, while the 384×288 and 640×512 models include a 0.49-inch 1920×1080 OLED display. Both deliver crisp, smooth visuals and reduced eye strain for extended hunts.
• Picture-in-Picture (PIP)
Zoom in for precise aiming while maintaining a wide view of your surroundings. Perfect for keeping awareness while tracking fast or multiple targets.
• Hot Point Tracking
Highlights the hottest object in view for instant target acquisition and faster identification of game hidden in brush or low-contrast environments.
• Multiple Color Modes
Six viewing palettes including White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia let hunters adapt to any terrain or lighting for optimal visibility.
• Reticle Transparency Control
Adjustable reticle brightness and opacity allow a clear, unobstructed sight picture while keeping your point of aim visible in every condition.

RECORDING, CONNECTIVITY & STORAGE

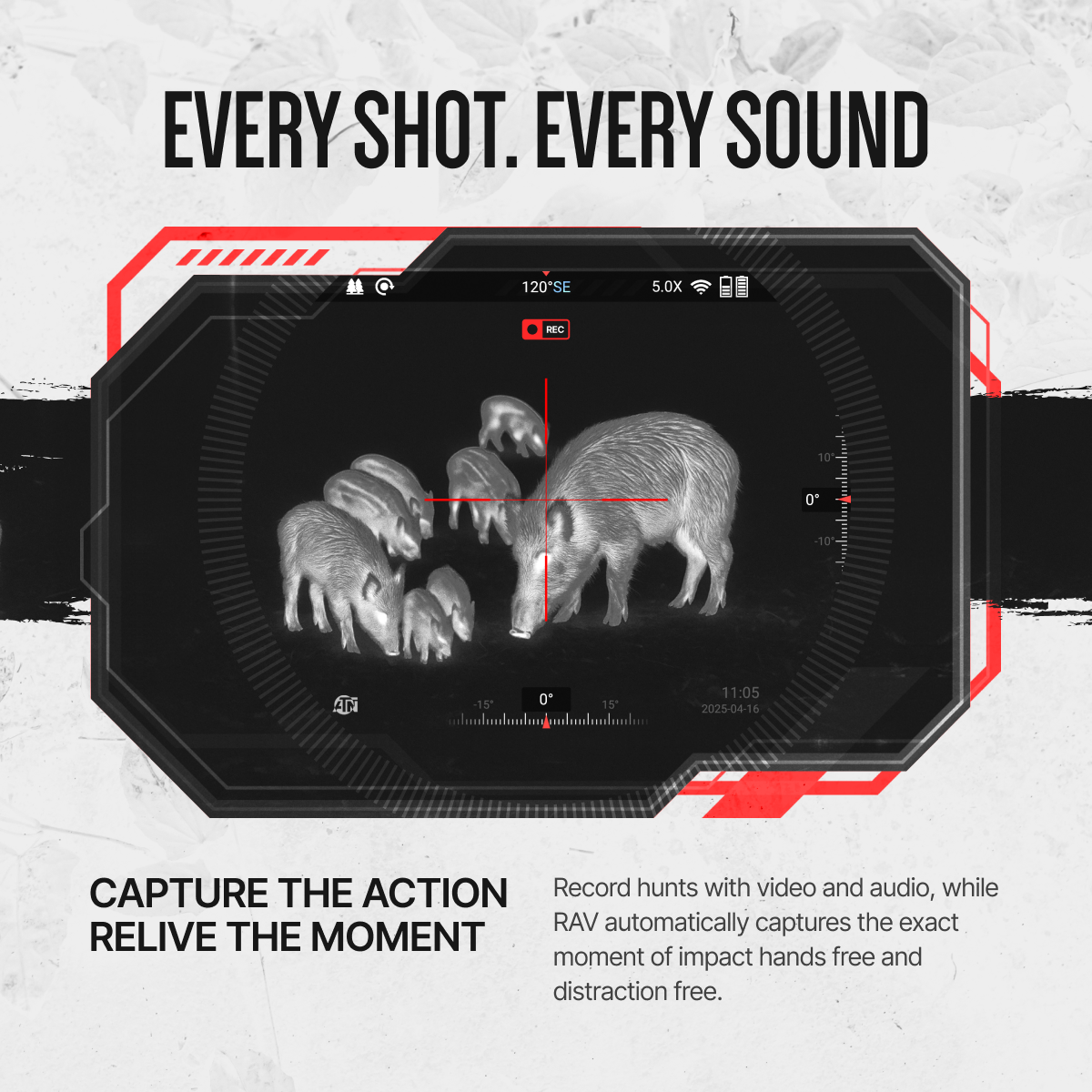

• Video and Audio Recording
Capture every moment of your hunt with built-in video and audio recording saved directly to 64GB of internal memory.
• Recoil Activated Video (RAV)
Automatically records before and after each shot so every key moment is saved hands-free.
• Internal Gallery
View and replay photos or videos directly on the scope with no cables, cards, or external devices required.
• Built-In Wi-Fi Connectivity
Connect to the ATN Connect 6 app for live streaming, instant playback, or sharing your hunts directly from the field.
• Internal Memory
64GB of onboard storage keeps your recordings safe and ready to transfer via USB-C.

EASE OF USE & CONTROL
• Multiple Weapon Profiles
Store up to five weapon profiles to switch between rifles, calibers, or setups without needing to rezero.
• Zeroing Freeze
Pause the image to make precise reticle adjustments quickly and easily while sighting in.

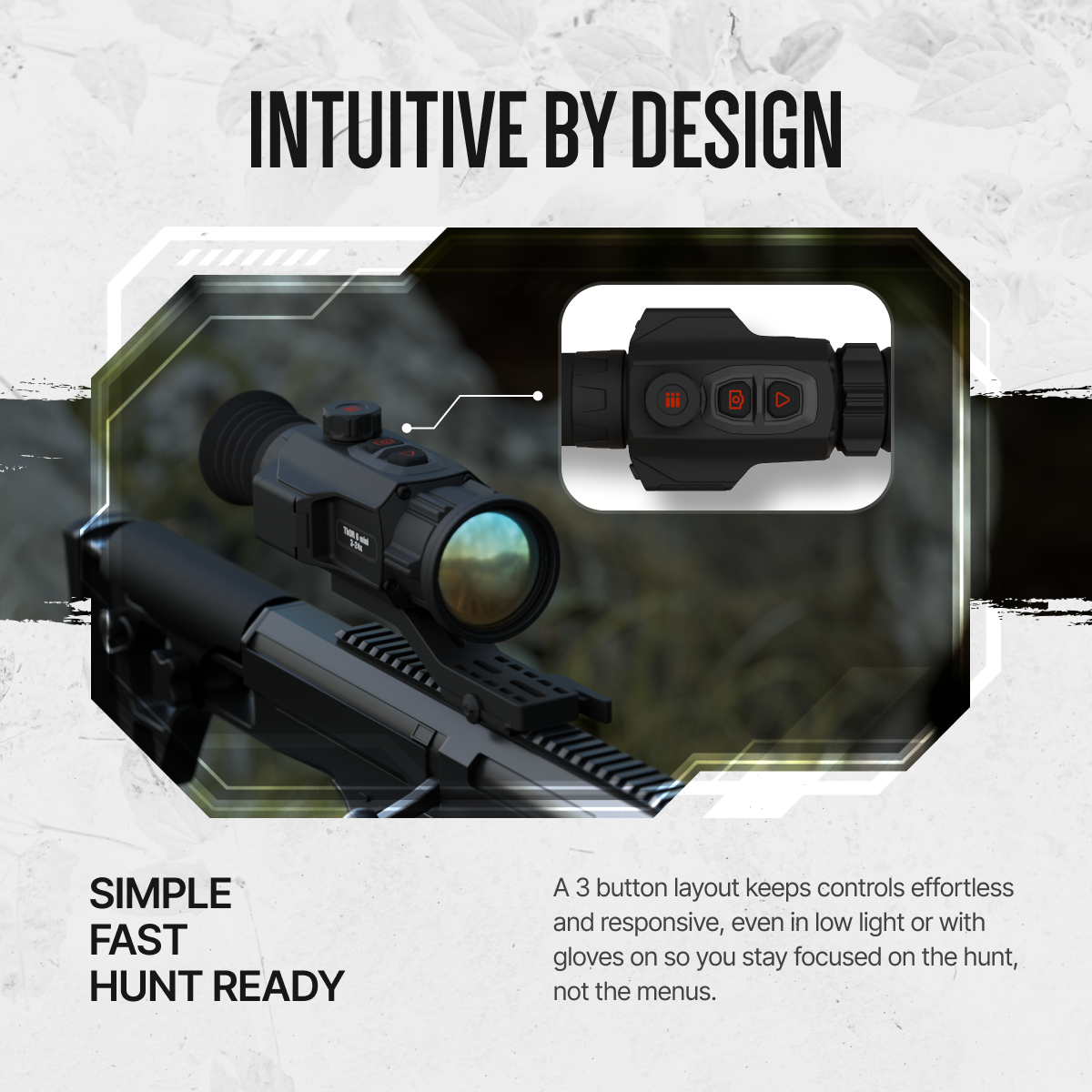

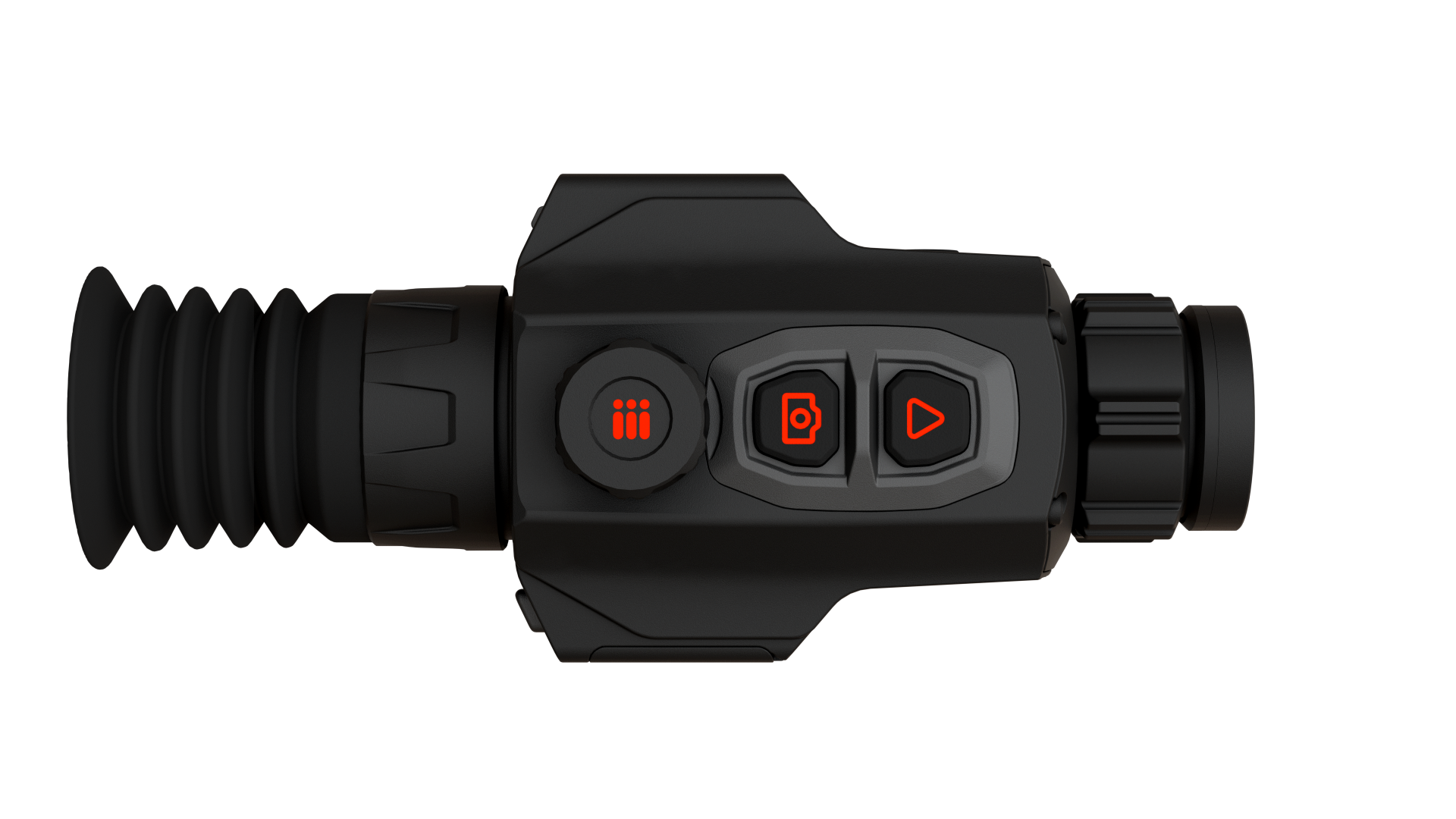

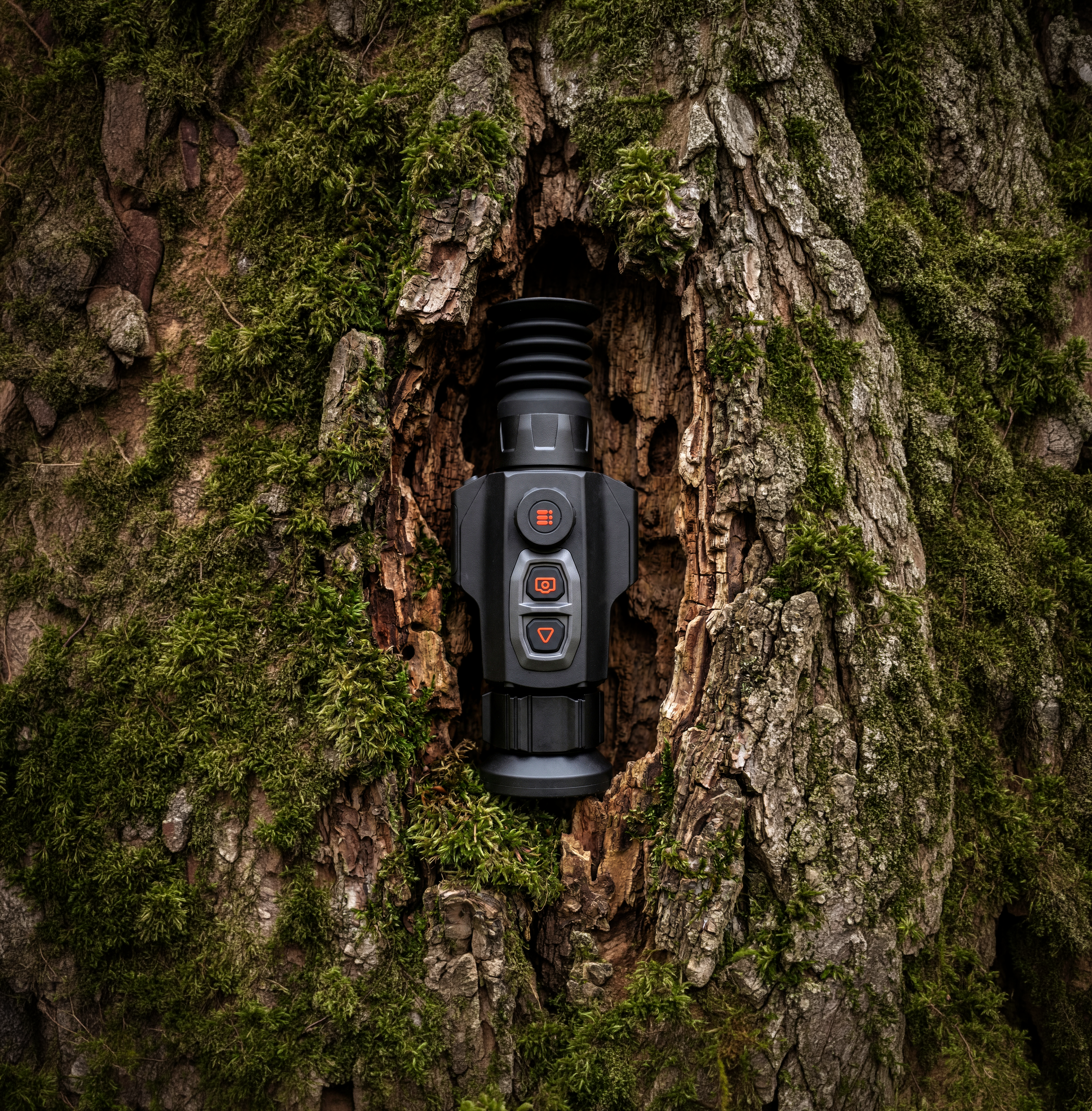

• Streamlined 3-Button Control
Simple and intuitive controls make on-the-fly adjustments effortless, even in low light or with gloves on.

FIELD-READY DESIGN
• Lightweight and Rugged
Built from durable magnesium alloy and weighing under 500 grams, the ThOR 6 mini provides excellent balance, comfort, and durability for long hunts.
• Field-Ready Battery
Powered by a single high-capacity 18650 rechargeable battery, the 256×192 model runs up to 8 hours, while 384×288 and 640×512 versions operate around 7 hours. Swappable batteries keep you powered for extended use.
• Weatherproof Construction
Designed to withstand rain, dust, and extreme temperatures, the ThOR 6 mini performs reliably in any season or environment.
OPTICS & SENSOR
• Detector Type: 12 μm VOx Uncooled Focal Plane Array
• Sensor Resolution: 256×192
• Refresh Rate: 50 Hz
• Thermal Sensitivity (NETD): ≤ 20 mK
• SharpIR©: Yes
• Non-Uniformity Correction (NUC): Auto / Semi Auto / Manual
• Lens System: 15 mm (Ge); F/1.0
• Field of View (H×V): 11.7° × 8.8°
• Focus Mechanism: Manual, Front Lens Adjustment
• Detection Range: 1200 m

MAGNIFICATION & DISPLAY
• Magnification: 2–16×
• Digital Zoom: 1×, 2×, 4×, 8×
• Zoom Type: Step & Smooth Zoom
• Display Resolution: 0.32" OLED, 800×600
• Picture-in-Picture (PIP): Yes
• Reticle Types: 10 Styles
• Reticle Transparency Control: Yes
• Zeroing Freeze: Yes
• Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
• Eye Relief: 50 mm
• Diopter Range: -5 to +5 D

RECORDING & CONNECTIVITY
• Internal Storage: 64 GB
• Video / Audio Recording: Yes
• Internal Gallery: Yes
• Recoil Activated Video (RAV): Yes
• Built-in Wi-Fi (Hotspot): Yes
• App: ATN Connect 6 (iOS & Android)
• Media Output: USB Type-C
• Hot Point Tracking: Yes
• Geomagnetic + Gyroscope: Yes

POWER SYSTEM
• Battery Type: 1 × 18650 Rechargeable (Replaceable)
• Battery Life: ~8 hrs
• Supports External Power: Yes (USB Type-C 5 VDC / 2 A)
• Standby / Sleep Mode: Yes
• Startup Time: < 7 seconds (instant from Standby)

DESIGN & DURABILITY
• Material: Magnesium Alloy
• Mounting: Picatinny Rail
• Weight: 500 g / 1.10 lbs
• Dimensions (L×W×H): 180×65×65 mm (7.09×2.56×2.56 in)
• Max Recoil Rating: 6000 J / 1000 g over 0.4 ms
• Operating Temperature: -30 °C to +55 °C (-22 °F to 131 °F)
• Waterproof / IP Rating: IP67

Included Accessories:

• Thermal Scope

• Mount

• 1 x 18650 Battery

• Lens Cloth

• USB Type-C Cable

• Quick Start Guide

• Battery Charger

• Portable Bag

• Heated Target for Zeroing
