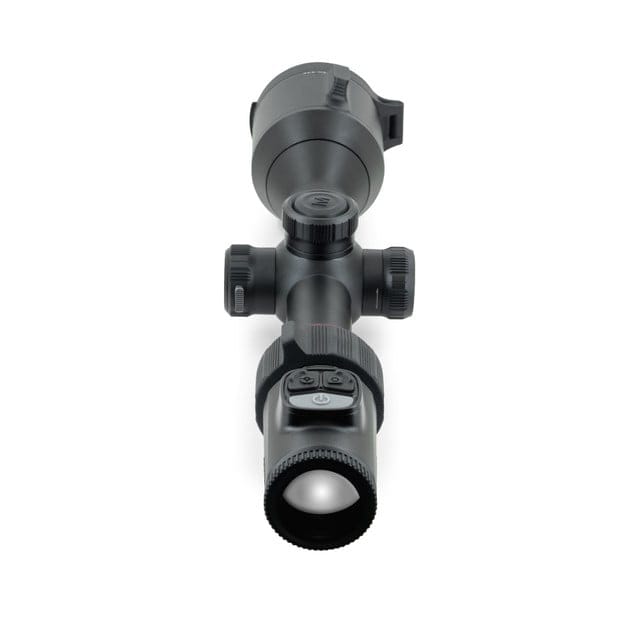

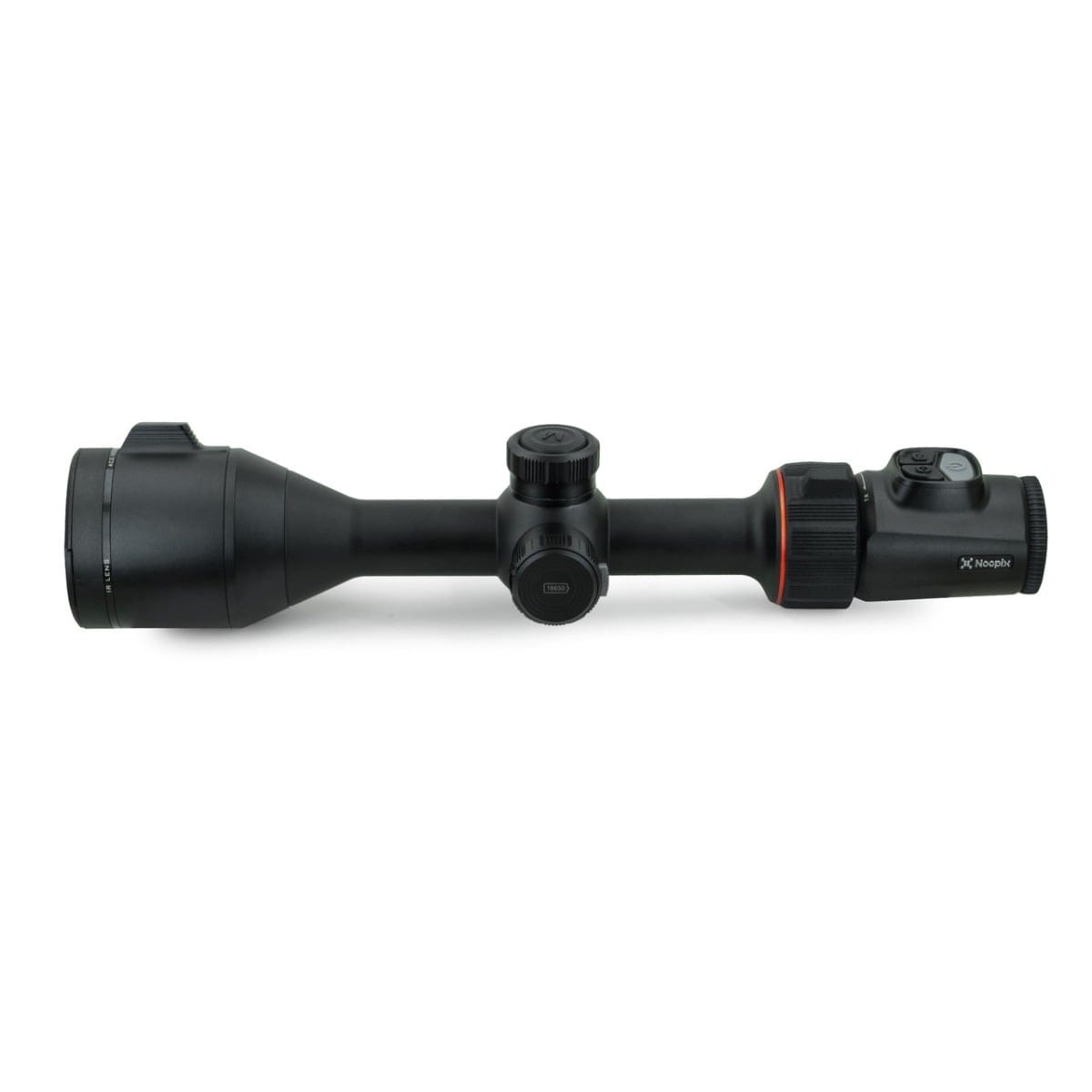

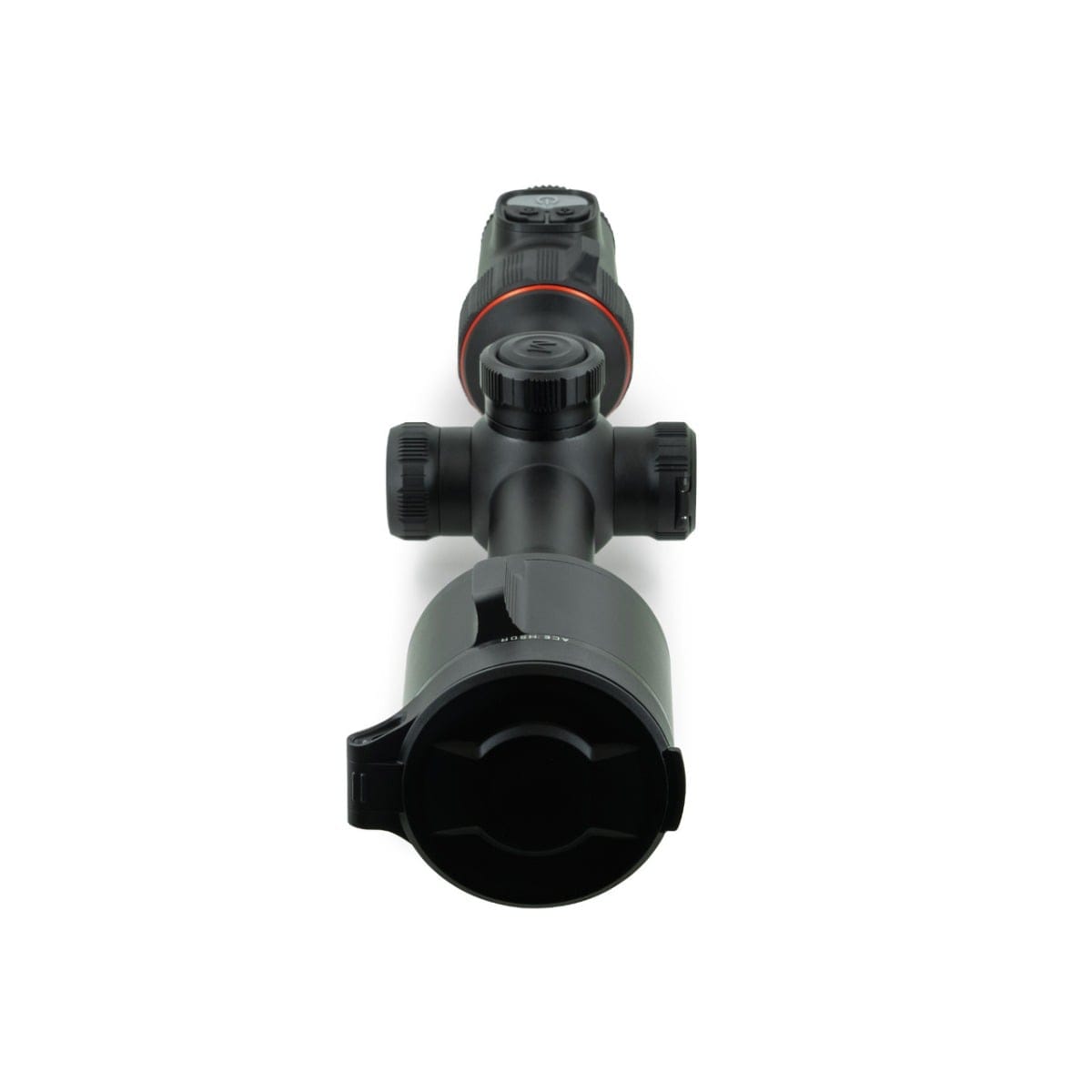

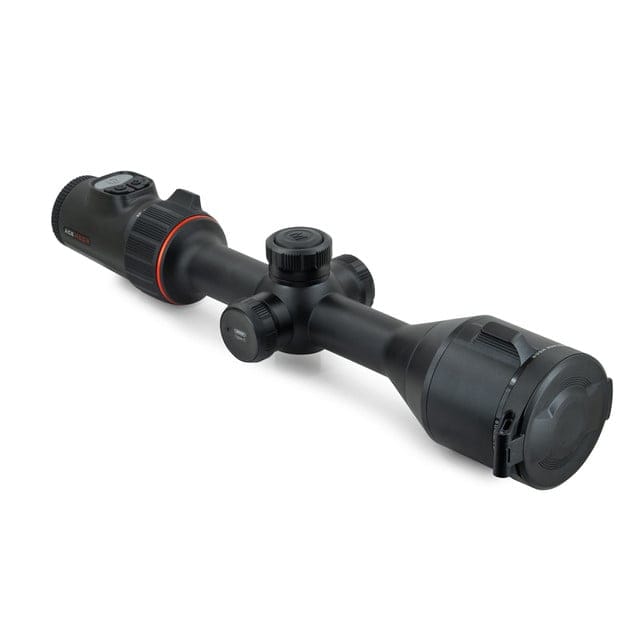

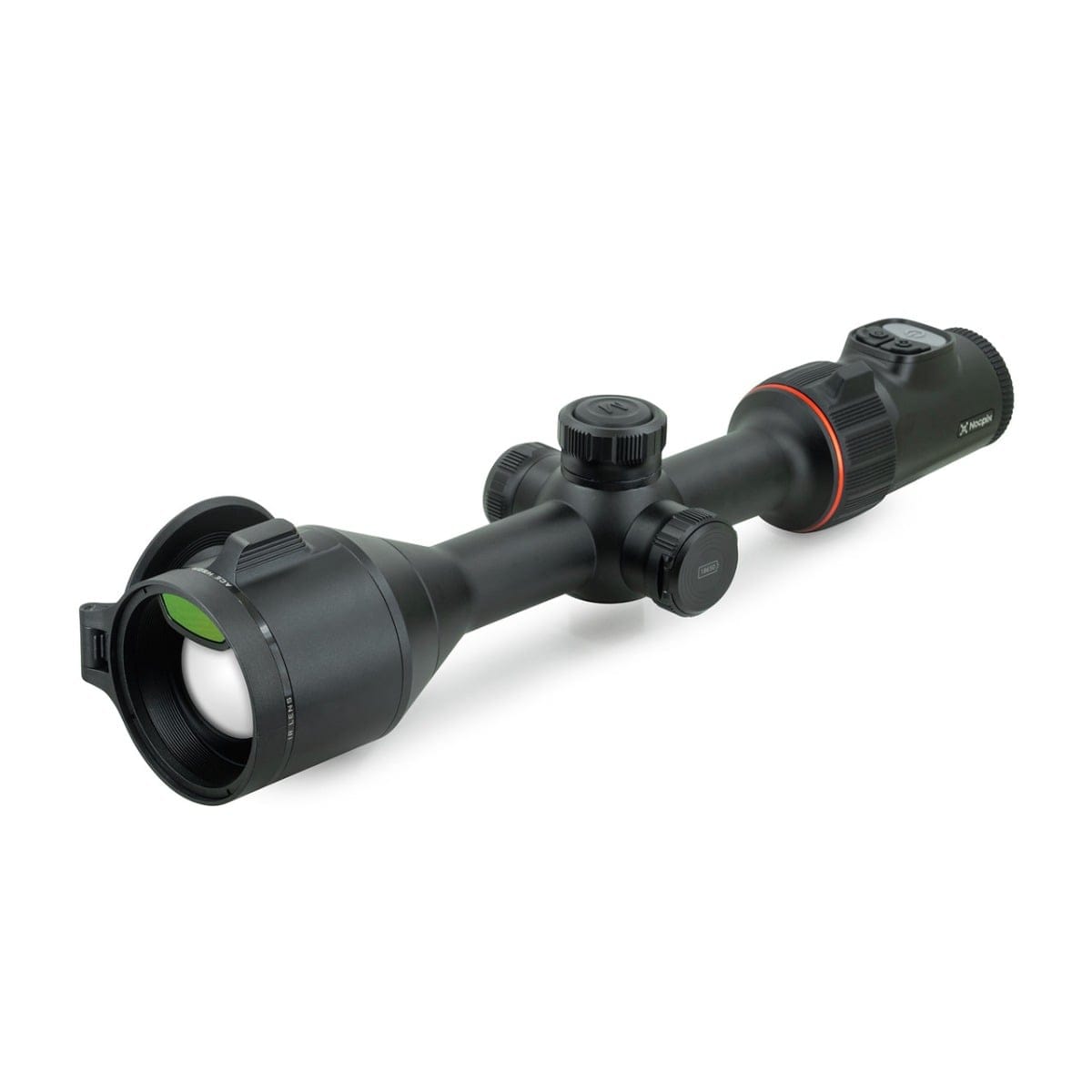

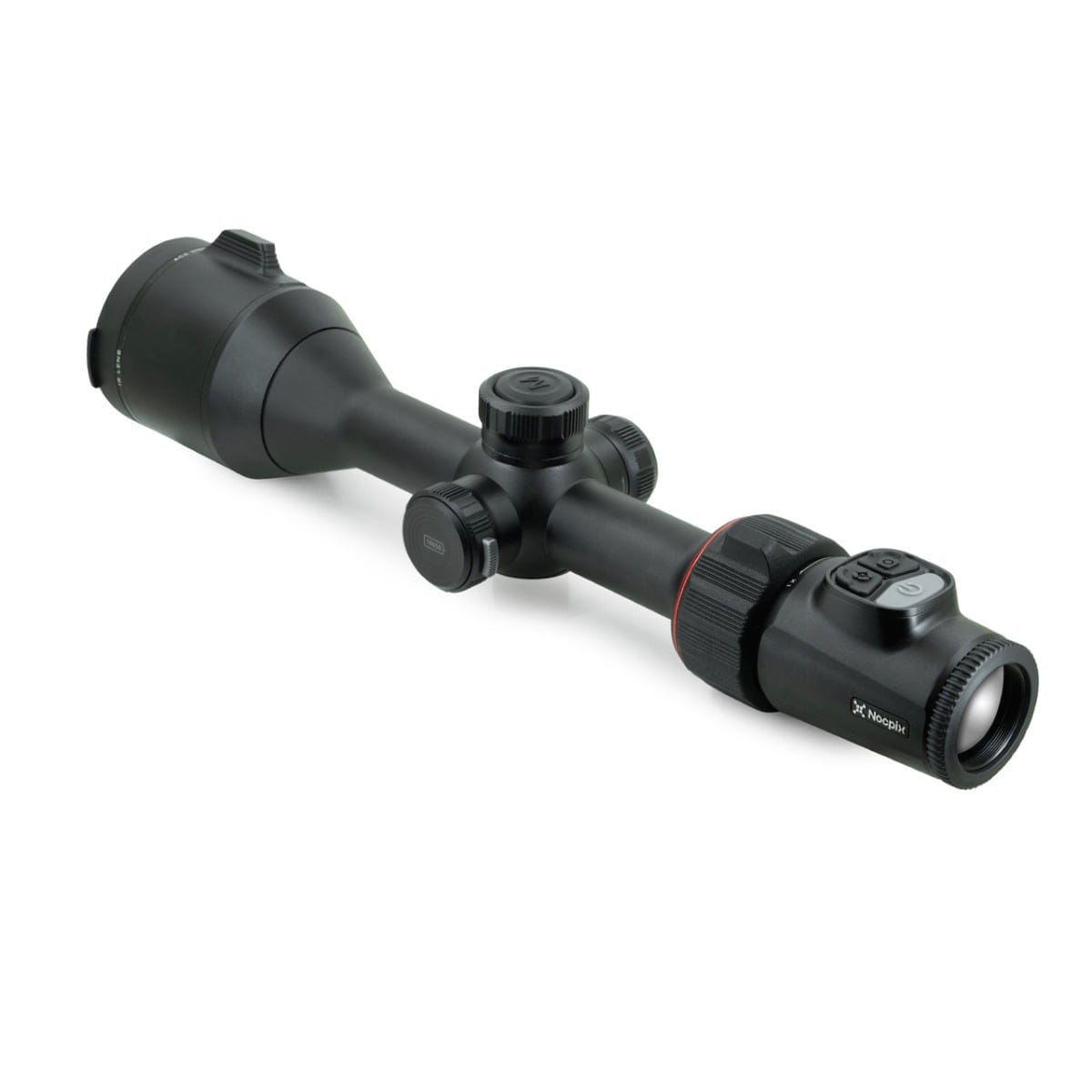

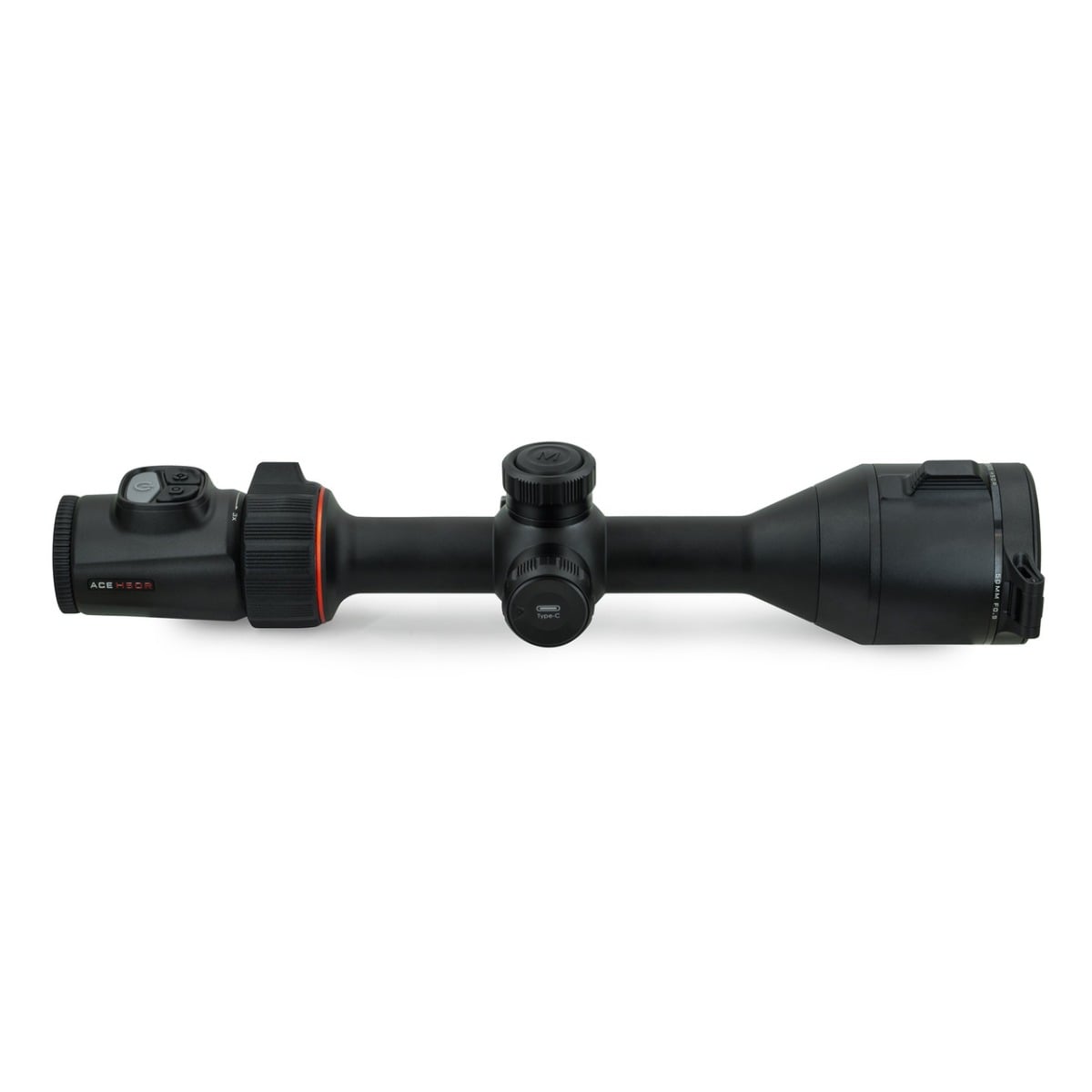

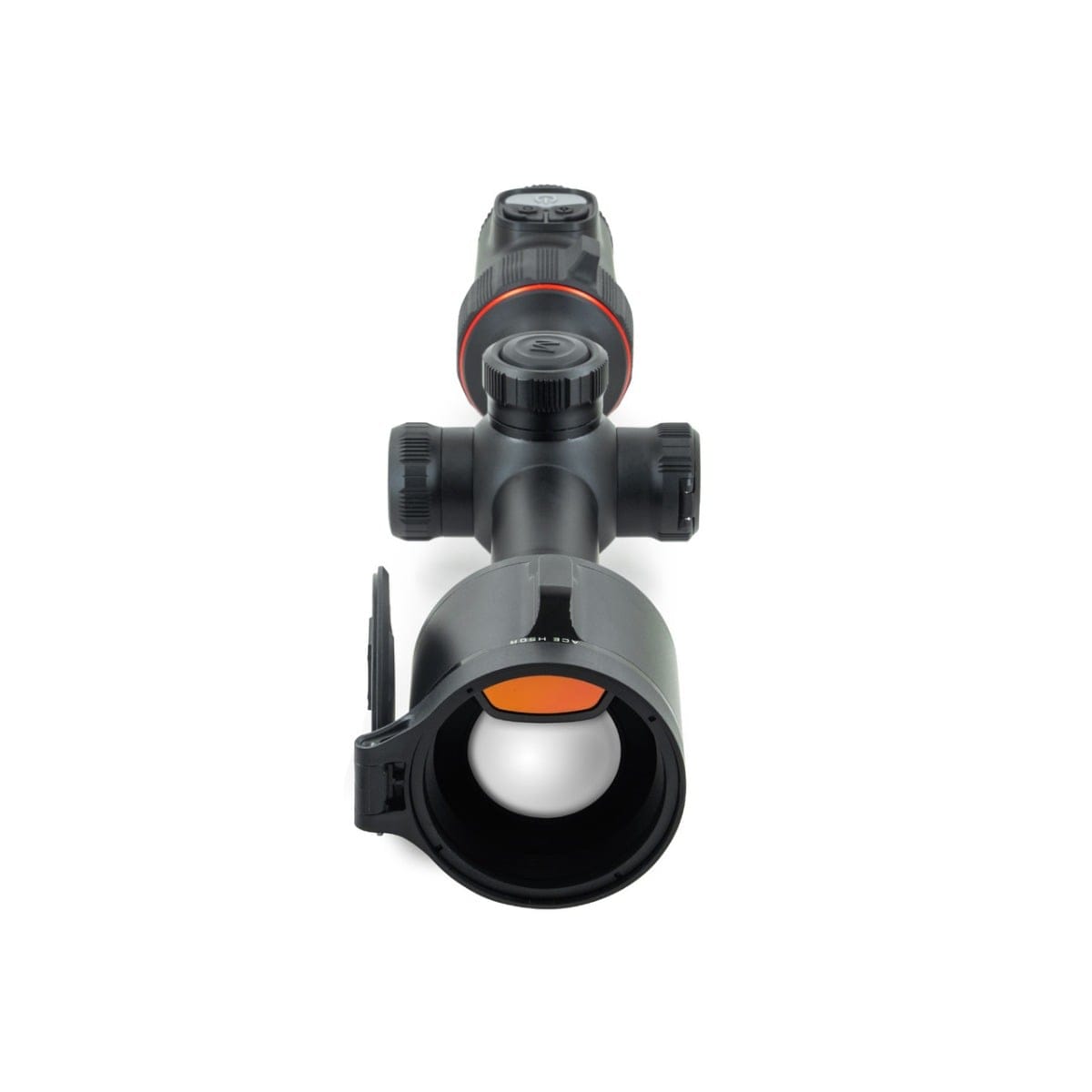

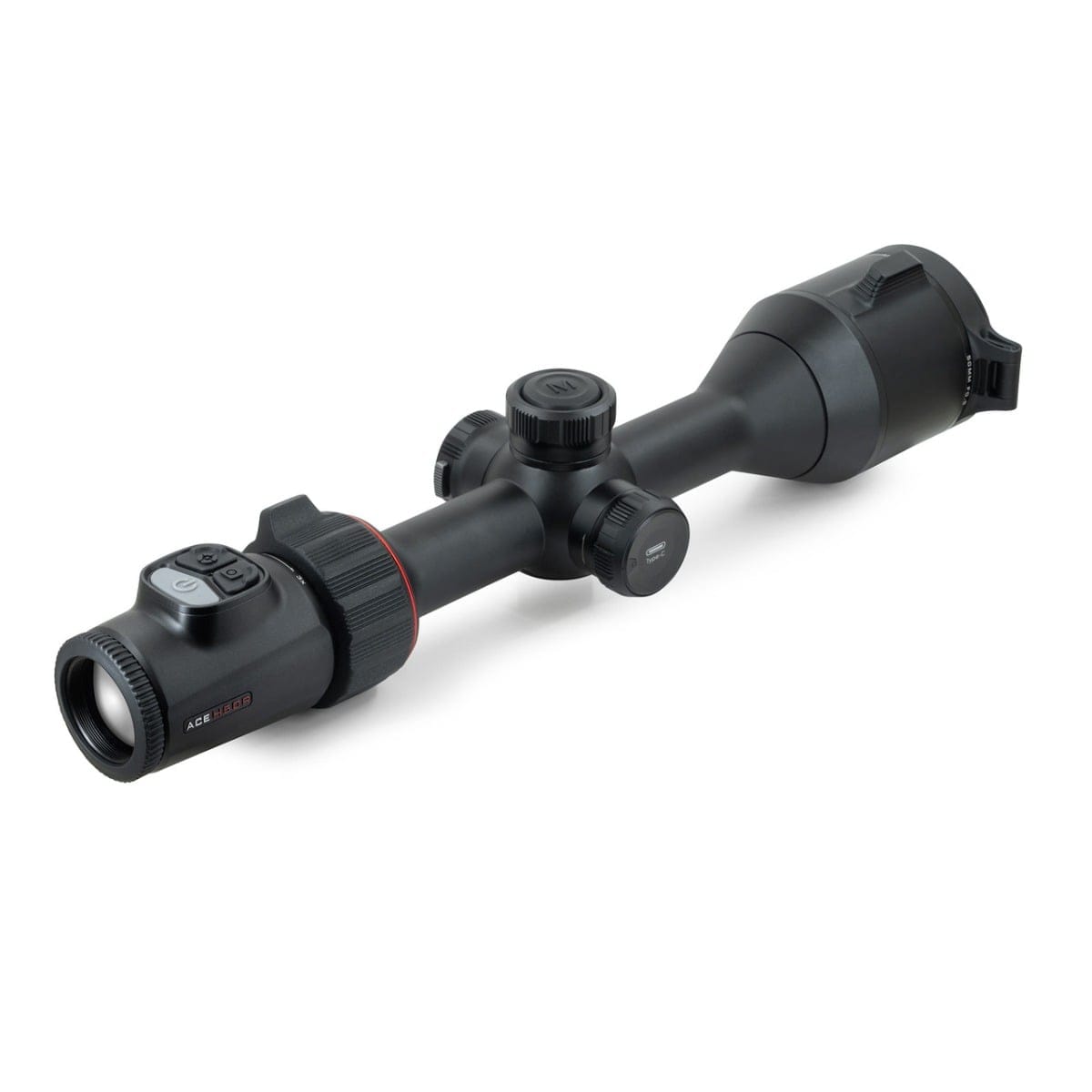

Nocpix ACE-H50R Thermal Weapon Sight Oc. Magnifier 640x512 50mm LRF

SKU
ACE-H50R
$6,499.00
Financing options available at checkout
Add to Compare

The ACE series is an infrared scope designed for outdoor hunting. Based on infrared thermal imaging principles, it operates without the need for external light sources, making it effective both day and night, in all weather conditions including rain, snow, fog, and haze. The scope is unaffected by strong light and can be used to observe targets even behind obstacles such as branches, grass, and shrubs. The ACE series also offers a variety of battery-powered solutions with long operating hours, making it ideal for hunting, observation, and positioning in low visibility conditions.

The ACE series is an infrared scope designed for outdoor hunting. Based on infrared thermal imaging principles, it operates without the need for external light sources, making it effective both day and night, in all weather conditions including rain, snow, fog, and haze.
Type Vox
Resolution, Pixels 640×512
Pixel Size, um 12μm
NETD, mK ≤ 15
Frame Rate, Hz 60
Objective Lens, mm 50/F0.9
Field of View (H×V), º 8.8×7.0
Linear Field of View (H×V), m @ 100m 15.4x12.3
Magnification, x 3~24
Ocular zoom, x 1~3
Eye Relief, mm 50
Exit Pupil Diameter, mm 8
Diopter, D -5~+5
Detection Range, m (Target Size: 1.7m×0.5m, P(n)=99%) 2600
Type AMOLED
Resolution 2560×2560

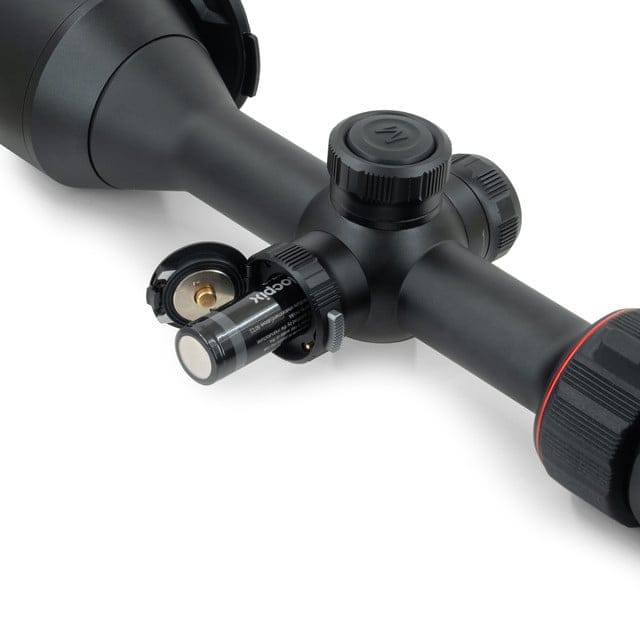

Battery Built-in battery/4000mAh + Replaceable 18650 battery
Max. Operating Time (22ºC), h* 7
External Power Supply 5V (Type C)
Wi-Fi / APP Support Support
Photo / Video Recorder Support
Recoil Activated Video Support
Gallery Support
Memory Capacity 64GB
IP Rating IP67
Operating Temperature, ℃ -20 ~ +50
Weight, g 1120
Dimension, mm 365x90x68
Max. Recoil Power on Rifled Weapon (Eo), Joules 6000
Compatible Mount 30mm Tube
Safety Class for Laser Rangefinder Class 1
Measuring Range, m 1200, ±1
Ballistic Calculation Support

Nocpix ACE-H50R Thermal Weapon Sight Oc. Magnifier 640x512 50mm LRF

The Nocpix ACE‑H50R Thermal Weapon Sight with Occluding Magnifier is a high‑resolution thermal optic built for shooters who need long‑range detection, precise target identification, and integrated ranging in a single package. It pairs a 640×512 uncooled VOx thermal detector with a 50 mm objective lens to deliver detailed thermal imagery and extended detection distances in low‑contrast or no‑light conditions. The occluding magnifier design lets the operator quickly shift between a wide situational view and a magnified, precision view without swapping optics, and the integrated laser rangefinder supplies distance measurements that are overlaid directly on the thermal image for faster engagement decisions.

The unit typically runs at a 50 Hz refresh rate, giving smooth video during panning and target track, and it offers a selection of color palettes and reticle options to suit different environments and personal preferences. Onboard recording and image capture allow documentation or after‑action review, while Wi‑Fi or wired connectivity enables live streaming and file transfer to external devices. Power is usually provided by replaceable 18650 batteries or an internal rechargeable pack, and the design emphasizes field serviceability with USB‑C external power support and user‑replaceable power options.

  • 15mK NETD
  • Ocular zoom
  • Built-in LRF (ACE H50R / ACE S60R)
  • Ballistic Calculation (ACE H50R / ACE S60R)
  • Recoil Activated Video function
  • Gallery function
  • Dual power supply system
  • Built-in memory, supporting photographing and video recording
  • Built-in Wi-Fi module, supporting APP connection
  • Built-in compass and motion sensor
  • PIP (Picture-in-Picture) function
  • Shutterless function
  • Pixel defect correction
  • Convenient operation interface
