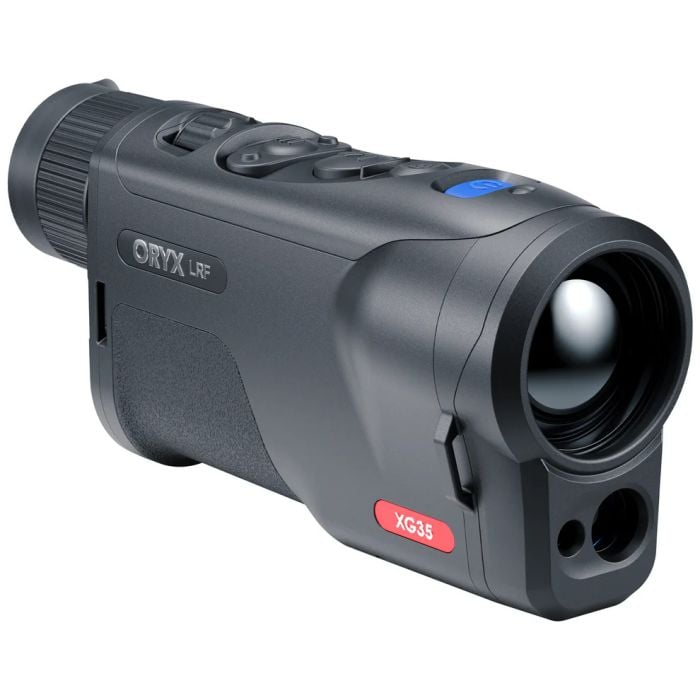

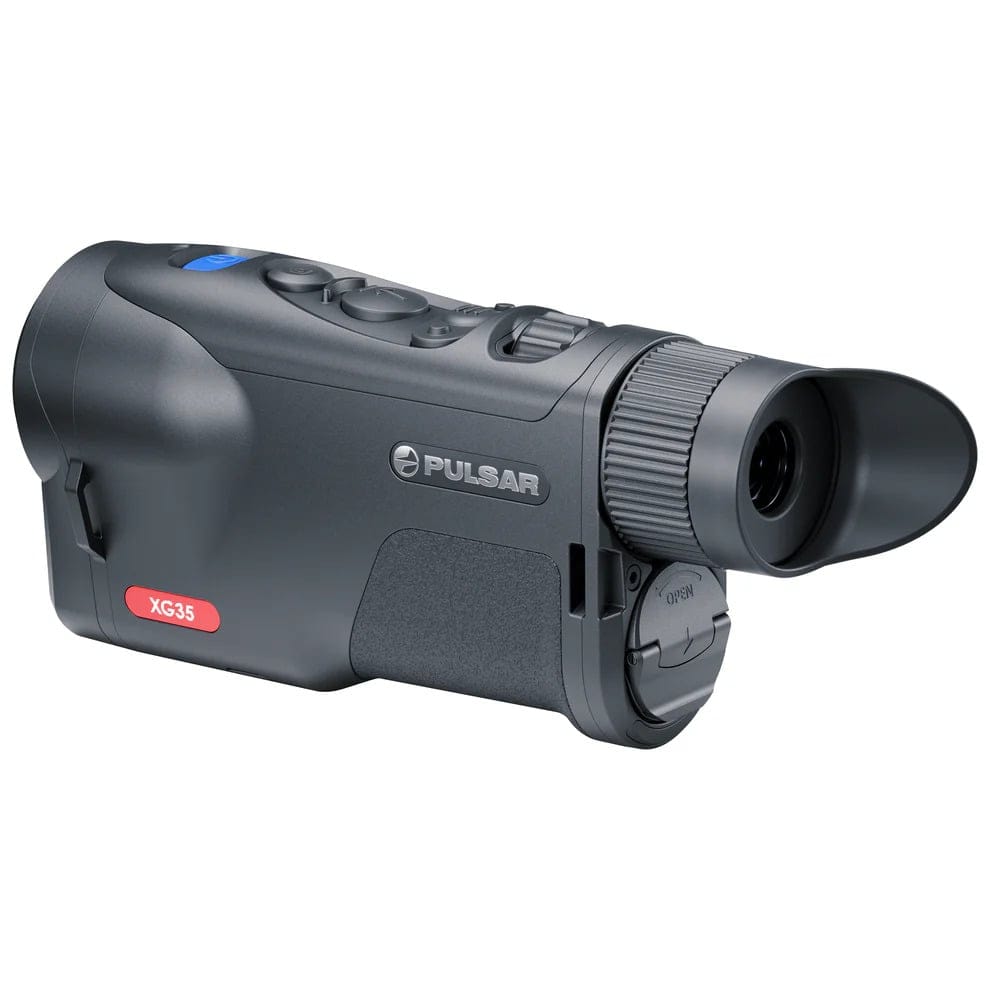

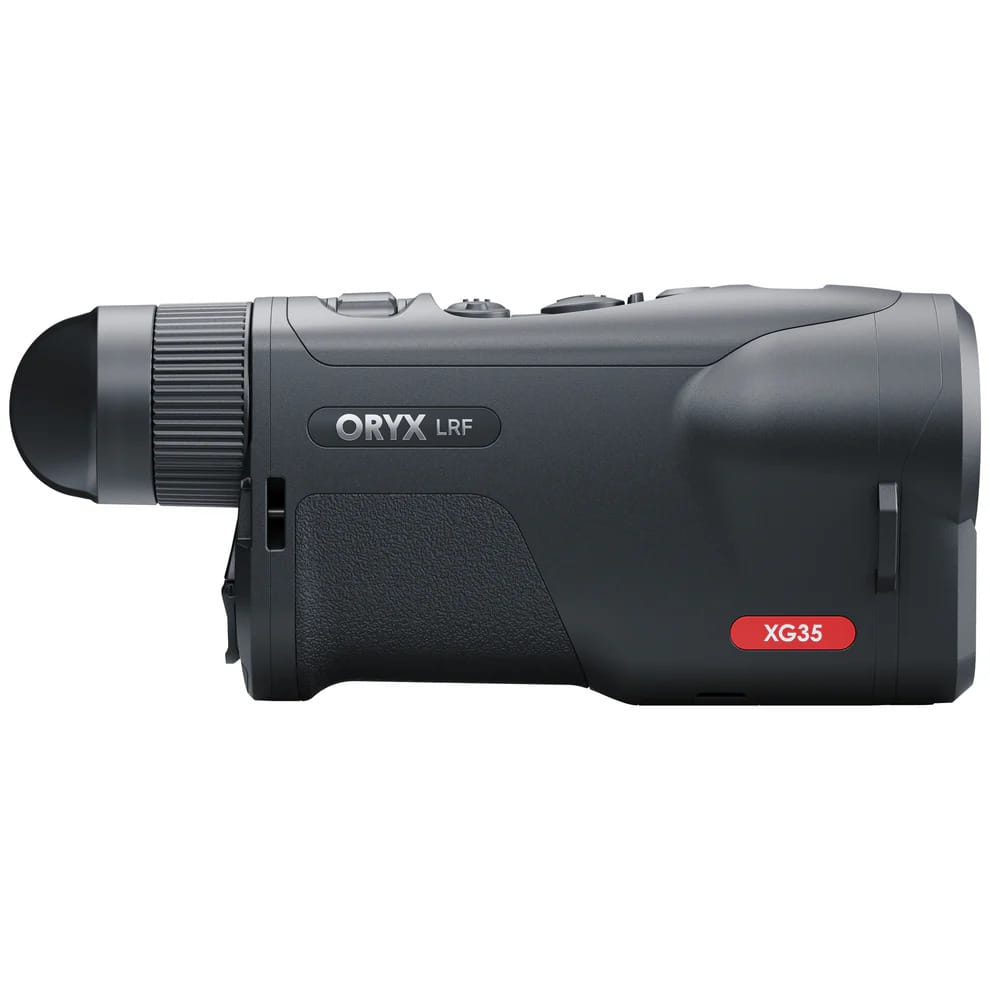

Introducing the ORYX

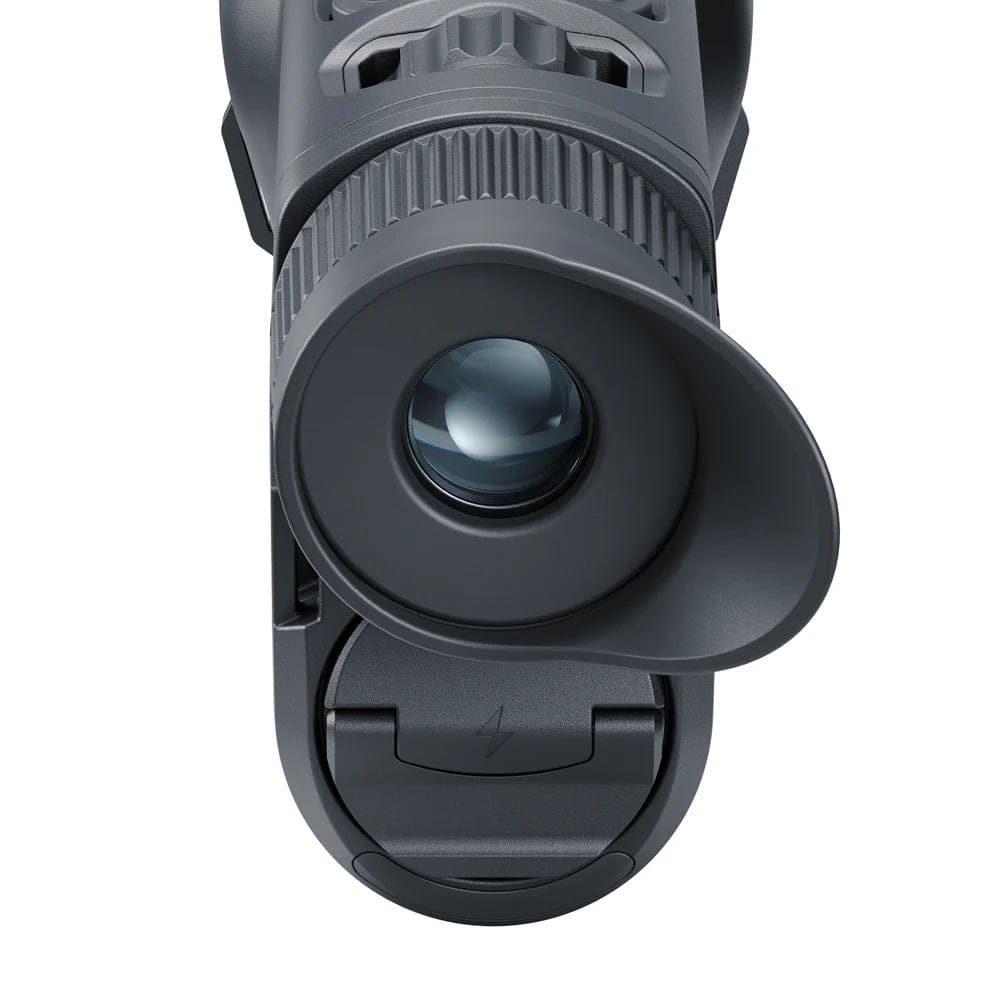

We have one more surprise for you this year unveiled at IWA 2025 the Pulsar ORYX. Our ORYX LRF XG35 Monocular offers enhanced laser rangefinding capabilities and is designed for ergonomic, one-handed operation. With an upgraded LRF with 1500m ranging this is our most rugged & compact handheld yet.

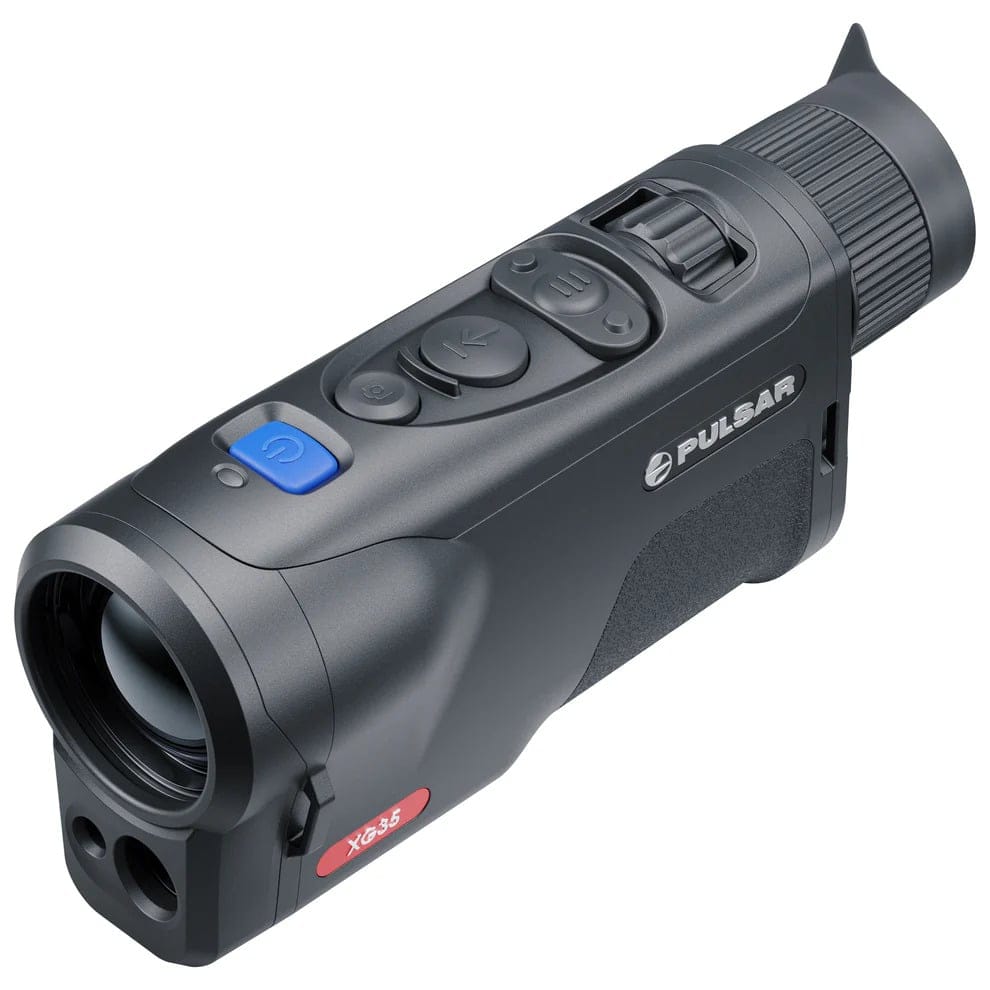

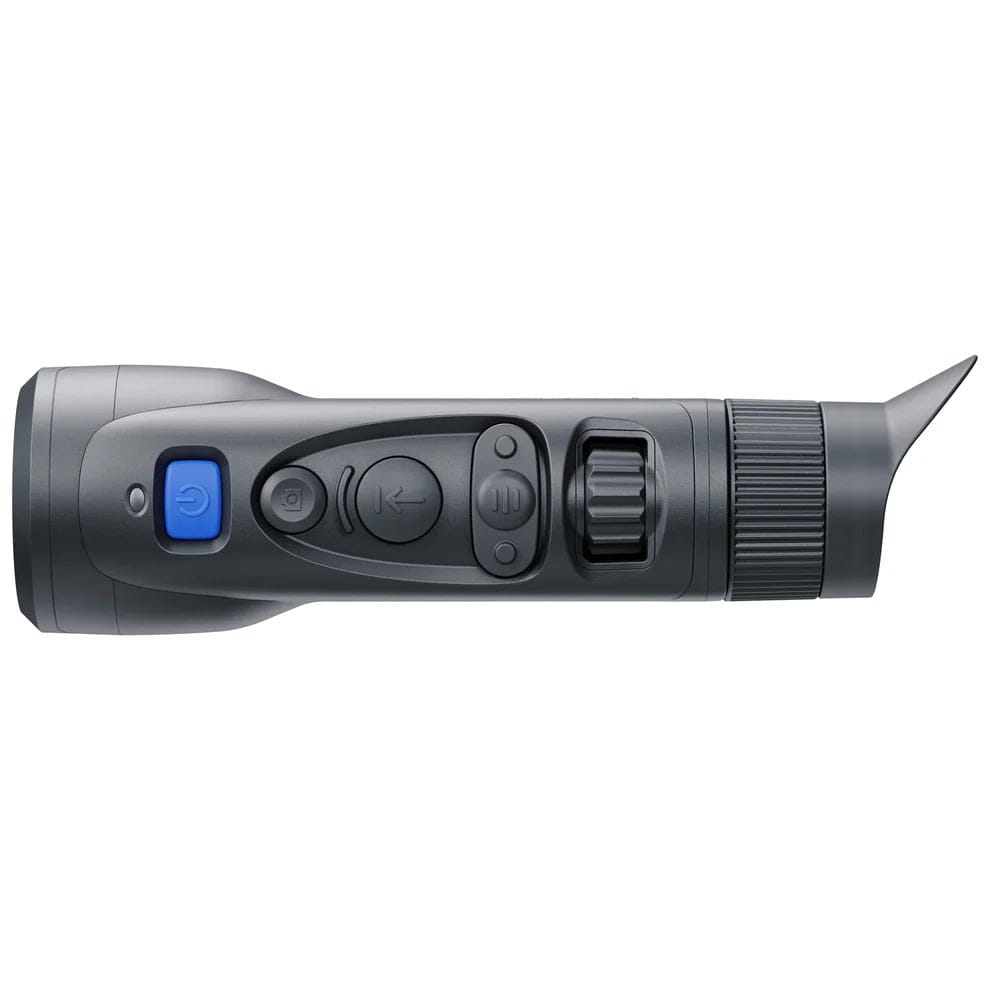

The Pulsar Oryx LRF monocular is built to withstand the toughest and longest hunts. Compact and optimized for one-handed use, it packs in all the essential features you need, including:
Long battery life for extended field use.

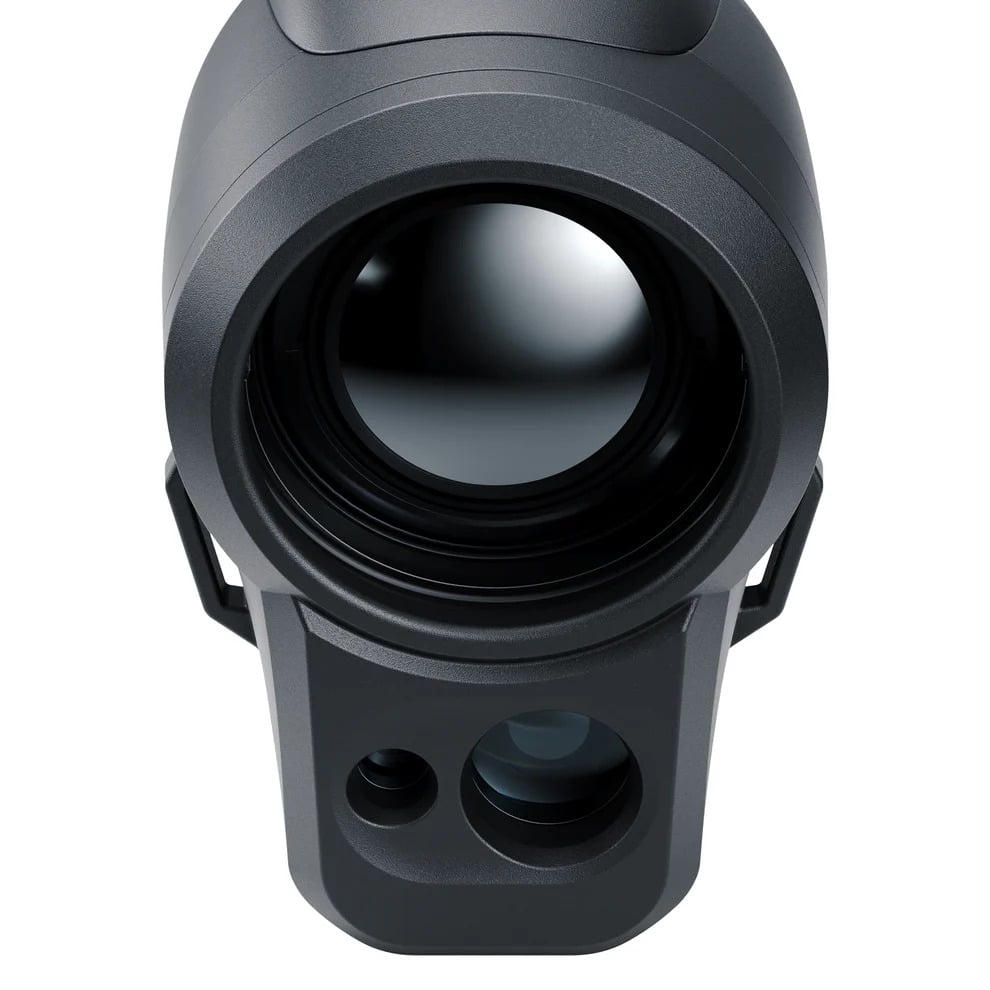

Extreme laser rangefinder (LRF) measuring range for precise targeting.
Premium image quality and digital image stabilization for clear and steady visuals.
Built for more than performance, the Oryx LRF features a rugged magnesium alloy housing designed to withstand water, dust, impacts, and harsh conditions — it’s as tough on the outside as it is advanced on the inside.
Category | Specification |
---|---|
Main | |
Sensor | 640x480 pix. @ 12 µm (sNETD <20 mK) |
Objective lens | F35/1.0 |
Magnification, x | 2.5 - 20 |
Field of view (HxV), ° | 12.5 |
Detection range, m | 1800 |
Sensor | |
Type | Uncooled |
Resolution, pixels | 640x480 |
Pixel pitch, µm | 12 |
NETD, mK | <40 |
Frame rate, Hz | 50 |
sNETD, mK | <20 |
Optics | |
Objective lens | F35/1.0 |
Magnification, x | 2.5-20x |
Field of view (HxV), ° | 12.5 |
Eye relief, mm | 14 |
Display | |
Type | AMOLED HD |
Resolution, pixels | 1024x768 |
Range Performance | |
Detection range, m | 1800 |
Laser Rangefinder | |
Max. measuring range, m | 1500 |
Measurement accuracy, m | ± 1 |
Safety class for laser equipment | 1 (IEC 60825-1:2014) |
Wavelength, nm | 905 |
Video Recorder | |
Video / photo resolution, pixels | 1024x768 |
Video / photo format | .mp4 / .jpg |
Built-in memory, GB | 64 |
Wi-Fi | |
Wireless Protocol | Wi-Fi |
Wireless Standard | IEEE 802.11 b/g/n/ac (WPA) |
Frequency, GHz | 2.4 / 5 |
Environmental Characteristics | |
Degree of protection, IP code (IEC60529) | IP67 |
Operating temperature range, °C | -25 – +40 |
Connections and Compatibilities | |
Supported Application | Stream Vision 2 |
Power Supply | |
Output voltage, V | 3.0 – 4.2 |
Battery type | APS 5 Li-ion Battery Pack |
Capacity, mAh | 4900 |
Operating time on battery pack, h | 12 |
External power supply, V | 5V; 9V (USB Type-C Power Delivery) |
Weight & Size | |
Body material | Magnesium alloy |
Dimensions, mm | 179x52x77 |
Weight, kg | 0.5 |
Built for long and tough hunts, the Pulsar Oryx LRF XG35 is compact, delivers an extra-high detail thermal image, and comes with a next-gen rangefinder.
