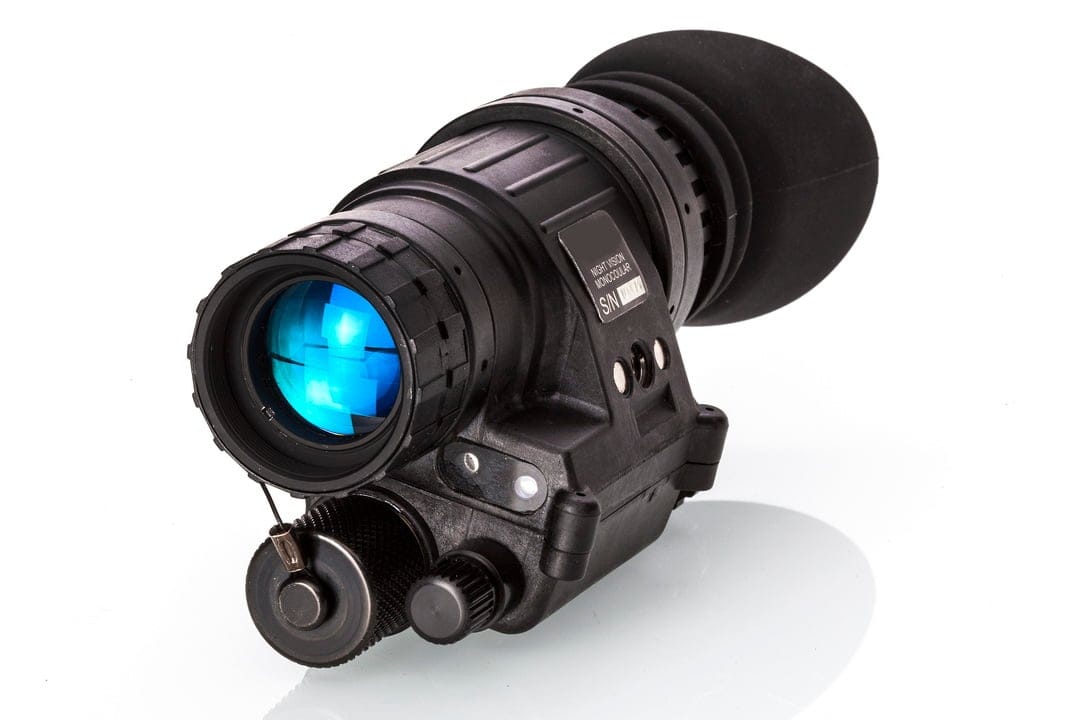

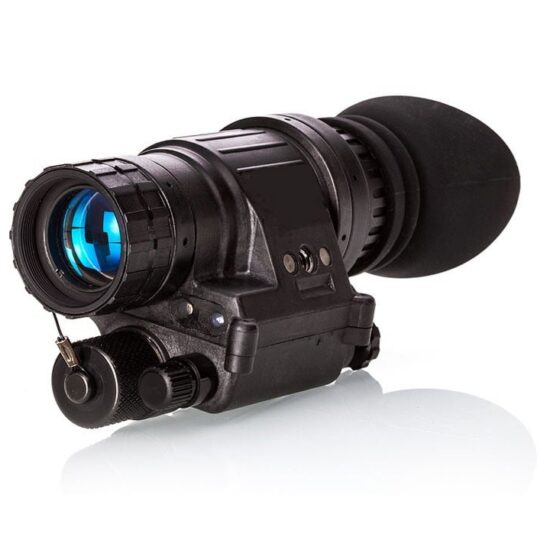

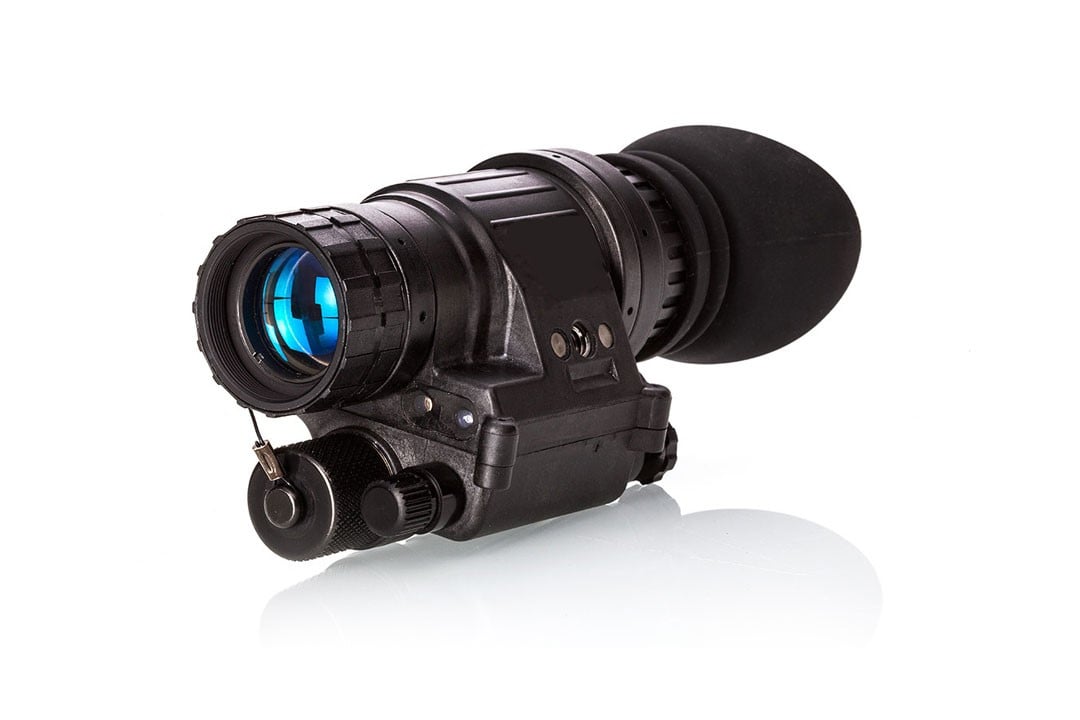

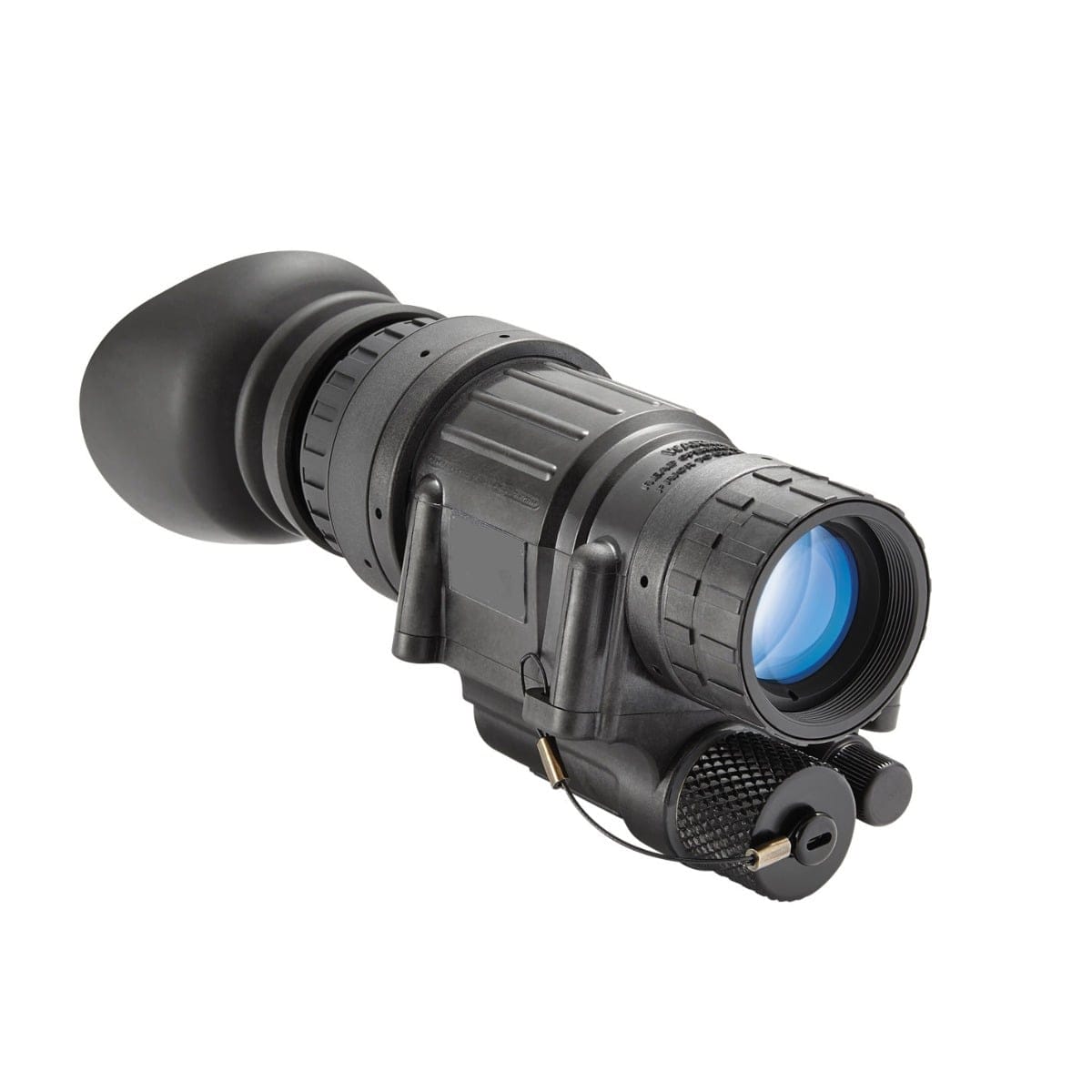

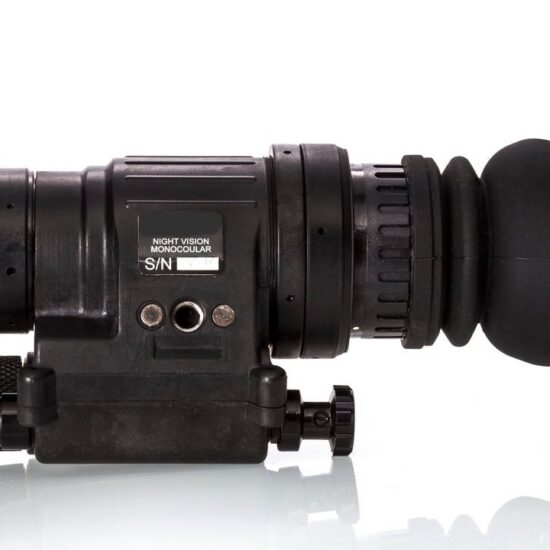

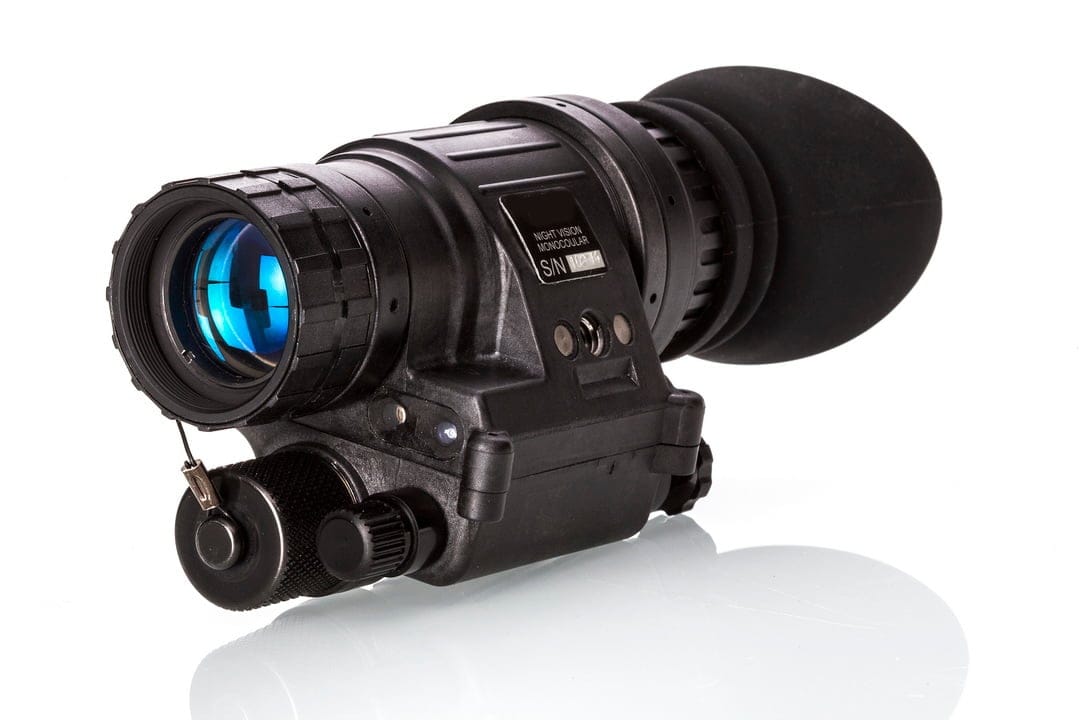

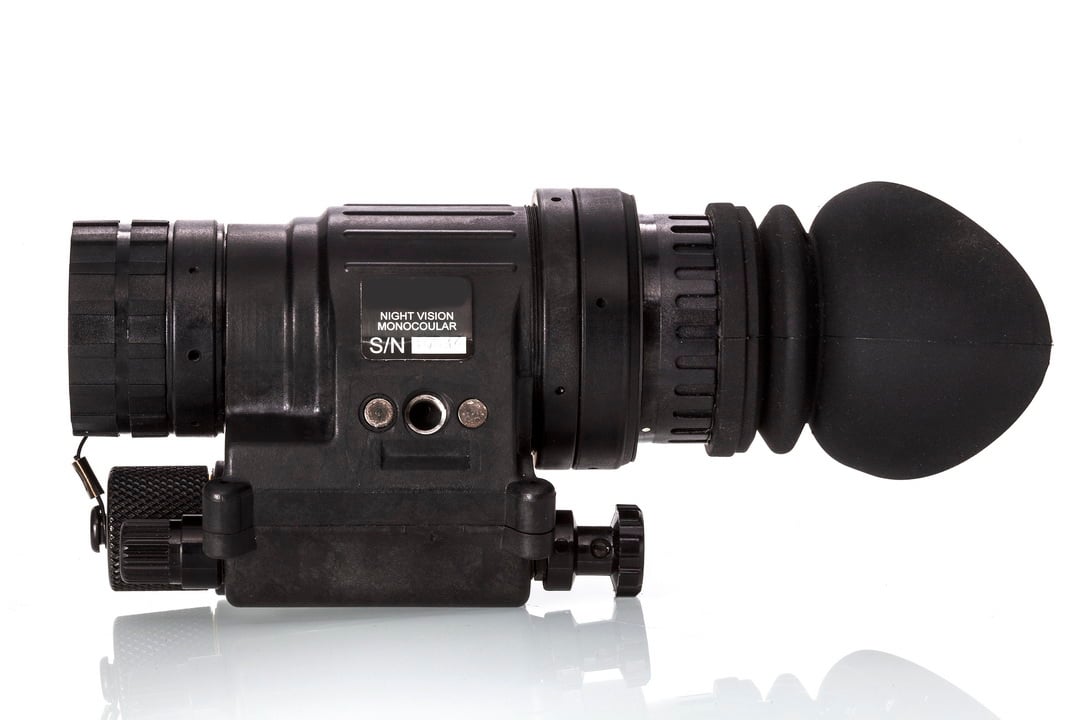

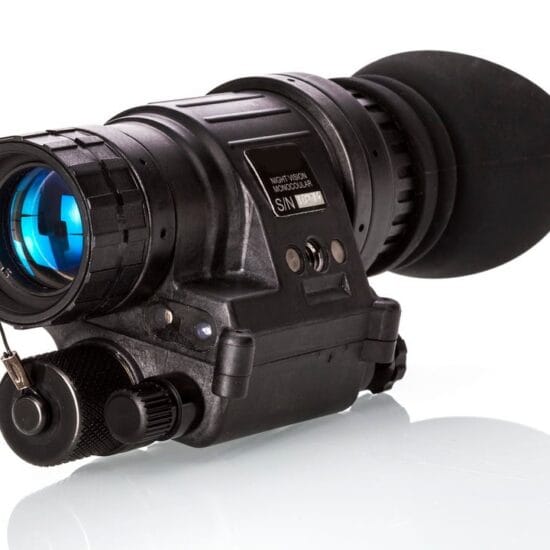

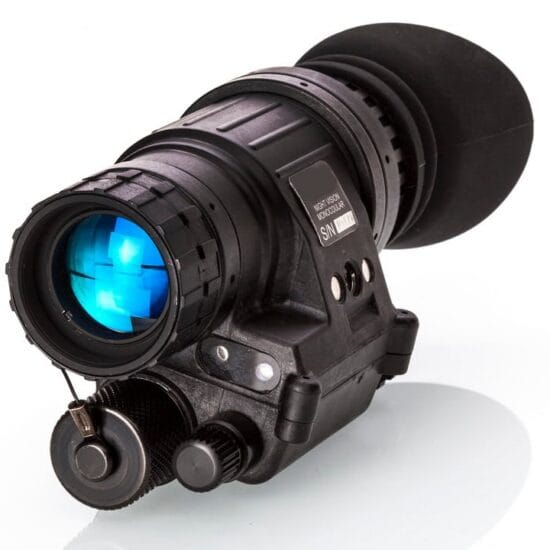

NVG PVS-14 Night Vision Monocular Gen 3 Auto-Gated Manual Gain

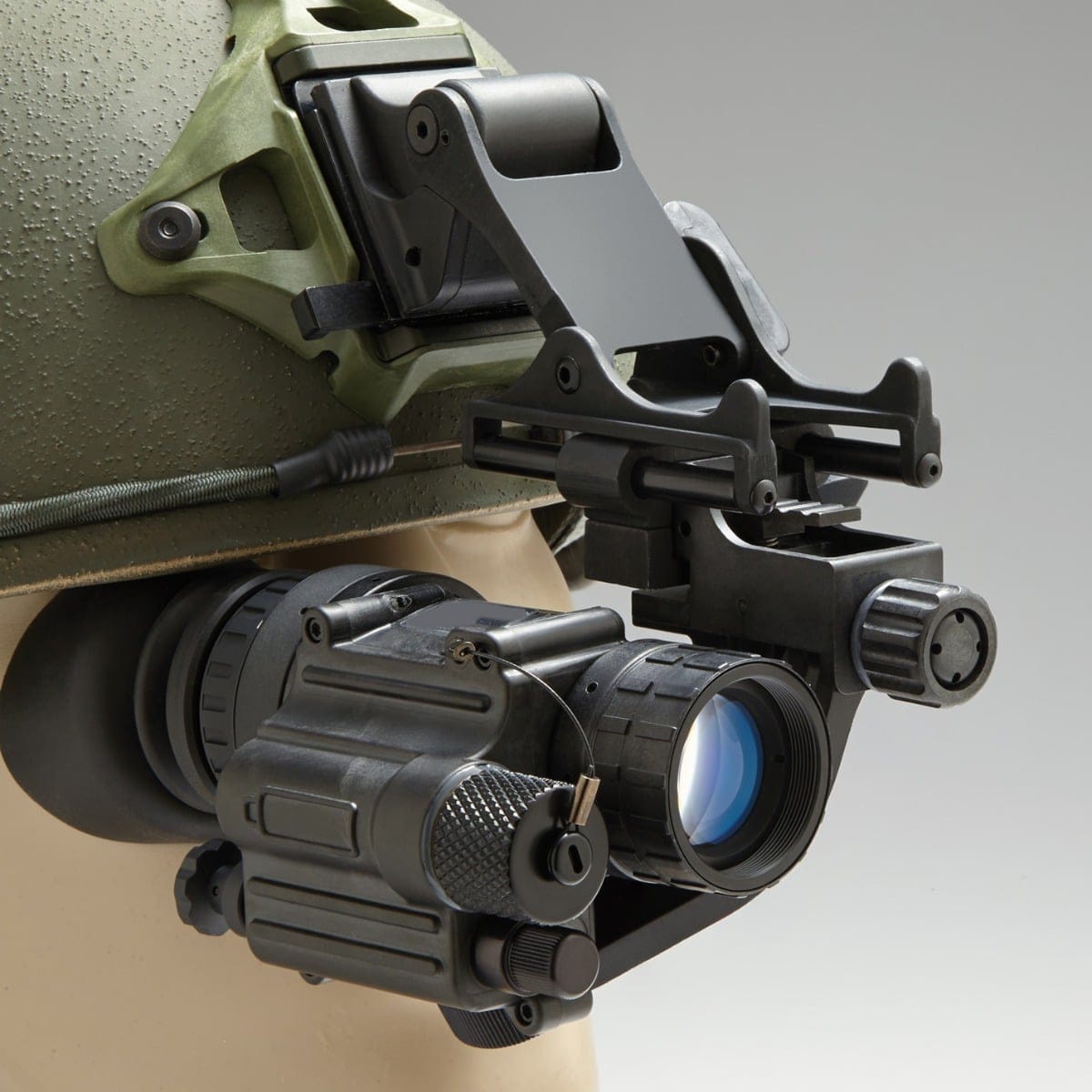

The NVG PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS-14 design was originally commissioned by the United States Military to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS- 14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets or weapons, providing night vision capabilities to daytime optical sights. The PVS-14 monocular conforms to 810G Military standards, and is of the highest quality form and function. The PVS-14 monocular is a full-featured unit, weighing less than 12.4 ounces/ 0.32 kilograms. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The automatic brightness control ensures a consistent, steady image by automatically adjusting the visual in real time, based on the available light in the area. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. NVG PVS-14 includes an array of optional accessories to support virtually any operation.
PACKAGE INCLUDES
| Image Intensifier Tube | Gen 3 Auto-Gated Manual Gain Elbit Systems (Green Phosphor) -w/Tube Data Sheet |
|---|---|
| Resolution | 68-76 lp/mm |
| Field of view cleanness by zone | Zone 2/3 Blem (s) |
| Magnification | 1x (3x and 5x optional) |
| Lens System | 26 mm; F/1.2 |
| FOV | 40° |
| Focus Range | 0.25 m to infinity |
| Diopter Adjustment | -6 to +4 dpt |
| Led Indicators | Low battery; IR On; Excessive light conditions |
| Infrared Illuminator | Yes |
| Manual Gain Control | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Battery Type | One AA Alkaline |
| Battery Life (Operating) | Up to 50 hours at 20°C |
| Operating Temperature Range | -51° C to +49° C (-60° F to 120° F) |
| Storage Temperature Range | -51° C to +85° C (-60° F to 185° F) |
| Weight | 0.32 kg (12.4 oz) |
| Overall Dimensions | 114 x 63x 69 mm (4,5 x 2,5 x 2,7 in) |
| Package Includes | Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator’s Manual, Battery |
