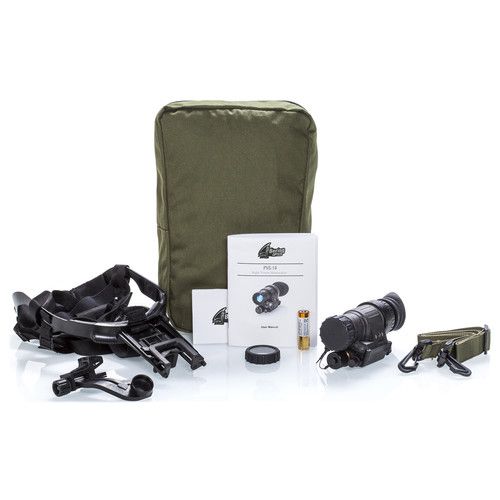

Kit includes:
Did you know?
Financing options are available at checkout!

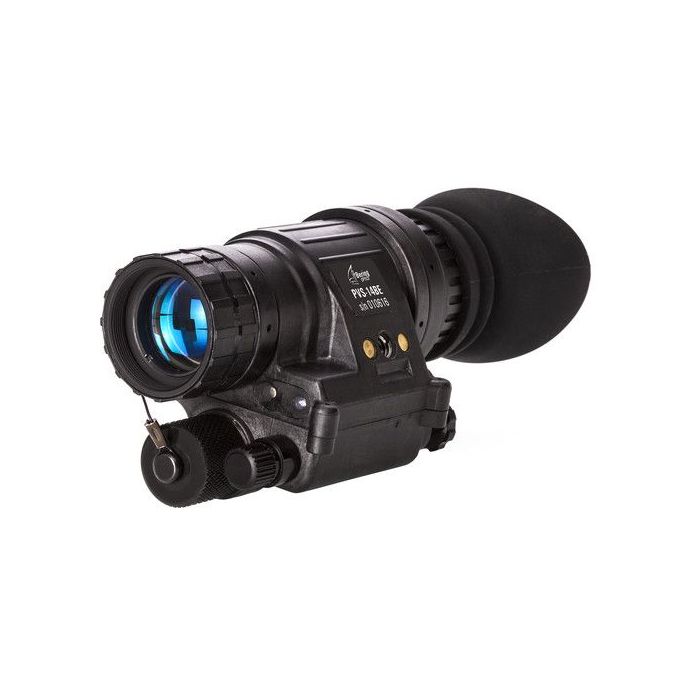

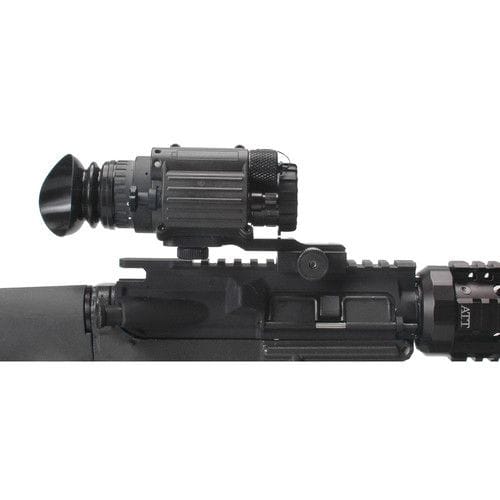

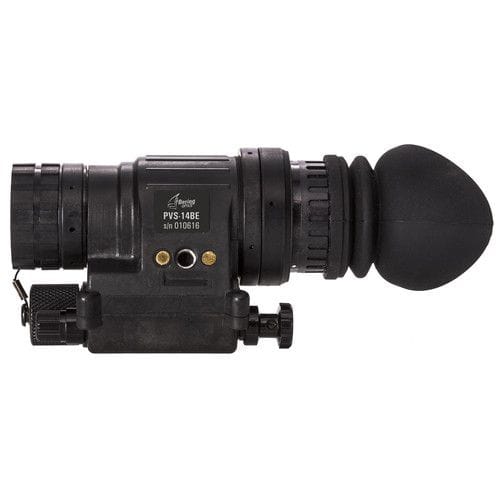

PVS-14BE is a highly versatile NV monocular that can be utilized for a number of applications including combat, rescue and surveillance missions. The PVS-14BE can be used as a handheld or hands-free single-eye goggle, or as a night vision weapon system when coupled with a daytime red dot or a holographic sight. The device is power sufficient running up to 40 hours from a single AA battery. The PVS-14BE monocular has automatic brightness control to achieve the highest image quality in varying light conditions. The monocular is loaded with neat features including a low battery and IR-ON indicators, a light overload sensor, that shuts the device off within seconds if accidentally exposed to bright light, and a “flip‐up” OFF magnetic switch. The unit has a durable, lightweight housing that is one of the most compact in the NV industry. There is a built‐in short-range IR illuminator for use in extremely low light conditions. To enhance viewing capabilities, the system can be paired with a 3.0x MIL SPEC Afocal lens that is easily attached to the monocular using a snap-on action. Also, the monocular can be converted into a powerful long-range NV viewer by screwing in a compatible 3.0x, 4.0x, 5.0x, 6.0x or 10.0x objective lens. The PVS-14BE is offered with Gen 2+ image intensifier tube, both green and white phosphor technology. The Elite option comes with the Unfilmed Gen 3+ tube.
| Product Modification | PVS-14BE Gen 2+ | PVS-14BE B&W Gen 2+ | PVS-14BE Gen 3+ |
|---|---|---|---|
| Product SKU# | BE72140 | BE72140MGW | BE73140MGUW |
| Magnification, x | 1.0 | ||
| Optical system | 26mmF/1.2 | ||
| Image intensifier tube classification | Gen 2+ 64-72 lp/mm | Gen 2+ 45-56 lp/mm | Unfilmed Gen 3+ 64-72 lp/mm |
| Image intensifier tube s/n ratio | 1:20 or better | 1:18 or better | 1:25 or better |
| Manual gain | – | Yes | Yes |
| Field of view, degree | 40deg | ||
| Focus range, in/ m | 10″ / 0.25 to infinity | ||
| Eye relief distance, mm | 25 | ||
| Exit pupil, mm | 14 | ||
| Diopter setting, D | +2, -6 | ||
| Detection range, approx., yard/m -quarter moon -cloud cover | 275 / 250220 / 200 | 275 / 250220 / 200 | 360 / 325245 / 225 |
| Recognition range, approx., yard/m -quarter moon -cloud cover | 220 / 200175 / 160 | 220 / 200175 / 160 | 275 / 250220 / 200 |
| Overall dimensions, in/ mm | 4.33″ x 2.24″x 1.97″ / 110x57x50 | ||
| Weight w/out headgear and batteries, oz/g | 11 / 310 | ||
| Weight with headgear, oz/g | 18.3 / 520 | ||
| Power supply | AA battery (one) / 1.5V | ||
| Estimated battery life w/out IR under 73degF, hour | up to 40 | ||
| Operating temperature, degF/degS | -59 to +131 / -51 to +55 | ||
| Water intrusion | Meets MIL-STD-810G environmental test | ||
| Humidity, % | up to 98% |
