| Type | VOx Uncooled |
| Resolution, pixels | 640×512 |
| Pixel Pitch, µm | 12 |
| NETD, mK | ≤20 |
| Frame Rate, Hz | 60 |
| Objective Lens,mm | 60 F1.0 |
| Optical Zoom, x | 3 |
| Field of View, degrees / yd @ 100 yd | 7.3°×5.8° |
| Digital Zoom, x | 1 to 6, stepped |
| Eye Relief, mm | 60 |
| Diopter Adjustment, D | -5 to +2 |
| Detection Range, m/yd | 3280 |
| Type | OLED |
| Resolution, pixels | 2560 x 2560 |
| Type, nm | 905 |
| Max Range, yd | 1200 |
| Wireless Protocol | Wi-Fi |
| Frequency, GHz | 2.4GHz |
| Frequency, MHz | 2402~2480 |
| Video / Photo Resolution, pixels | 1280×1280 |
| Video / Photo Format | .mp4 / .jpg |
| Built-in Memory, GB | 64 |
| Degree of Protection, IP code | IP67 |
| Operating Temperature Range, °F | -4 to +122 |
| Weight, lb | 2.9 |
| Dimensions, inch | 10.3×3.3×3.8 |
| Battery Type | 18650×2 |
| Capacity, mAh | 3800 |
| Operating Time on Battery Pack (at t=72°F), h | 8 |
| External Power Supply, V | 5V (Type C USB) |
| Max Recoil Power on Rifled Weapon (Eo), g/Joules | 1000g/6000Joules |

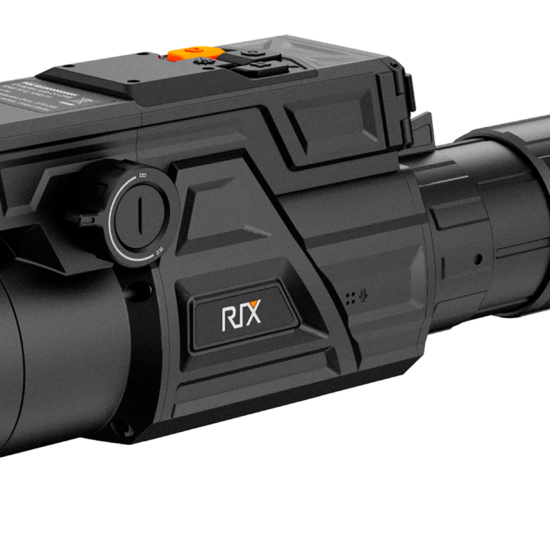

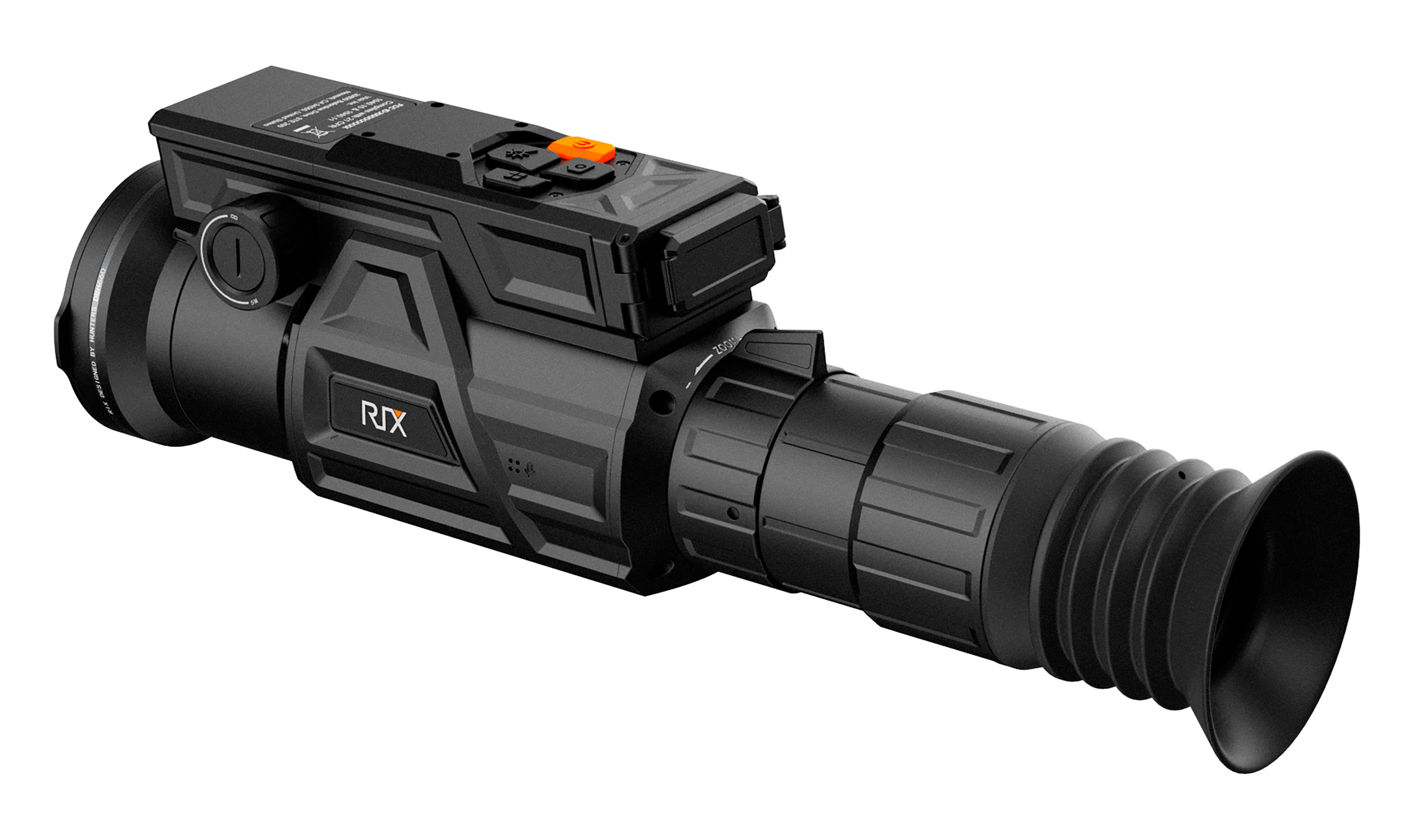

RIX DBH D6 Thermal Imaging Riflescope
The RIX DBH D6 is a thermal imaging riflescope that was designed by hunters, for hunters. The DBH D6 features a built in laser rangefinder, rotating zoom lever, 60Hz frame rate and 2560×2560 circular display.
RIX DBH D6 Features
High Performance Sensor
The DBH D6 is equipped with a 640×512 12μm sensor boasting a NETD <20mK and a 60Hz refresh rate, ensuring hunters always get a clear and smooth image.
Comfortable Optical Imaging
The DBH D6 features a 60mm objective lens with 3x base magnification. The 3-18x magnification range helps users clearly observe targets at longer distances. Digital zoom control that steps in precise 0.1x increments.
2560×2560 High Resolution Circular OLED Display
The circular high resolution 1.03in OLED screen allows for precise zeroing, maintaining each adjustment at only 3/8″ @ 100 yards while providing a highly detailed image.
Ballistic Calculation in Both Device and App
Automatically calculate the aiming position and display it on the device screen based on air temperature, wind speed, ammunition, distance and other information. Using WiFi and RIX+ App, ballistic parameters can be uploaded or downloaded, so that shots are more precise.
8 Hours Operating Time
Powered by two 18650 batteries that can be inserted in any orientation, makes battery changes in the dark a lot easier.
Intuitive Design
The dual side focusing structure with 250° rotation cycle and the quick throw zoom lever make zooming in and out quick and convenient, helping you acquire targets faster. The dual lever return to zero QD mount makes mounting and unmounting quick and easy.
Features for Hunters
The RIX DBH provides multiple functions that can effectively improve the hunting experience. Boasting an integrated green laser that is easily activated for marking downed game (an industry first). A built in 1200 yard laser rangefinder and video and photo playback features in the scope.
Recoil Activated Video
It provides a recoil detection algorithm, it detects recoil in real time and records every moment of your action packed hunt.
IP67 Waterproof
Engineered with an impressive IP67 waterproof housing, the DBH D6 is fortified against water intrusion, ensuring robust protection. This exceptional waterproofing capability safeguards the internal components, significantly extending its lifespan.
Built-In MIC
Experience uncompromising audio quality with RIX carefully selected built-in microphone.
Photo, Video Recording and Display
The RIX DBH D6 features built in photo video recording capabilities with 64GB of internal storage. Effortlessly capture remarkable moments, day or night.
1000g Impact Resistance
Durable design enables it to withstand impact of up to 1000g, making it an ideal choice for rifles with large calibers such as .375 H&H, 12 gauge, and 9.3×64. It is built to ensure longevity and to remain undamaged even under challenging conditions.
WiFi Integration with the RIX+ App
With the built in WiFi module, you can establish a seamless connection between the device and your Android or iOS smartphone via the RIX+ App. This powerful combination offers a multitude of advantages, such as wireless software updates and live image streaming directly to your mobile device screen.
Picture in Picture Function (PIP)
The DBH D6 is also equipped with a PIP (Picture in Picture) function. When enabled, the DHB will display a zeroing frame on the screen. It allows the user to observe the image in the aiming area while maintaining visual control of the entire field of view.
