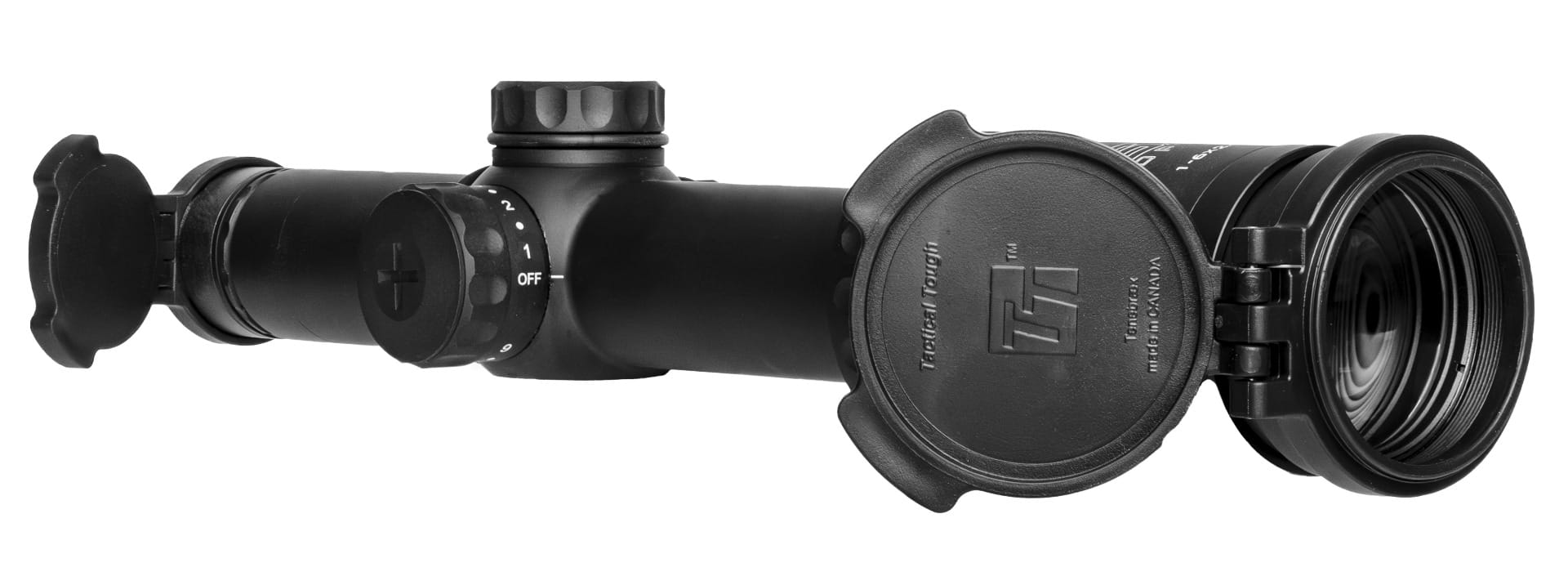

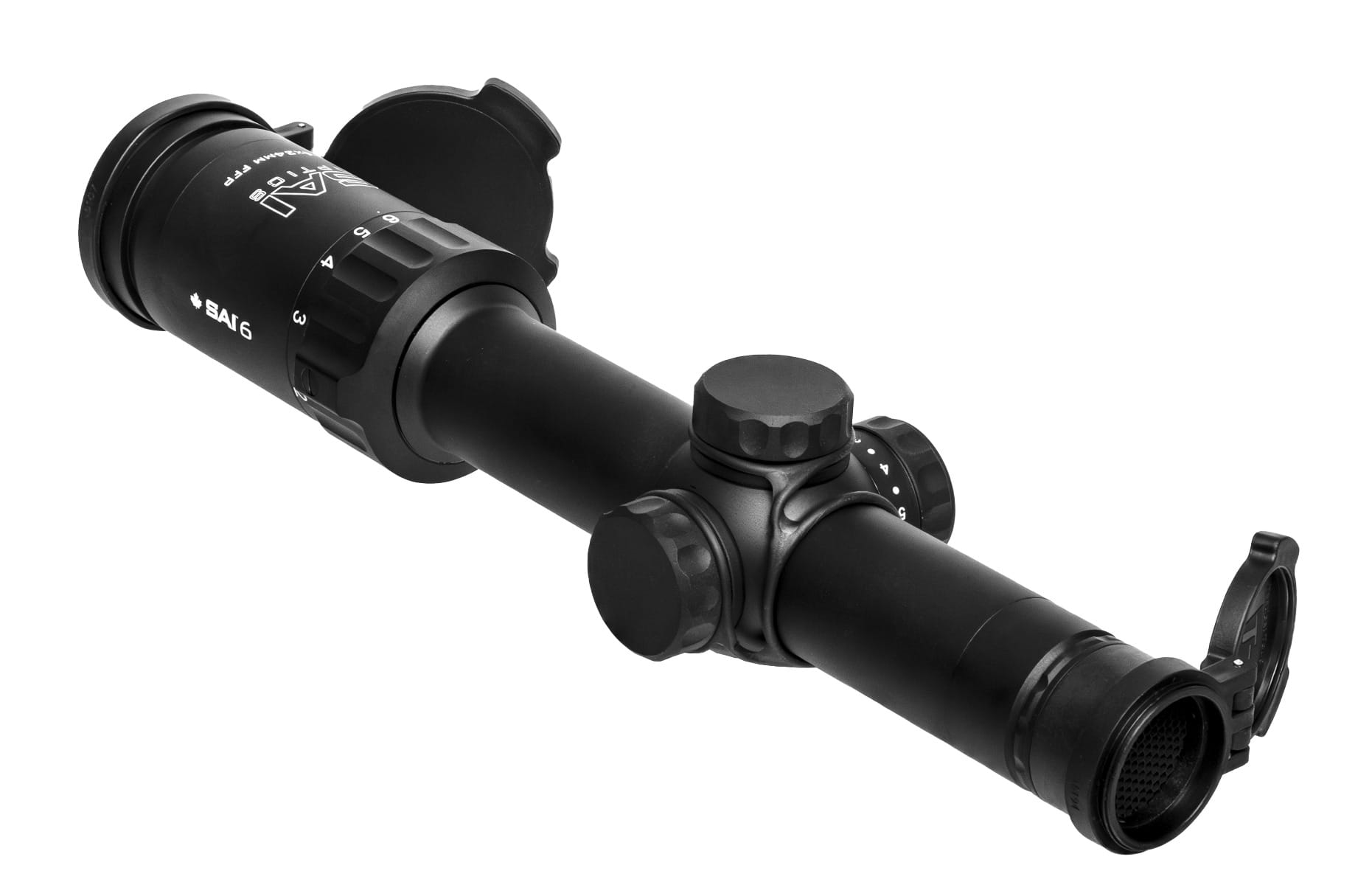

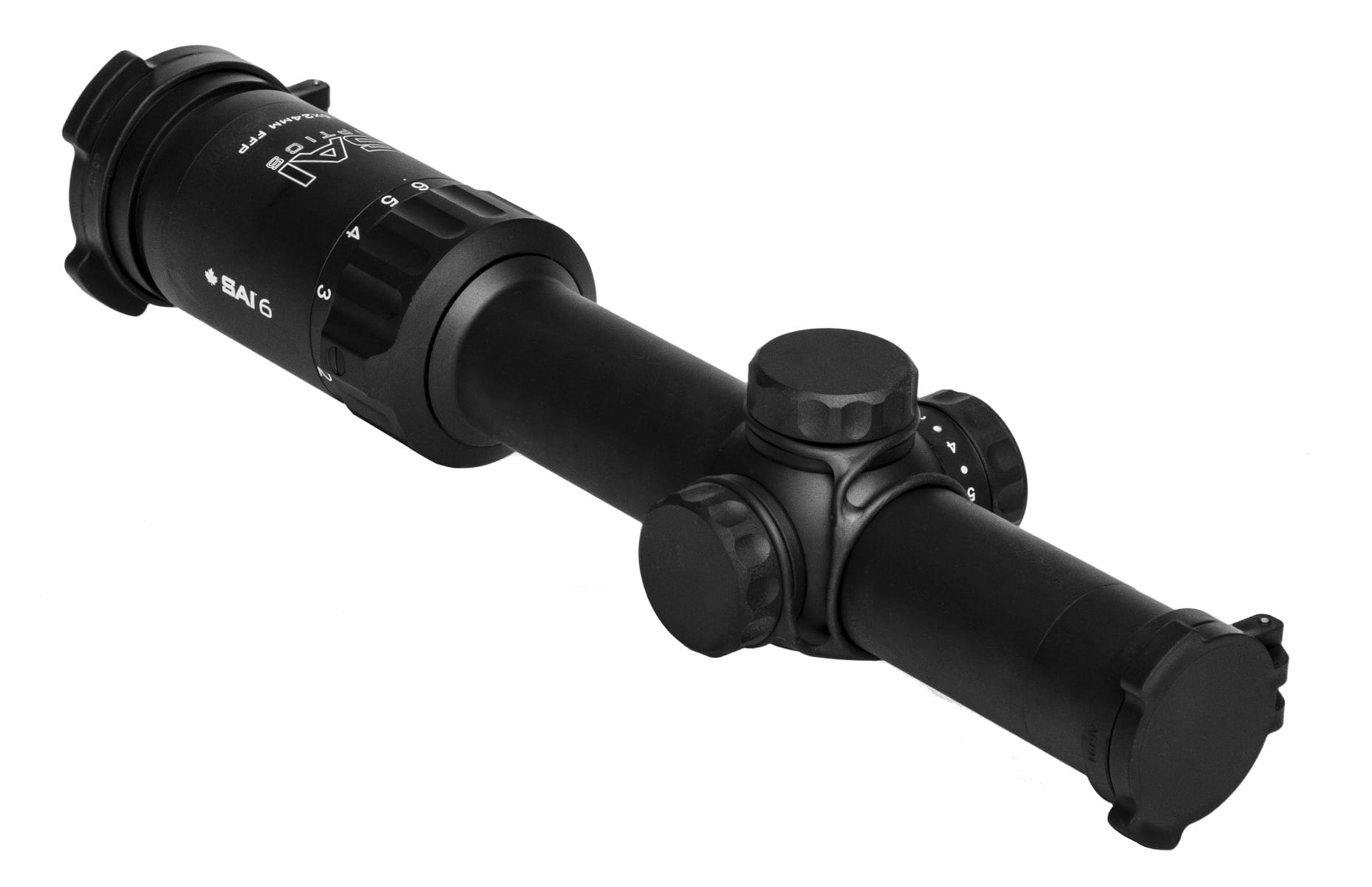

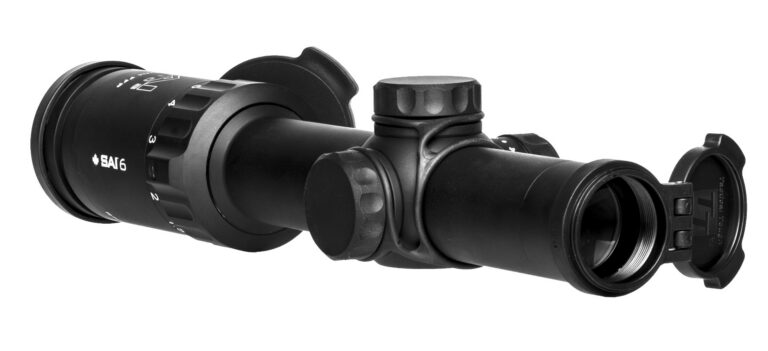

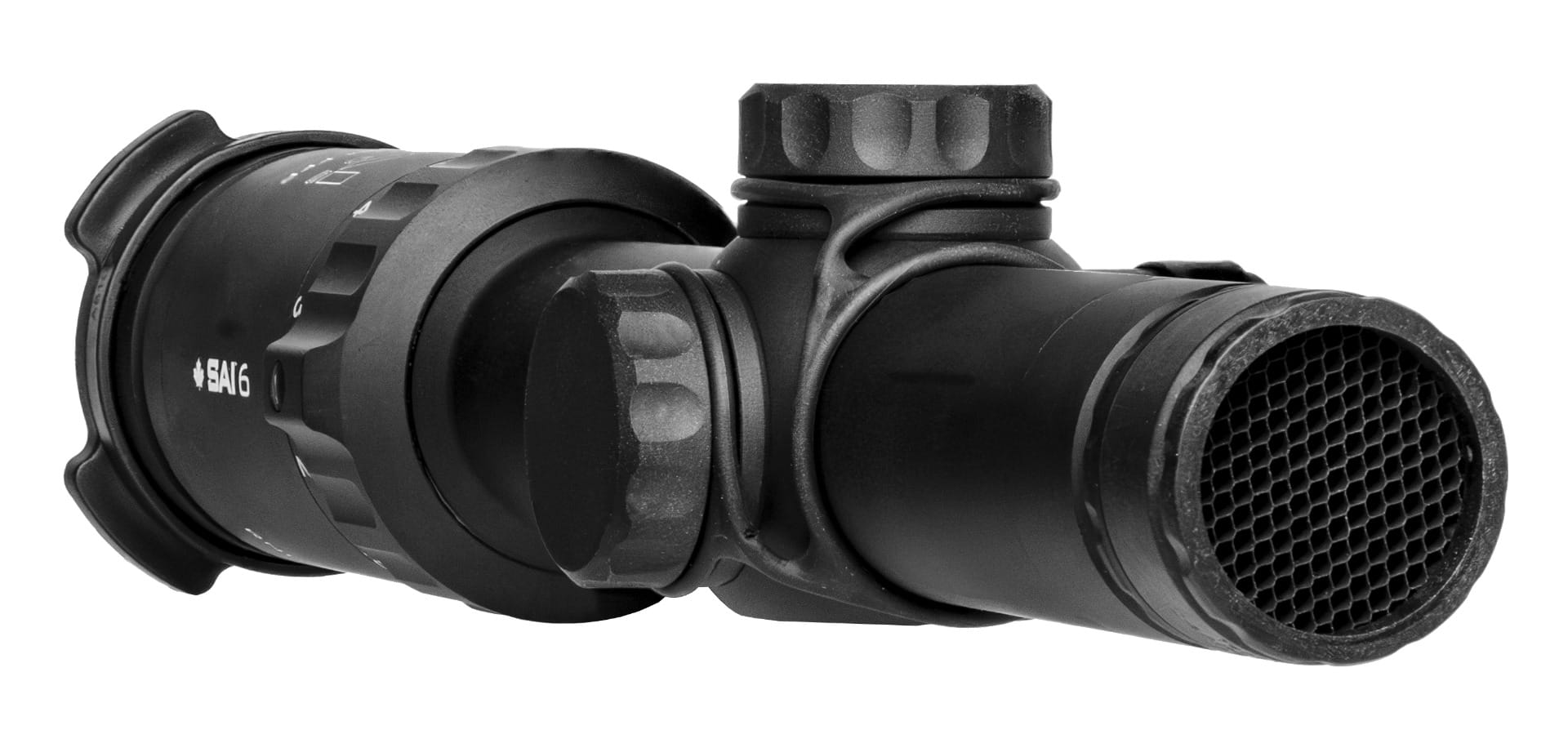

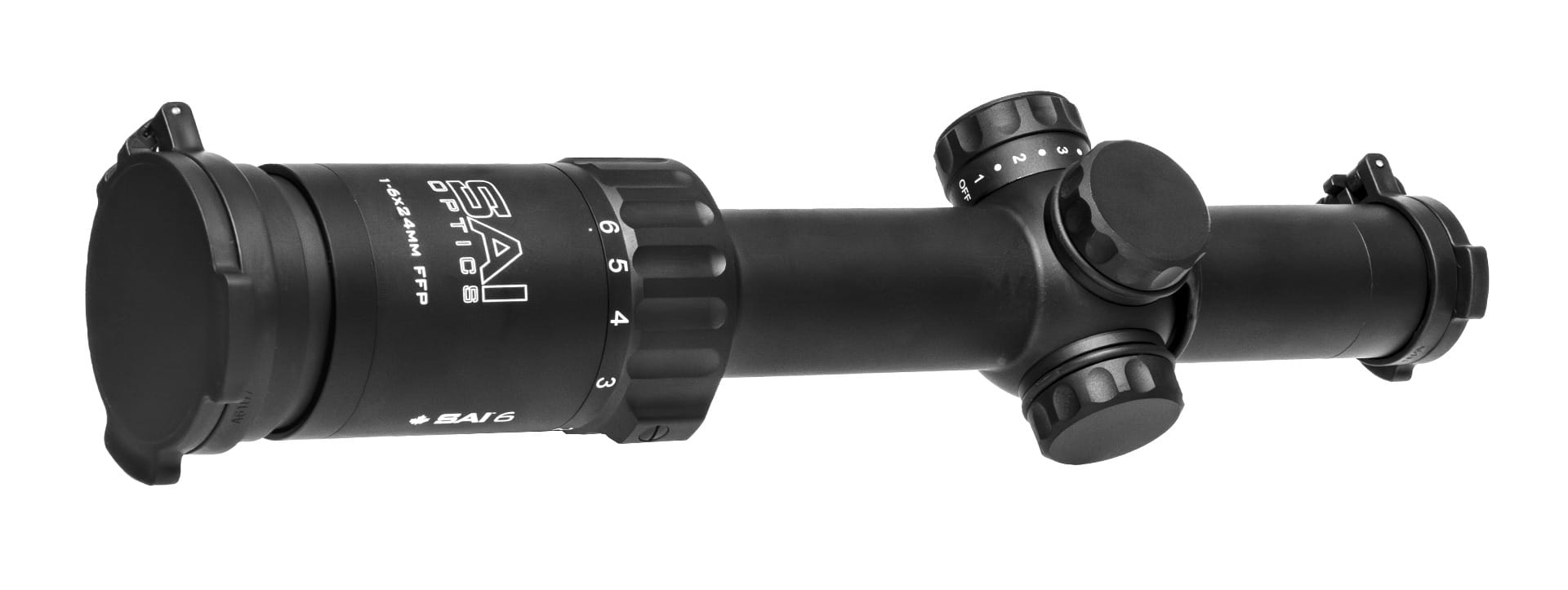

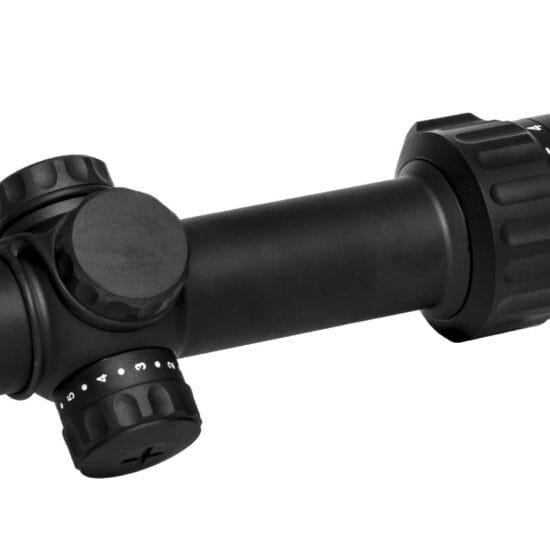

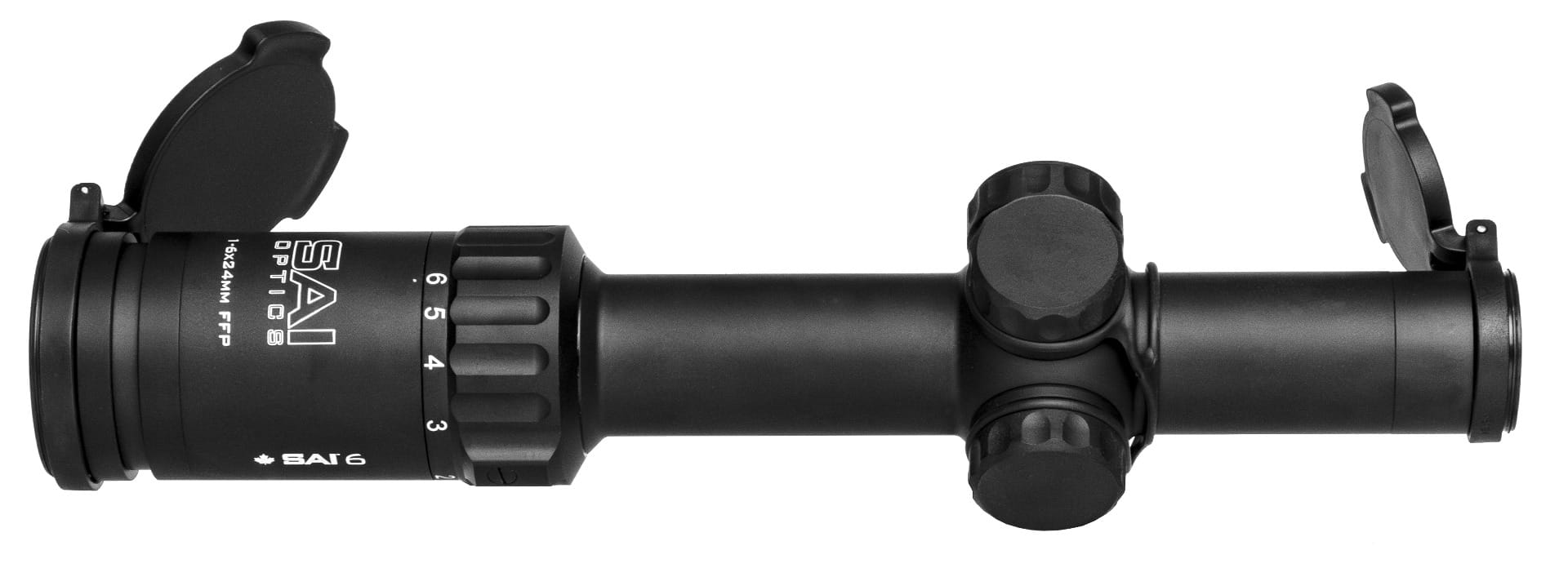

SAI Optics™ SAI 1-6×24 MIL Reticle No RAF, Black
Financing available at checkout

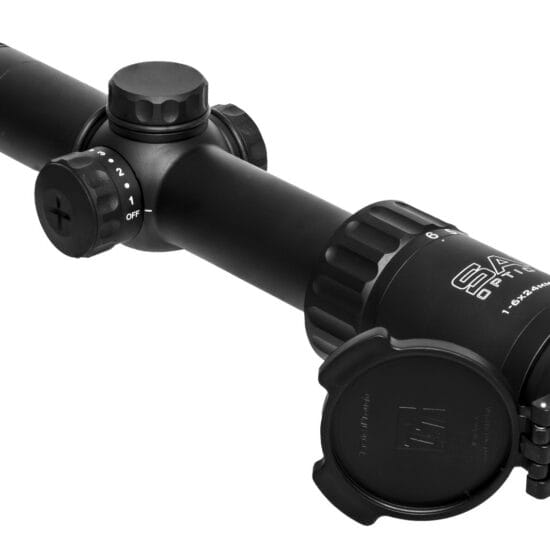

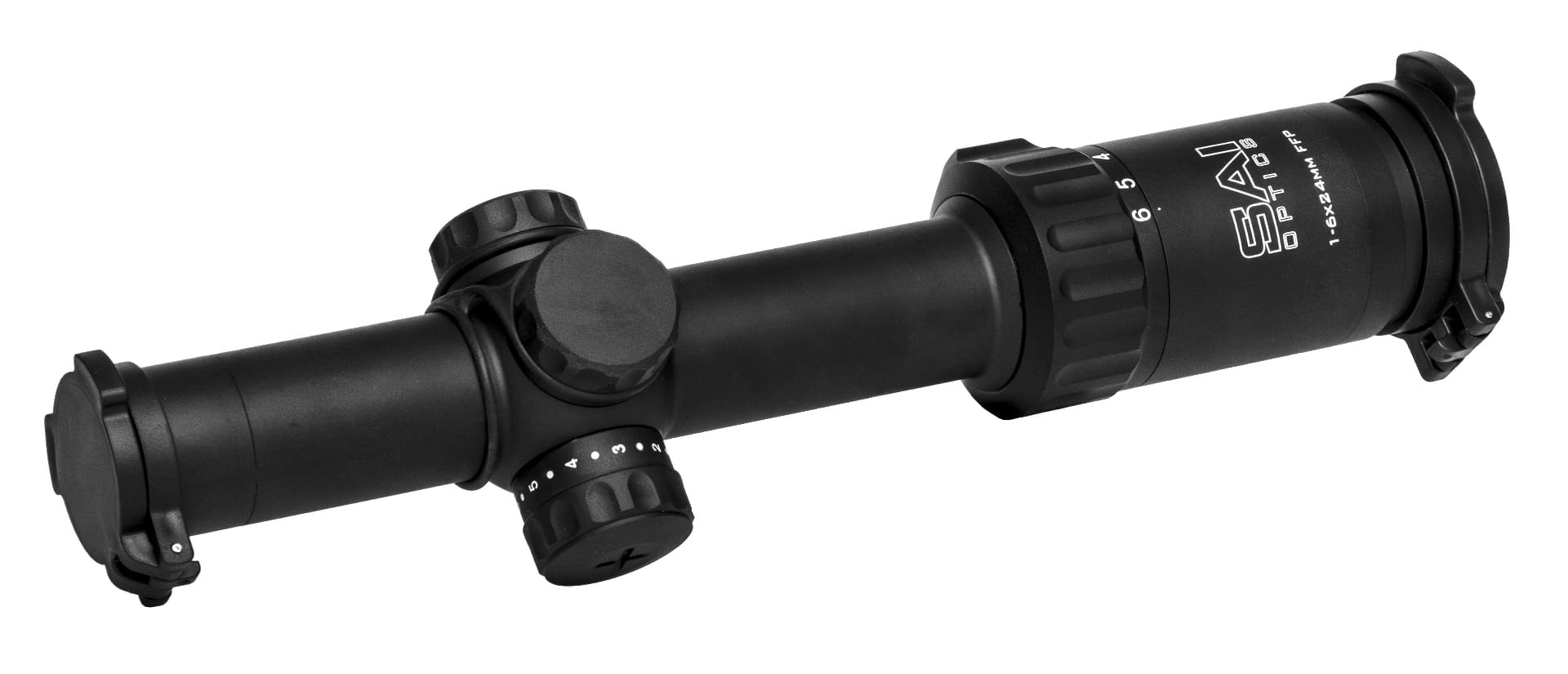

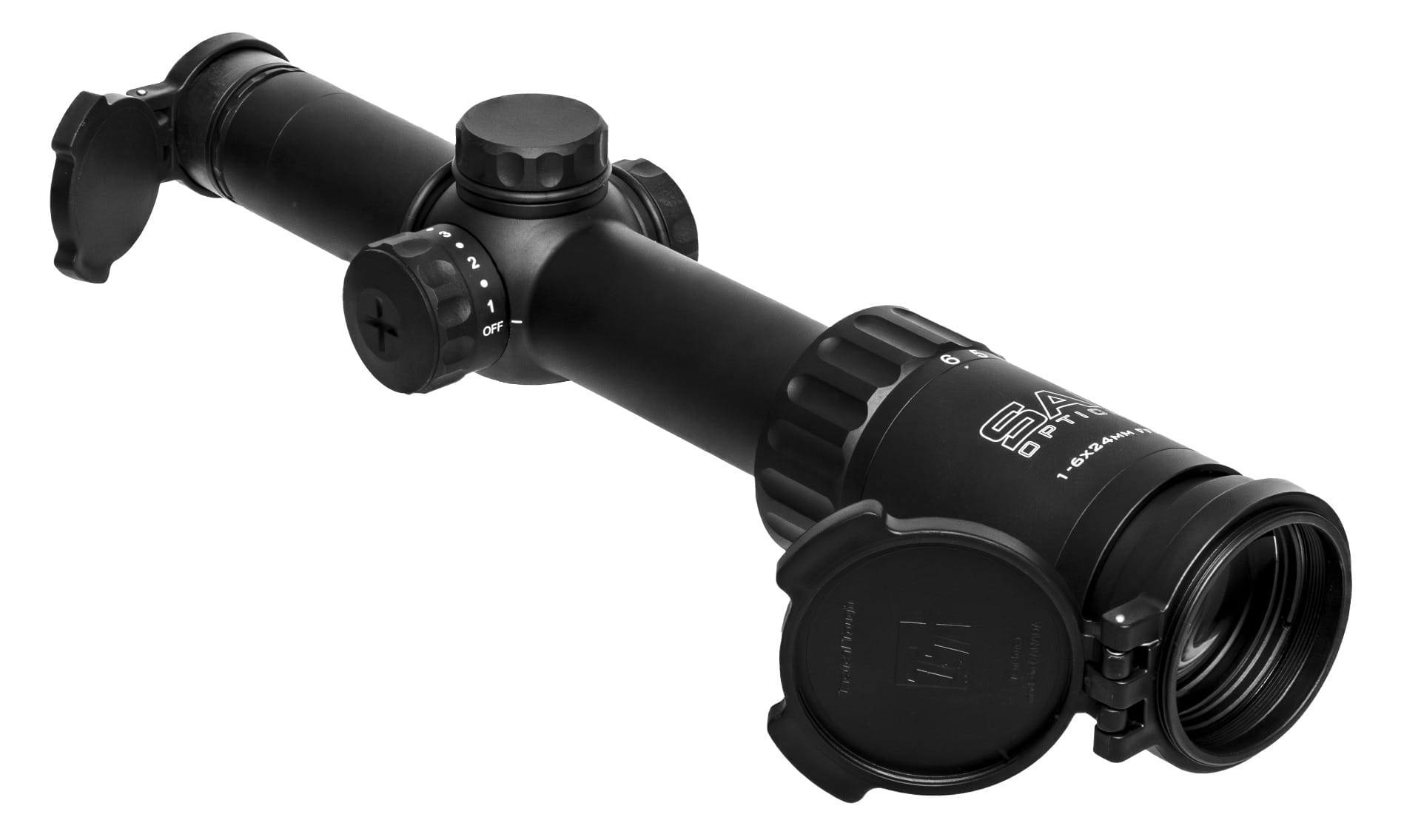

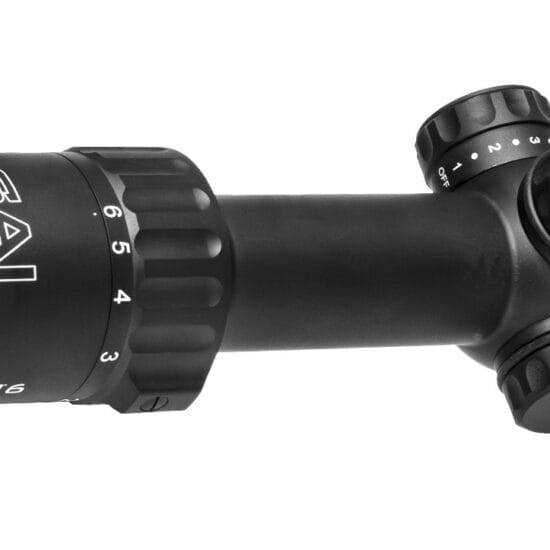

The SAI™ 6 series of optical sights provide a rugged and versatile solution for a variety of sighting requirements in variable magnification. With an LED-illuminated First Focal Plane reticle, ranging and ballistic hold-off is accurately achieved at any magnification. The proprietary Rapid Aiming Feature™ reticle and superior field of view enhance close-quarter effectiveness. The ruggedized tubular design allows for a variety of modular mounting solutions.
The SAI™ 6 series is designed to accommodate advanced optical sighting system enhancements such as flip covers, Anti-Reflection Devices, laser filters, and polarizers. SAI™6 series sights are designed for brilliant optical performance in rugged environments.
Reticles
MRAD – RAF
MRAD – No RAF
Specifications
$1,298
SKU:
RNG16-BK22-MB1
Did you know?
Financing options are available at checkout!
Description
Specifications
Technical Specs
Description
Features

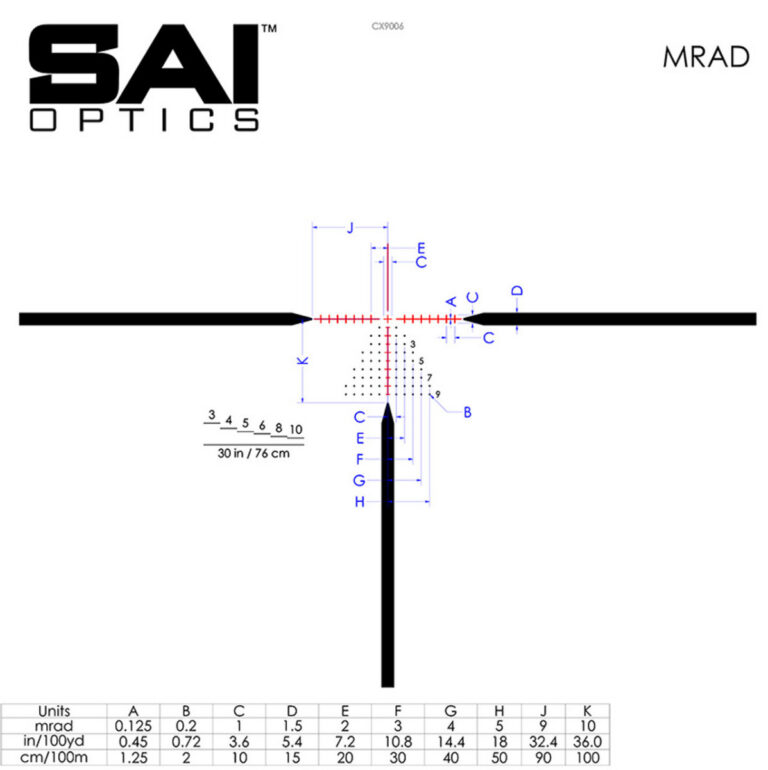

The MRAD reticle, featuring our proprietary Rapid Aiming Feature™, represents an innovative advancement in optical sighting systems. This cutting-edge reticle is etched, eliminating the need for electrical power, ensuring its continuous functionality as long as the optical integrity of the sighting system is maintained. While it can be enhanced by illumination, it remains operational even without it.
Designed with versatility in mind, the MRAD reticle with Rapid Aiming Feature™ is particularly well-suited for first focal plane (FFP) optical sights. FFP reticles maintain angular scaling at any magnification level but can become less conspicuous at lower magnifications. However, the Rapid Aiming Feature™ stands out prominently even at low magnification settings. Its angularly intersecting geometry naturally guides the eye to the center, making it highly effective for quick target acquisition.
At longer ranges and higher magnifications, the robust features of the Rapid Aiming Feature™ do not interfere with fine aiming elements. Instead, they form a surrounding geometry that can be used to encircle and engage poorly defined targets in challenging conditions, similar to the effectiveness of a circular peep sight.
The MRAD reticle featuring the Rapid Aiming Feature™ serves as a versatile solution for sighting systems required to perform effectively at short, medium, and long ranges. This innovative reticle is exclusive to Armament Technology Incorporated and is complemented by round-specific ballistic trajectory data, meticulously derived through scientifically controlled live fire trials.
Key features of the MRAD reticle with Rapid Aiming Feature™ include:
Bullet-shaped Rapid Aiming elements.
Graduated fine crosshair with a central floating cross.
Ballistically corrected holdover hashmarks.
Vertical Subtention Optical Rangefinder (VSOR).
Wind hold-off reference dots.
At close quarters (50 meters and closer), the Rapid Aiming Feature™ provides a highly prominent aiming point that stands out against the target. In these scenarios, illumination can further enhance precision by highlighting the thin stadia and central cross.
At 25 meters, the MRAD reticle, with its Rapid Aiming Feature™, collaborates with the thick horizontal stadia to frame the target and naturally guide the shooter’s focus to the center. The LED illumination of the thin horizontal and vertical stadia, including the central cross, augments this feature’s performance in low-light conditions, ensuring exceptional accuracy and target acquisition capabilities.
Standard Accessories:

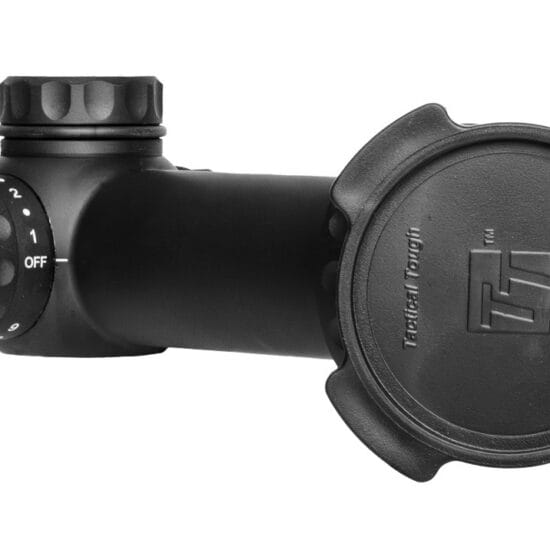

- Tenebraex® Tactical Tough® lens covers
- Tenebraex® killFlash® Anti-Reflection Device
- Adjustment Cap retaining lanyard
- Battery removal disc
- Part Numbers:
SAI6 MIL Reticle RAF : Part Number RNG16-BK22-MA1 | UPC 666595000896
SAI6MIL Reticle No RAF : Part Number RNG16-BK22-MB1 | UPC 666595000902
Specifications
| Magnification | 1x-6x |
|---|---|
| Length | 256mm (10.07in) |
| Width | 67mm (2.64in) |
| Height | 53mm (2.09in) |
| Weight | 510g (18.0oz) |
| Tube Diameter | 30mm |
| 30mm | 24mm |
| Eyepiece diameter | 46mm (1.81in) |
| Field of View @ 1x | 22 degrees (38.8m @ 100m) |
| Field of View @ 6x | 3.7 degrees (6.5m @ 100m) |
| Diopter range | -3 to +3 |
| Eye relief | 90mm (3.54in) nominal |
| Exit pupil @ 1x | 9.5mm |
| Exit pupil @ 6x | 4.0mm |
| Re-zero mechanism | Finger adjustable |
| Internal Adjustment Range: Elevation | 35mrad (120 MoA) |
| Internal Adjustment Range: Windage | 35mrad (120 MoA) |
| Adjustment Resolution | 0.1mrad |
| Adjustment direction | Counter-clockwise up, counter-clockwise right |
| Fixed focus range | 110m |
| Crosshair illumination | LED, red, 10 settings |
| Battery type | CR2032 3v lithium |
| Exterior finish | Type II Anodized, matte flat dark earth |
| Storage Temperature | -51C – +85C |
| Operating temperature | -40C – +65C |
| Waterproof | 2 hour @ 3 meters |
| Shockproof | 1000g’s @ 10,000 cycles |
