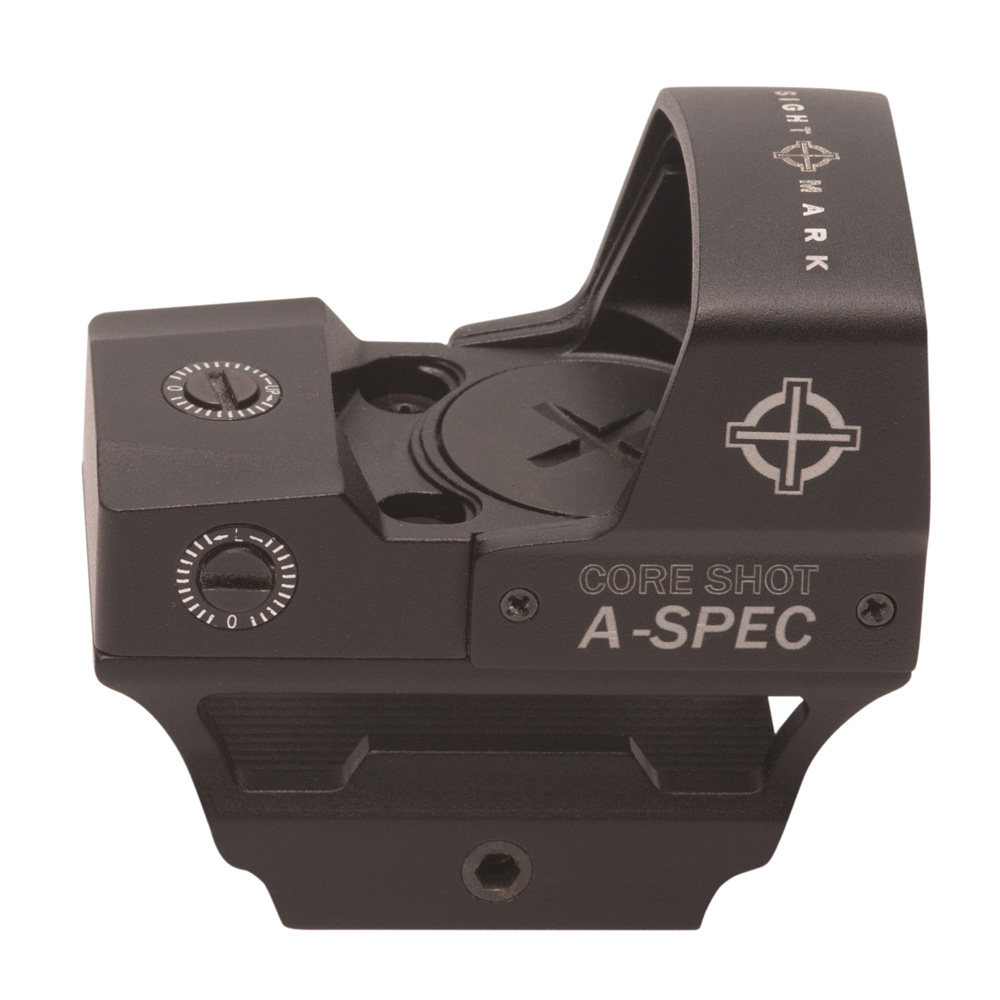

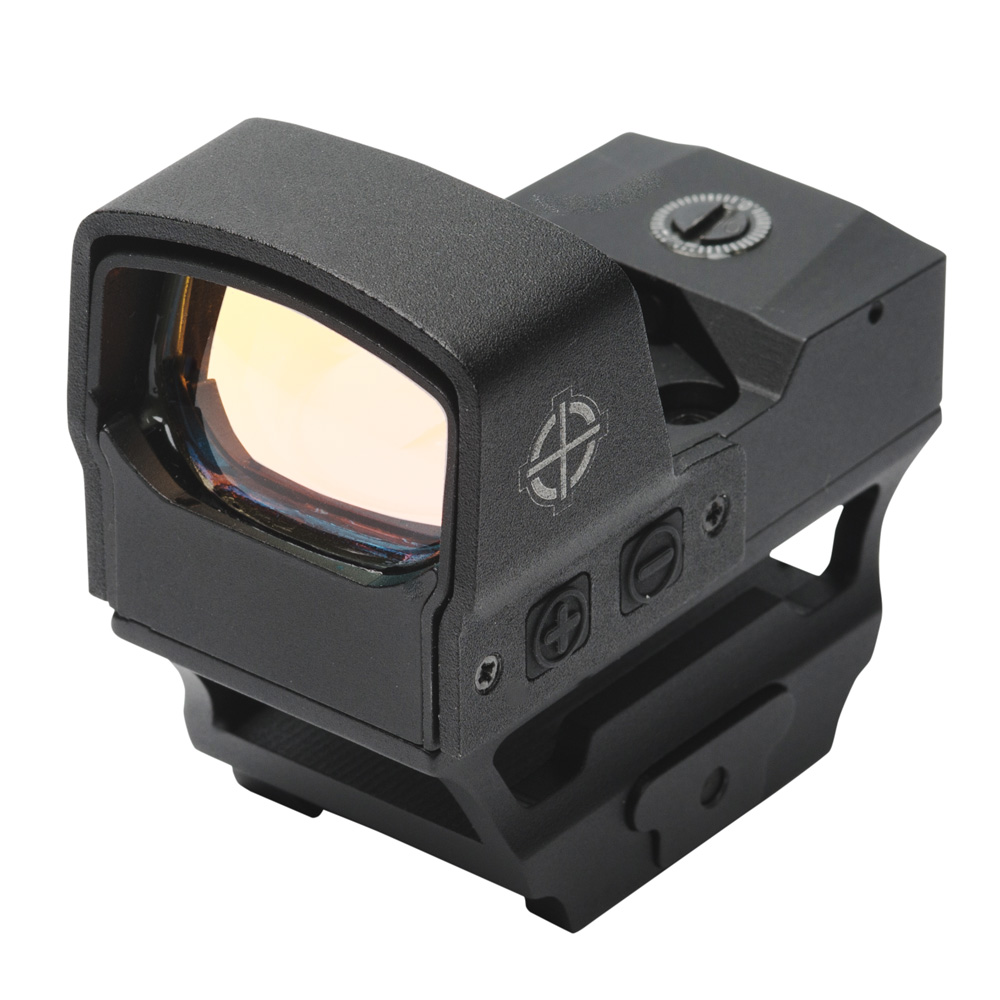

**Core Shot A-Spec FMS Reflex Sight**

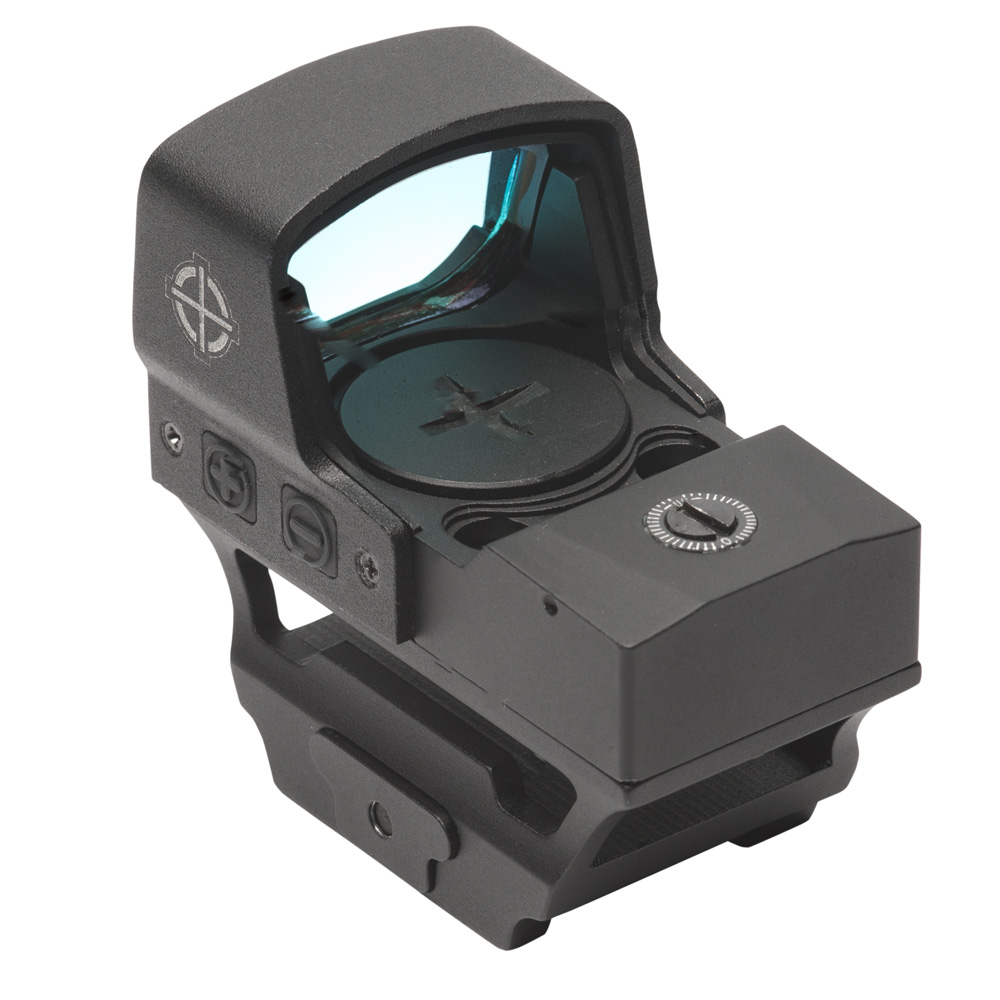

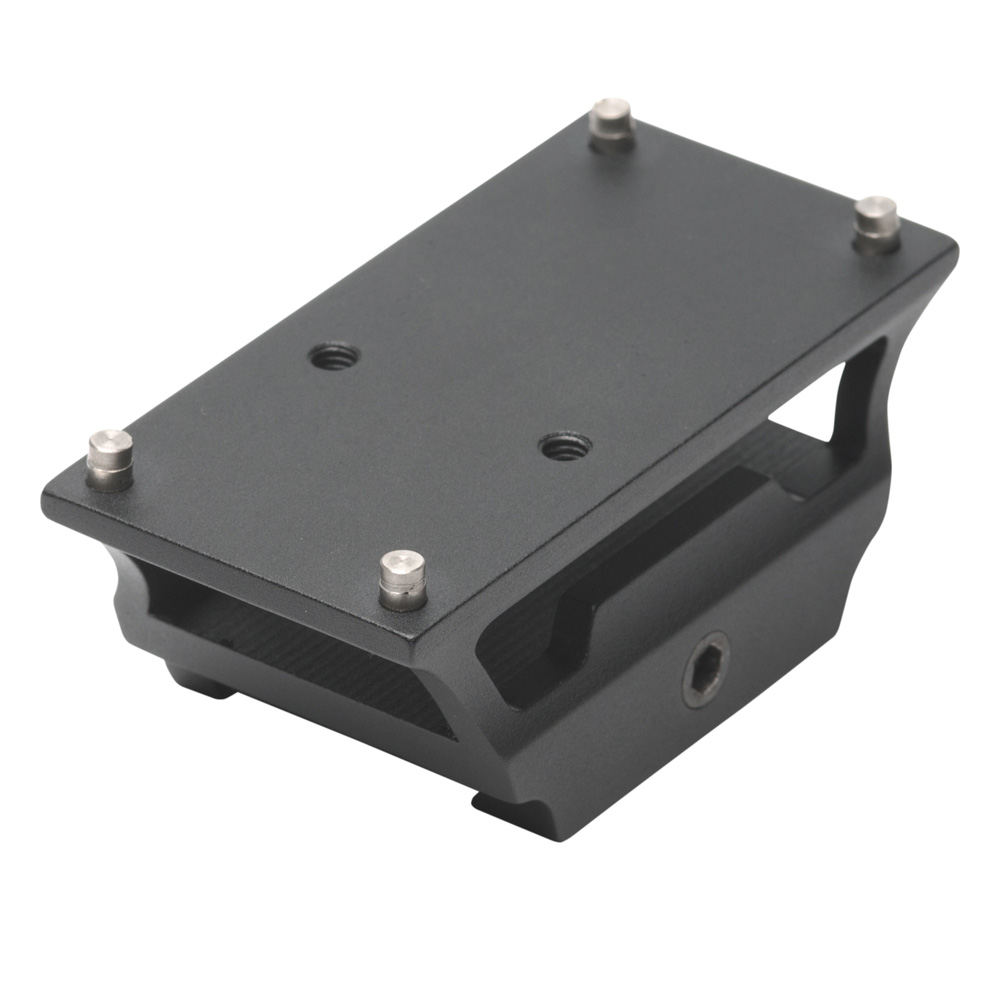

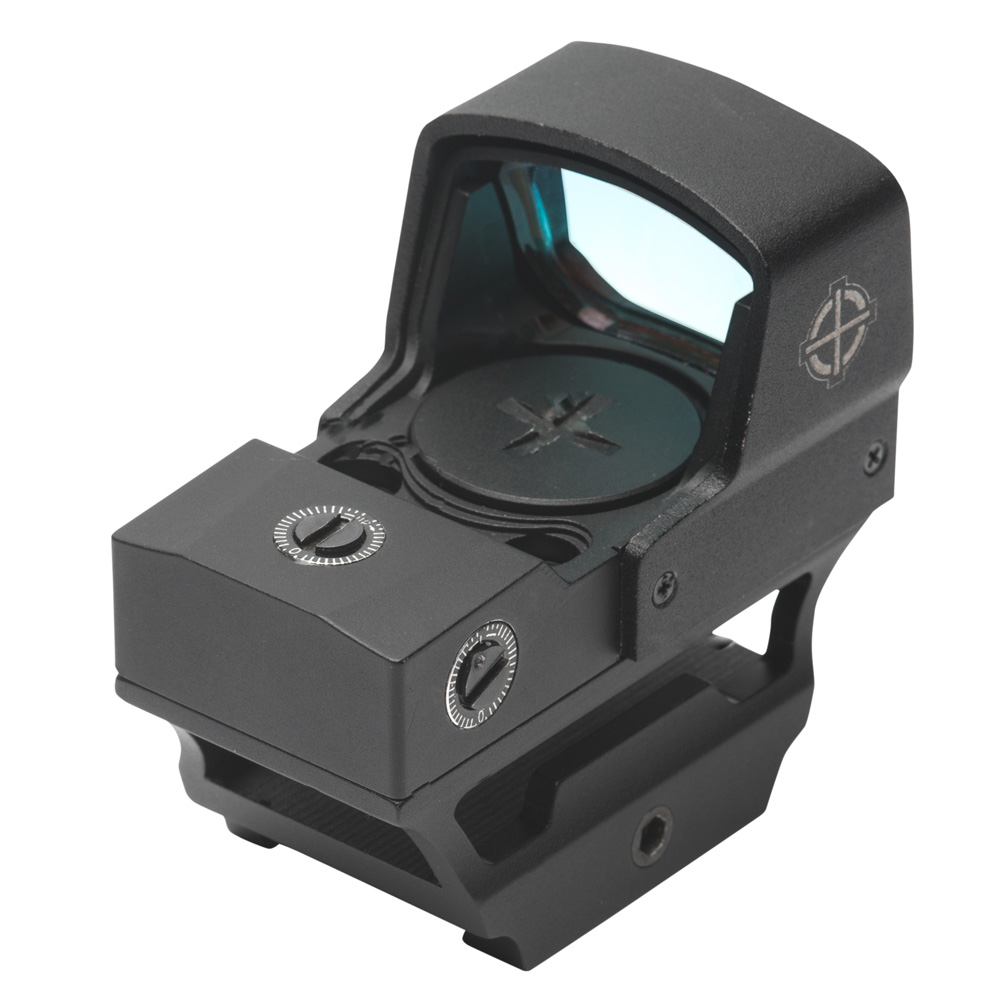

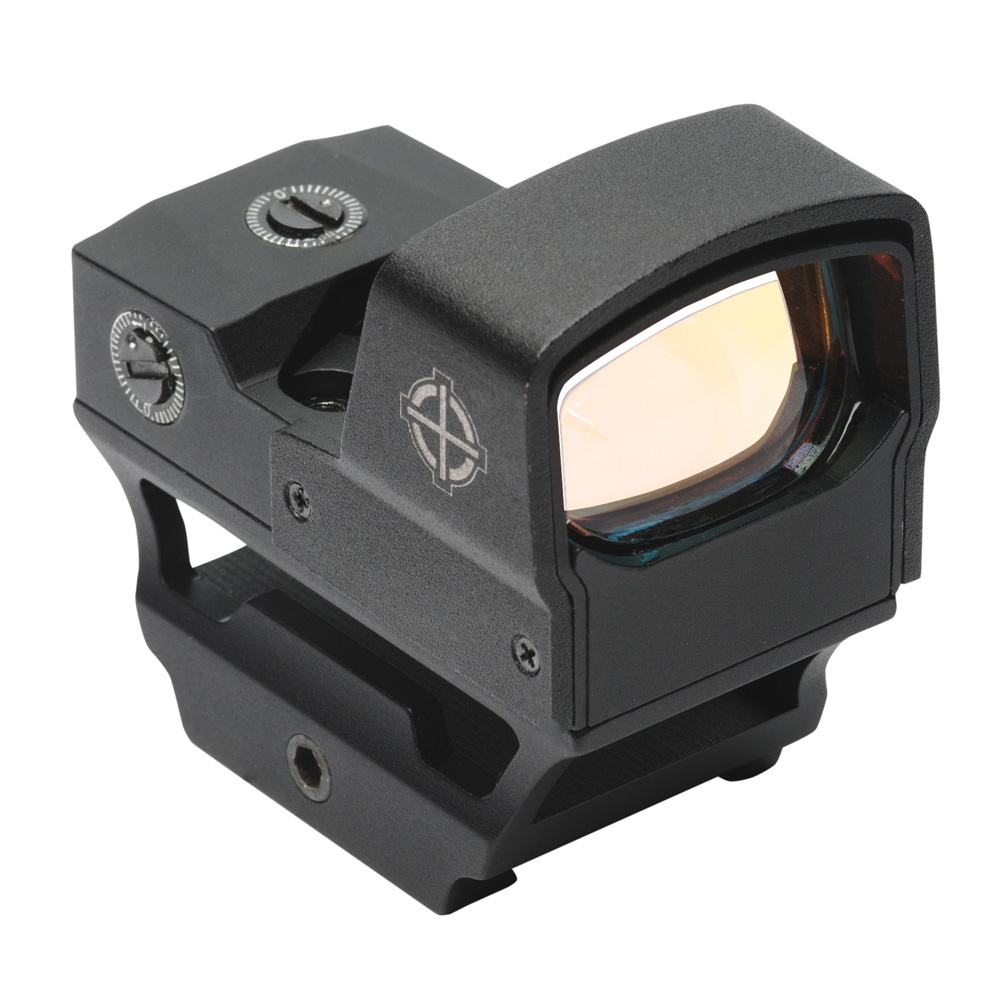

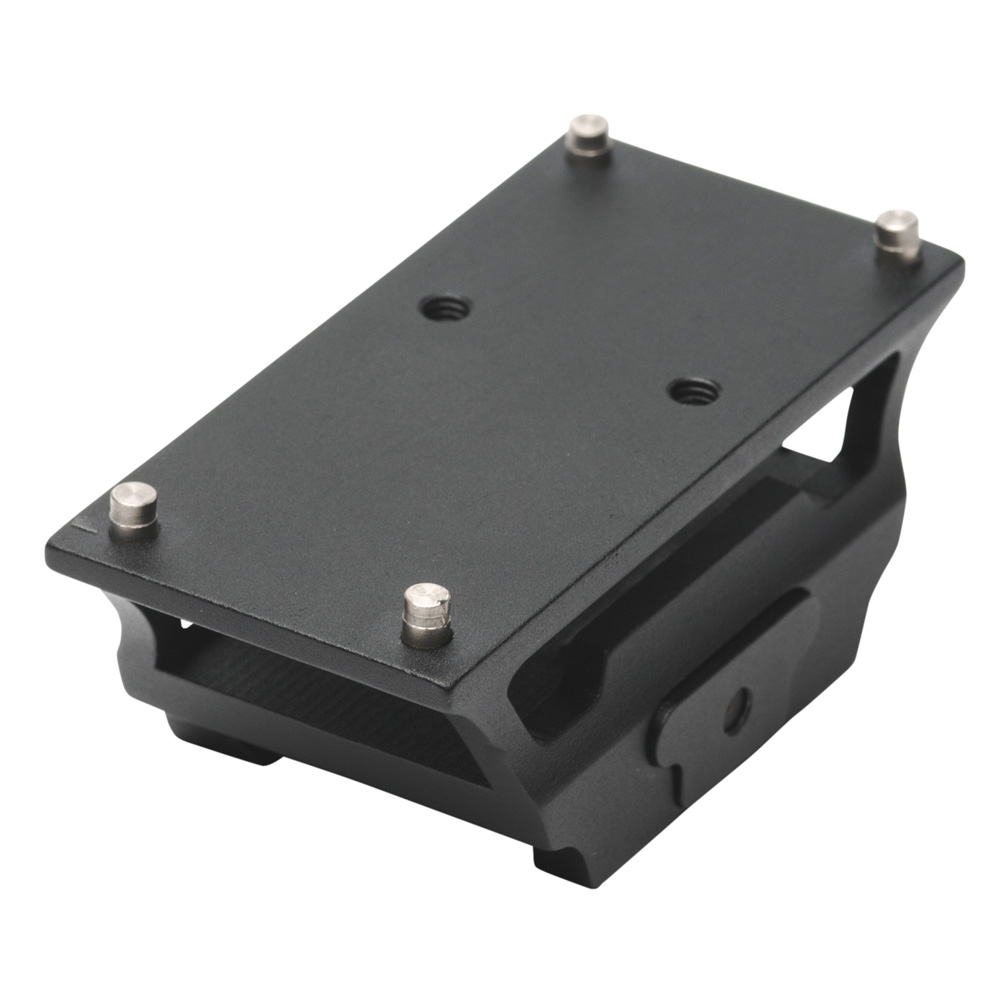

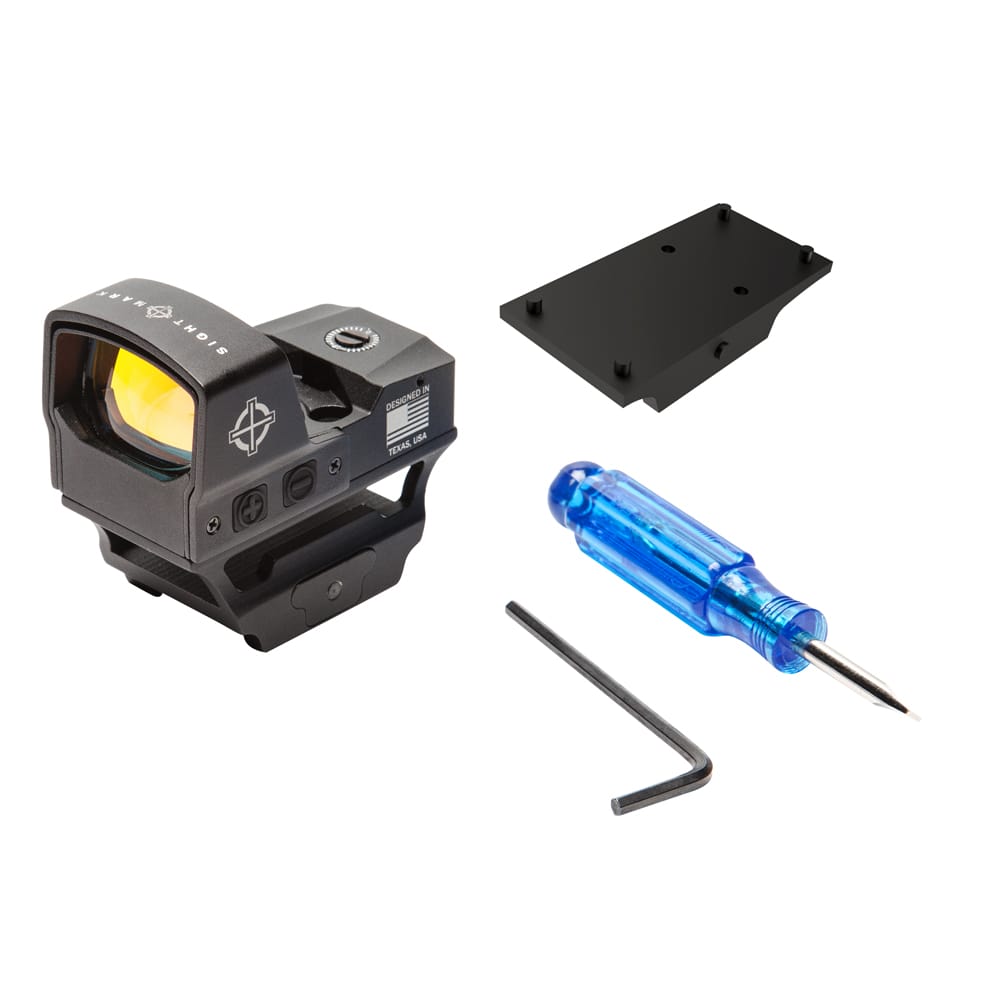

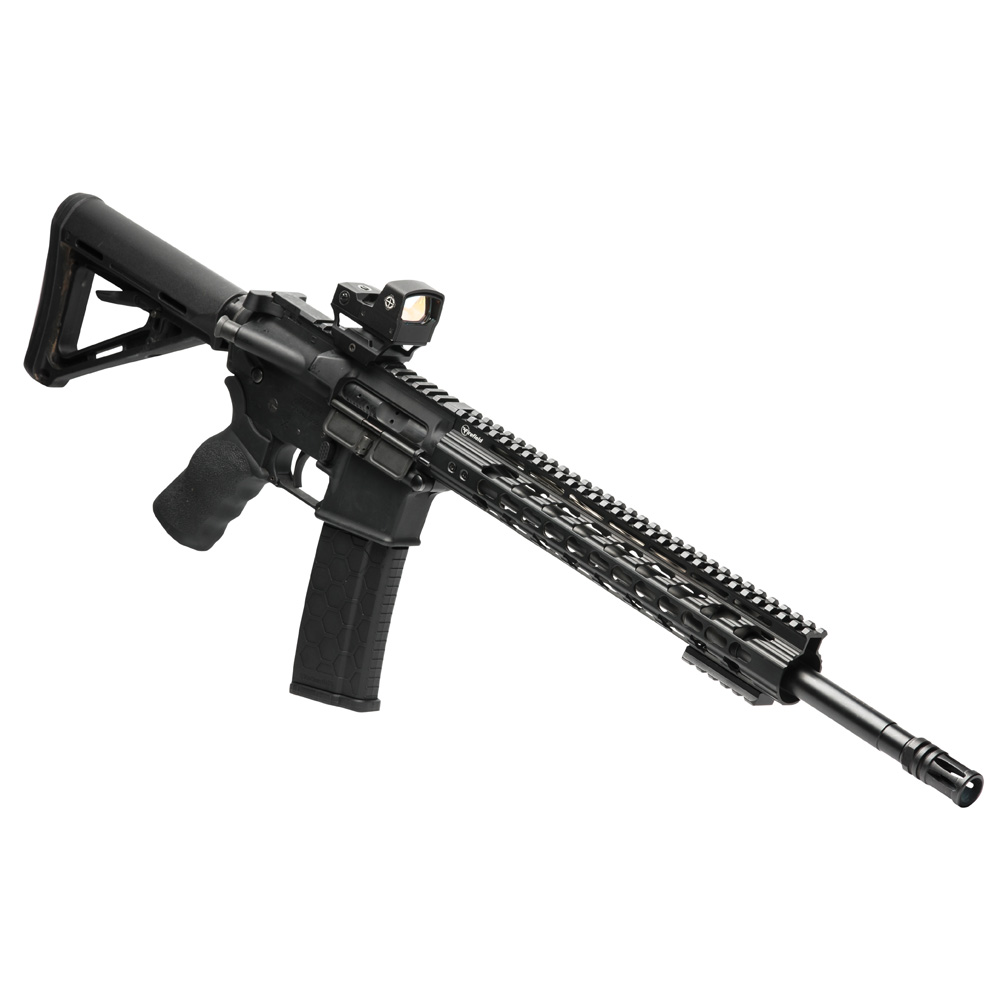

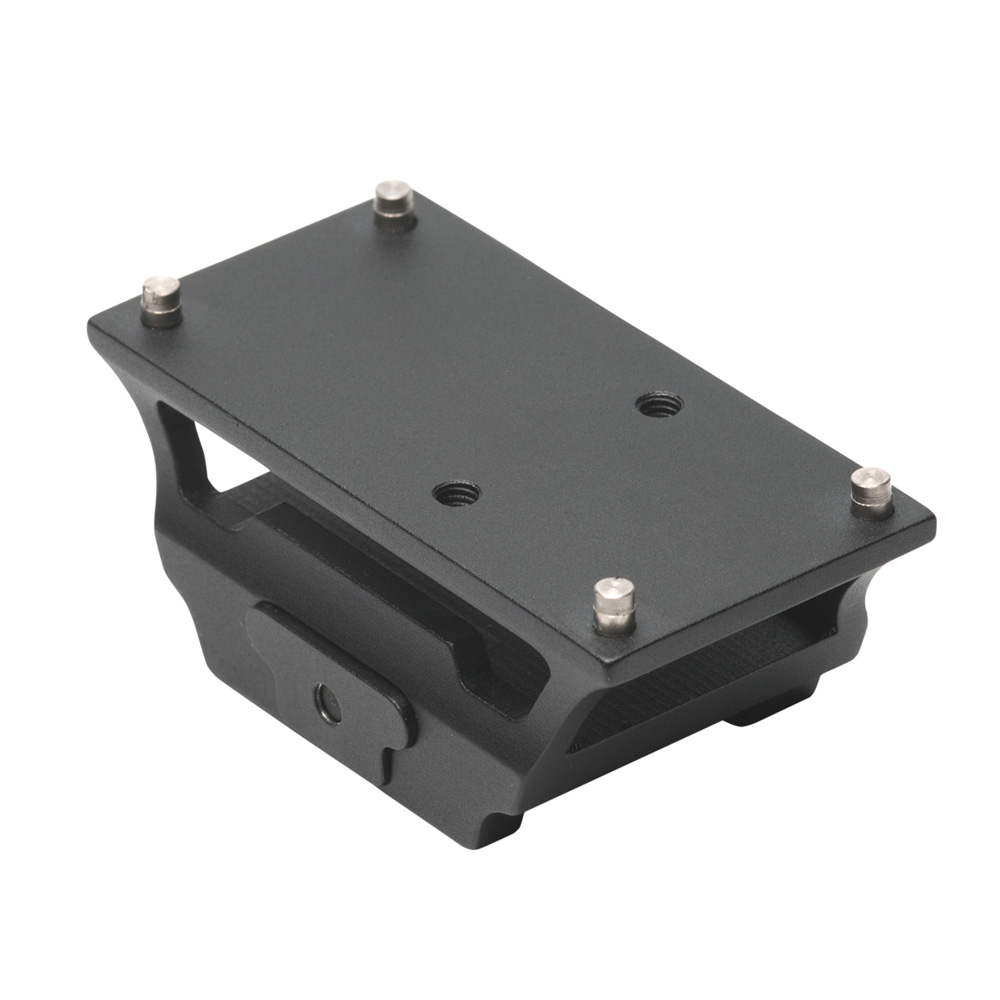

For avid shooters, the Sightmark Core Shot A-Spec FMS Reflex Sight brings precision accuracy and reliability to high-stakes competition shooting and hunts of a lifetime. Designed to deliver better optic performance, the shooters A-Spec FMS Reflex Sight improves accuracy for recreational, professional and competitive environments. The Core Shot bridges the gap between the Mini Shot and Ultra Shot for avid shooters wanting a compact sight. Made out of aircraft-grade aluminum for a dependable compact lightweight housing and includes external battery compartment for easier access to the battery. The Core Shot Includes a riser mount to work effectively on ARs.

| Reticle, Type | 5 MOA Dot |
| ————————— | ————————— |
| Reticle, Color | Red |
| Reticle Brightness Setting | Off, 0 – 8 NV 1 – 2 |
| Magnification | 1 |
| Objective Lens | 28 x 18 mm |
| Eye Relief | Unlimited |
| Elevation Adjustment | 100 MOA |
| Windage Range of Adjustment | 100 MOA |
| Parallax Setting | 10 yds |
| Finish/Color | Matte black |
| Body Material | Aluminum 6061-T6 |
| Maximum Recoil | .50 BMG G’s |
| IP Standard | IP55 – water resistant |
| Nitrogen Filled | No |
| Shockproof | Yes, 4ft, 1.2m |
| Fog Proof | No |
| Lens Coating | AR Red |
| Mount Type | Picatinny |
| Battery Type | CR2032 |
| Battery life, hours | 20 – 1,400 hrs |
| Battery Voltage, V | 3 |
| Operating temperature, F/C | -22 to 160 / -30 to 71 F/C |
| Length (in/mm) | 2.3 / 59 in / mm |
| Width (in/mm) | 1.2 / 30 in / mm |
| Height (in/mm) | 2.2 / 56 in / mm |
| Weight | 4.4 oz |
