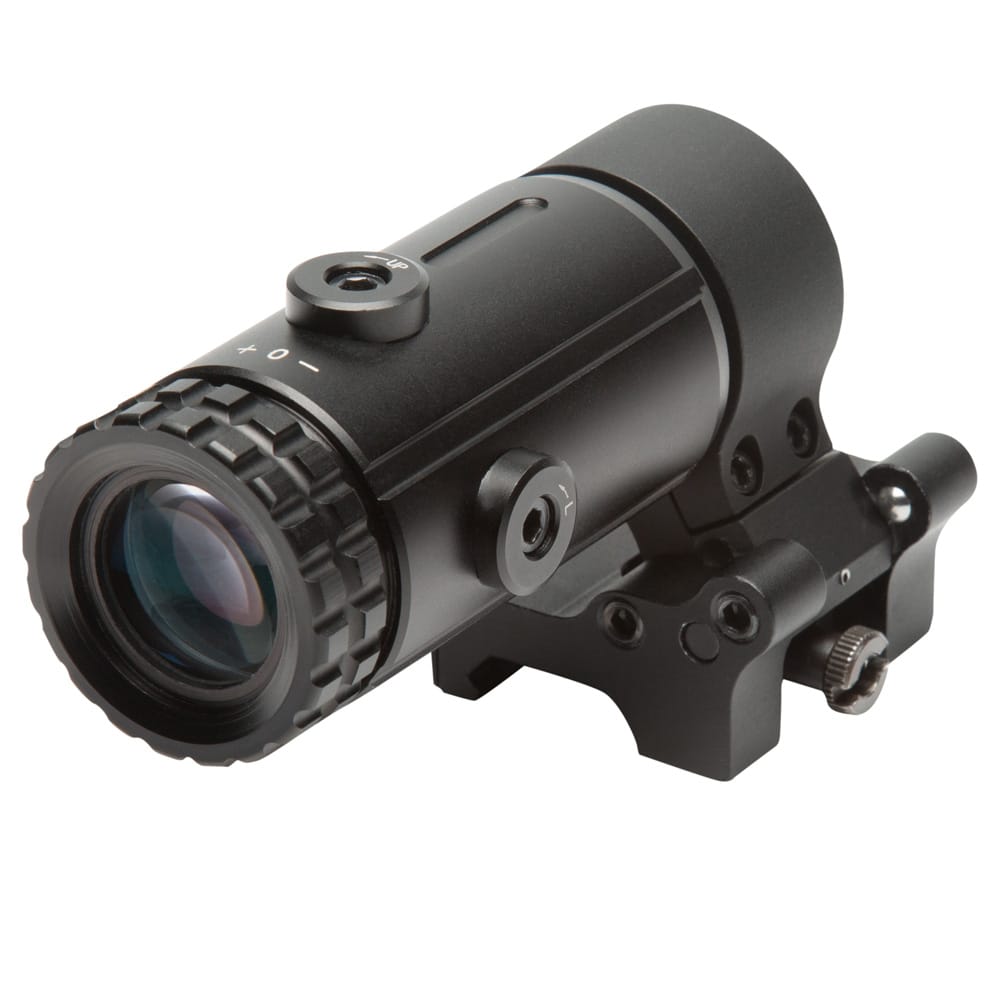

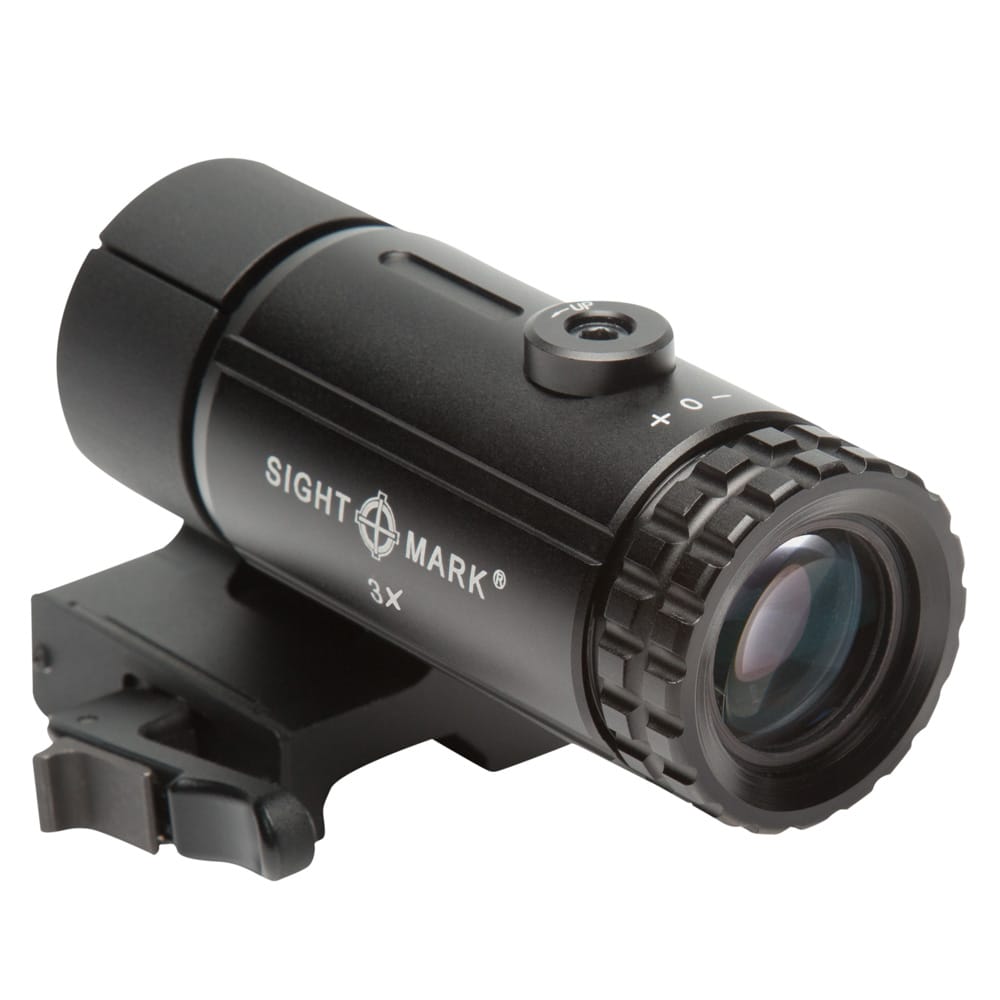

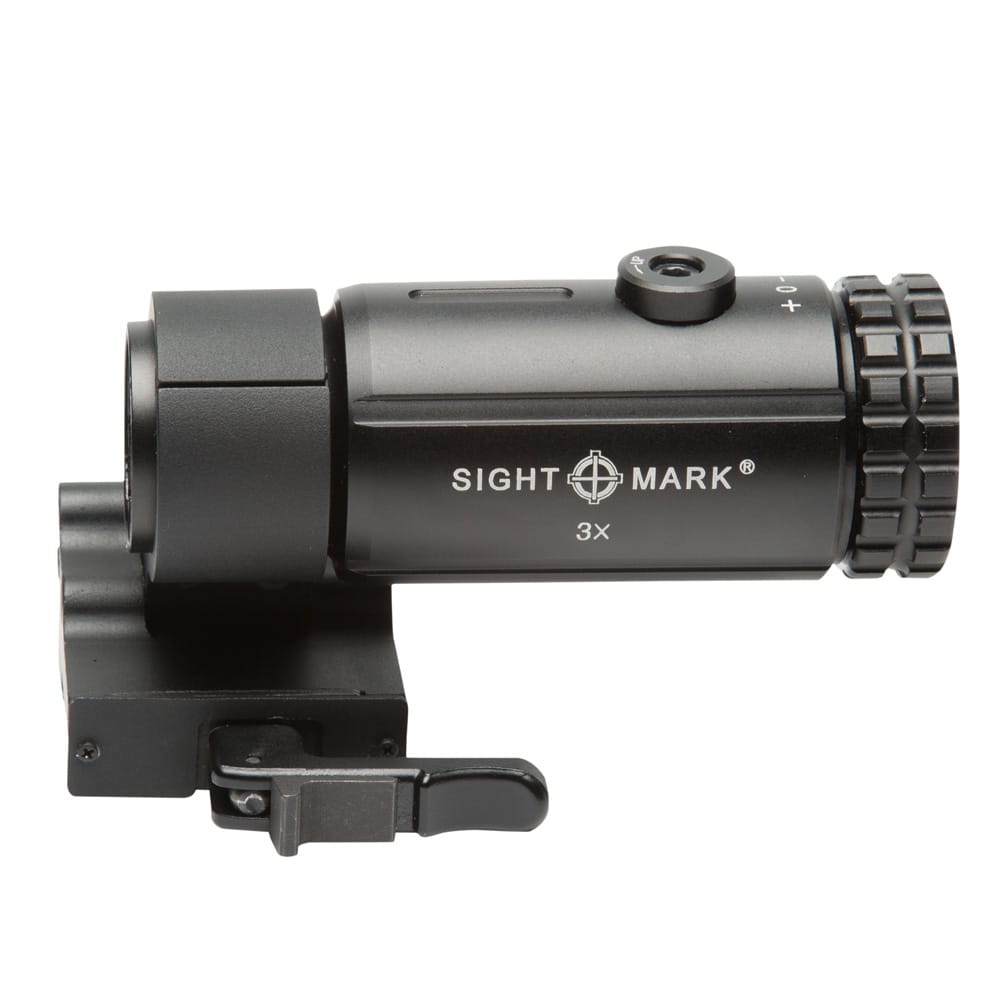

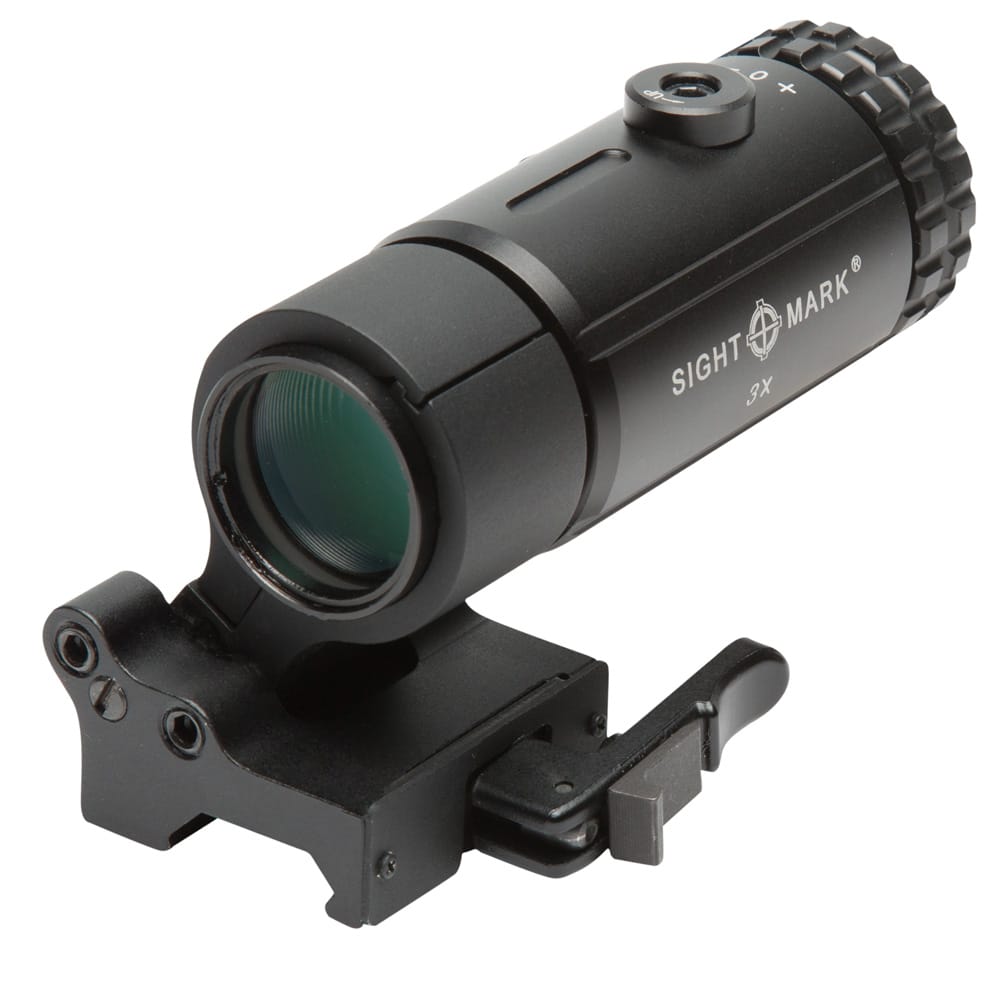

Sightmark T-3 Magnifier with LQD Flip to Side Mount

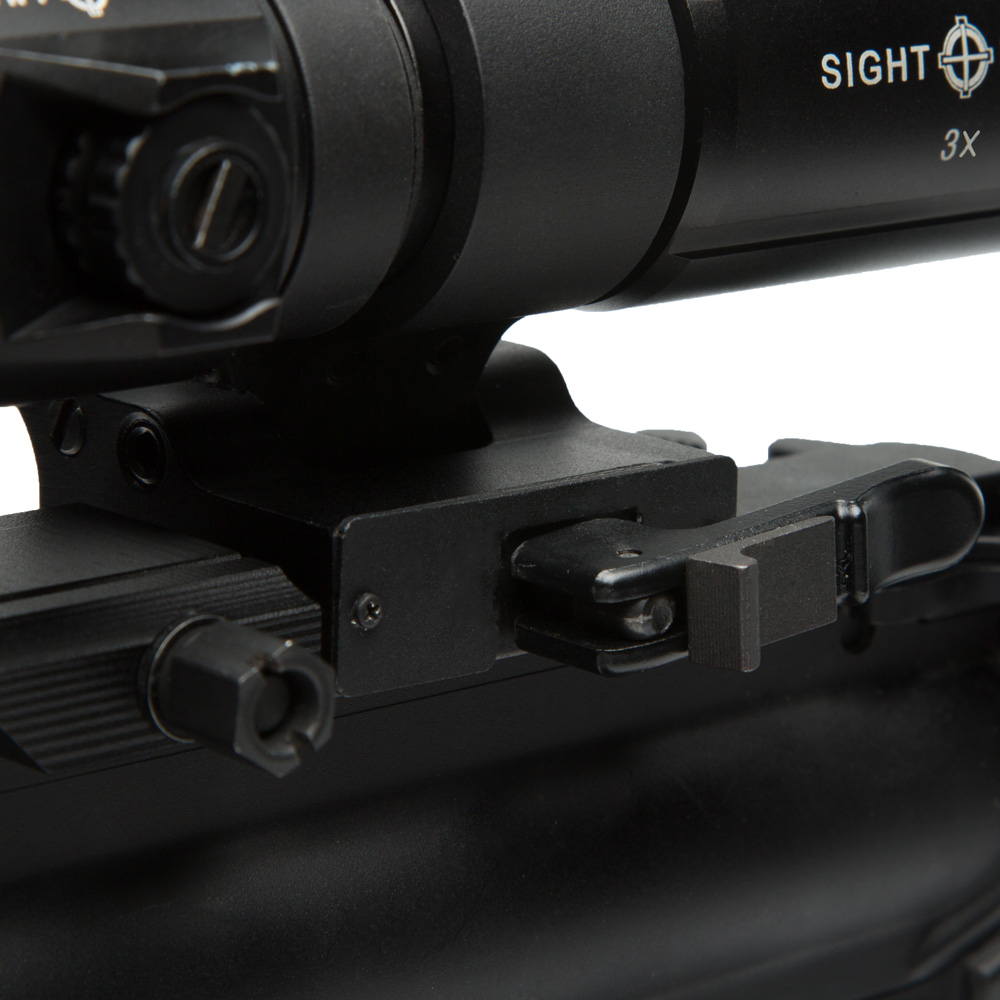

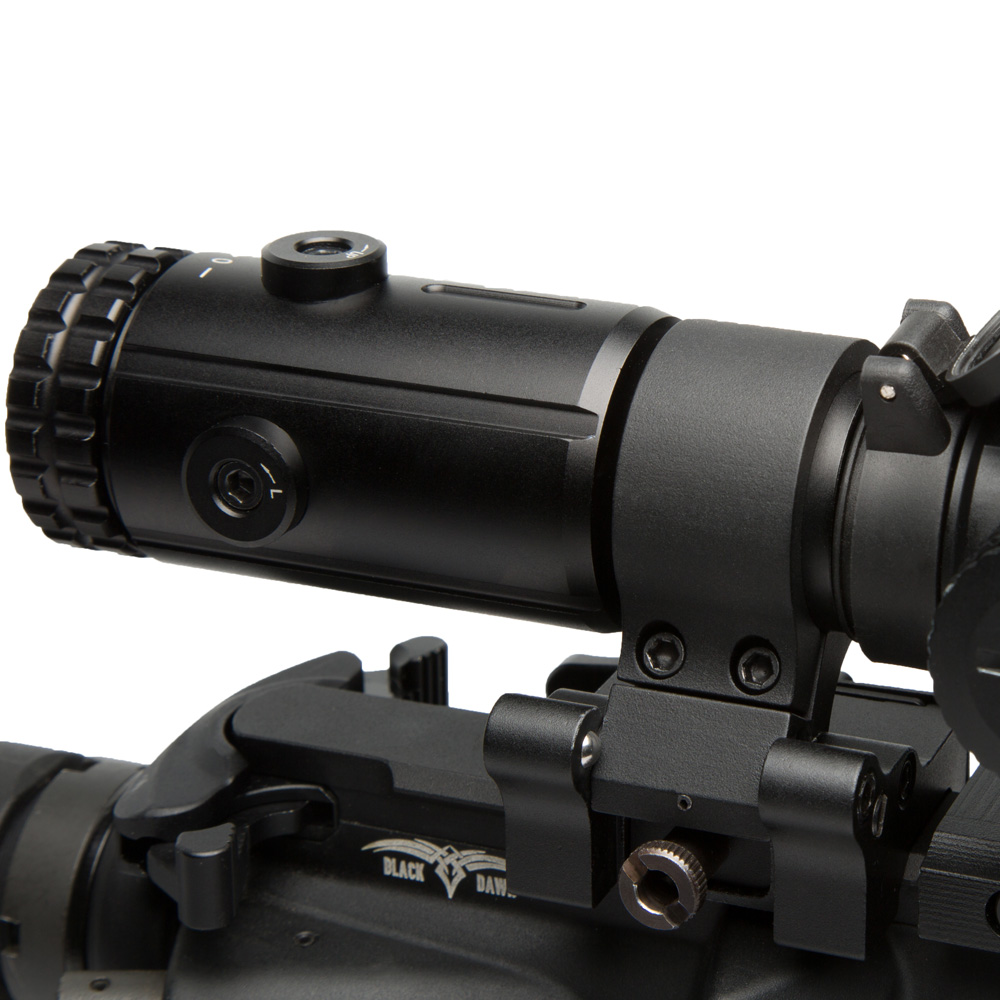

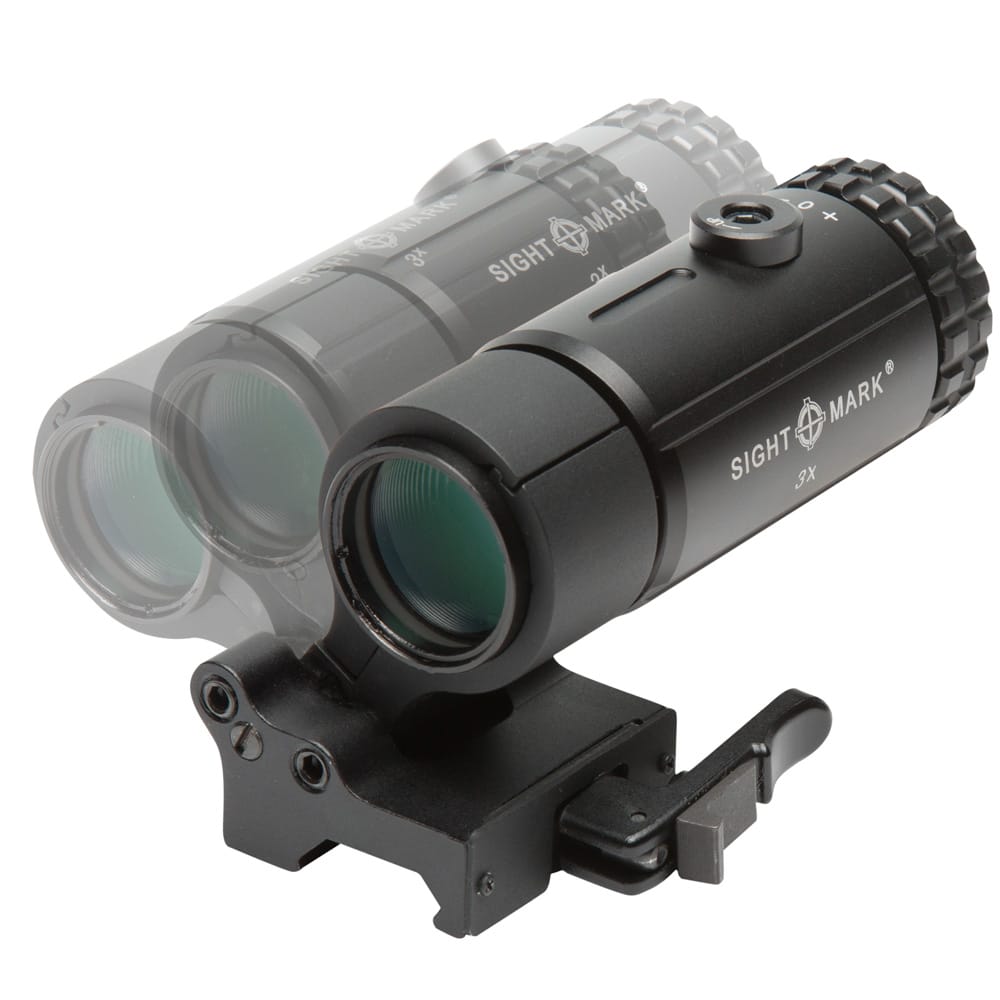

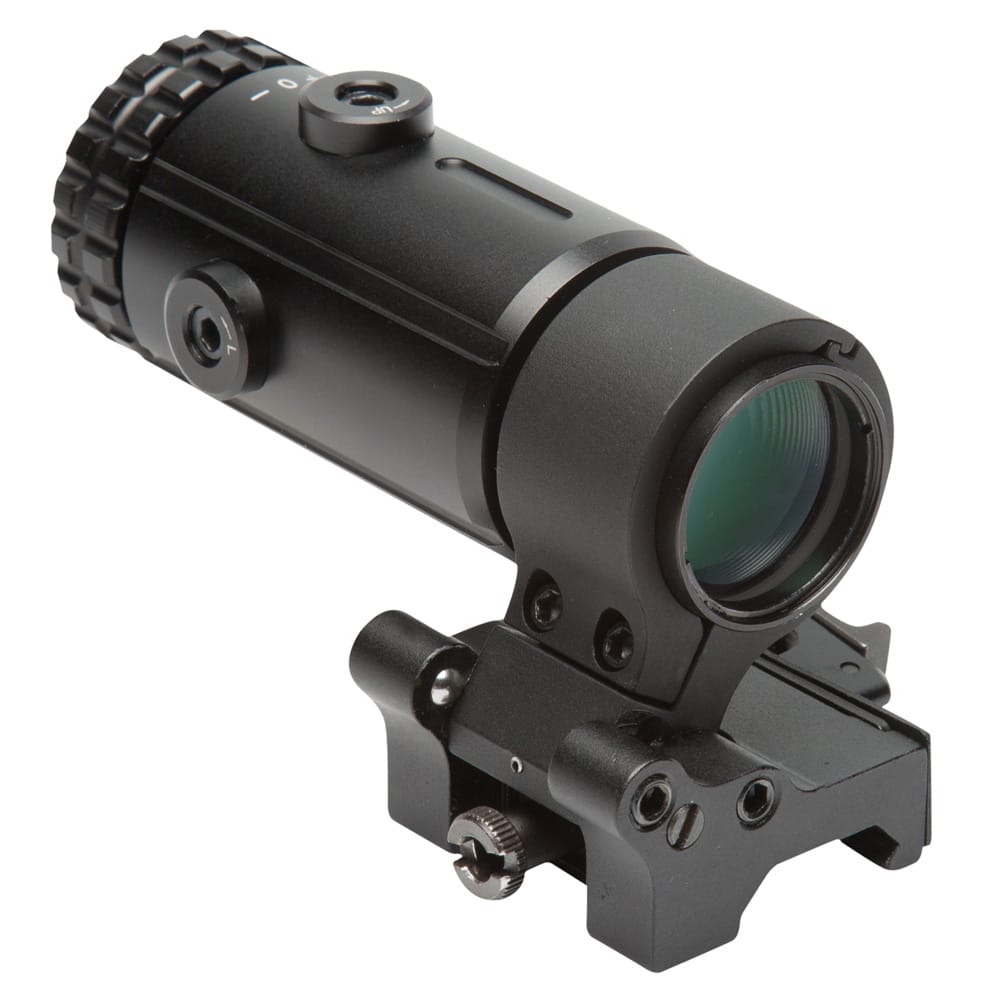

Designed to mount directly behind a reflex sight or red dot, the versatile T-3 Magnifier allows a quick and easy way to magnify your sight picture by 3x and provides an absolute co-witness. A straight tube magnifier a full .8” shorter than the model it replaces, the T-3 features a streamlined, low drag design, preventing the magnifier from snagging on equipment in important situations. Ideal for engagements up to 100 yards, if a close-range shooting scenario calls for no magnification, simply use the T-3’s flip-to-side mount to rapidly transition between the optic systems. This durable magnifier is constructed of aluminum and provides improved brightness and resolution from fully multi-coated optics. External windage and elevation adjustments align the reticle to the center of the T-3’s point of view. EOTech® and Aimpoint® compatible, the locking quick detach mount found on the T-3 lets the magnifier be quickly removed. Sightmark T-3 Magnifiers include flip-to-side LQD mount, adjustment tools and manual.
| Magnification |
3x |
| Diameter, Objective Lens |
23 mm |
| Diameter, Eyepiece |
1.26/32 in/mm |
| Diameter, Exit Pupil |
7.6 mm |
| Eye relief (in/mm) |
2.25/57 in/mm |
| Field of view, m@100m |
14.43 |
| Field of view, ft@100yd |
43.3 |
| Diopter Adjustment |
+3 to -3 |
| Diameter, Tube |
30 mm |
| Maximum Recoil |
.308 Caliber |
| Shockproof |
Yes |
| Fog Proof |
No |
| IP Rating (waterproof) |
IP55 – water resistant |
| Finish/Color |
Matte black |
| Body Material |
Aluminum |
| Lens Coating |
Full Multi-coated |
| Mount Type |
Picatinny |
| Operating temperature, F/C |
-22 to 160 / -30 to 71 F/C |
| Length (in/mm) |
4 / 103 in/mm |
| Width (in/mm) |
2.6 / 66.2 in/mm |
| Height (in/mm) |
1.67 / 42.5 in/mm |
| Weight, oz |
10.6 oz. |
