Sightmark Wolverine CSR Red Dot Sight – Flat Dark Earth

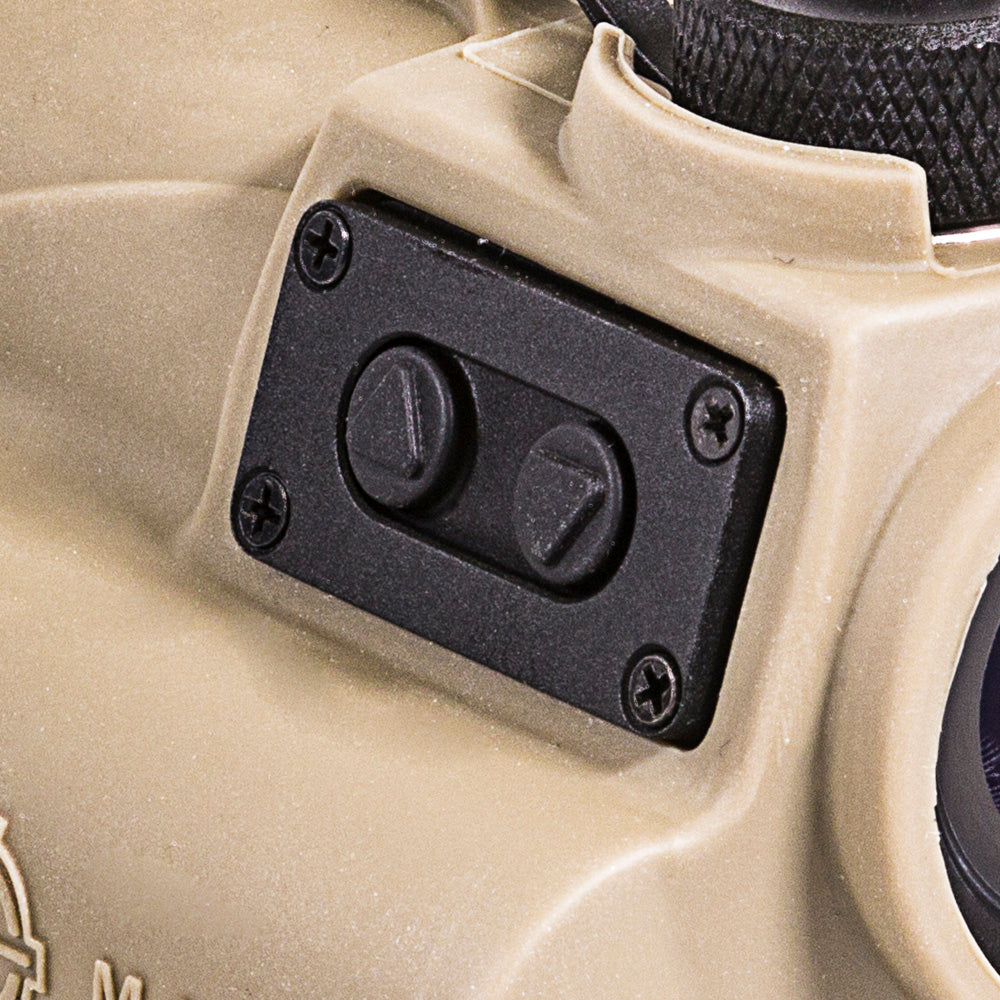

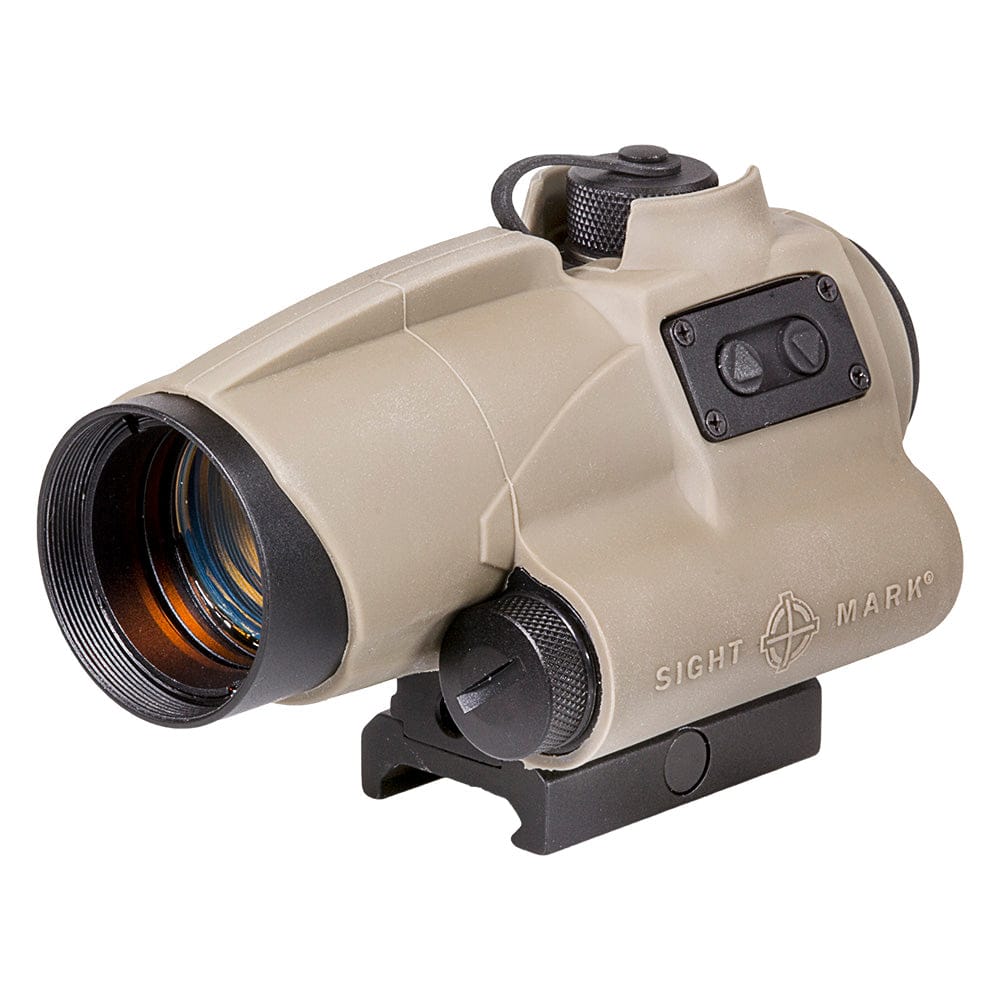

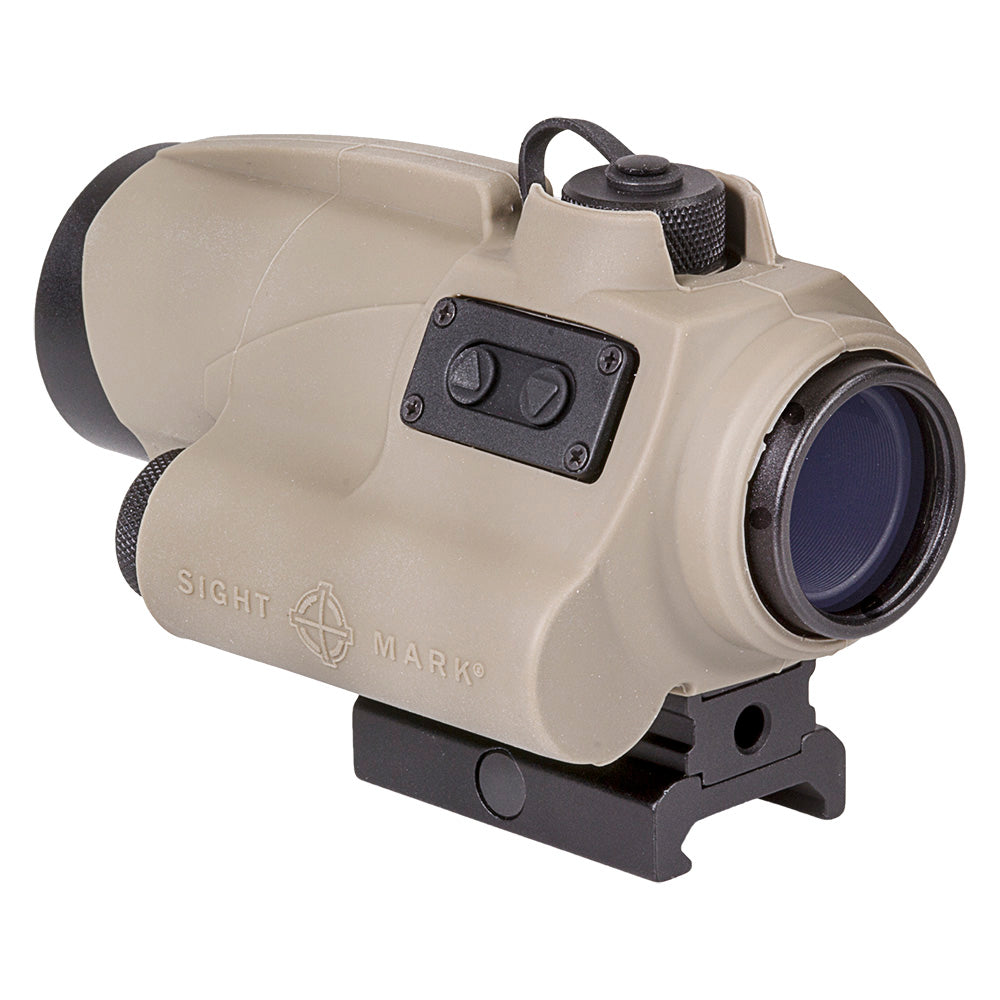

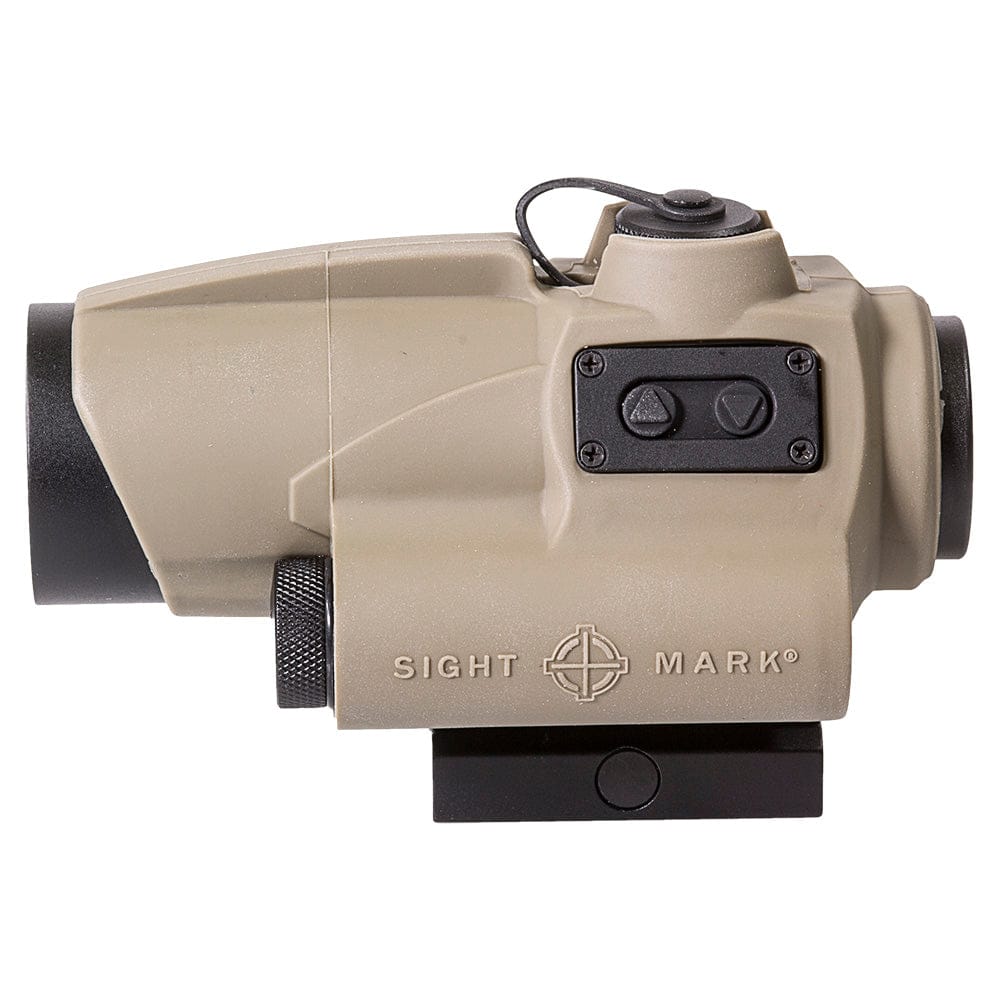

Designed specifically for shotguns and short-barreled rifles, the Sightmark Wolverine CSR red dot sight features a 4 MOA red dot reticle with a 23mm objective lens and adjustable digital switch brightness controls. Ready to handle the tough stuff and look good doing it, the Wolverine is housed in a rubber-armored single-piece 6061-T6 aluminum body and sports a striking flat dark earth finish.
The Wolverine CSR’s compact design weighs only 10.3 ounces and offers extremely long battery life on a single AA battery. The versatile CSR offers night vision modes, enabling it to co-witness with night vision sights. The Wolverine CSR FDE is fog proof and nitrogen purged, permitting use in harsh conditions and temperatures ranging from -22° to 122° F. All Wolverine CSR’s are IP67 waterproof and are submersible to 3 ft. Ready to adapt to any environment, the Wolverine boasts an adjustable mount height for maximum viewing comfort.
Specifications:
| Reticle, Type |
4 MOA Dot |
| Reticle, Color |
Red |
| Reticle, Illuminated |
yes |
| Setting, Brightness |
off, NV1, NV2, 3-10 |
| Magnification |
1 x |
| Dimension, Window |
23 mm |
| Material, Window |
glass |
| Eye Relief |
unlimited mm |
| Windage Range of Adjustment |
120 MOA |
| Elevation Range of Adjustment |
120 MOA |
| MOA Adjustment |
1 MOA |
| Finish/Color |
Flat Dark Earth |
| Body Material |
Aluminum 6061-T6 / rubber |
| Maximum Recoil |
.338 Win |
| IP Standard |
IP67 (submergible to 1m / 3ft) |
| Shockproof |
yes |
| Fog Proof |
yes |
| Lens Coating |
AR red |
| Mount Type |
Picatinny |
| Battery Type |
AA |
| Battery Life |
(high) 900 – (low) 1,000,000 / 50,000 (setting 6) hours |
| Battery Voltage |
1.5 V |
| Operating Temp F/C |
-22 to 122 F/C |
| Length |
3.4 / 87.5 in/mm |
| Width |
2.8 / 71.6 in/mm |
| Height |
2.4 / 61.1 in/mm |
| Weight |
10.3 oz |
