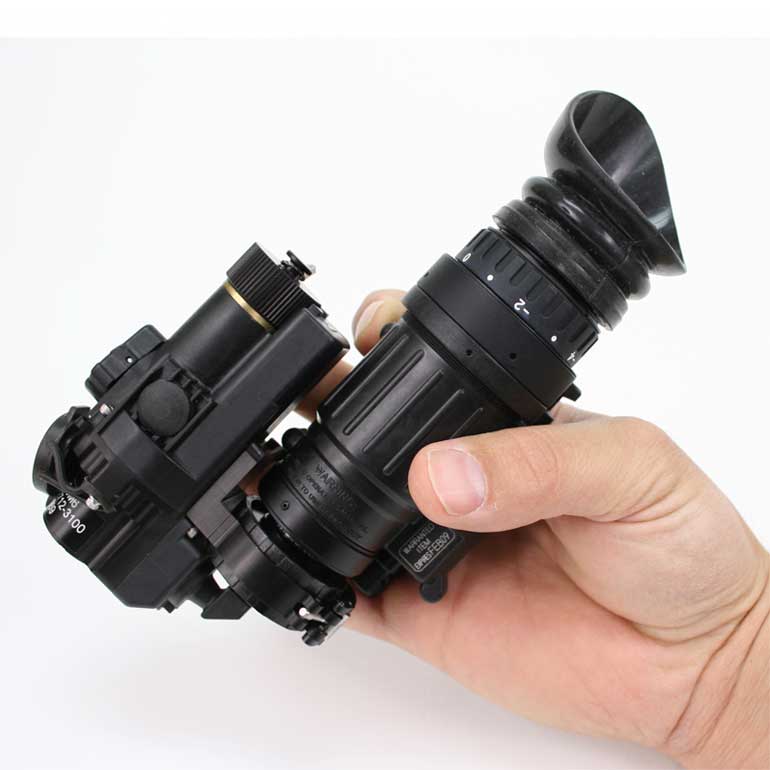

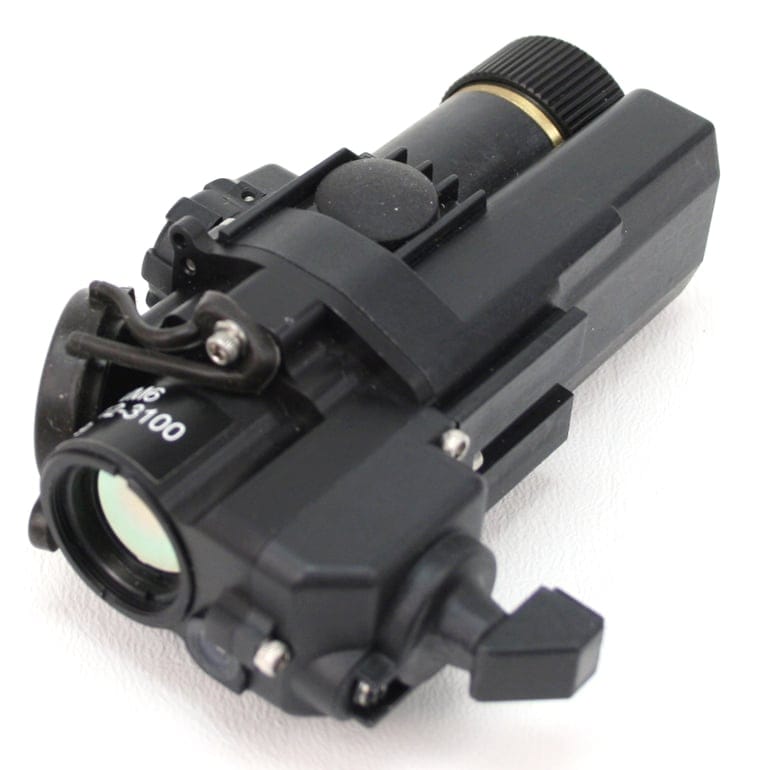

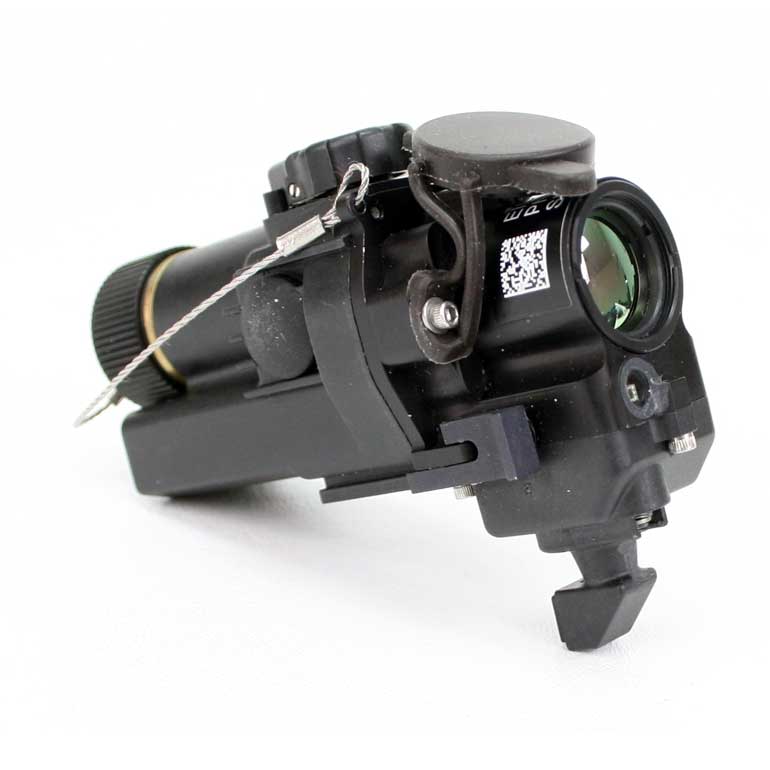

TACS-M Thermal Acquisition Clip-on System – Miniature
–
- LightWeight
- Seamlessly Adds Thermal to Image Intensified Devices
- Easy Operation
- Waterproof
- Rugged Design
- Mini-thermal Technology
$5,999
SKU:
830-0037-0
Did you know?
Financing options are available at checkout!
Description
Specifications
Technical Specs
Description
The Miniature Thermal Acquisition Clip-On System (TACS-M) provides the soldier with ultimate performance in technology. Low power consumption, optimal sensor technology, and high-performance optics all seamlessly integrate to provide state of the art long wave infrared (LWIR) technology.

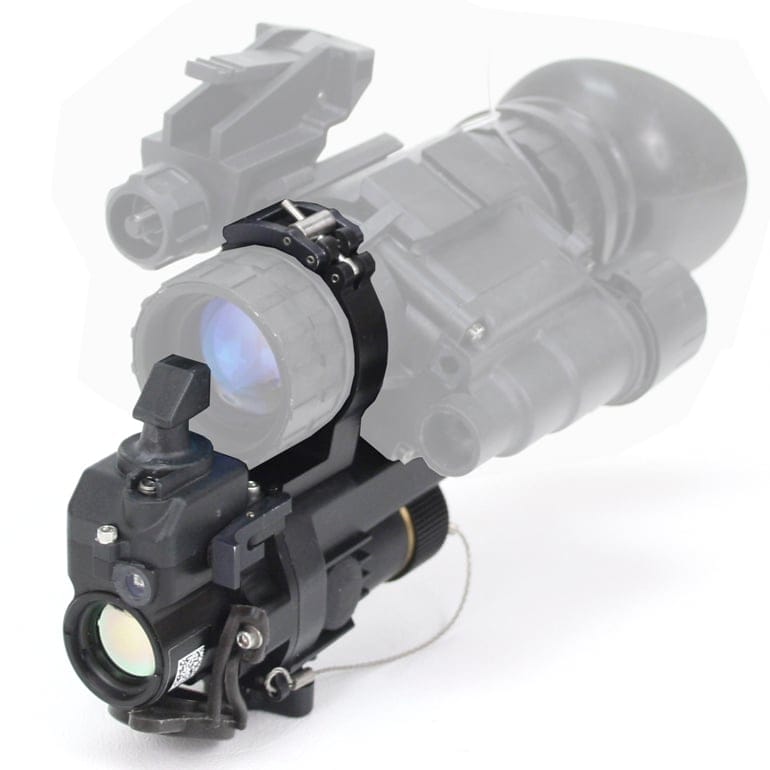

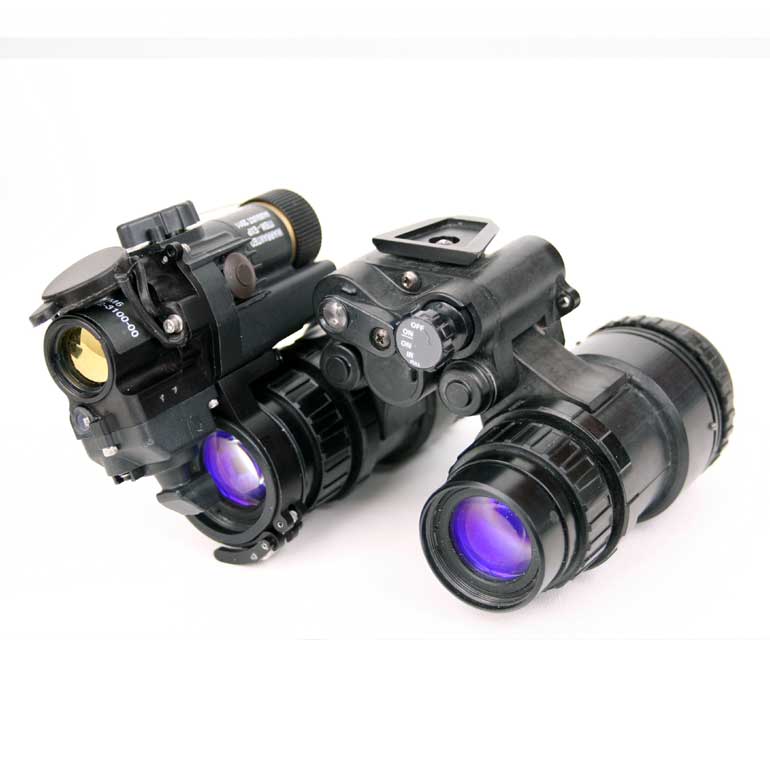

When added to a standard image intensified system, TACS-M provides a second channel with LWIR capability, extending engagement capabilities through obscurants. The TACS-M unit along with Nivisys experience and expertise provides the best value solution for adding low light and no light performance to currently fielded night vision systems.
The thermal system’s waterproof and rugged construction stands up to the harshest environments and features a red display for visual security. This multi-purpose surveillance tool uses the latest in miniature thermal sensor technology and a high resolution display to provide superior imagery in the smallest package available.
Specifications
| Caracteristică | Specificație |
|---|---|
| Field of View | 20deg circular (centered) |
| Boresight Accuracy | 3 MOA |
| Polarity | White hot / black hot |
| NE-T | 50mK |
| Magnification | 1x (unity) |
| Dimensions | 3.5″ (length) |
| Display Brightness | Multiple |
| Battery Type | CR123 lithium |
| Battery Life | 2.5 hrs (23deg C); 1.5 hrs (0deg C) |
| F Number | 1.2 |
| Calibration | Manual |
| Weight | 150 grams |
| Spectral Response | 8 – 12 um |
| Sensor | 320 x 240 VOx uncooled LWIR microbolometer |
| Effective Range | Detection: 300m; Recognition: 260m; Identification: 130m |
Technical Specs
| Attributes | Value |
|---|---|
| Weight | 5 lbs |
| Generation | |
| Is Accessory |
No |
| Refresh Rate | |
| Sensor Resolution | |
| Warranty | |
| Color |
Black |
| Condition |
New |
| Lens Diameter |
