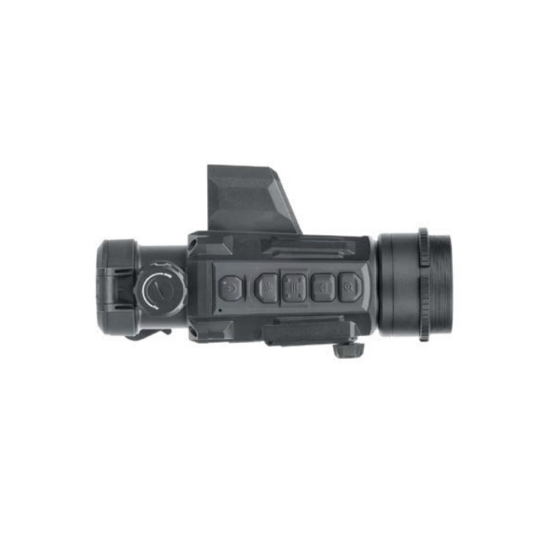

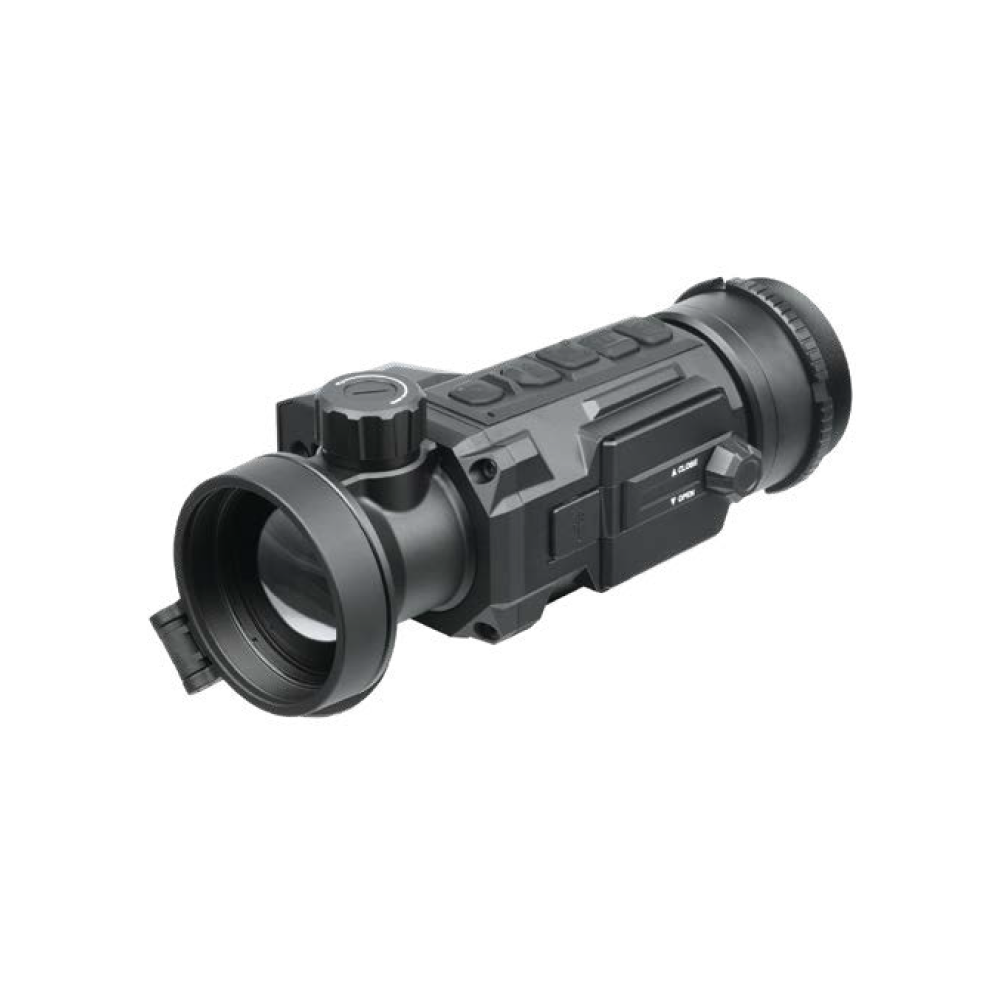

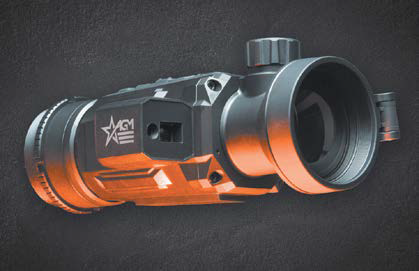

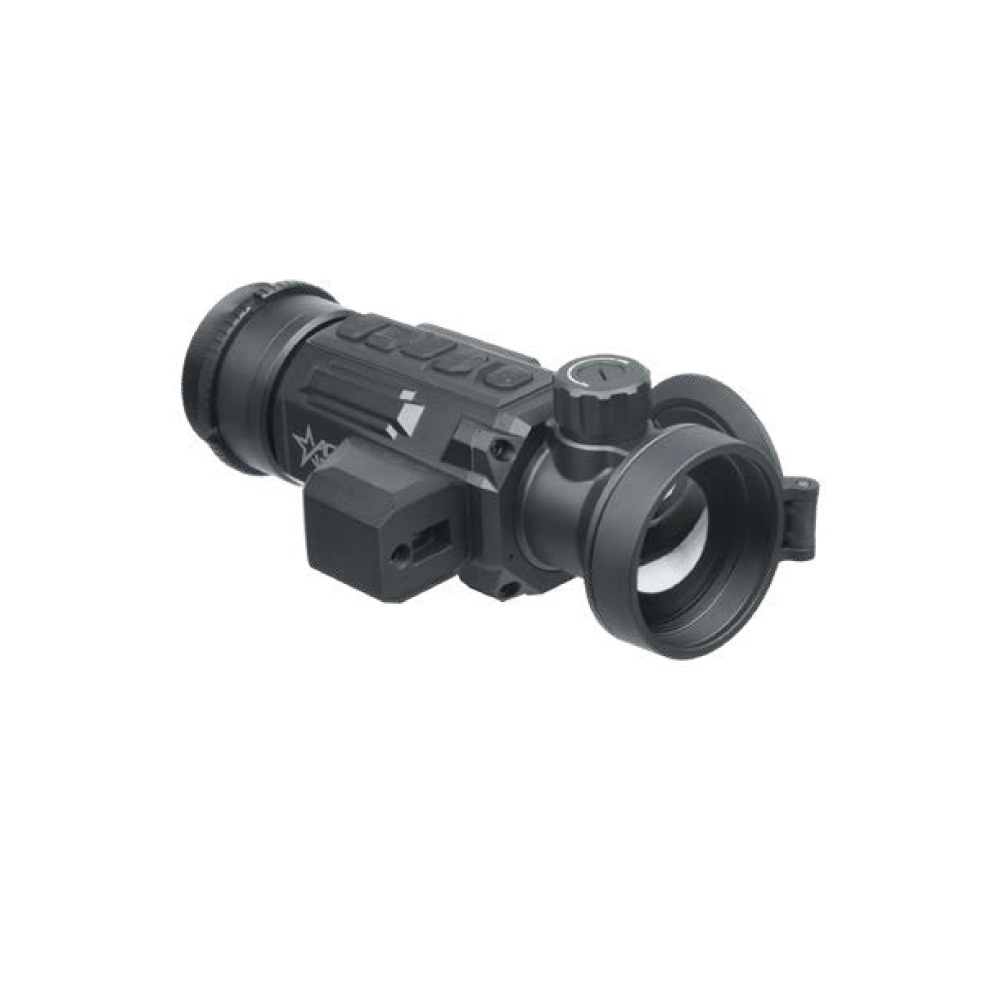

The Secutor LRF-C is a compact thermal imaging clip-on system with built-in precision laser rangefinder that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Equipped with a highly sensitive, 12μm thermal detector and 1024×768 OLED monitor, the AGM Secutor LRF-C thermal clip-on provides a clear image under harsh environmental conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc. The user-friendly interface, comfortable and ergonomic operating controls makes Secutor LRF-C use incredibly easy. The AGM clip-on can easily be attached in front of rifle scopes with magnification up to 10x for medium range use. The built-in laser range finder of the AGM Secutor LRF-C is designed to determine the exact distance between the observer and the target. Measurement results are displayed in the scopes monitor. Four replaceable Li-Ion battery gives the device more than 6 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on-board video/audio recording and image capture. Onboard Wi-Fi module allows live video streaming and video/image recording via mobile applications.
| Specification | Details |
|---|---|
| Detector Type | 12mm VOx Uncooled Focal Plane Array |
| Resolution | 640 x 512 |
| Refresh Rate | 50 Hz |
| Response Waveband | 8 mm to 14 mm |
| NETD | Less than 20 mk (@25degC), F#=1.0 |
| Lens System | 50 mm; F1.0 |
| Field of View (HxV) | 8.8deg x 7.0deg |
| Magnification | 1x |
| Detection Range (6′ object) | 2,600 m/yd |
| Exit Pupil | 22 mm |
| Monitor | 1024×768, 0.39 inch |
| FFC (Flat Field Correction) | Auto, Manual, External Correction |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Laser Range Finder | Up to 1000 m, +-4 m accuracy |
| Laser Wavelength | 905 nm |
| Laser Safety Class | Class 1 |
| Highest Temperature Spot Tracking | Yes |
| Defective Pixel Correction | Yes |
| WiFi Hotspot | Yes |
| Standby Mode | Yes |
| Burn Prevention | Yes |
| Built-in Storage | 16 GB EMMC |
| Video/Audio Recording | Yes |
| Image Capture | Yes |
| Shot Activated Recording | Yes |
| Battery Type | Four CR123A Lithium Battery |
| Battery Operating Time (WiFi off) | More than 6 hours More than 6 hours |
| External Power | 5 VDC/2 A, USB Type-C |
| Working Temperature | -30degC to 55degC (-22degF to 131degF) |
| Protection Level | IP67 |
| Max/ Recoil ms | 1,000 g / 0.4 ms |
| Dimensions (w/o mount) | 190 x 102 x 69 mm (7.5 x 4.0 x 2.7 in) |
| Weight (w/o mount and battery) | 0.68 kg (1.08 lb) |
