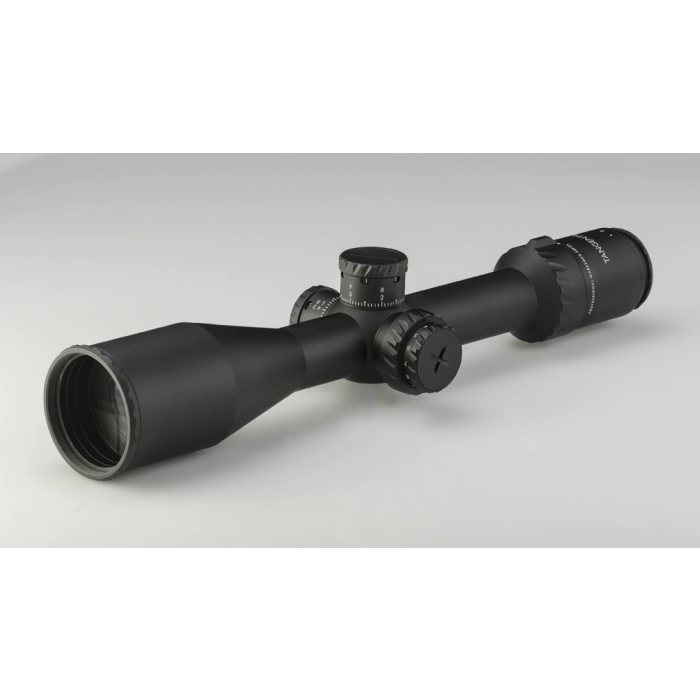

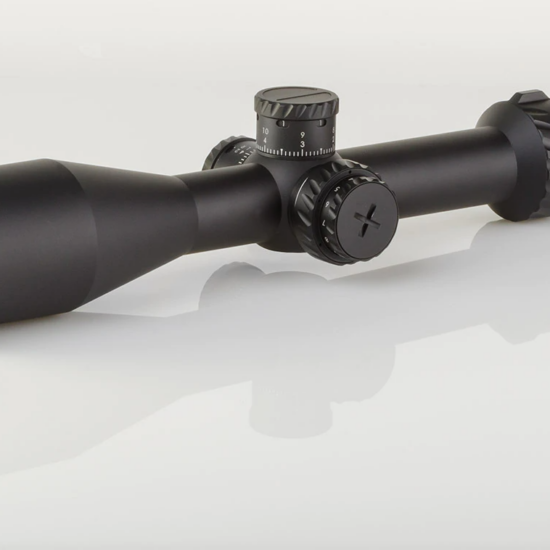

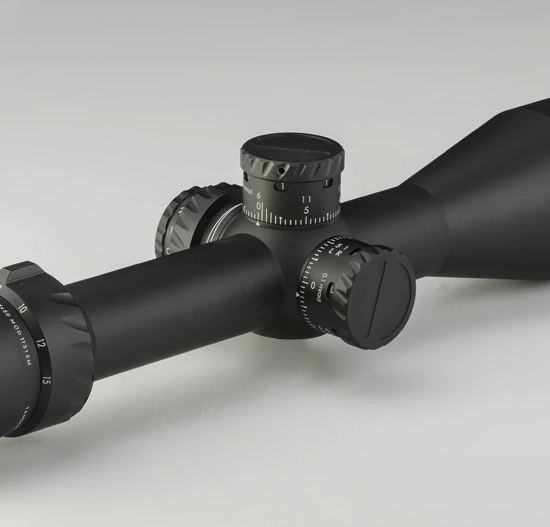

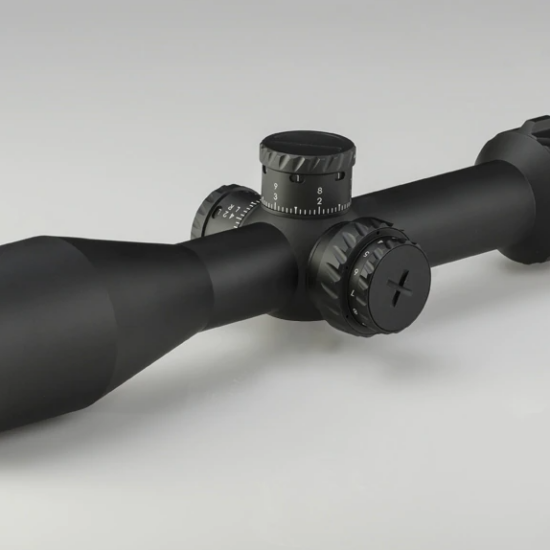

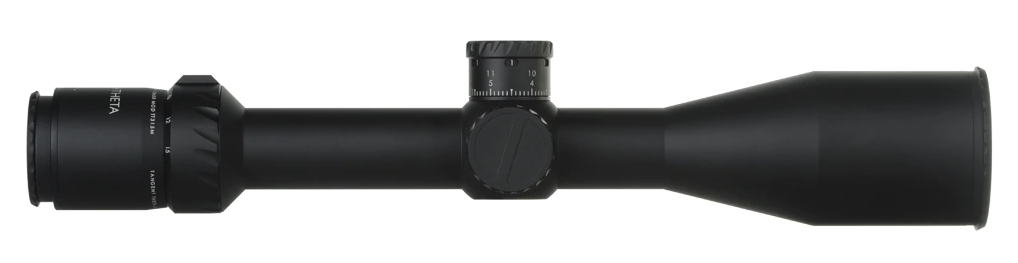

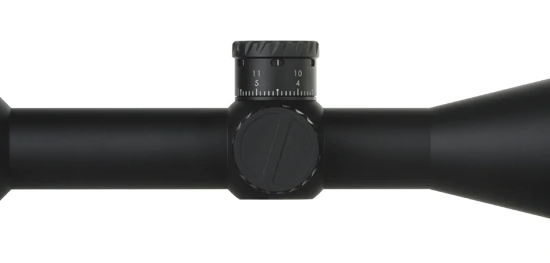

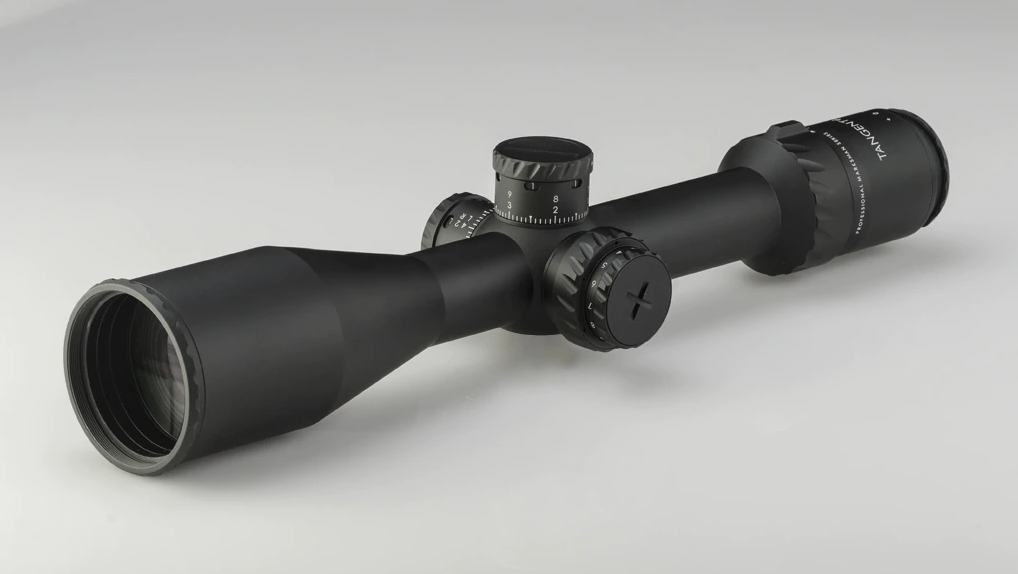

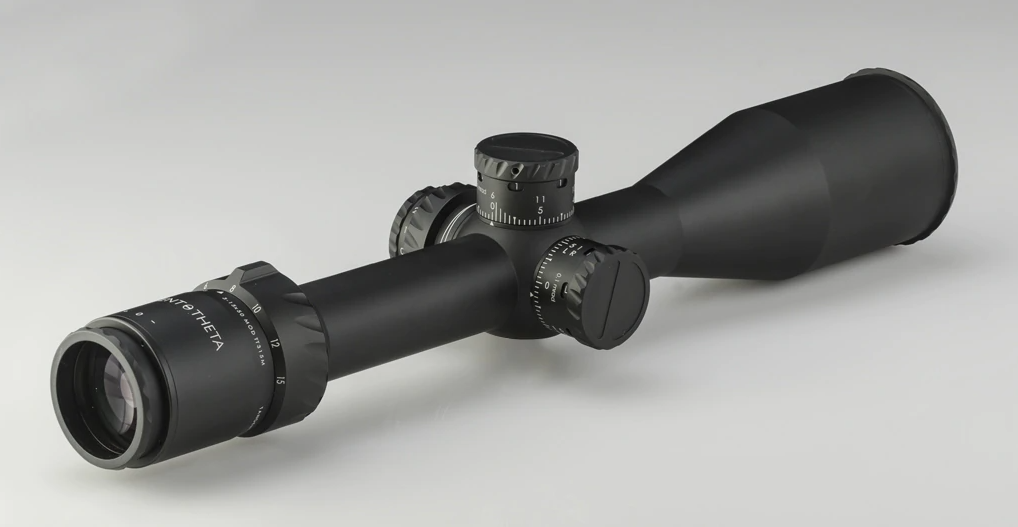

Armament Technology Inc. 3-15x50mm Marksmen TT315M Rifle Telescope MOA-ER reticle
Financing available at checkout
Armament Technology Inc. 3-15x50mm Marksmen TT315M Rifle Telescope MOA-ER reticle
Designed as a reduced-weight professional marksman rifle telescope, the TT315M incorporates precise adjustment mechanisms with zero stops and mechanical revolution and windage direction indicators that virtually eliminate adjustment errors. The optical path has been optimized for unsurpassed image quality, allowing the marksman to see minute target detail and to remain in the aim for extended periods without eye fatigue.
FEATURES:
- 50mm objective lens
- 30mm main tube
- mechanical windage direction indicator
- eleven reticle illumination settings
- side parallax adjustment

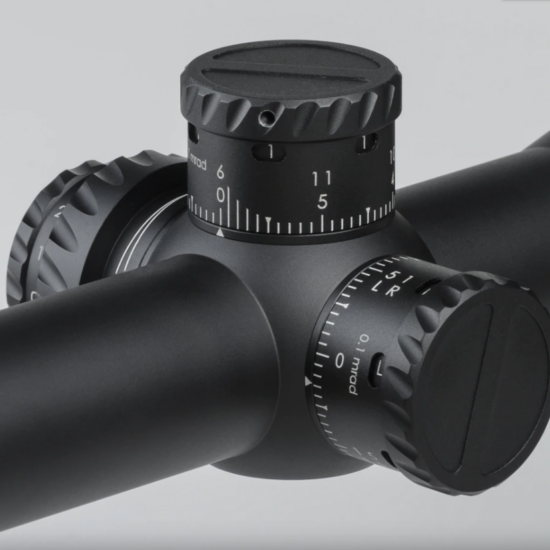

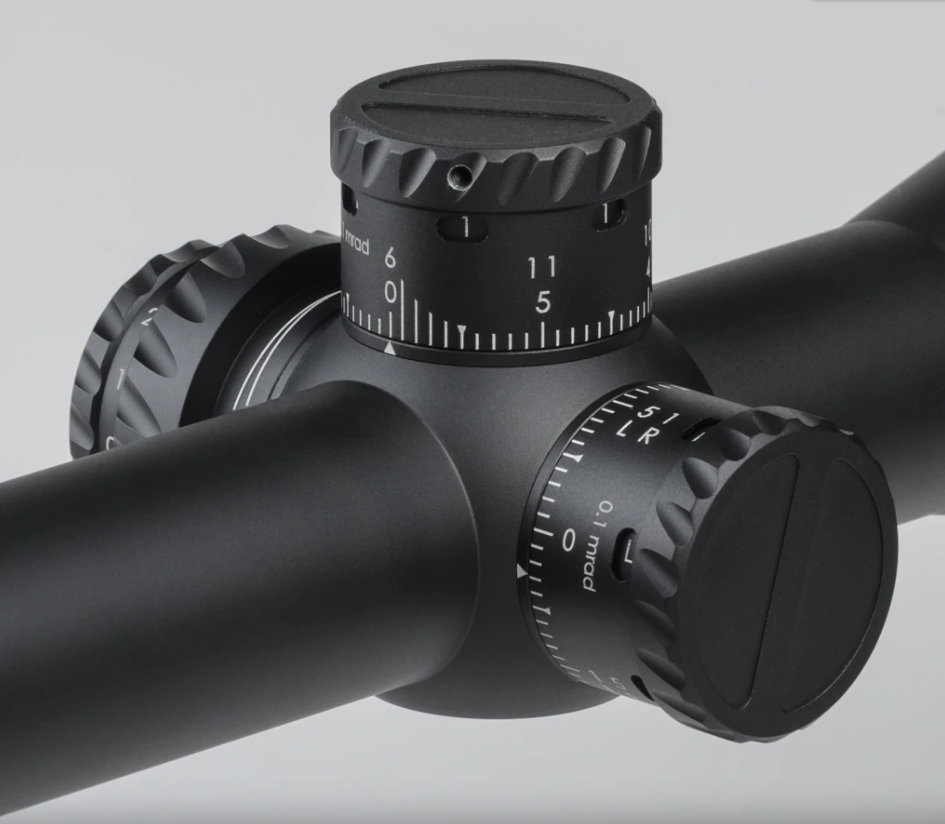

- non-translating knobs with elevation zero-stop
- double-turn elevation with revolution and windage direction indicator
- 3-15x magnification range
- lockable rapid adjusting diopter
$4,353
SKU:
800102-0103
Did you know?
Financing options are available at checkout!
Description
Specifications
Technical Specs
Description
Armament Technology Inc. 3-15x50mm Marksmen TT315M Rifle Telescope MOA-ER reticle
Designed as a reduced-weight professional marksman rifle telescope, the TT315M incorporates precise adjustment mechanisms with zero stops and mechanical revolution and windage direction indicators that virtually eliminate adjustment errors. The optical path has been optimized for unsurpassed image quality, allowing the marksman to see minute target detail and to remain in the aim for extended periods without eye fatigue.
FEATURES:
- 50mm objective lens
- 30mm main tube
- mechanical windage direction indicator
- eleven reticle illumination settings
- side parallax adjustment
- non-translating knobs with elevation zero-stop
- double-turn elevation with revolution and windage direction indicator
- 3-15x magnification range
- lockable rapid adjusting diopter
| Magnification | 3x-15x |
|---|---|
| Length | 351mm |
| Width | 84mm |
| Height | 69mm |
| Weight | 786g |
| Tube diameter | 30mm |
| Objective bell diameter | 57mm |
| Objective lens diameter | 50mm nominal |
| Eyepiece diameter | 43mm |
| Reticle options | Gen 2, Gen 2XR, MoA, GEN 3XR |
| Field of View @ 3x | 7.3 degrees (12.8m @ 100m) |
| Field of View @ 15x | 1.6 degrees (2.8m @ 100m) |
| Diopter range | -3 to +2.5 |
| Eye relief | 90mm |
| Exit pupil @ 3x | 11.5mm |
| Exit pupil @ 15x | 3.5mm |
| Total Adjustment Range | |
| Elevation | 18 mrad (60 MoA) |
| Windage | +/- 12 mrad (+/-40 MoA) |
| Working Adjustment Range | |
| Elevation | 12 mrad (40 MoA) |
| Windage | +/- 6 mrad (+/- 20 MoA) |
| Adjustment resolution | 0.1 mrad or 1/4 MoA |
| Re-zero mechanism | twin setscrew |
| Parallax adjustment range | 50m to infinity |
| Crosshair illumination | LED, 11 settings |
| Battery type | DL2032 3v lithium |
| Exterior finish | Type II Anodized, matte |
| Elevation dial adjustment | |
| Double turn | 6 mrad (20 MoA) per turn |
| Environmental | |
| Waterproof: | 4 hours @ 10 meters |
| Shockproof: | 700g’s @ 10,000 cycles |
Specifications
Armament Technology Inc. 3-15x50mm Marksmen TT315M Rifle Telescope MOA-ER reticle
| Magnification | 3x-15x |
|---|---|
| Length | 351mm |
| Width | 84mm |
| Height | 69mm |
| Weight | 786g |
| Tube diameter | 30mm |
| Objective bell diameter | 57mm |
| Objective lens diameter | 50mm nominal |
| Eyepiece diameter | 43mm |
| Reticle options | Gen 2, Gen 2XR, MoA, GEN 3XR |
| Field of View @ 3x | 7.3 degrees (12.8m @ 100m) |
| Field of View @ 15x | 1.6 degrees (2.8m @ 100m) |
| Diopter range | -3 to +2.5 |
| Eye relief | 90mm |
| Exit pupil @ 3x | 11.5mm |
| Exit pupil @ 15x | 3.5mm |
| Total Adjustment Range | |
| Elevation | 18 mrad (60 MoA) |
| Windage | +/- 12 mrad (+/-40 MoA) |
| Working Adjustment Range | |
| Elevation | 12 mrad (40 MoA) |
| Windage | +/- 6 mrad (+/- 20 MoA) |
| Adjustment resolution | 0.1 mrad or 1/4 MoA |
| Re-zero mechanism | twin setscrew |
| Parallax adjustment range | 50m to infinity |
| Crosshair illumination | LED, 11 settings |
| Battery type | DL2032 3v lithium |
| Exterior finish | Type II Anodized, matte |
| Elevation dial adjustment | |
| Double turn | 6 mrad (20 MoA) per turn |
| Environmental | |
| Waterproof: | 4 hours @ 10 meters |
| Shockproof: | 700g’s @ 10,000 cycles |
