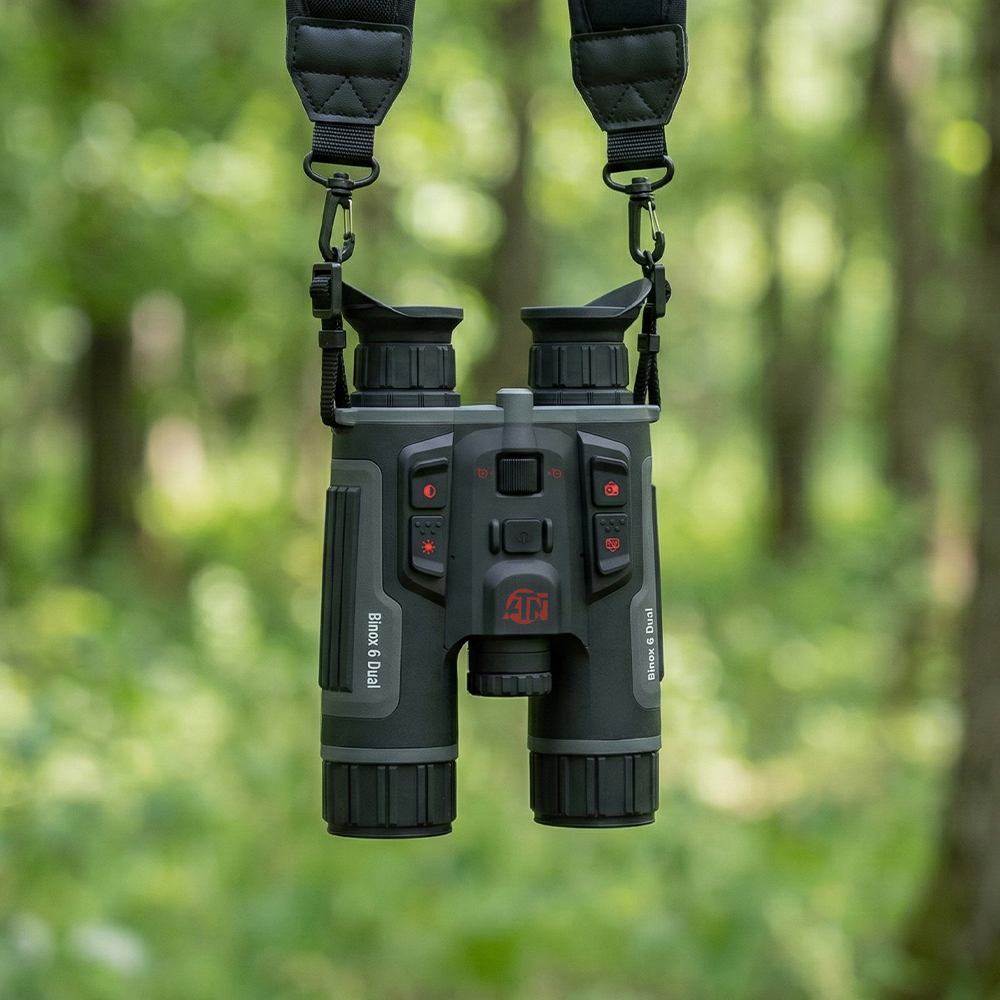

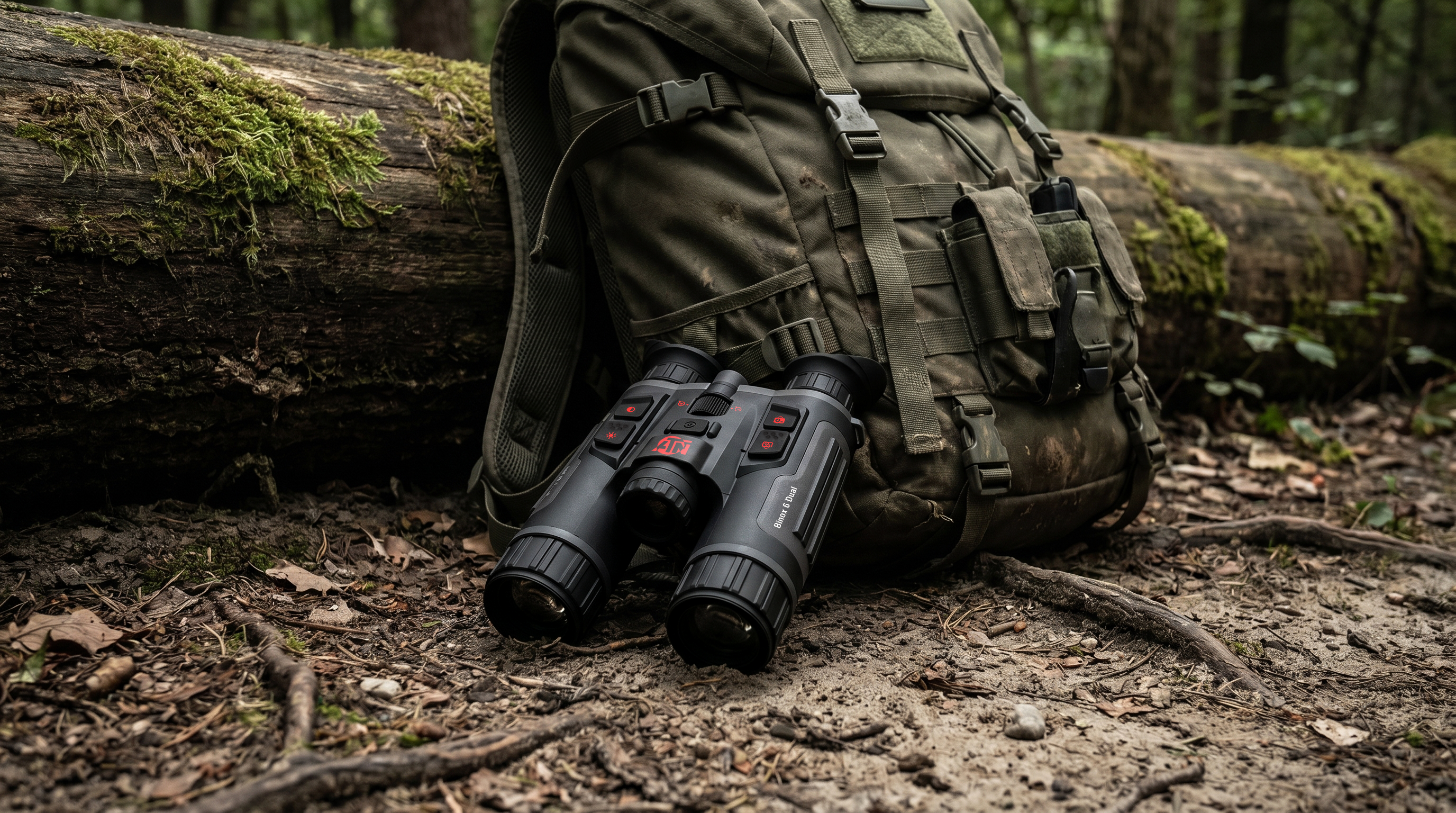

ATN Binox 6 Dual Multispectral Binoculars, Thermal 256×192 Sensor, Day/Night/Twilight 4K UHD, Built-in LRF

Stay in control with intelligent features
• 6th Generation Thermal Engine with ≤15 mK or ≤20 mK sensitivity options
• High transmission germanium lens for sharper, brighter thermal clarity
• Ultra HD 4K CMOS day sensor with IR-assisted night vision up to 350 m
• ATN SharpIR AI-enhanced imaging for dynamic edge and contrast improvement
• Dual-View Switching for instant mode transitions between thermal, day, and night
• Integrated 1,000-yard laser rangefinder for accurate distance measurement
• Hot Point Tracking for quick target acquisition
• Wide Dynamic Range processing for enhanced visibility in complex scenes
• Multiple color palettes for personalized viewing and reduced eye fatigue
• Onboard 4K and 1080p recording with 64 GB internal storage
• Built-in Wi-Fi for live streaming and mobile connectivity
• Smart IR and DeFOG modes for adaptive lighting and visibility control
• Rugged magnesium housing with IP67 protection and tripod mount compatibility
• Dual replaceable 18650 batteries for up to 8 hours of field operation

Included Accessories: Binox 6 Dual, Portable Bag, 2 × 18650 Batteries, Data Cable, Neck Strap, Lens Cloth, Quick Reference Guide, Lens Caps, Battery Charger

-10%

Original price was: $1,695.Current price is: $1,525.50.
SKU: MSBNB6225A

Did you know?

Financing options are available at checkout!

Description

Engineered for professionals and enthusiasts who demand complete situational awareness in any light, the ATN Binox 6 Dual combines advanced thermal and digital imaging technologies into one compact, powerful platform. Whether glassing ridgelines at dawn, scanning for heat signatures at night, or coordinating rescue efforts in fog and darkness, it delivers uncompromised clarity and control.

At its core is ATN’s 6th Generation Thermal Engine, the most powerful ever built. Featuring a 12 μm VOx sensor available in 256×192 (≤20 mK), 384×288 (≤15 mK), or 640×512 (≤15 mK) configurations, it provides exceptional thermal precision and detection performance. A high-transmission germanium lens and Wide Dynamic Range processing work together to reveal subtle heat signatures even in dense brush, smoke, or low-contrast conditions.

By day, the 1.8-inch 4K CMOS sensor delivers vibrant, ultra-high-definition color imaging with detail that rivals professional cameras. When the light fades, the built-in IR illuminator extends visibility up to 350 meters, keeping every detail visible while maintaining stealth.

For versatility, the Binox 6 Dual includes Dual-View Switching technology, allowing seamless transition between thermal, daytime, and night vision modes. Hunters can track movement across terrain while maintaining situational context, and search-and-rescue or tactical teams can detect, identify, and engage with speed and accuracy in all conditions.

Powered by ATN SharpIR, the Binox 6 Dual uses AI-enhanced imaging to sharpen detail, boost contrast, and enhance edge definition in real time. Combined with a 0.49-inch 1920×1080 OLED display running at a smooth 50 Hz refresh rate, users get lifelike motion and reduced eye fatigue even during extended observation.

A built-in 1,000-yard laser rangefinder (±1 m) provides precise distance data, enabling hunters to make confident shots, SAR teams to relay accurate coordinates, and law enforcement to establish perimeters or assess targets.

With onboard 64 GB internal storage, 4K daytime and 1080p thermal recording, and Wi-Fi connectivity, the Binox 6 Dual allows seamless capture, playback, and sharing through the ATN Connect 6 app. Advanced features like Hot Point Tracking, Smart IR, DeFOG Mode, and Step+Smooth Zoom deliver unmatched adaptability in changing environments.

Built from lightweight magnesium alloy, the Binox 6 Dual weighs under 1.62 lbs yet withstands impact, dust, and weather with IP67-rated durability. Powered by dual 18650 rechargeable batteries with up to 8 hours of runtime, it is as reliable as it is intelligent.

Lightweight, durable, and equipped with the most advanced imaging technologies available, the Binox 6 Dual gives hunters, professionals, and tactical operators the power to see farther, react faster, and perform with total confidence.

See beyond limits. Day or night.

Specifications

Category Specification Details
THERMAL PERFORMANCE & IMAGE CLARITY 6th Generation Thermal Engine Powered by ATN’s latest 12 mm VOx core, the Binox 6 Dual offers ≤20 mK or ≤15 mK NETD sensitivity for sharp thermal imaging and consistent detection across any environment.
ATN SharpIR AI Technology Proprietary AI processing enhances contrast and definition, revealing fine details in fog, smoke, or cluttered terrain for faster identification and smarter decisions.
Wide Dynamic Range (WDR) Balances hot and cool areas in every scene, preserving detail and preventing image washout in mixed-temperature environments.
RANGEFINDING & PRECISION TOOLS Dual-View Switching View thermal and visual imaging side by side or switch instantly between them for complete situational awareness.
EASE OF USE & CONTROL Adjustable Eyepieces Customizable interpupillary distance and eye relief ensure comfort and precision for every user.
Step+Smooth Zoom Provides flexible magnification control for close inspection or long-range tracking.

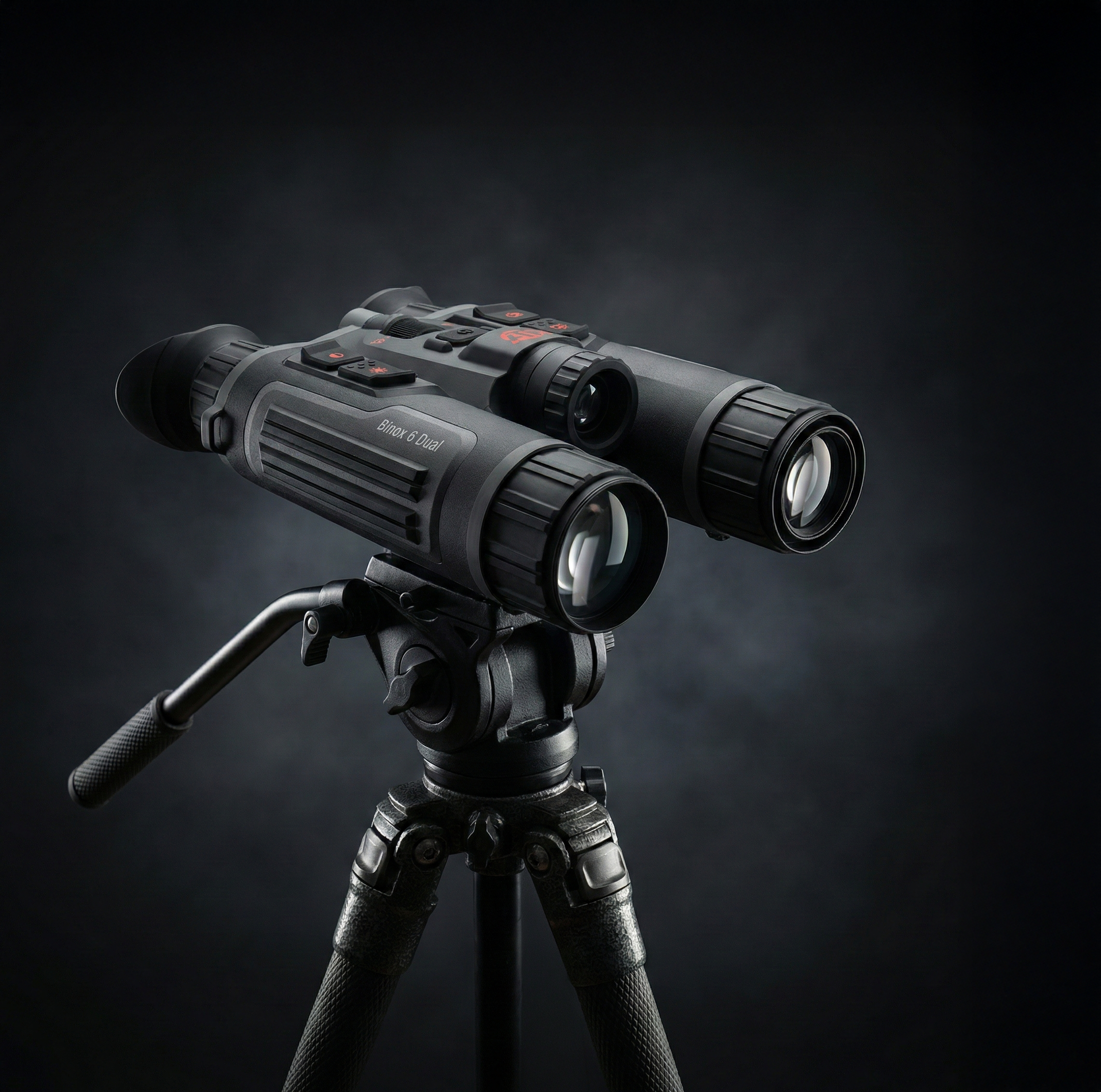

FIELD-READY DESIGN Tripod Mount Compatibility Adds stability for extended observation or long surveillance sessions.
THERMAL IMAGING SYSTEM Detector Type 12 mm VOx Uncooled Focal Plane Array
Thermal Sensor Resolution 256×192
Refresh Rate 50 Hz
Thermal Sensitivity (NETD) ≤20 mK
SharpIR(c) Yes
Non-Uniformity Correction (NUC) Auto / Semi Auto / Manual
Thermal Lens System 25 mm; F/0.9
Thermal Field of View (HxV) 7.0° x 5.3°
Focus Mechanism Manual, Front Lens Adjustment
Magnification 6-48x
Digital Zoom 1x, 2x, 4x, 8x
Minimum Focus Distance 3 m
Detection Range 1500 m
Color Palettes White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
Wide Dynamic Range Yes
DAY / NIGHT VISION SYSTEM Day/Night Sensor Type 1/1.8″ CMOS Sensor
Sensor Resolution 3840×2160 Ultra HD (4K)
Day Lens System 55 mm; F/2.0
Day Lens Field of View (HxV) 8.0° x 4.5°
Magnification 5.5-44x
Night Vision Mode Yes
Twilight Mode Yes
Smart IR Yes
IR Illuminator Yes
IR Settings Low, Medium, High
IR Wavelength 850 nm / 940 nm
Replaceable IR Illuminator Yes
Effective Distance at Night 400 m
RANGEFINDING & TARGETING LRF Range 1000 m
LRF Accuracy ±1 m
LRF Laser Specs 905 nm, Class 1 (Eye Safe)
DISPLAY & VIEWING Display Resolution 0.49″ OLED, 1920×1080
Exit Pupil 20 mm
Eye Relief 15 mm
Diopter Adjustment Range -5 to +5 D
Interpupillary Adjustment Range 60-74 mm
Picture-in-Picture (PIP) Yes
RECORDING & CONNECTIVITY Internal Storage 64 GB
Video / Audio Recording Yes
Image Capture Yes
Internal Gallery Yes
Recoil Activated Video (RAV) Yes
Built-in Wi-Fi (Hotspot) Yes
App ATN Connect 6 (iOS & Android)
Media Output USB Type-C
SMART FEATURES Geomagnetic + Gyroscope Yes
GPS Yes
Compass Yes
DeFog Yes
Hot Point Tracking Yes
POWER SYSTEM Battery 2 × 18650 Rechargeable (Replaceable)
Battery Life ~8 hrs
Supports External Power Supply Yes (USB Type-C 5 VDC / 2 A)
Standby / Sleep Mode Yes
Startup Time <7 seconds (instant from Standby)
DESIGN & DURABILITY Material Magnesium Alloy
Weight 710 g / 1.56 lbs
Dimensions (L×W×H) 210×184.5×55 mm (8.27×7.26×2.17 in)
Mounting Standard Tripod Mount
Operating Temperature -30°C to +55°C (-22°F to 131°F)
Waterproof / IP Rating IP67



Technical Specs

Attributes Value
Weight 1.56 lbs
Is Accessory

No

Refresh Rate

Sensor Resolution

Warranty

Color

Black

Condition

New

Lens Diameter
